Teradek Antenna Array for Ranger 4K 4.9-7.3 GHz (Gold Mount)
Product Overview

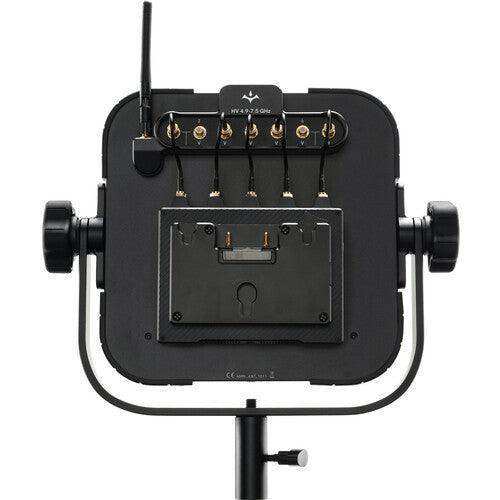

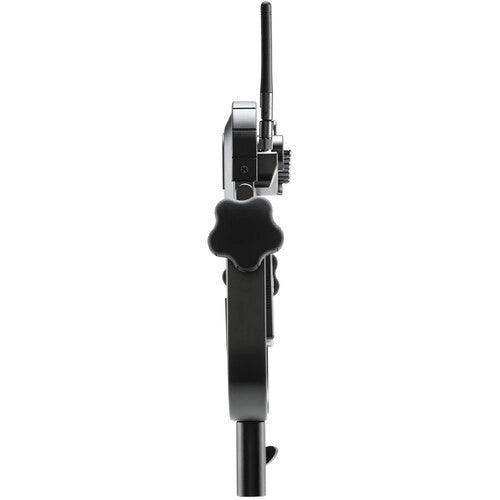

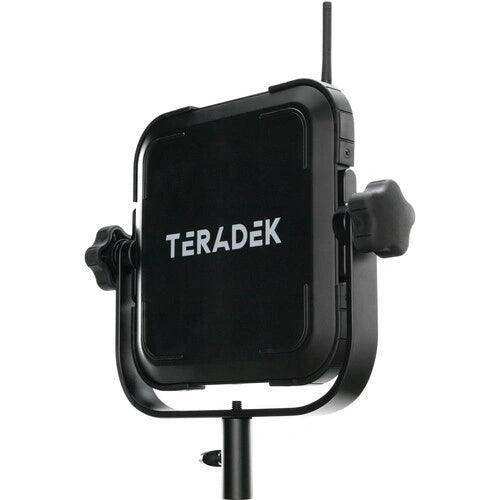

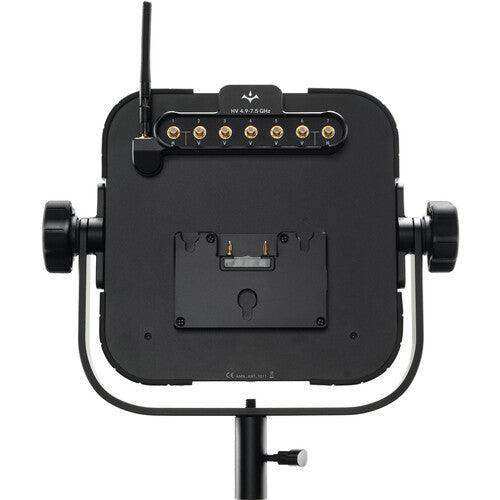

The Teradek Antenna Array for Ranger 4K (Gold Mount) is a directional panel antenna array designed to extend the wireless range of the Teradek Ranger 4K system to up to 5,000 feet line of sight across the 4.9–7.3 GHz frequency band. The Gold Mount battery plate on the antenna array powers the unit via Anton/Bauer-compatible professional batteries, enabling extended-range deployments at video village, remote monitor positions, or base camp without DC cabling.
Product Description
The Ranger 4K Antenna Array Gold Mount provides a high-gain directional panel antenna system that replaces standard antennas on the Ranger 4K receiver, focusing the receive pattern toward the transmitter to significantly extend usable range to 5,000 feet. The array operates across 4.9–7.3 GHz to accommodate the Ranger 4K’s operating frequencies. The Gold Mount battery plate enables battery-powered operation at remote positions. This antenna array is designed specifically for the Ranger 4K system and is compatible with the Gold Mount and V-Mount RX units.
Key Features
- Extends Ranger 4K Range to 5,000 ft — Directional panel antenna system for long-distance wireless video.
- 4.9–7.3 GHz Operation — Covers the full Ranger 4K operating frequency range.
- Gold Mount Battery Plate — Integrated for battery-powered remote antenna deployment.
- Designed for Ranger 4K — Purpose-built for the Ranger 4K receiver system.
- Directional High-Gain Design — Focused receive pattern for maximum range extension.
Technical Specifications
| Specification | Value |
|---|---|
| Compatible System | Teradek Ranger 4K |
| Extended Range | Up to 5,000 ft line of sight |
| Frequency Range | 4.9–7.3 GHz |
| Battery Mount | Gold Mount |
| Antenna Type | Directional panel array |
Frequently Asked Questions
- Is this antenna array compatible with Bolt 4K systems?
- This antenna array is designed specifically for the Ranger 4K system. For Bolt 4K long-range, see the 4K Array Panel antenna. Contact Creation Networks for guidance.
- Does the Gold Mount version differ from the V-Mount version?
- The Gold Mount version uses Anton/Bauer-style battery plates. All antenna performance specifications are identical to the V-Mount version.
- What warranty applies?
- Teradek standard limited warranty. Contact Creation Networks for support.
