ViewSonic TD3207 – 32-Inch Pen Touch FHD Display

Product Overview

The ViewSonic TD3207 is a 32-inch open frame commercial-grade touch monitor designed for 24/7 continuous operation in retail, hospitality, industrial, and public-access environments. Built around a 10-point Projected Capacitive (PCAP) touch panel with IP65-rated ingress protection, 3mm tempered glass at 7H hardness, and a 50,000-hour LED backlight, it is purpose-built for high-traffic interactive deployments where durability and uptime are critical requirements. Its open frame design with dual VESA mounting patterns supports integration into kiosks, POS enclosures, digital signage frames, and custom AV installations in portrait, landscape, or face-up orientations.

Product Description

The TD3207 delivers Full HD 1920x1080 resolution at 450 cd/m² brightness on an MVA IPS-class panel with a 3,000:1 static contrast ratio, providing clear, readable imagery in high-ambient-light commercial environments. The 10-point PCAP touch layer responds accurately to bare finger, latex glove, and thin glove inputs, making it appropriate for food service, healthcare, and industrial environments where gloved operation is required. IP65 ingress protection on the touch surface provides resistance to dust and water jets, supporting deployment in environments subject to cleaning protocols and incidental moisture. HDMI 1.4 and DisplayPort inputs connect the display to media players, PCs, or POS systems, while an RS232 serial port enables remote command and control of display functions including power, input switching, and OSD adjustments from a central management system or AV controller. A USB-B port provides the touch data connection to the host PC. The open frame chassis supports dual VESA mounting patterns at 400x200mm and 200x100mm, enabling integration into custom enclosures, kiosk frames, and wall-mount hardware for both portrait and landscape orientations. An advanced cooling system and burn-in prevention feature support continuous 24/7 operation without thermal degradation. The 50,000-hour LED backlight lifespan reduces maintenance cycles in long-term commercial deployments. ViewSonic's vTouch software driver enables full multi-touch and gesture support on macOS in addition to native Windows touch support. Dual 2W integrated speakers provide basic audio output for interactive applications and digital signage content.

Key Features

• 24/7 Continuous Operation Rating — Advanced cooling and burn-in prevention support non-stop operation in retail, hospitality, and industrial environments.

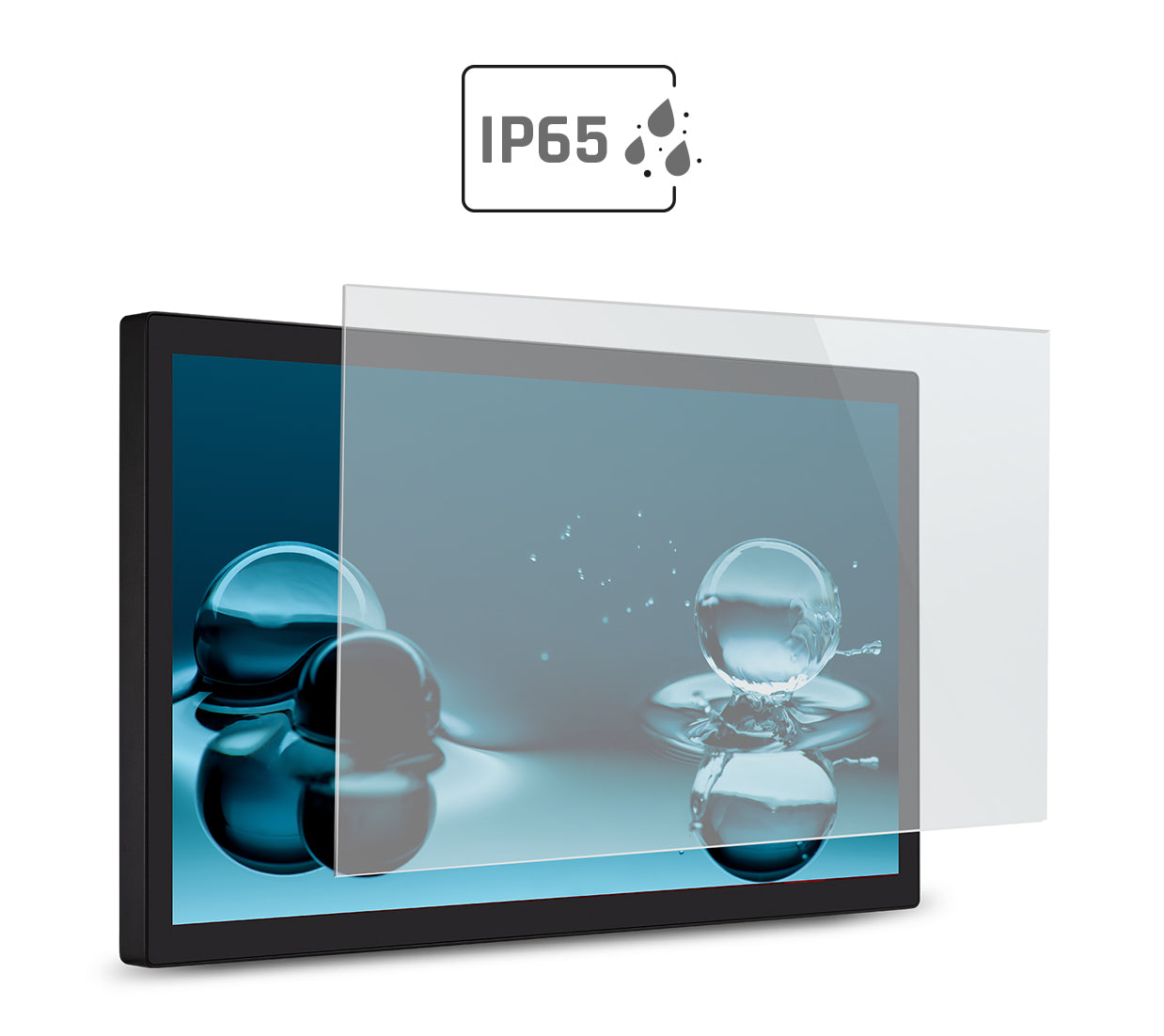

• IP65 Ingress Protection — Touch surface is rated against dust and water jets, suitable for environments subject to regular cleaning or moisture exposure.
• 10-Point PCAP Touch — Projected Capacitive technology delivers accurate, responsive multi-touch with bare finger, latex gloves, or thin gloves.
• 7H Tempered Glass (3mm) — Scratch-resistant surface withstands heavy daily use in high-traffic public-access and industrial installations.
• Open Frame Design — Integrates into kiosk enclosures, POS systems, and custom AV frames; supports portrait, landscape, and face-up orientations.

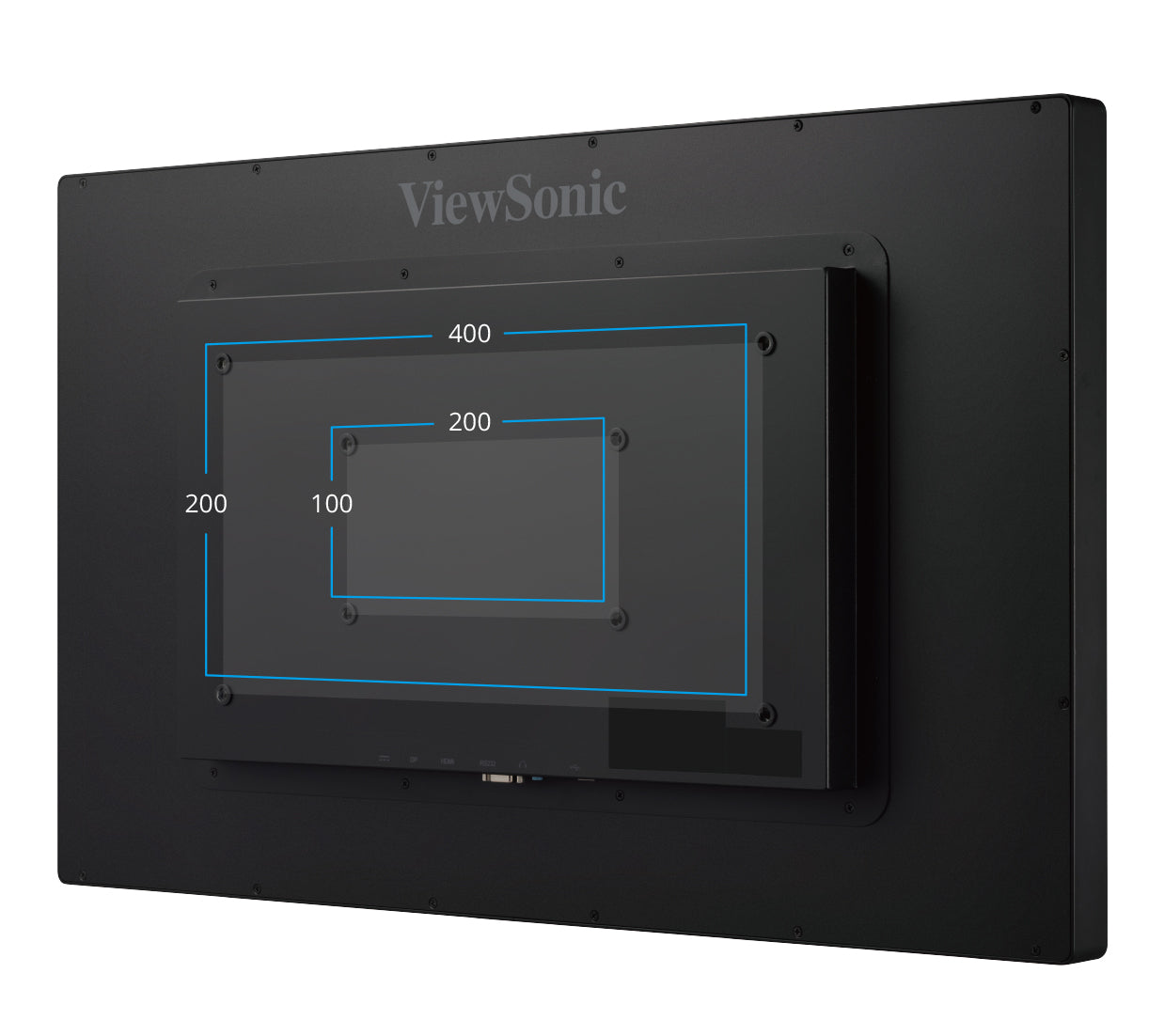

• Dual VESA Mounting — 400x200mm and 200x100mm VESA patterns accommodate a wide range of integration hardware and enclosure types.
• RS232 Serial Control — Remote command and control of display functions for AV control systems, BMS integration, and centralized device management.
• 450 cd/m² Brightness — High luminance ensures readability in well-lit commercial environments including retail floors and food service counters.
• 50,000-Hour LED Backlight — Extended backlight lifespan reduces maintenance requirements and total cost of ownership in long-term deployments.
• HDMI + DisplayPort + RS232 — Multiple connectivity options support integration with media players, POS systems, PCs, and AV control infrastructure.
• vTouch Driver for macOS — Enables multi-touch gesture support when connected to Apple Mac systems.
• ENERGY STAR / EPEAT Certified — Meets commercial procurement standards for energy efficiency and environmental lifecycle performance.

Typical Applications

• Retail point-of-sale and self-service kiosk integration requiring 24/7 touch operation and custom enclosure mounting
• Food service and hospitality ordering systems where gloved touch operation and moisture resistance are required
• Industrial and manufacturing HMI displays requiring IP65-rated durability and RS232 control integration
• Digital signage interactive displays in public spaces, lobbies, and transit environments
• Healthcare reception and patient check-in kiosks requiring durable, easy-to-clean touch surfaces
• Government and education interactive information kiosks requiring continuous operation and custom mounting

Technical Specifications

Frequently Asked Questions

The TD3207 is rated for 24/7 continuous operation. It includes an advanced cooling system and burn-in prevention circuitry specifically designed to handle non-stop use in commercial and industrial environments.

Yes. The open frame design and dual VESA mounting patterns (400x200mm and 200x100mm) are specifically intended for integration into kiosk enclosures, POS frames, and custom AV installations in portrait or landscape orientation.

The IP65 ingress protection rating applies to the touch surface of the display panel. The rating covers resistance to dust and water jets, supporting environments where the screen is regularly cleaned or exposed to incidental moisture.

Yes. The RS232 serial port enables remote command and control of display functions including power on/off, input selection, and OSD adjustments, supporting integration with Crestron, AMX, Extron, and other AV control systems.

Yes. The PCAP touch technology on the TD3207 is designed to function with latex and thin gloves, making it appropriate for food service, healthcare, and industrial deployments where staff wear hand protection.

The TD3207 includes HDMI 1.4 and DisplayPort inputs for video connection, plus a USB-B port for touch data. RS232 is available for control only, not video.

No. As an open frame display, the TD3207 does not include a stand. It is designed for integration into enclosures and custom mounting solutions via its VESA mounting patterns.
