ViewSonic TD1656-2K – 16-Inch Portable Touch 2K QHD Display

Product Overview

The ViewSonic TD1656-2K is a 16-inch portable PCAP touch monitor with a WQXGA (2560×1600) IPS display, dual 65W USB-C ports, and a magnetic smart cover that doubles as an adjustable stand. Weighing under 2 lbs and measuring less than 0.5 inches thick, it is designed for field technicians, traveling executives, and integrators who need a high-resolution secondary touch display that can be deployed at a customer site, in a conference room, or on a training room table without a dedicated power outlet. The PC Mag Editors’ Choice-winning display delivers over 4 million pixels in a 16:10 aspect ratio, complementing the native 16:10 screens found on current MacBooks and business ultrabooks.

Product Description

The TD1656-2K is built around a 2560×1600 IPS panel producing 330 cd/m² brightness and a 1,500:1 static contrast ratio, with a 50,000,000:1 dynamic contrast ratio and anti-glare 6H hardness coating. Two USB-C ports each rated at 65W provide two-way power: the display can receive power from a connected laptop, or it can pass power through to a device when the monitor itself is connected to a power bank or charger. This bidirectional power architecture eliminates the need for an additional power adapter in most deployment scenarios. The 10-point PCAP touch layer supports natural annotation, whiteboarding, and UI interaction, with a passive stylus included. A built-in G-sensor enables automatic screen rotation when the smart cover is used to pivot between landscape and portrait orientations — useful for document review and coding workflows. ViewSonic’s vDisplayManager software controls auto-rotation via toggle in the Display Portal application. Dual 2W integrated speakers provide audio for presentation and collaboration use. Three-year limited warranty with ENERGY STAR and EPEAT certifications.

Key Features

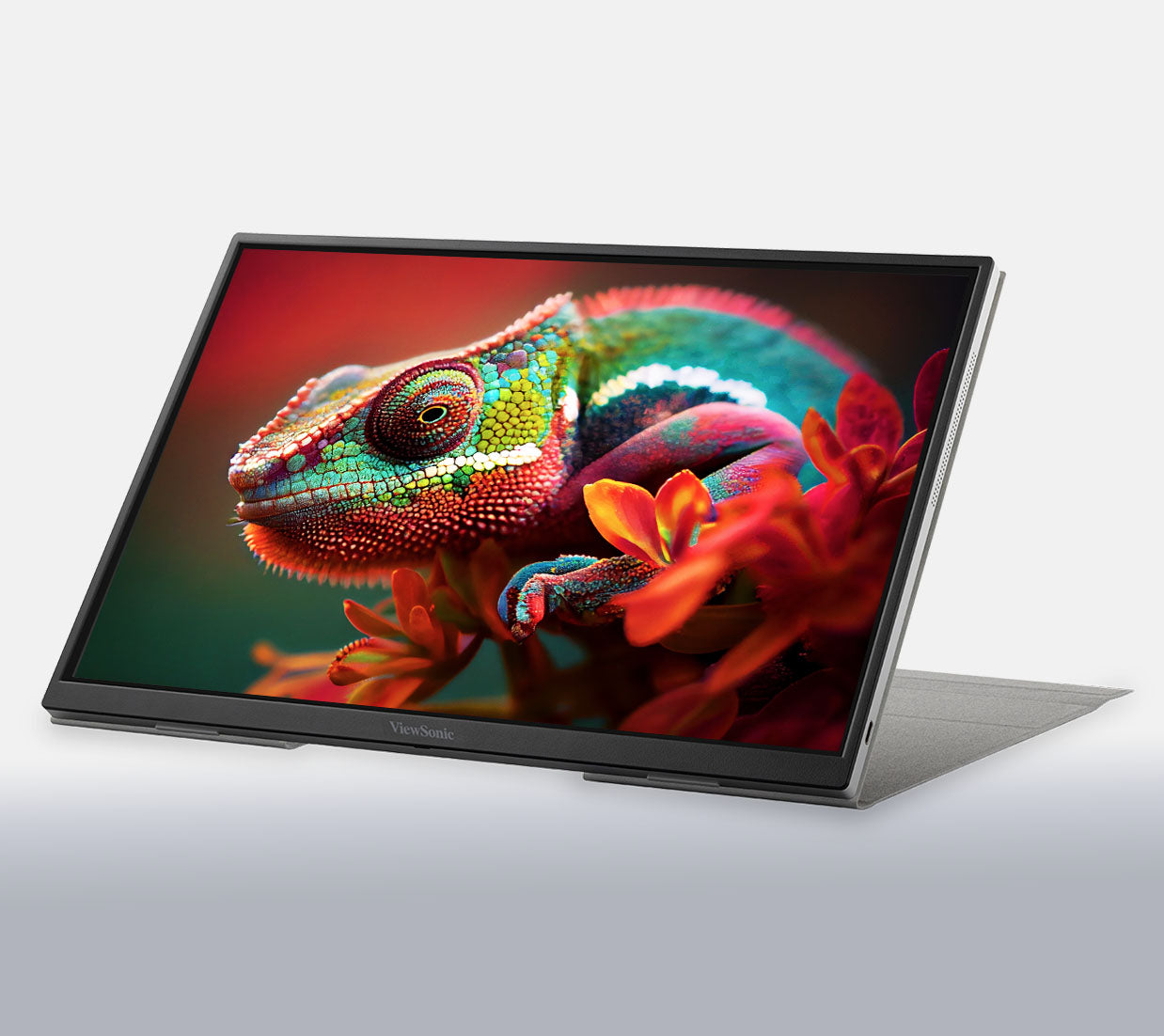

• 16" WQXGA IPS PCAP Touch Monitor — 2560×1600 resolution (16:10) delivers sharp imagery at high pixel density, complementing modern 16:10 laptops.
• Dual 65W USB-C Ports — Two-way power delivery allows the monitor to receive power from a laptop or pass power to a connected device from an external source.

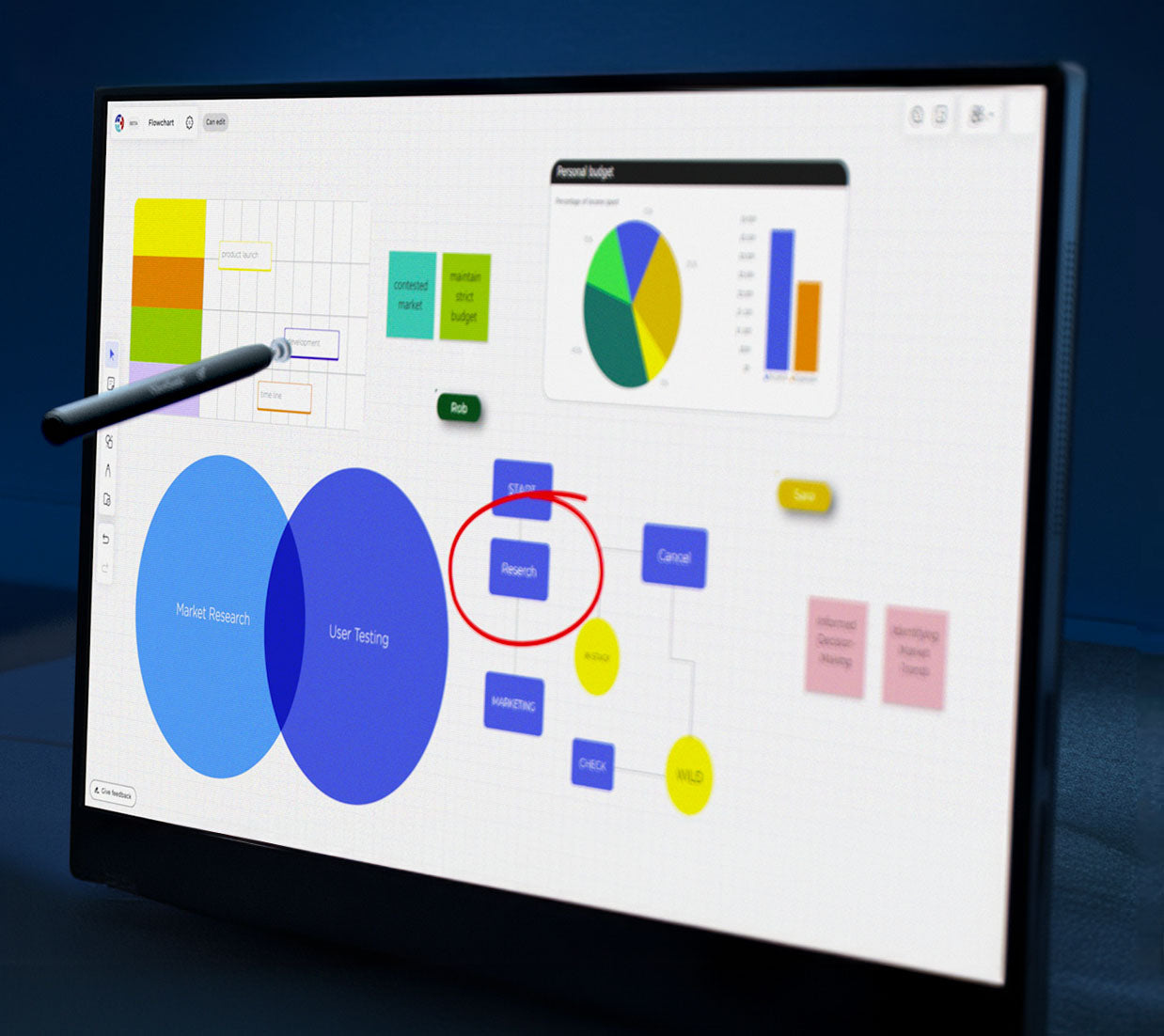

• 10-Point PCAP Touch — Supports tap, swipe, pinch, and annotation with included passive stylus.

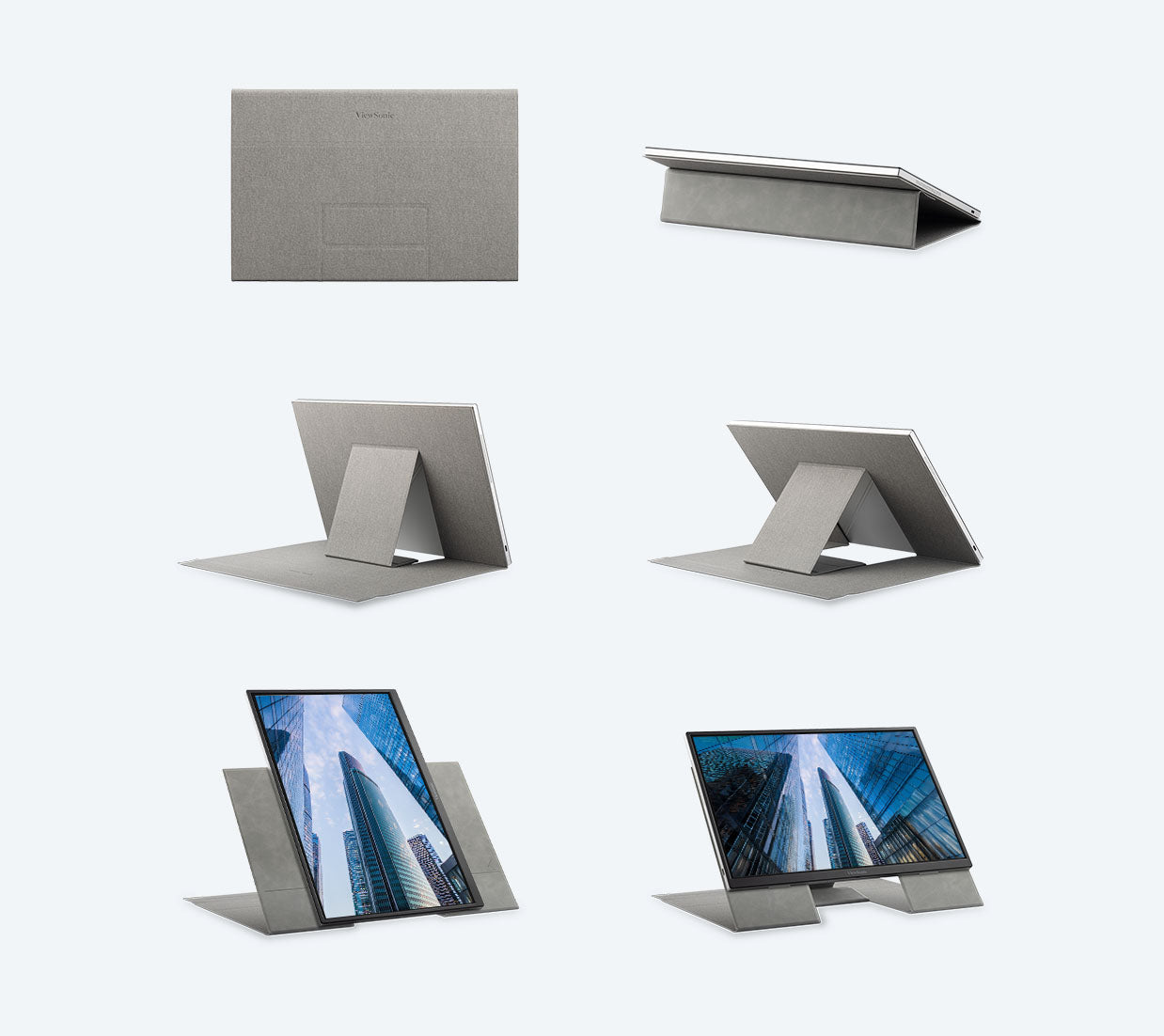

• Magnetic Smart Cover Stand — Detachable cover converts to an adjustable stand with 20°–70° tilt and 90° pivot (landscape/portrait).

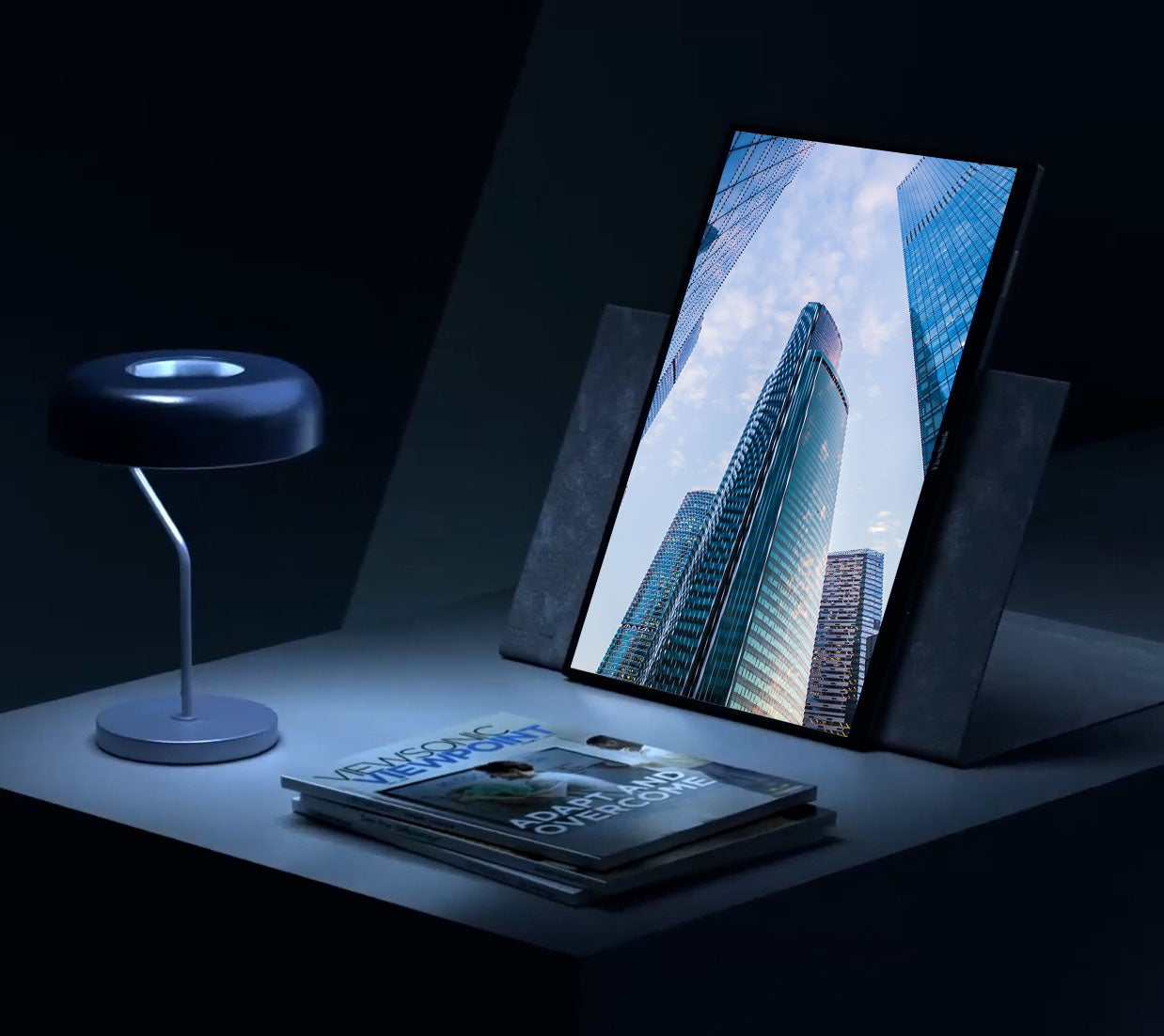

• Built-In G-Sensor Auto-Rotation — Automatically adjusts the display orientation when pivoted, via vDisplayManager software.
• 330 cd/m² Brightness — Adequate output for indoor conference rooms, training environments, and collaborative workstations.
• Ultra-Portable Form Factor — 1.8 lbs without cover, 0.39" thick — fits in a standard laptop sleeve or backpack.
• macOS Touch Support — vTouch driver enables touch on Apple Silicon and Intel Mac systems.

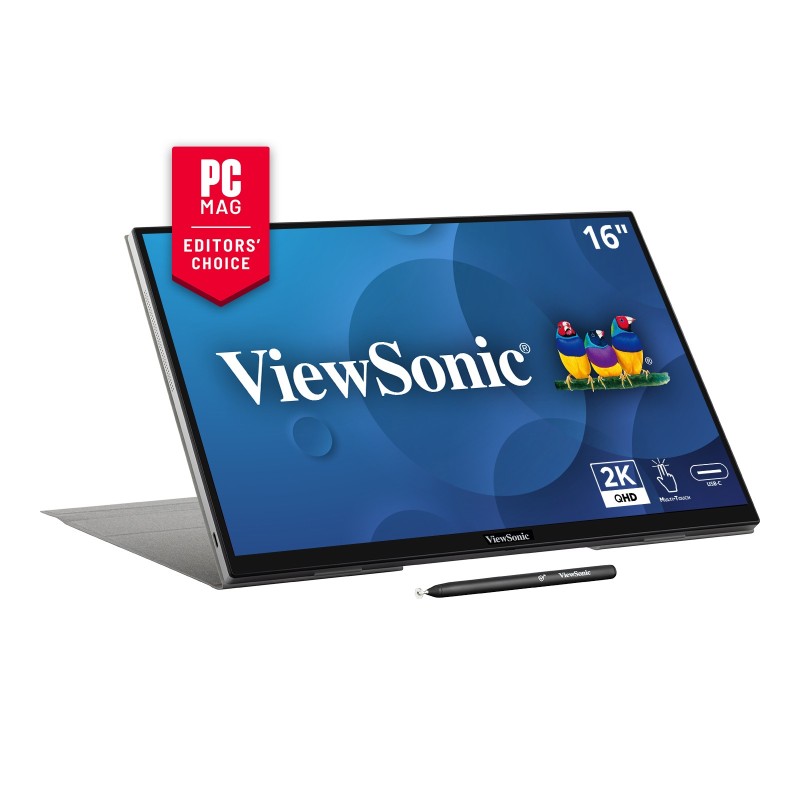

• ENERGY STAR / EPEAT Certified — PC Mag Editors’ Choice (February 2025).

Typical Applications

• Field technician portable secondary touch display
• Conference room bring-your-own-display stations
• Training room collaborative annotation workstations
• Executive portable productivity display for travel
• Boardroom presenter’s personal touch reference monitor

Technical Specifications

Frequently Asked Questions

Q: Can the TD1656-2K charge my laptop while in use?
A: When the display is connected to an external power source (such as a USB-C charger or power bank), it can pass up to 65W through to the connected laptop. When powered by the laptop only, power flows from the laptop to the display.

Q: Does it require a separate power adapter?
A: No separate adapter is required. The display draws power directly from the connected USB-C source — either the laptop or an external USB-C PD charger.

Q: What is auto-rotation and how do I enable it?
A: The built-in G-sensor detects physical orientation changes. Install ViewSonic Display Portal to access vDisplayManager, which provides a toggle to enable or disable auto-rotation when the display is pivoted between landscape and portrait.

Q: Does touch work on macOS?
A: Yes, via ViewSonic’s vTouch driver on Intel and Apple Silicon Macs. iOS and iPadOS are not supported.

Q: Is a stylus included?
A: Yes. A passive touch stylus is included in the box.

Q: What is the smart cover?
A: The smart cover is a detachable magnetic cover that attaches to the display for transit protection and folds into an adjustable stand supporting multiple tilt angles and a 90-degree portrait pivot.

Q: Is the TD1656-2K suitable as a permanent desktop secondary monitor?
A: It can serve as a permanent secondary monitor, but it is designed primarily for portable use. For a dedicated desktop secondary touch monitor, consider a TD2230 or TD2455 with a traditional stand.
