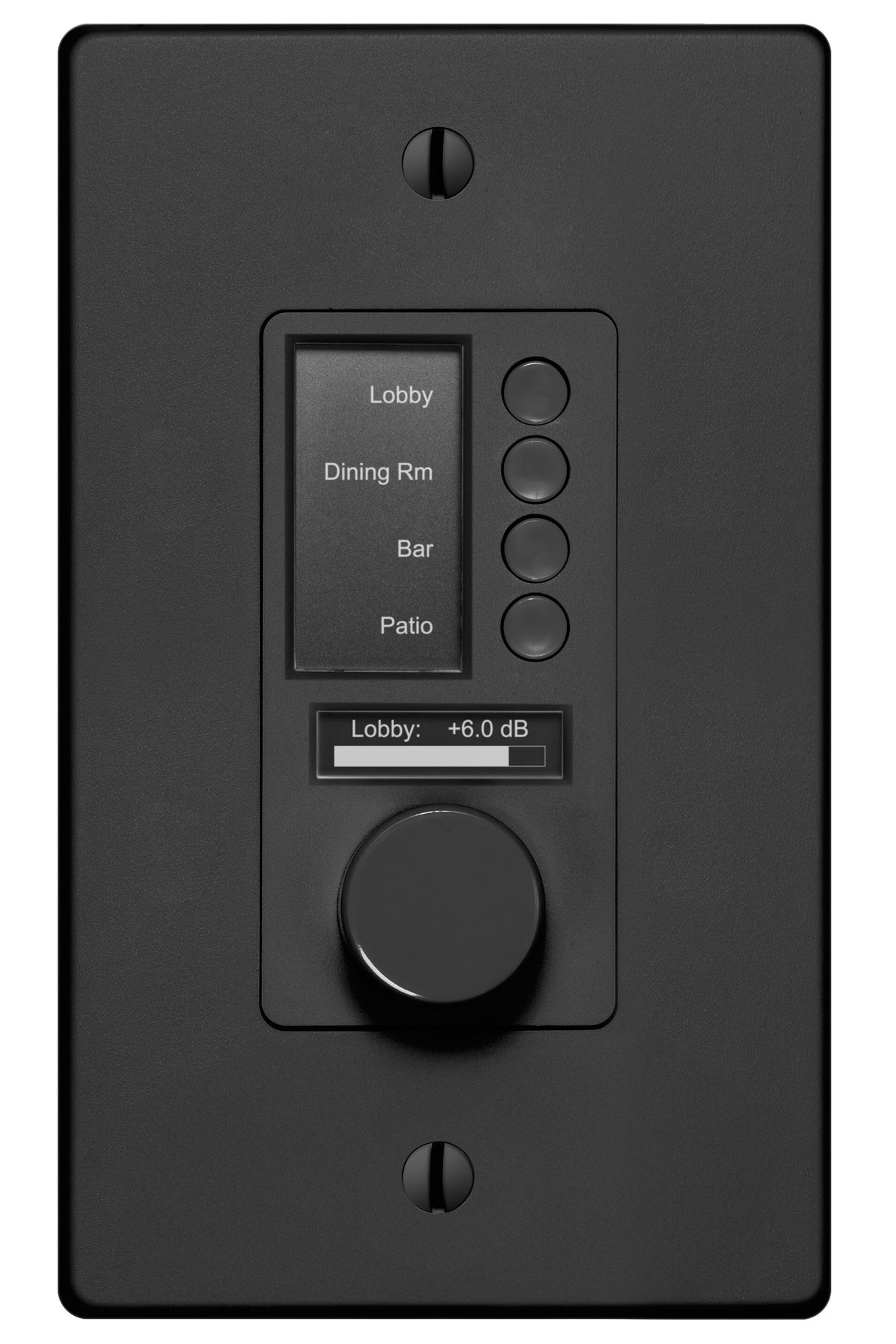

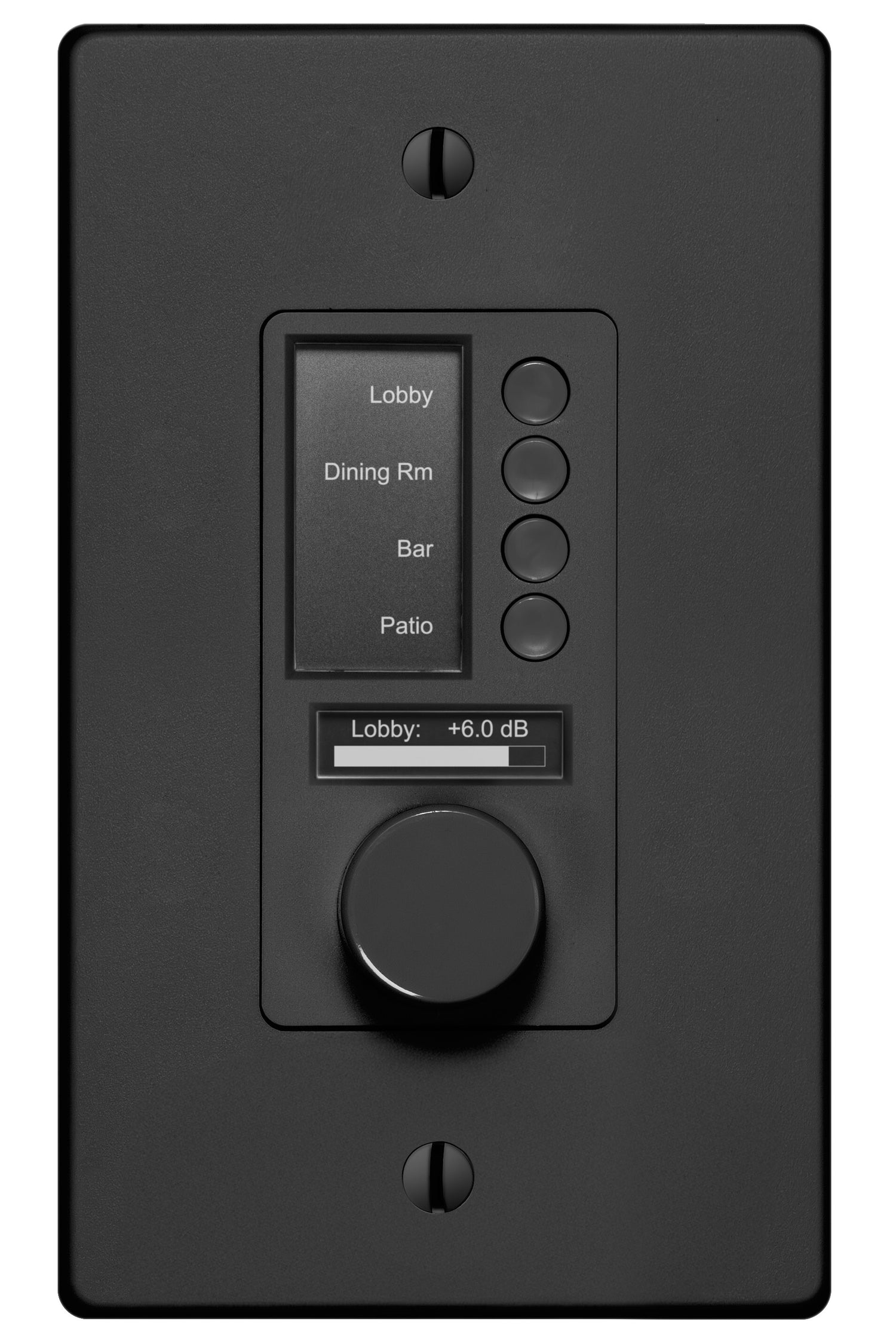

Symetrix 80-0170 W3, Black, US Standard

Product Overview

The Symetrix 80-0170 W3 is a three-function wall controller for Symetrix xIO wall plate Dante endpoints, providing volume level, source selection, and microphone mute controls in a single-gang US Decora form factor. Designed for conference rooms and commercial meeting spaces, the W3 delivers three primary room audio control functions in a compact panel. Connects via Cat cable to the xIO endpoint and is configured in Symetrix Composer. Available in black finish.

Product Description

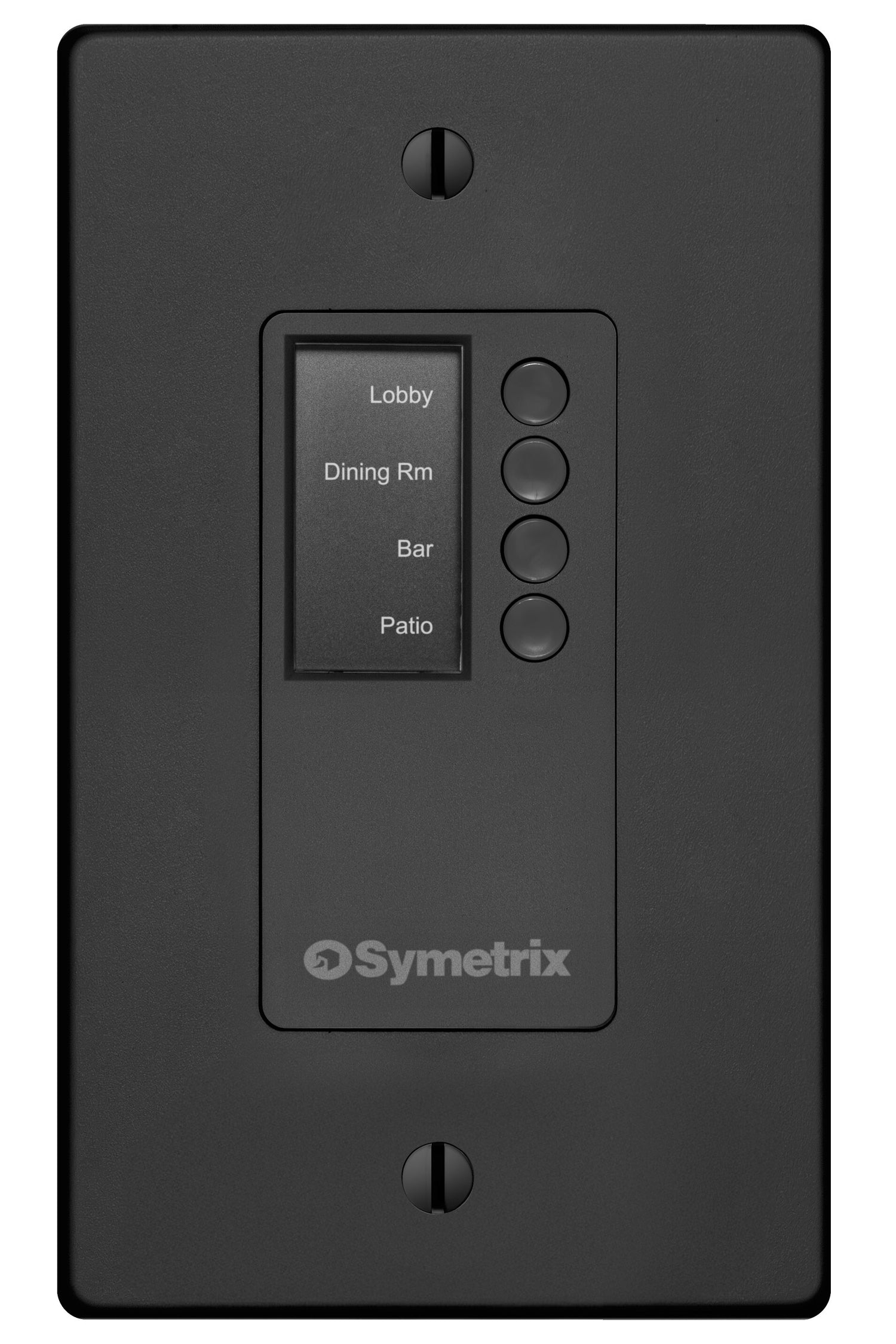

The W3 Black installs in a standard US single-gang Decora back box adjacent to the xIO wall plate endpoint. Cat cable carries power and control data. Volume, source, and mic mute controls provide immediate room audio control. The W3 is appropriate where DND is not required but source switching and mic mute are needed. For all four functions including DND, see the W4. For fewer functions, the W2 or W1 are available.

Key Features

• Three-Function Control — Volume level, source selection, and microphone mute in one panel.
• xIO Endpoint Integration — Connects to Symetrix xIO wall plate endpoints via Cat cable.
• Cat Cable Connection — Power and control over a single Cat cable.
• Decora Single-Gang US Form Factor — Standard US single-gang installation.
• Symetrix Composer Integration — Configured in Composer with the xIO endpoint and DSP.
• Black Finish — Coordinates with dark-finish Decora wall plates.

Typical Applications

• Conference room three-function xIO wall controller
• Boardroom volume/source/mute control panel
• Huddle room audio wall control
• Commercial meeting space xIO companion controller

Technical Specifications

Frequently Asked Questions

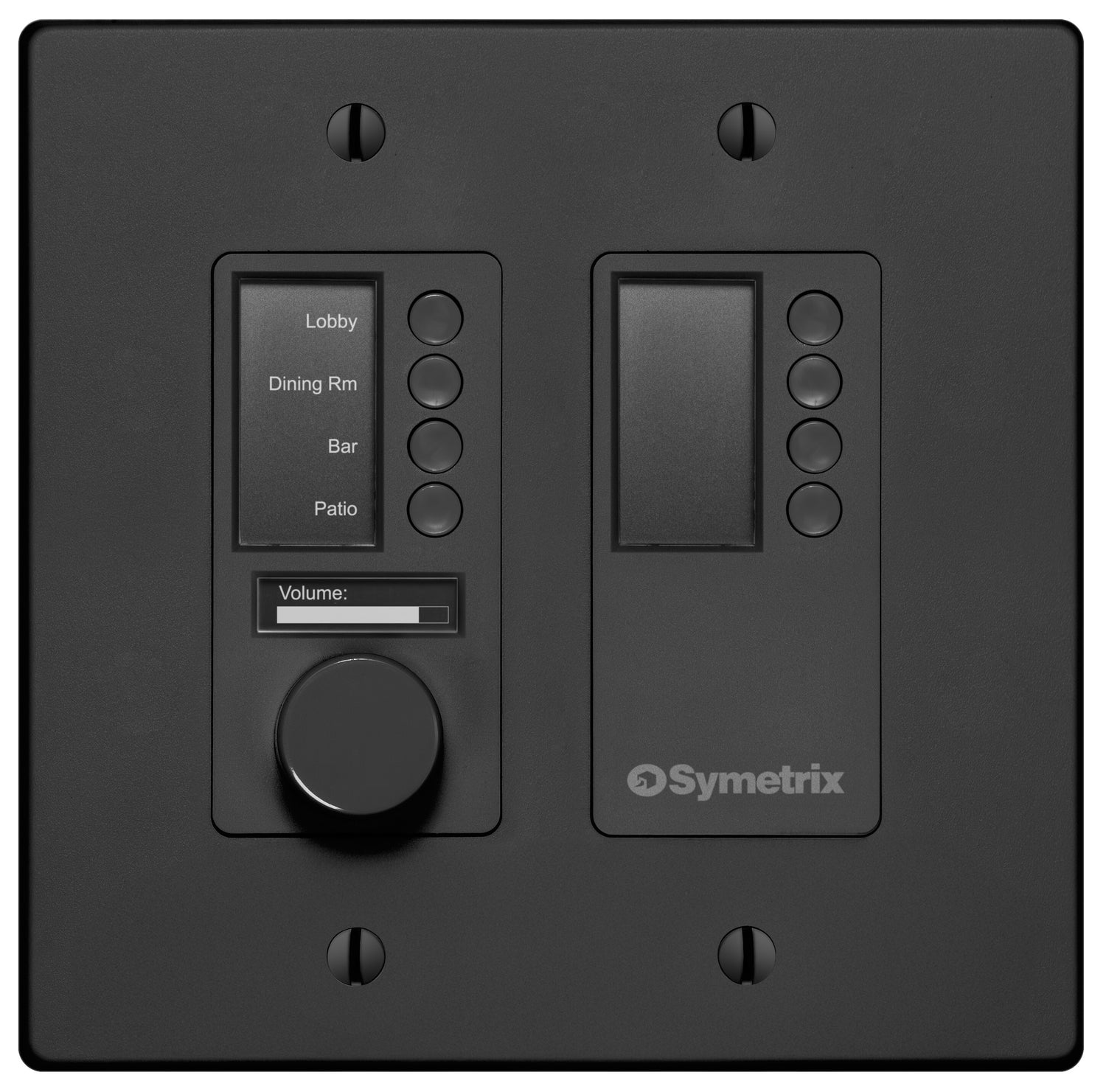

Q: What is the difference between W3 and W4?

A: W4 adds DND. W3 has volume, source, and mic mute only.

Q: Does the W3 require a separate power supply?

A: Power via Cat cable to xIO endpoint. No separate supply needed.

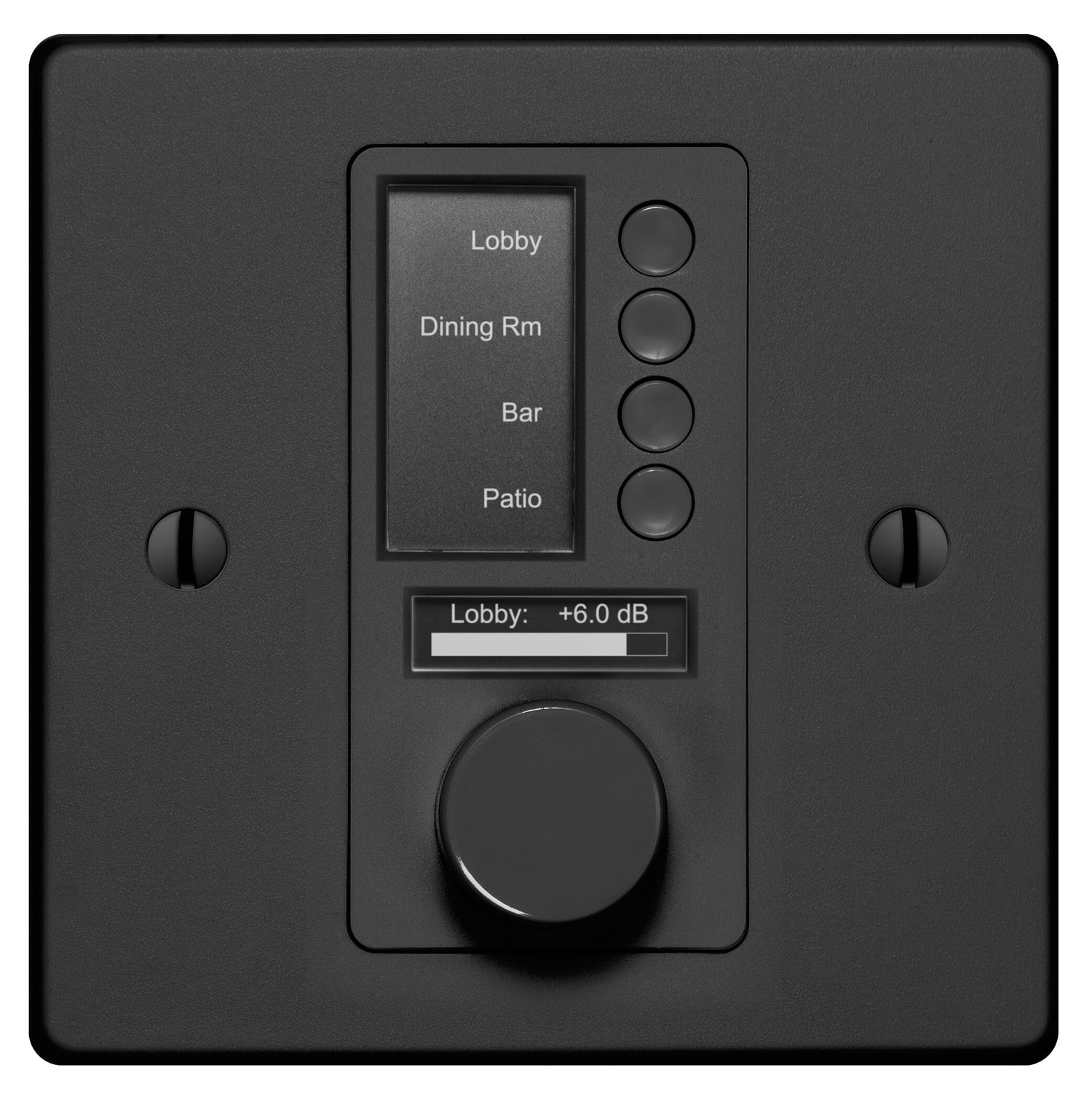

Q: Is a Euro version available?

A: Yes. See 80-0180 (White Euro) and 80-0179 (Black Euro).
