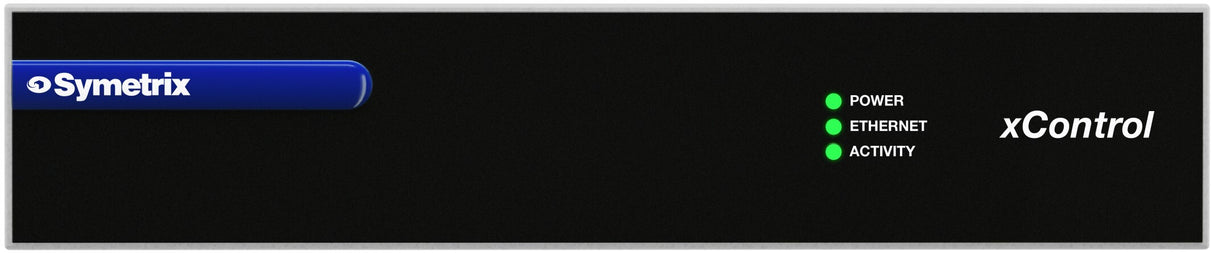

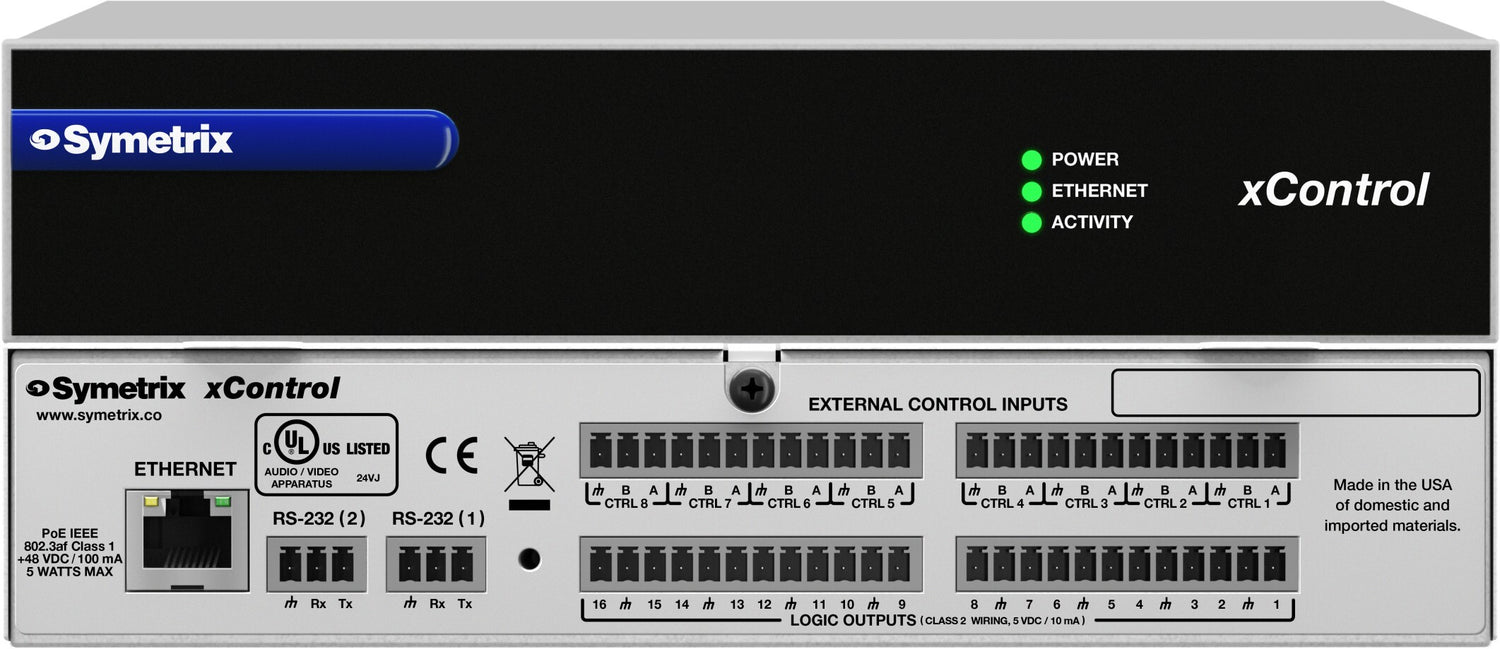

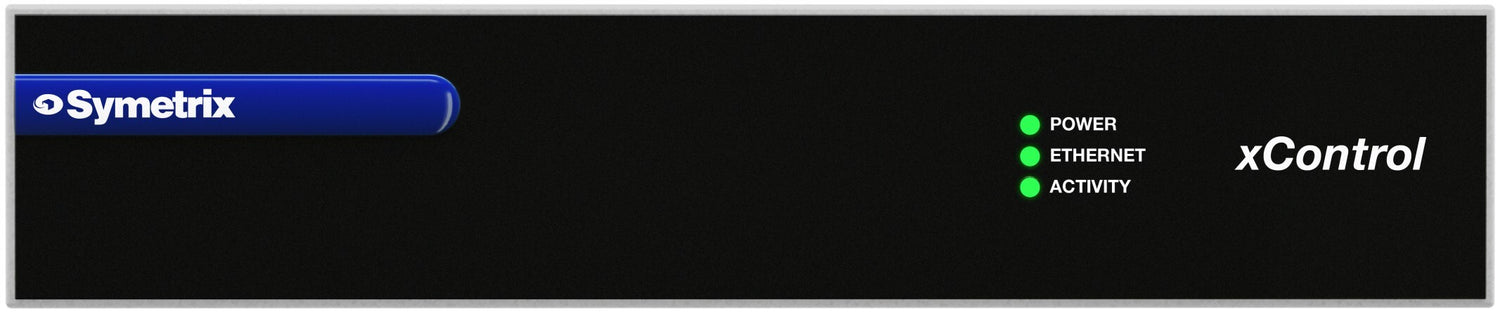

Symetrix 80-0089 xControl

Product Overview

The Symetrix 80-0089 xControl is an I/O control interface for Symetrix AV systems, providing 8 flexible analog control inputs and 16 logic outputs for GPIO (general purpose input/output) expansion of Symetrix DSP installations. It connects to the Symetrix DSP over Ethernet, accepts PoE power (IEEE 802.3af), and is configured in Symetrix Composer. The xControl enables integration between Symetrix DSPs and external control systems, occupancy sensors, contact closure devices, LEDs, relays, and physical hardware controls that are not served by the ARC or W-Series wall panel families.

Product Description

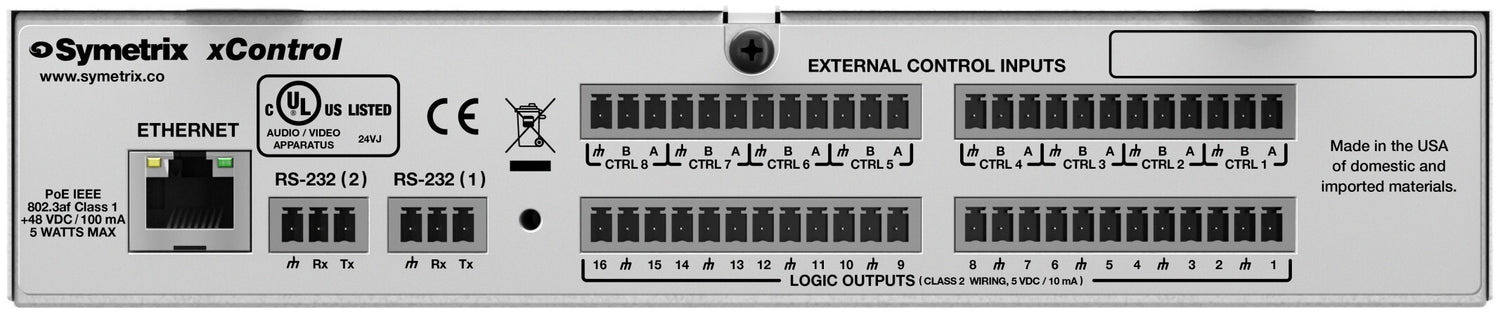

Each of the eight flexible analog control inputs on the xControl can be individually configured for either one potentiometer or two switch inputs — providing up to 8 pot controls or up to 16 switch inputs depending on configuration. The 16 logic outputs can drive LEDs, trigger external relays, or activate contact closure ports on third-party control systems or AV devices. This makes the xControl suited for lighting integration, external relay triggering, occupancy-based DSP automation, and integration with building management or room scheduling systems. It connects to the Symetrix DSP over 10/100 Base-T Ethernet and is fully configured in Symetrix Composer within the overall DSP site file. Compatible with EDGE, Radius NX, Prism, and Server D100.

Key Features

• 8 Analog Control Inputs — Each configurable for 1 potentiometer or 2 switch inputs (up to 16 switches total).
• 16 Logic Outputs — Drive LEDs, external relays, or contact closure ports on third-party systems.

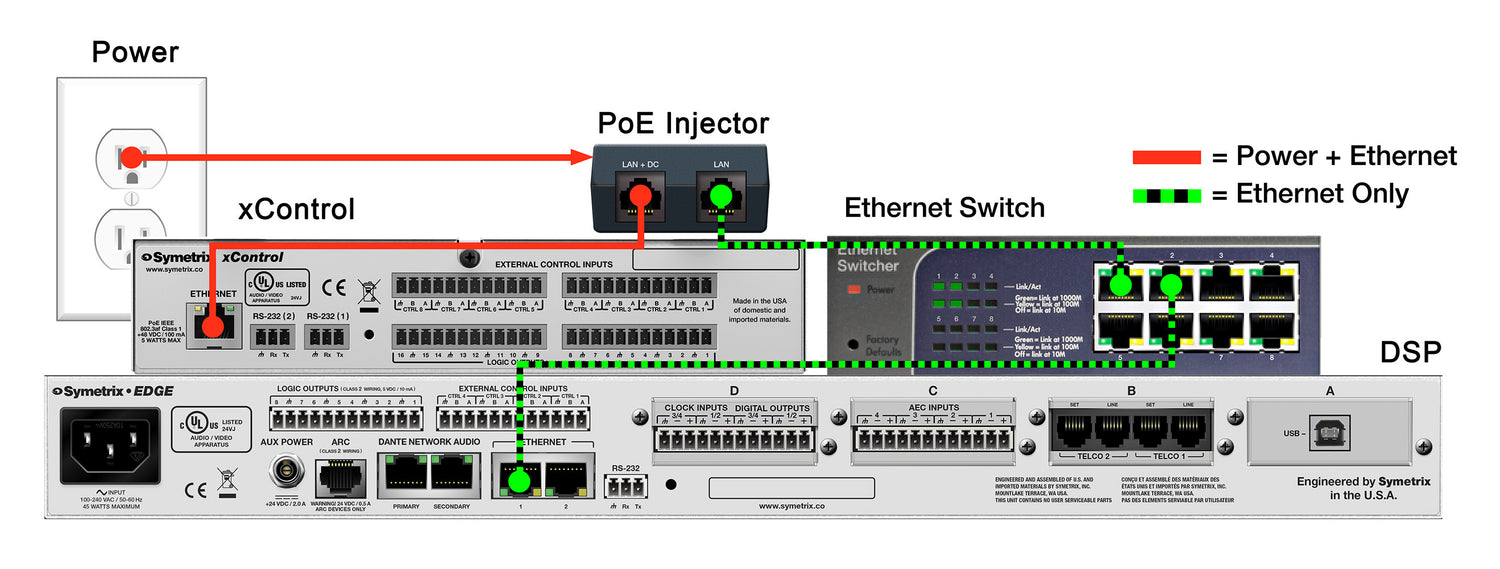

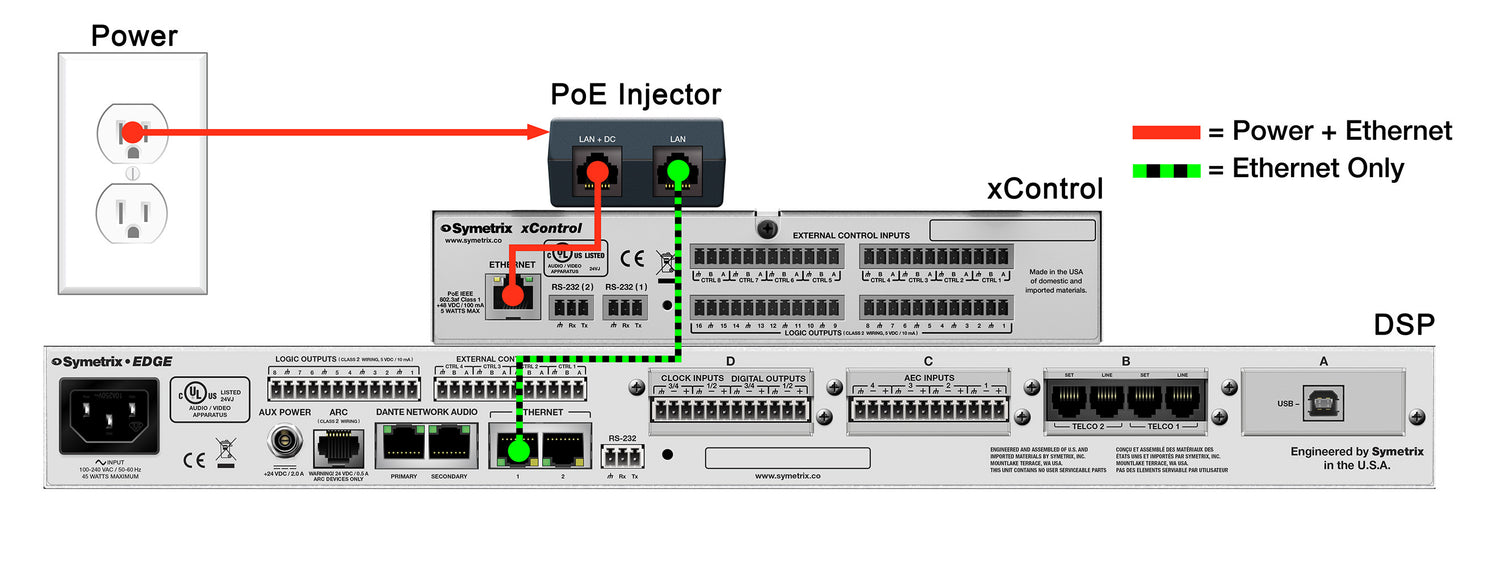

• PoE IEEE 802.3af Class 1 — Single Cat cable for power and network; no separate power supply.
• 10/100 Ethernet — IP-connected control expansion; no RS-485 wiring required.
• Composer Programmable — All input/output assignments configured in Symetrix Composer.
• Compatible with Radius, EDGE, Prism, Server D100 — Extends GPIO capability to all current Symetrix open-architecture DSPs.

Typical Applications

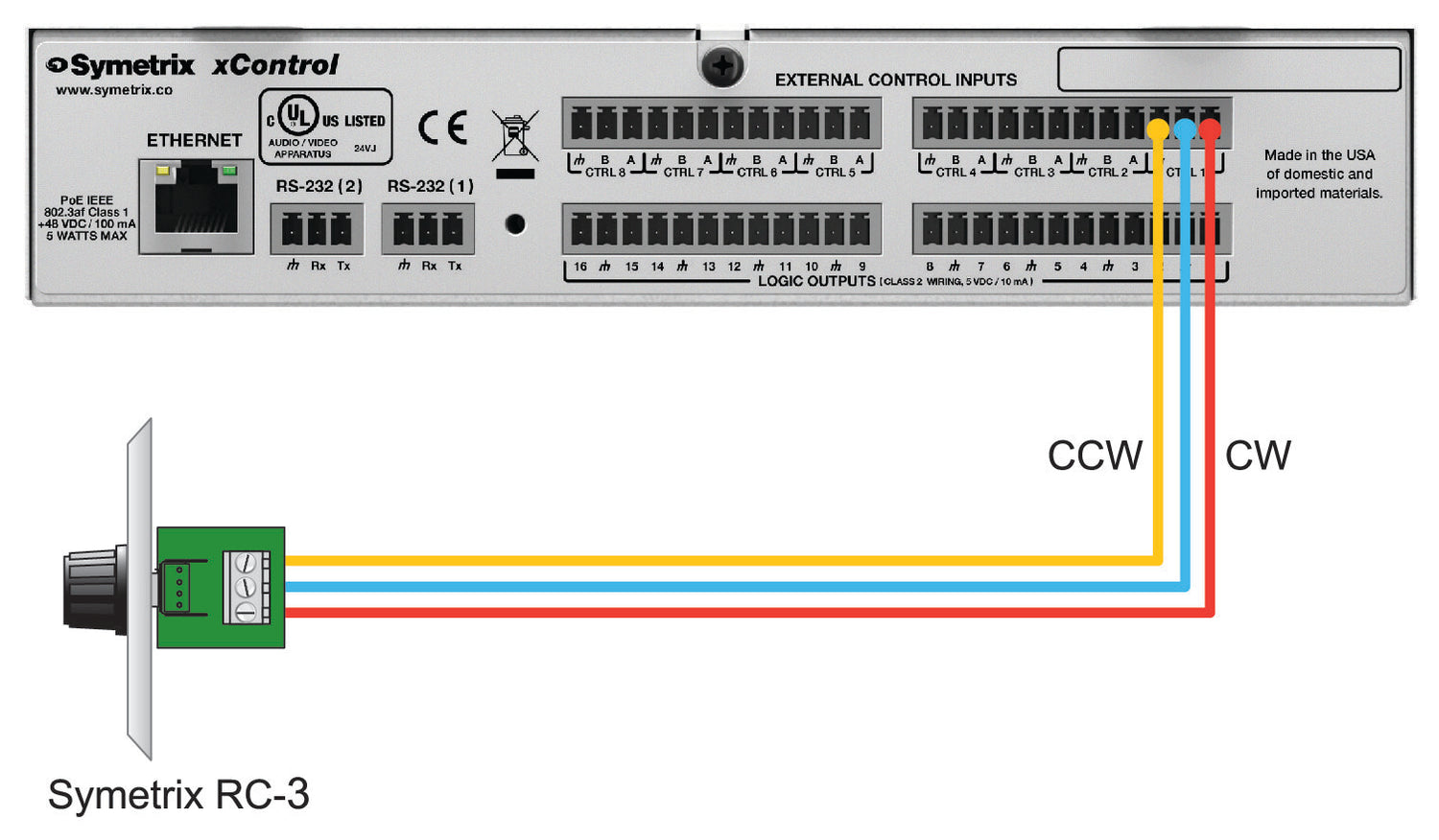

• Integrating external potentiometers or rotary controls with a Symetrix DSP
• Triggering relay outputs for lighting control, AV muting, or system automation
• Connecting occupancy sensors or door contact closures to DSP preset automation
• GPIO interface between Symetrix DSP and third-party control systems (AMX, Crestron, etc.)
• Physical button or switch input expansion beyond ARC and W-Series panels

Technical Specifications

Frequently Asked Questions

How many xControl units can be connected to one Symetrix DSP?

Multiple xControl units can be used in a single Symetrix installation. Contact Creation Networks or consult Symetrix Composer documentation for per-DSP xControl instance limits.

Can the xControl be used with the Jupiter or Zone Mix 761?

The xControl is designed for use with Radius NX, EDGE, Prism, and Server D100. Jupiter and Zone Mix 761 have their own GPIO provisions. Contact Creation Networks to confirm compatibility with specific DSP models.
