Soundcraft EFX12 – 12-Channel Analog Mixer with Lexicon Effects

Product Overview

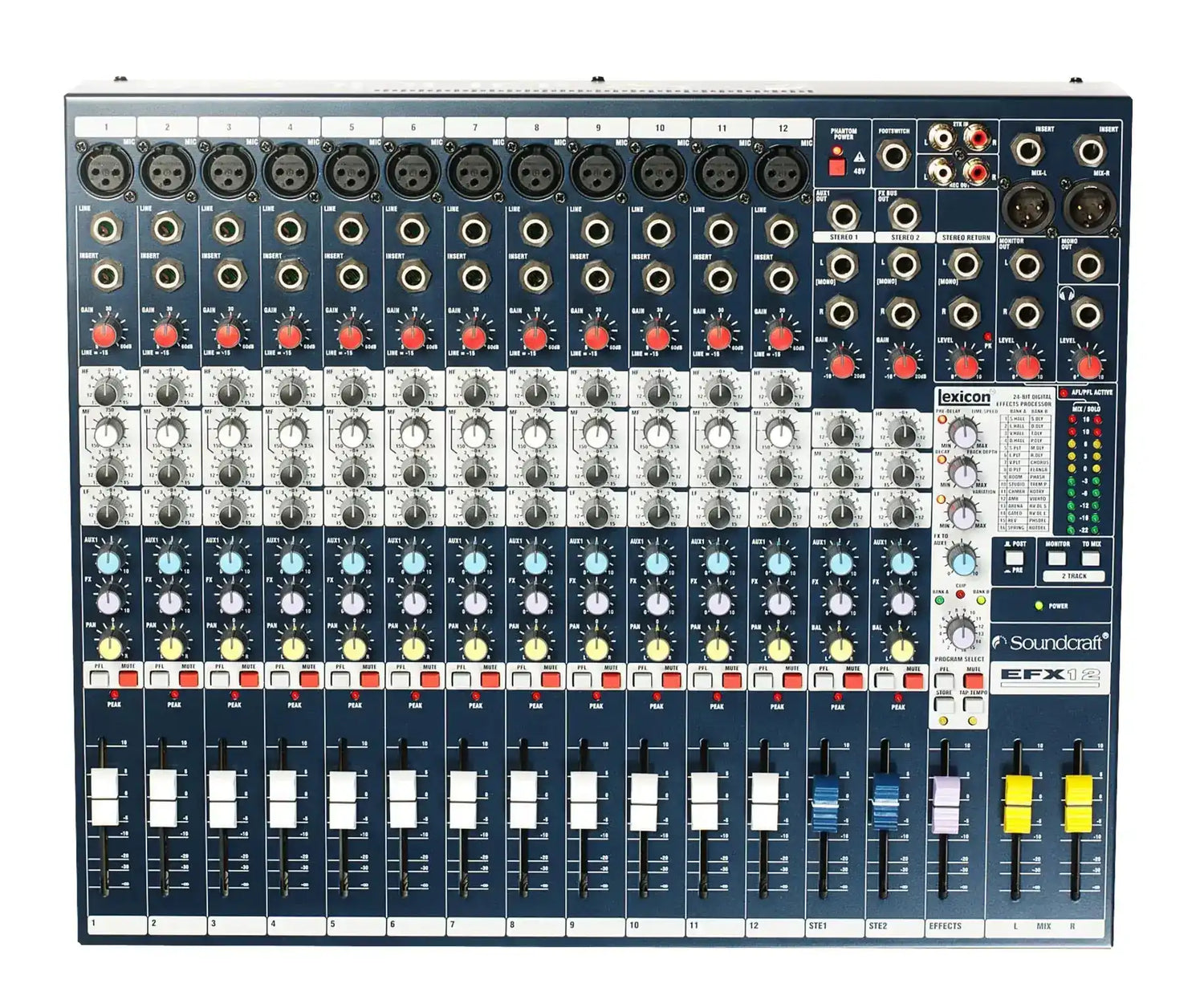

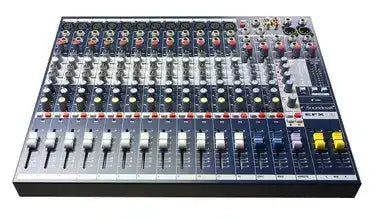

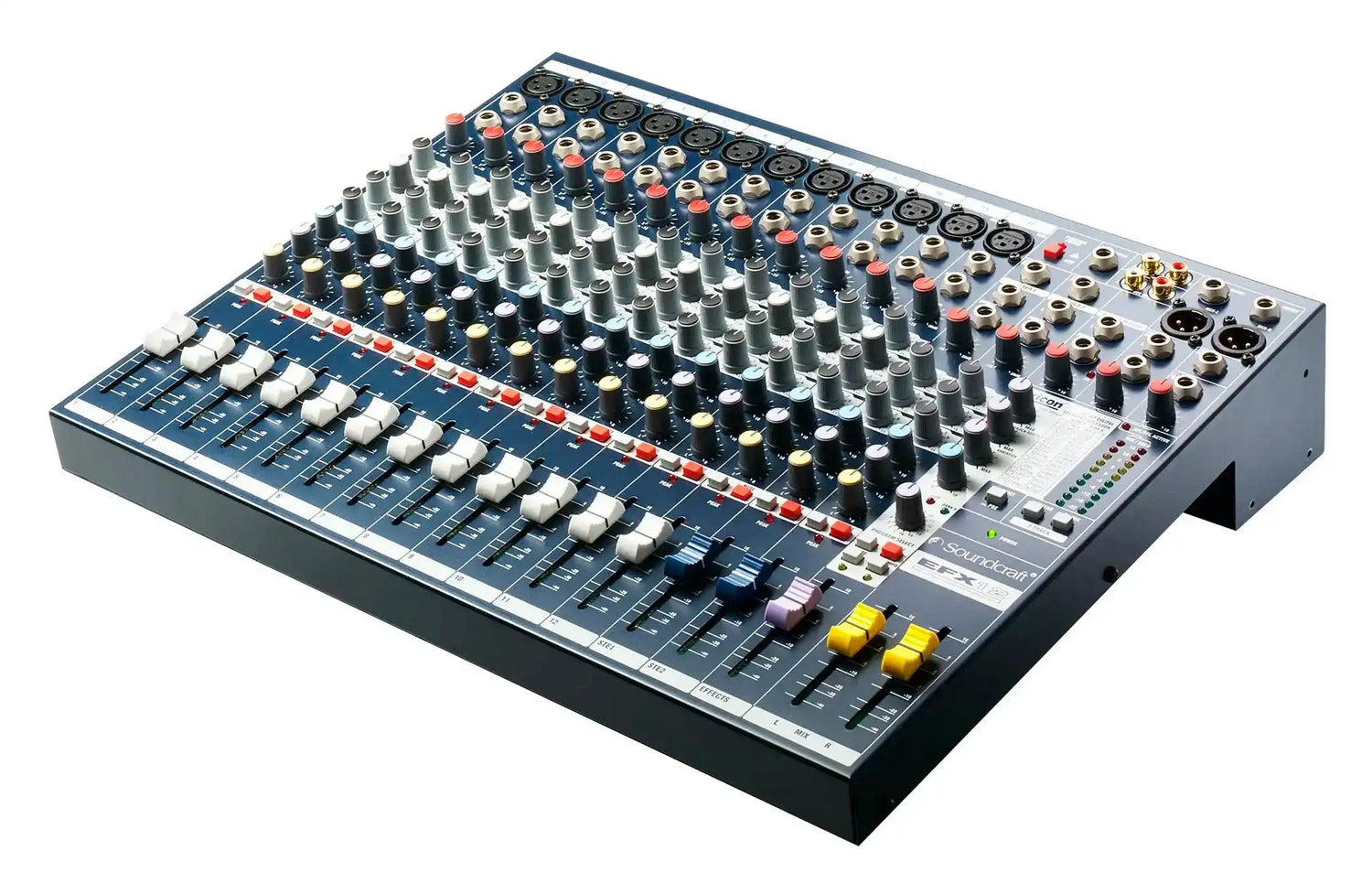

The Soundcraft EFX12 is a 12-channel analog mixer built for live sound, houses of worship, and multi-speaker installations that demand both audio quality and built-in effects. Combining the professional GB30 mic preamp design with a 24-bit Lexicon digital effects processor, this analog mixer delivers signal processing quality typically reserved for outboard gear. The EFX12 is a strong choice for sound engineers seeking a Soundcraft analog mixer with Lexicon reverb in a rack-mountable, compact chassis. Its straightforward channel strip layout and 32 onboard effects presets make it practical for both installed and portable applications.

Product Description

The Soundcraft EFX12 builds on the proven EPM platform by adding a full-featured 24-bit Lexicon digital effects section powered by the same AudioDNA processor found in Lexicon's MX400 outboard unit. The 12+2 channel frame includes 12 mono XLR/TRS combo inputs and 2 stereo input channels, each with an FX send for routing signal to the onboard effects engine. The GB30 mic preamp — designed by Soundcraft's Graham Blyth — provides +22dB of headroom and transparent gain across a 55dB range, making it suitable for condenser and dynamic microphones alike.

The effects section offers 32 presets covering reverb, delay, chorus, and specialty programs including a custom karaoke preset. Tap tempo allows real-time BPM synchronization of delay effects, and a user effects store function saves a custom configuration for recall. The configurable auxiliary bus can be used for monitor sends or outboard processing, and TRS insert points on all mono channels allow inline signal processing without breaking connections. RCA phono inputs and record outputs provide a convenient stereo playback and recording loop compatible with consumer sources. Ten-segment LED output metering gives a clear visual reference for output levels, and the headphone output with its own level control allows independent monitoring without disturbing the main mix.

The EFX12 is easily rack mountable using optional rack ears, making it suitable for both tabletop and installed rack deployments. The 3-band EQ with swept mid on mono inputs and 3-band EQ on stereo channels gives engineers precise tonal control. The comprehensive solo system allows individual channel isolation for monitoring and troubleshooting during live events. Available from Creation Networks, the EFX12 is well suited for AV integrators and worship tech teams looking for a reliable analog mixing console with onboard effects.

Key Features

• 12+2 Channel Frame — 12 mono XLR/TRS inputs plus 2 stereo input channels accommodate a wide range of sources.
• 24-Bit Lexicon Digital Effects Processor — Uses the AudioDNA chip from the Lexicon MX400 for studio-grade reverb, delay, and chorus.
• 32 Effects Presets — Includes reverb, delay, chorus, specialty programs, and a custom karaoke preset.
• Tap Tempo — Synchronizes delay effects to live performance tempo in real time.
• GB30 Mic Preamp — Transparent, high-headroom design (+22dB) used across Soundcraft's professional console range.
• 1 Configurable Auxiliary Bus — Routes signal to monitor speakers or outboard processors.
• TRS Insert Points on All Mono Inputs — Enables inline dynamics or EQ processing without signal interruption.
• 3-Band EQ with Swept Mid — Precise tonal shaping on all mono input channels.
• RCA Phono Stereo I/O — Playback input and record output for consumer audio integration.
• Ten-Segment LED Output Metering — Clear visual output level monitoring.
• Rack Mountable — Fits standard 19" racks for installed AV deployments.
• Headphone Output — Independent monitoring with dedicated level control.

Typical Applications

• House of Worship
• Music Venues
• Multi-Purpose Room
• Auditorium
• Training Room

Technical Specifications

Frequently Asked Questions

What type of effects processor does the EFX12 use?

The EFX12 uses the Lexicon AudioDNA chip, the same processor found in the Lexicon MX400 outboard unit, delivering 24-bit digital effects including reverb, delay, chorus, and 32 total presets.

Is the Soundcraft EFX12 rack mountable?

Yes. The EFX12 supports rack mounting with optional rack ears, making it suitable for installed AV environments such as houses of worship or multi-purpose rooms.

Does the EFX12 support 48V phantom power?

Yes. The EFX12 provides 48-volt phantom power on XLR inputs, making it compatible with condenser microphones.

How many effects can be stored on the EFX12?

The EFX12 includes a user effects store function that saves one custom effects configuration for quick recall, alongside its 32 factory presets.

What is the difference between the EFX12 and EPM12?

The EFX12 adds a 24-bit Lexicon digital effects processor, tap tempo, and 32 effects presets to the EPM12 platform. The EPM12 is an effects-free analog mixer at a lower price point.

Can the EFX12 be used for multi-speaker installations?

Yes. The configurable auxiliary bus, insert points, and multiple output options make the EFX12 suitable for distributed speaker systems in worship spaces, auditoriums, and multi-purpose rooms.
