Sound Control Technologies RC5-UNI – HDMI Camera Extension for Multiple Manufacturers

Product Overview

The Sound Control Technologies RC5-UNI is a multi-manufacturer HDMI camera extension kit that delivers HDMI video, IP/Ethernet camera control, and 12V DC power up to 100 meters over a single CAT cable. Built on the RemoteCam5 (RC5 Gen2) platform with SCTLink technology, the RC5-UNI supports the broadest camera list in the RC5 family — models from AVer, Barco, BirdDog, Cisco, Laia, Lumens, Marshall, Minrray, PTZOptics, QSC, and Sony. No programming is required, making it the universal extension choice for mixed-brand conference room and commercial AV deployments.

Product Description

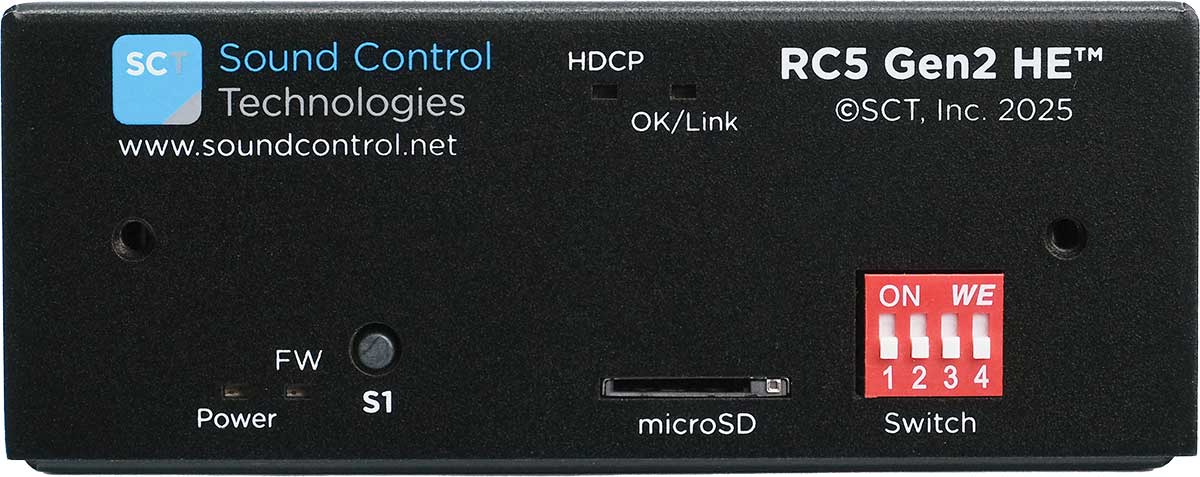

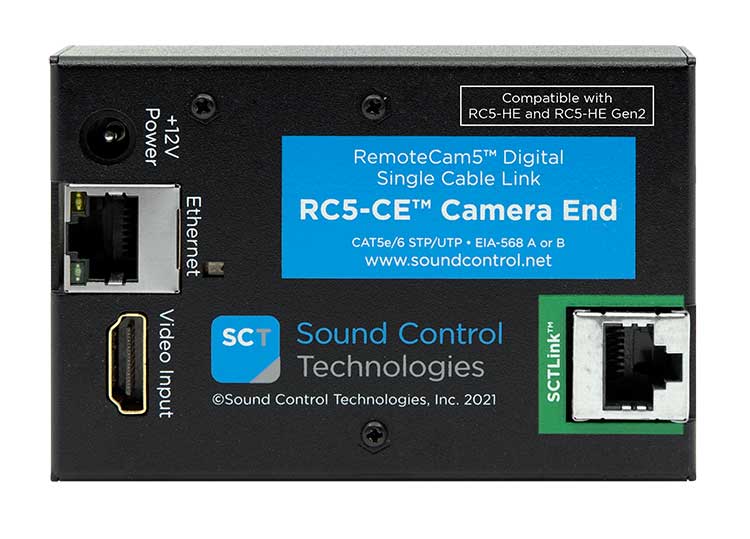

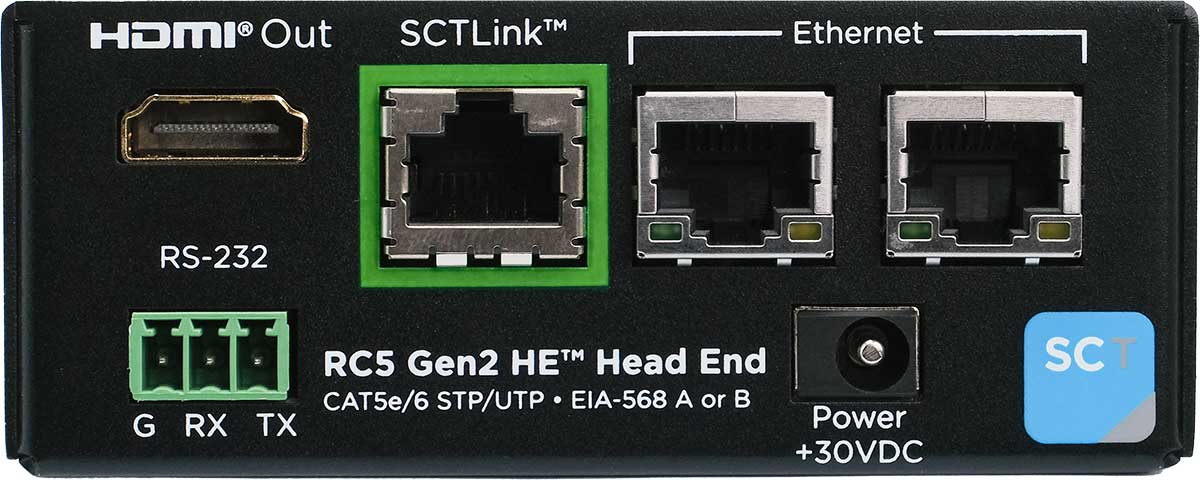

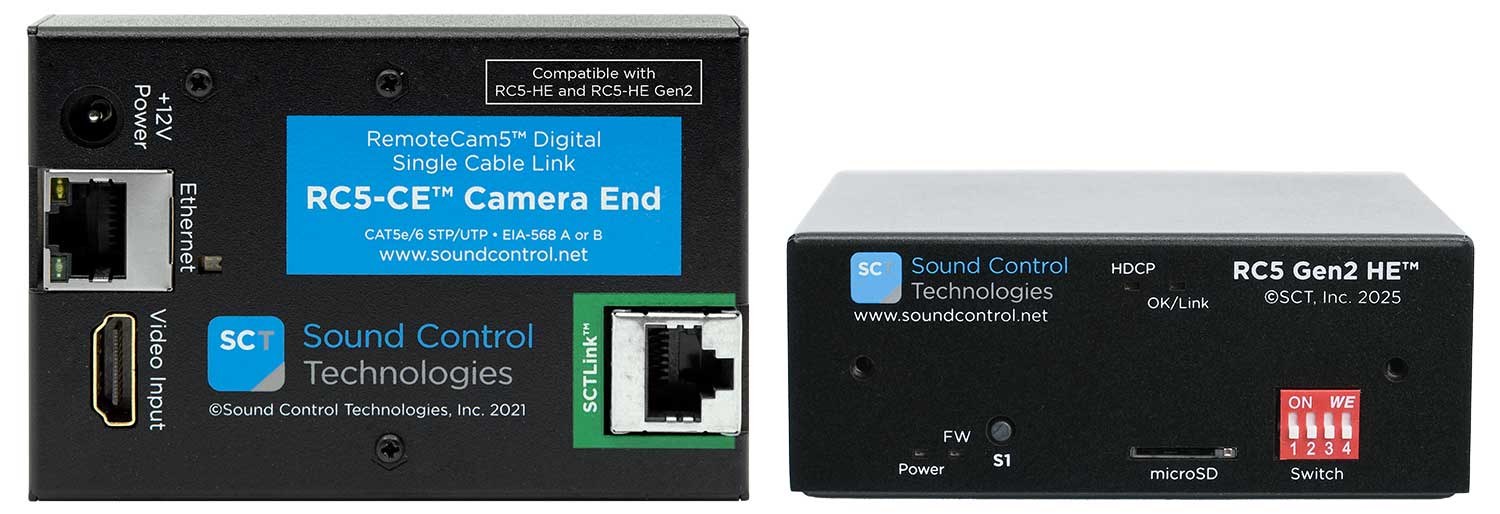

The RC5-UNI exists for AV integrators and system designers who want one extension platform across many camera brands. A camera-end RC5-CE module and head-end RC5-HE module connect over one installer-supplied CAT run up to 100 meters (328 ft), carrying video, Ethernet control, and camera power on the same cable. The tested camera list includes the AVer PTC500+ and TR530, Barco ClickShare Bar Core, BirdDog X1, X1 30x, X1 Ultra, X4 Ultra, and X5 Ultra, Cisco PTZ-12, Laia C-Pro 12X AI, Lumens VC-A50PN/VC-A50P/VC-A71P/VC-A61P/VC-TA50, Marshall CV630 and CV730, Minrray UV401A and UV540, PTZOptics PT12X/PT20X/PT30X-SDI and PT12X/PT20X-USB, QSC Q-SYS NC-12x80, NC20x60, PTZ 12x72, and PTZ 20x60, and Sony BRC-X400, SRG-120DH, SRG-300H, SRG-360SHE, SRG-X120, and SRG-X400. The kit ships with HDMI and UTP camera cables, the PPC-004 DC power cable, head-end HDMI and UTP cables, and a WPS-12 power supply. As an RC5 Gen2 kit it provides Cisco Control Hub integration, diagnostics, and field-upgradeable firmware, and remains backwards compatible with existing RC5-CE modules. Project packs add an RCM-UNI camera wall mount (-K), an RC-RK2 rack shelf (-S), or both (-KS). To add BYOD soft-codec connectivity, pair the camera run with the RC-SDA5+ BYOD camera bridge.

Key Features

• Broadest Multi-Brand Compatibility — Tested with 35 camera models across AVer, Barco, BirdDog, Cisco, Laia, Lumens, Marshall, Minrray, PTZOptics, QSC, and Sony.
• Single-CAT Extension up to 100m — HDMI video, IP/Ethernet control, and 12V DC camera power travel over one CAT cable run.
• 12V Camera Power Delivery — The WPS-12 supply powers the camera through the link, eliminating outlet requirements at the camera position.
• No Programming Required — Video and control pass transparently for plug-and-play installation.
• RC5 Gen2 Platform — Cisco Control Hub integration, diagnostics, and field-upgradeable firmware; backwards compatible with RC5-CE modules.
• Complete Kit — Camera-end module, head-end module, matched cable set, and power supply included.
• Project Pack Options — Variants add the RCM-UNI wall mount, RC-RK2 rack shelf, or both.
• BYOD Expandable — Pairs with the RC-SDA5+ bridge for USB3 soft-codec connectivity on the same camera run.

Typical Applications

• Conference room with a PTZOptics, Lumens, or Sony PTZ camera at extended distance from the codec
• Boardroom deploying a QSC Q-SYS or Cisco PTZ-12 camera over building CAT infrastructure
• Broadcast studio or auditorium extending BirdDog or Marshall cameras to a control position
• House of worship with PTZ cameras at ceiling or rear-wall positions for service capture
• Commercial meeting spaces standardizing one extension platform across mixed camera brands
• Training room or multi-purpose room with auto-framing cameras on long cable runs

Technical Specifications

Frequently Asked Questions

How does the RC5-UNI differ from the RC5-USM and RC5-URM?

All three are multi-manufacturer RC5 kits, but each ships with a cable set matched to a different camera power and control footprint and each has its own tested camera list. The RC5-UNI carries the broadest list, covering Sony SRG/BRC, BirdDog, PTZOptics, QSC Q-SYS, Lumens, Marshall, Minrray, Cisco PTZ-12, and more. Check the compatibility list for each SKU before ordering.

Is the CAT cable included?

No. The CAT run between the camera-end and head-end modules is supplied by the installer. CAT5e or better is recommended; the maximum run is 100 meters.

Does the kit power the camera?

Yes. The included WPS-12 power supply delivers 12V DC to the camera through the SCTLink connection, so no electrical outlet is needed at the camera position.

Is the RC5 Gen2 compatible with my existing RC5 modules?

Yes. The RC5 Gen2 replaces the original RC5 and the head end is backwards compatible with existing RC5-CE camera modules.

Can I add BYOD soft-codec capability?

Yes. Pair the RC5-CE camera module with the RC-SDA5+ BYOD camera bridge to convert the camera to USB3 for Zoom, Microsoft Teams, and other soft-codec platforms.

What warranty and support terms apply?

Contact Creation Networks for current Sound Control Technologies warranty terms and support options for this product.
