Sound Control Technologies RM-X57 – RemoteMic Extender for Poly Studio X50/X70

Product Overview

The Sound Control Technologies RM-X57 is a RemoteMic extension kit that extends the Poly Expansion Microphone from a Poly Studio, Studio X52, Studio X50, or Studio X70 video bar to the conference room table up to 100 meters over a single CAT5 cable. Poly video bars mount at the display, but their expansion microphone cable cannot reach the table in mid-size and large rooms; the RM-X57 closes that gap so participants get accurate voice pickup where they actually sit. It is a purpose-built microphone extender for commercial Poly Studio X deployments.

Product Description

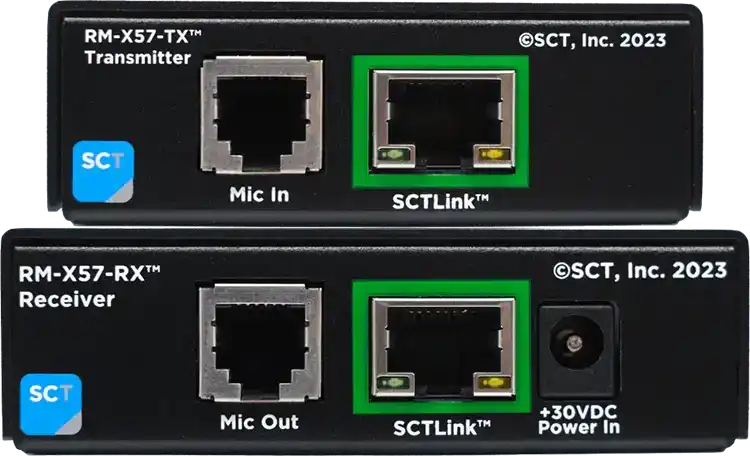

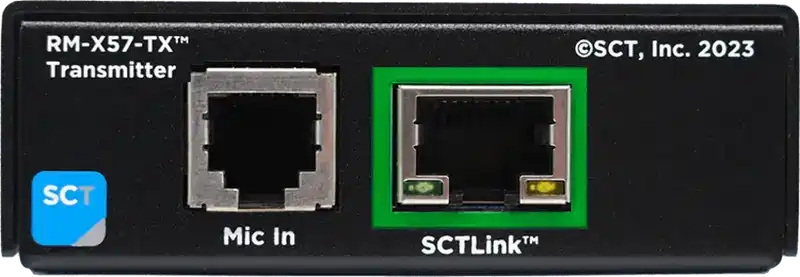

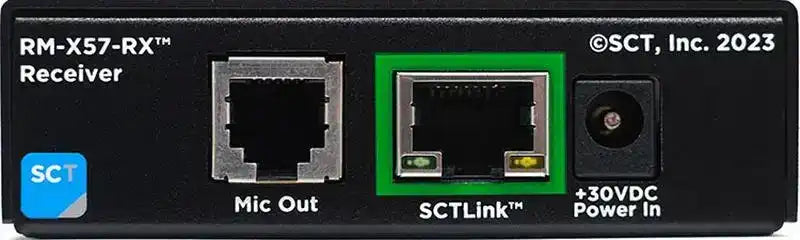

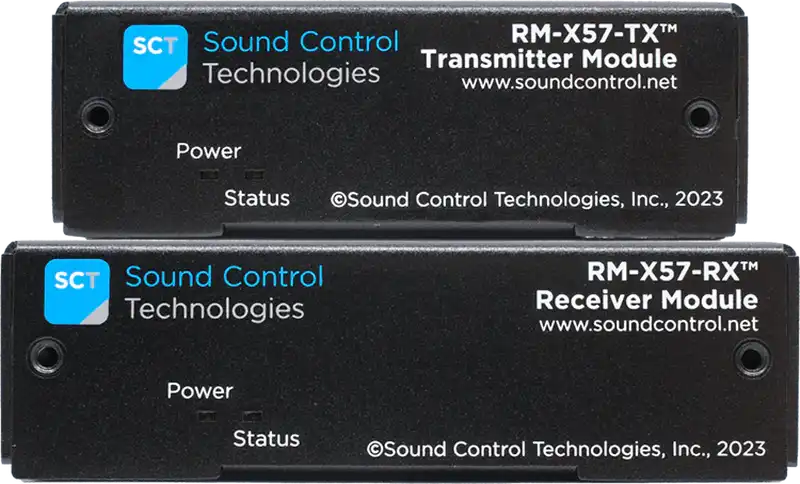

The native Poly Expansion Microphone cable limits placement to a short radius around the video bar, which compromises audio pickup in conference rooms deeper than a huddle space. The RM-X57 solves this with a TX module at the video bar and an RX module at the table, linked by one CAT5 cable that can be routed through walls, ceilings, or floor boxes up to 100 meters. The Poly Expansion Microphone plugs into the table-side module using the included RJ12 microphone cable and operates exactly as if it were connected directly to the video bar, preserving Poly audio processing and mute behavior. The kit ships complete with the RM-X57 RX and TX modules, the RCC-M010-1.0M RJ12-to-RJ12 microphone cable, and the WPS-12 universal power supply. For integrators, this means a Poly Studio X50 or X70 room can be designed with proper table microphone coverage without nonstandard cable splices or unsupported extenders. The RM-X57 pairs naturally with the RTK-X57 table integration kit in full Poly room buildouts.

Key Features

• 100-Meter Microphone Extension — Extends the Poly Expansion Microphone up to 100m from the video bar over a single CAT5 cable.
• Poly Studio X Compatibility — Supports Poly Studio, Studio X52, Studio X50, and Studio X70 video bars.
• Native Microphone Behavior — The extended expansion mic performs as if directly connected, preserving Poly audio quality and mute function.
• Single-Cable Infrastructure — One CAT5 link simplifies pathways through ceilings, walls, and floor boxes in commercial construction.
• Complete Kit — Includes RX and TX modules, RJ12 microphone cable, and WPS-12 universal power supply.
• Field-Proven Platform — Part of the SCT RemoteMic family used by AV integrators in Poly room deployments worldwide.

Typical Applications

• Conference room
• Boardroom
• Training room
• Multi-purpose room
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

Which Poly systems does the RM-X57 work with?

The RM-X57 supports the Poly Studio USB bar and the Poly Studio X52, X50, and X70 video bars that use the Poly Expansion Microphone.

How far can I place the microphone from the video bar?

Up to 100 meters. The TX module connects at the video bar, the RX module at the table, and one CAT5 cable links them.

Does the extended microphone behave differently?

No. The Poly Expansion Microphone operates as if directly connected, including audio processing and mute behavior.

What is included in the kit?

The RM-X57 RX and TX modules, an RCC-M010-1.0M RJ12-to-RJ12 microphone cable, and the WPS-12 power supply. You supply the field-run CAT5 link cable.

Can I replace a single failed module later?

Yes. The RM-X57-TX and RM-X57-RX replacement modules are available individually from Creation Networks.
