Smart Wall Mount for MX-V2, 7000, 6000 and GX series - WM-SBID-200
Product Overview

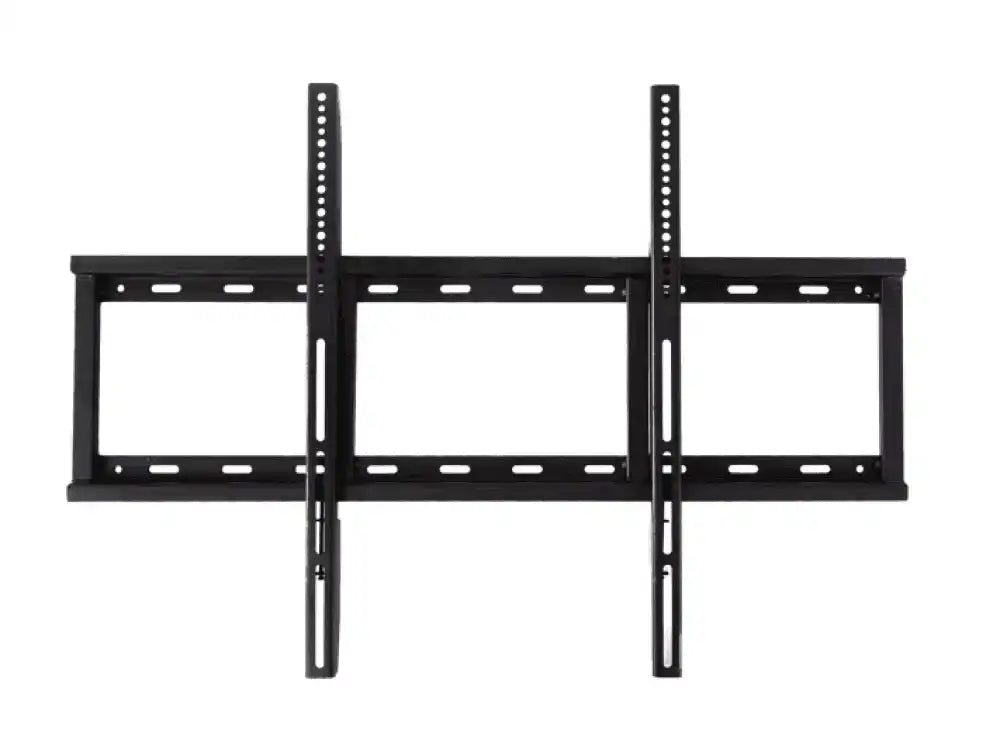

The SMART Wall Mount WM-SBID-200 is a fixed-position wall mount bracket kit for installing SMART Board GX, MX, QX Pro, RX, 6000S, 7000, and 7000R series interactive displays. It supports displays up to 220 lb. (100 kg) with a VESA-compatible mounting range of 200×200 mm to 800×600 mm, covering the full standard size range of compatible SMART Board displays. Hardware for both solid concrete and wood-framed wall installations is included. cULus certified and backed by a one-year limited warranty.
Product Description
The WM-SBID-200 is the standard wall mount for the broadest range of SMART Board interactive displays currently in production. Compatible with GX, MX, QX Pro, RX, 6000S, 7000, and 7000R series, it is the appropriate specification for most new SMART Board flat panel installations where the display weight does not exceed 220 lb. (100 kg) — which covers 65" through 86" models in the GX and MX lines. The mount uses VESA standard hole patterns ranging from 200×200 mm through 800×600 mm, accommodating small and large display sizes without requiring a different bracket. The bracket profile is thin enough for close-to-wall installation in standard AV integration scenarios. All hardware for attaching the display to the mount and for securing the mount to solid concrete or wood-framed walls is included in the box, simplifying material procurement for installation crews. The WM-SBID-200 is not compatible with SMART Board MX-V2, standalone 6000, or earlier 7000 series displays — those require the WM-SBID-501.
Key Features
- 220 lb. (100 kg) Capacity — Supports the full size range of GX, MX, and current-generation SMART Board displays.
- VESA 200×200 mm to 800×600 mm — Broad VESA range covers multiple display sizes with a single bracket.
- Concrete and Wood Framing Hardware Included — Both anchor types in the box for the most common commercial wall constructions.
- SMART Display Hardware Included — All fasteners for attaching the display to the brackets are provided.
- cULus Certified — North American structural safety certification for mounting accessories.
- 1-Year Limited Warranty — SMART accessory warranty standard.
Technical Specifications
| Specification | Detail |
|---|---|
| Compatible Displays | SMART Board GX, MX, QX Pro, RX, 6000S, 7000, 7000R series |
| Max Supported Display Weight | 220 lb. (100 kg) |
| VESA Compatibility | 200×200 mm to 800×600 mm |
| Mount Weight | 9 lb. 4 oz. (4.2 kg) |
| Shipping Dimensions | 36.5" × 10.7" × 1.8" (92.6 cm × 27.1 cm × 4.5 cm) |
| Shipping Weight | 10 lb. 6 oz. (4.7 kg) |
| Included Hardware | Display attachment hardware; concrete and wood-framed wall mounting hardware |
| Certifications | cULus, GPSD, REACH, RoHS, CONEG Packaging, Proposition 65 |
| Warranty | 1-year limited equipment warranty |
