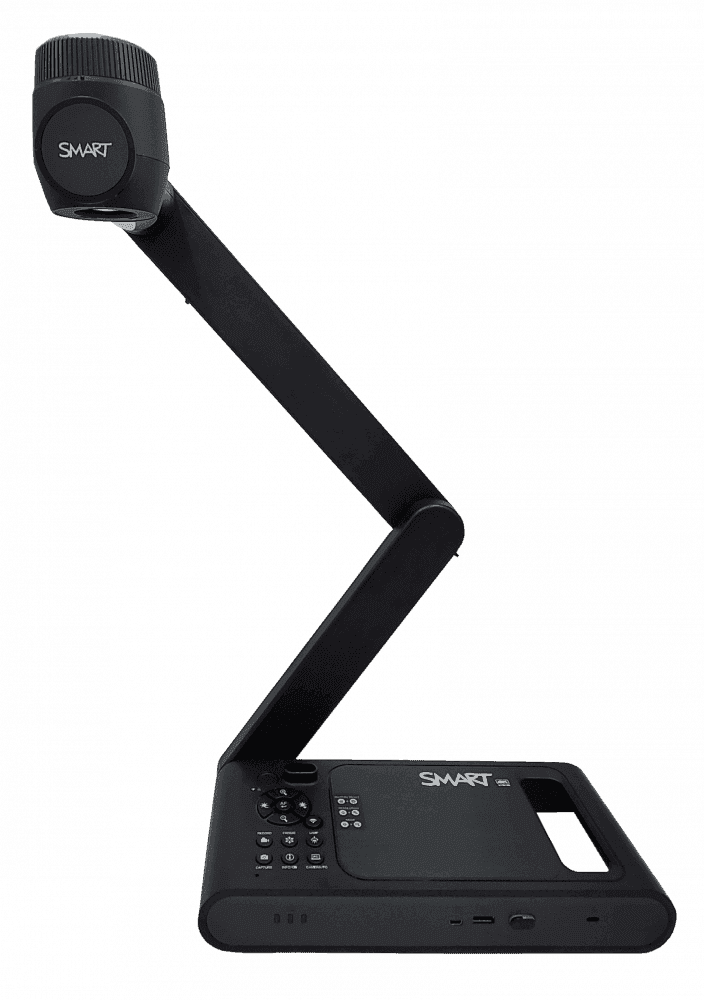

SMART Document Camera for Business - SDC-650

Product Overview

The SMART Document Camera 650 (SDC-650) is a 4K Ultra HD visualizer designed for business and education environments where physical objects, documents, lab specimens, and 3D items need to be shared with a class, meeting room, or video conference. The 13-megapixel sensor captures up to 4K at 60 fps with 10x optical and 23x digital zoom, delivering a 230x total zoom range. Fully UVC-compliant, it functions as a high-quality webcam when connected via USB to SMART Board displays or any computer, maintaining display continuity during video conferencing sessions. An internal Li-ion battery provides up to 2 hours of untethered, wireless streaming operation.

Product Description

The SDC-650 addresses the gap that standard webcams and screen-share workflows leave open: the ability to show physical objects with sufficient resolution and zoom to be useful in a professional or educational context. A biology teacher demonstrating a specimen under a microscope, an engineer reviewing a physical prototype, a financial analyst marking up a printed document — all benefit from a document camera that captures 4K video and zooms 230x without loss of sharpness. The SDC-650 connects via USB for wired use as a UVC-compliant camera, works directly with SMART Notebook 20.1 and the dedicated SMART Document Camera 650 software for annotation, freeze-frame, image rotation, and recording, and also streams wirelessly over Wi-Fi 802.11 a/b/g/n/ac (dual-band 2.4/5 GHz) using Miracast, P2P, or Wi-Fi connection modes. HDMI output supports direct connection to a display for standalone AV use without a computer. The camera head rotates 0–90° and image rotation software adds 0–180° of additional rotation for overhead or side-angle capture. Built-in LED illumination, automatic focus, white balance, and exposure settings reduce setup time. The 1/3.2" CMOS sensor supports six image modes (Normal, High Frame, High Quality, Microscope, Infinity, Macro) and three effects (Black and White, Negative, Color). Image and video recording to USB storage is supported. A VESA 75×75 mm mounting pattern enables integration with compatible mounts. A 5-year limited equipment warranty reflects SMART's confidence in the product's commercial durability.

Key Features

• 4K UHD Capture (3840×2160 @ 60 fps) — 13 MP sensor for high-resolution capture of documents, objects, and specimens.
• 230x Total Zoom (10x Optical + 23x Digital) — Wide zoom range from full-page document view to fine detail capture.
• UVC-Compliant Webcam — Plug-and-play as a high-quality webcam in Teams, Zoom, Webex, and other conferencing platforms.
• Wireless Streaming (Wi-Fi, Miracast, P2P) — Stream 1080p–4K wirelessly to SMART Board displays and computers without USB cabling.
• Built-In Li-ion Battery — Up to 2 hours of untethered wireless operation; recharges in 3 hours (power off).
• HDMI Output — Direct connection to displays for standalone AV use without a computer.
• SMART Notebook Integration — Works directly with SMART Notebook 20.1 for annotation and capture within lessons.
• 6 Image Modes — Normal, High Frame, High Quality, Microscope, Infinity, Macro for diverse capture scenarios.
• Built-In LED and Microphone — On-board illumination and microphone for self-contained capture sessions.
• 5-Year Equipment Warranty — Extended warranty standard for commercial-grade durability assurance.

Typical Applications

• Classrooms for live science demonstrations and document sharing
• Conference rooms for sharing physical documents and prototypes
• Medical education and clinical training
• Legal and financial document review sessions
• Engineering and manufacturing training with physical components
• Video conferencing as a high-quality USB webcam

Technical Specifications

Frequently Asked Questions

Does the SDC-650 work as a webcam in Teams or Zoom?
Yes. The SDC-650 is UVC-compliant and appears as a standard USB camera in any conferencing platform that supports USB cameras, including Microsoft Teams, Zoom, and Cisco Webex.

Can it stream wirelessly to a SMART Board?
Yes. The SDC-650 supports Wi-Fi, P2P, and Miracast wireless streaming to SMART Board displays and computers. Wireless streaming resolves up to 4K at 30 fps or 1080p at higher frame rates.

What is the battery life?
Up to 2 hours in wireless operating mode. Battery life varies by function. The battery charges in approximately 3 hours (powered off) or 7 hours (powered on).

Does it work with SMART Notebook?
Yes. Direct integration with SMART Notebook 20.1 and later enables capture, annotation, and freeze-frame within lesson activities.

What software is included?
SMART Document Camera 650 software for Windows and macOS is included for full control of camera settings, focus zones, and recording. SMART Notebook 20.1+ enables classroom workflow integration.

What warranty is included?
A 5-year limited equipment warranty and a 1-year battery warranty are included, reflecting the commercial-grade build standard.
