Shure ULXD4QGV=-G57

Product Overview

The Shure ULXD4QGV is a quad-channel digital wireless receiver built for large-scale commercial and government AV installation projects that need four channels of secure wireless microphone reception in a single rack unit. This ULX-D digital wireless receiver installation pairs 24-bit/48kHz digital audio with Dante networked audio over Ethernet, giving AV integrators a high-channel-count wireless receiver that fits into an existing Dante audio network without a separate analog snake. It is designed for AV system designers specifying multi-channel wireless microphone systems for auditoriums, government spaces, and large commercial meeting spaces where RF stability and always-on encryption both matter.

Product Description

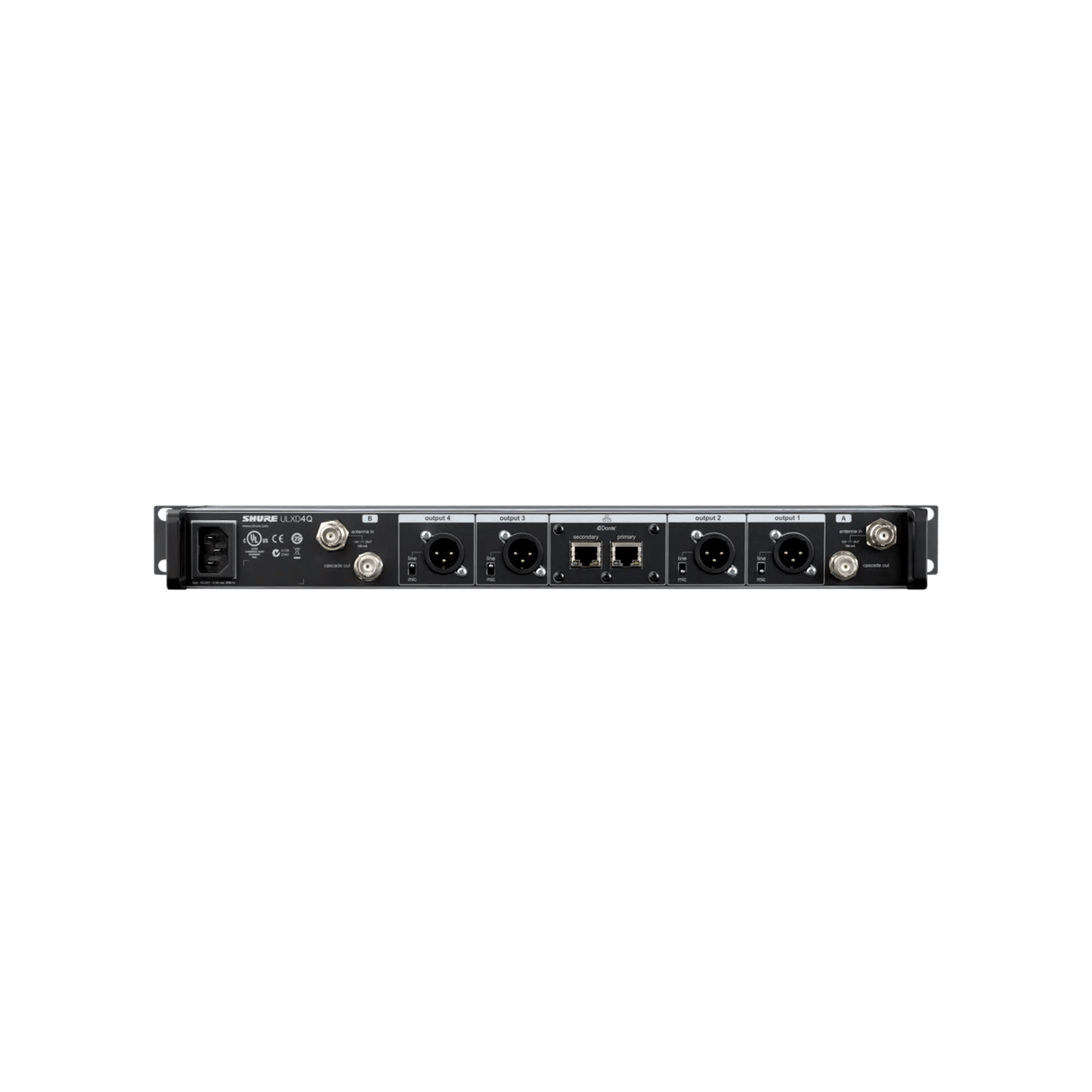

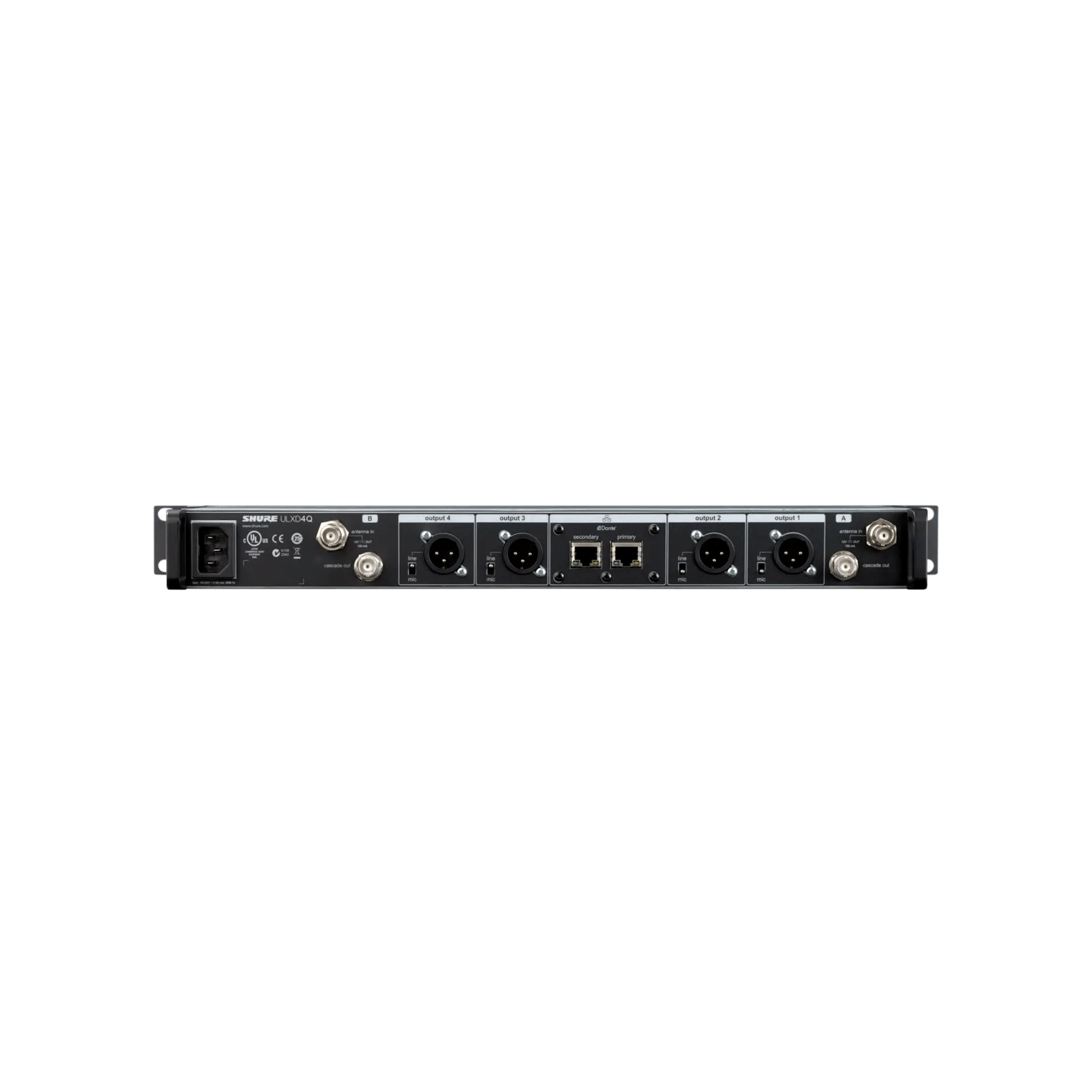

The ULXD4QGV houses four independent receivers in a rugged 1RU metal chassis with an internal power supply, giving integrators four channels of wireless reception without stacking multiple dual-channel units. Individual gain controls, LED meters, and XLR outputs for each channel let on-site AV techs manage and troubleshoot each wireless channel independently during a live event or daily conferencing use.

Dante digital networked audio over Ethernet allows all four channels to be transmitted and received over a single Ethernet cable, reducing the cable runs required compared to individual XLR lines for each channel in a large-venue wireless receiver installation. Bodypack frequency diversity helps ensure uninterrupted audio for mission-critical applications such as government hearings, board meetings, and broadcast-adjacent events where dropped audio is not an option.

As a GV security variant, the ULXD4QGV includes always-on AES-256 encryption that cannot be disabled, matching the security requirements common in government, military, and corporate AV integration projects handling confidential proceedings. The receiver's high channel density in a single rack unit makes it a practical choice for AV integrators consolidating multiple wireless channels into auditoriums, large boardrooms, or multi-purpose event spaces without dedicating multiple rack spaces to wireless reception.

Key Features

• Quad-Channel Digital Reception — Four independent receivers in a single rugged 1RU chassis with internal power supply.
• Always-On AES-256 Encryption — Protects confidential audio content and cannot be disabled, suited to government and security-critical deployments.
• 24-Bit/48kHz Digital Audio — Delivers pristine digital audio quality across all four channels.
• Dante Networked Audio — Transmits four channels of audio over a single Ethernet cable for simplified, high-density cable runs.
• Bodypack Frequency Diversity — Ensures uninterrupted audio for mission-critical applications.
• Individual Channel Controls — Independent gain controls, LED meters, and XLR outputs for each of the four channels.
• High Channel Density — Consolidates four wireless channels into a single rack unit for space-constrained AV racks.

Typical Applications

• Auditorium
• Government space
• Boardroom
• Conference room
• Training room
• Broadcast studio

Technical Specifications

Frequently Asked Questions

How many wireless channels does the ULXD4QGV support?
The ULXD4QGV houses four independent receivers in a single 1RU chassis, providing four channels of wireless reception.

Can encryption be disabled on this receiver?
No. AES-256 encryption is always active on the ULXD4QGV and cannot be turned off, consistent with its GV security designation.

Is the ULXD4QGV compatible with Dante audio networks?
Yes. It transmits digital audio over Dante, allowing all four channels to run over a single Ethernet cable into an existing Dante network.

What transmitters is the ULXD4QGV compatible with?
The ULXD4QGV is designed for use with Shure ULX-D handheld, bodypack, and gooseneck transmitters matched to the same frequency band.

Does bodypack frequency diversity apply to all four channels?
Yes. Bodypack frequency diversity is designed to maintain uninterrupted audio across the receiver's channels in mission-critical applications.

What warranty applies to the ULXD4QGV?
Shure covers the ULXD4QGV under its standard manufacturer warranty. Contact Creation Networks for current terms and AV integration support.

Does Creation Networks provide frequency coordination support for multi-channel systems?
Yes, our AV consultants can assist with frequency planning, Dante network configuration, and system design for high-channel-count ULX-D wireless deployments.
