Shure ULXD2/KSM9HS Digital Handheld Wireless Microphone Transmitter with KSM9HS Capsule

Availability: Call for Availability
Availability: Direct Ship
Shure SKU: ULXD2/KSM9HS=-G50
No reviews
Model: ULXD2/KSM9HS=-G50 (470 to 534 MHz)
Price:
$1,353.00 $1,894.00

Description

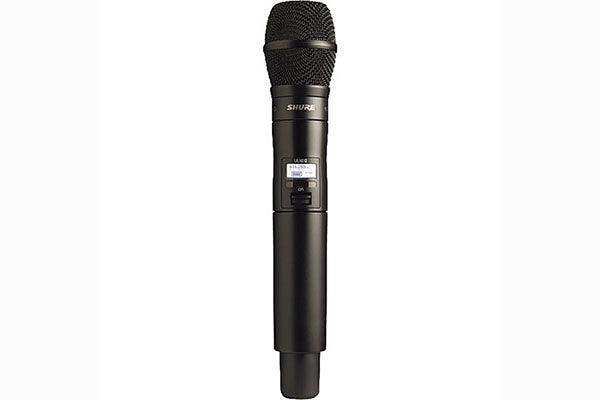

The Shure ULXD2/KSM9HS is a digital handheld wireless microphone transmitter compatible with ULX-D and QLX-D receivers. It comes equipped with a dual-diaphragm KSM9HS condenser capsule that captures sonic nuances with superior detail, delivering precise vocal reproduction for high-end live performance.

The KSM9HS capsule offers two switchable polar patterns to provide FOH engineers with more choices in dealing with varying environments or the microphone techniques of different performers. The hypercardioid pattern offers excellent off-axis rejection and extended gain before feedback, making it an ideal choice in loud environments. The subcardioid pattern provides a wide coverage angle with subtle off axis-rejection, resulting in a natural sound and minimized proximity effect.

With rugged, yet lightweight aluminum housing, the ULXD2/KSM9HS transmitter delivers pristine audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound-reinforcement applications.

 Clear, Accurate Audio with Interchangeable Capsule
  • The unit delivers clear, reliable 24-bit/48 kHz digital audio over its entire 330' range, great for live performances and presentations in music venues, houses of worship, and conference spaces.
  • The KSM9HS capsule with dual 3/4” gold-layered, low-mass Mylar diaphragms provides a consistent frequency response.
  • The mic features a Class-A, discrete transformerless preamplifier for transparency, extremely fast transient response, and no crossover distortion.
  • The integrated three-stage "pop" protection grille reduces plosives, wind, and other breath noises.
  • The interchangeable capsule design allows you to replace the KSM9HS capsule with a Shure capsule that’s ideal for your application and simply screw it onto the transmitter—including KSM9, SM58, SM86, SM87A, Beta 58A, Beta 87A, Beta 87C capsules, and more.
 User-Friendly Features in a Rugged Housing
  • The unit quickly syncs with a wireless receiver via infrared at the touch of a button.
  • Shure Proprietary Gain Ranging automatically adjusts the mic input level, eliminating the need for transmitter gain adjustments.
  • The power button conveniently doubles as mute switch, while preserving RF lock.
  • Frequency and power lockout functions prevent accidental or unauthorized changes during events.
  • A backlit LCD with easy-to-navigate menu and controls lets you quickly access frequency, group, and channel settings, along with mute and lock status, RF output, and remaining battery life.
  • 0.25/10/20mW selectable RF output power allows you to increase either the transmitter's range or the number of mics operating simultaneously.
 Convenient Power Management Options
  • Operates for up to 11 hours on two AA batteries.
  • Optional Shure SB900A lithium-ion rechargeable battery pack offers intelligent power management with over 12 hours of battery life, precision metering in hours and minutes, and zero memory effect.
  • External charging contacts allow for docked battery charging with the SBC200 dual-docking charger (available separately).
  • The networkable SBC220 charger (available separately) allows for remote power monitoring via Shure’s Wireless Workbench software.
  • For ULX-D and QLX-D Digital Systems
  • KSM9HS Condenser Mic Capsule
  • Hypercardioid/Subcardioid Polar Pattern
  • Interchangeable Capsule Design
  • Automatic Gain Adjustment
  • 0.25/10/20mW RF Output Power
  • Mute Mode, Backlit LCD
  • Secure AES-256 Encryption
  • Networked Intelligent Charging
  • 12 Hr with SB900A Rechargeable Battery

Shure ULXD2 Specs
Wireless Technology Digital UHF
RF Frequency Band -
RF Bandwidth 26 MHz
Frequency Step Size 25 kHz
RF Channel Scanning Auto-Scan
Max Operating Range 328.1' / 100 m
Sample Rate/Resolution 48 kHz / 24-Bit
Latency < 2.9 ms
Encryption AES 256
Modulation Proprietary
Transmitter
Transmitter Type Handheld
RF Output Power 0.25 / 10 / 20 mW (Switchable)
Audio I/O None
Muting Off/On Switch
Gain Range 0 to 21 dB (3 dB Steps)
Sync Method IR
Antenna 1 x Internal Single-Band Helical
Power Requirements Battery
Battery Type 2 x AA (Included)
1 x Shure SB900A (Not Included, Replaceable)
Approx. Battery Life Med.:
11 Hours (Alkaline)
Med.:
12 Hours (Lithium Shure SB900A)
Display & Indicators 1 x Backlit LCD (Channel, Group, Mute, RF Output Power, Sync)
Housing Aluminum
Operating Temperature 0 to 122°F / -17 to 50°C
Storage Temperature -20 to 165°F / -28 to 73°C
Dimensions 10.9 x 2" / 278 x 51 mm
Weight 12.3 oz / 348 g
Microphone
Microphone Type Handheld Capsule
Sound Field Mono
Capsule Electret Condenser
Polar Pattern Hypercardioid, Subcardioid
Frequency Range 50 Hz to 20 kHz
SNR Hypercardioid: 73.3 dB
Wide-Angle Cardioid: 71.3 dB
Equivalent Noise Level 120 dB A-Weighted
Maximum SPL Hypercardioid: 150 dB SPL
Wide-Angle Cardioid: 153 dB SPL
Sensitivity Hypercardioid: -50.5 dBV/Pa
Wide-Angle Cardioid: -53.0 dBV/Pa
Dynamic Range Hypercardioid: 130.8 dB
Wide-Angle Cardioid: 131.3 dB
