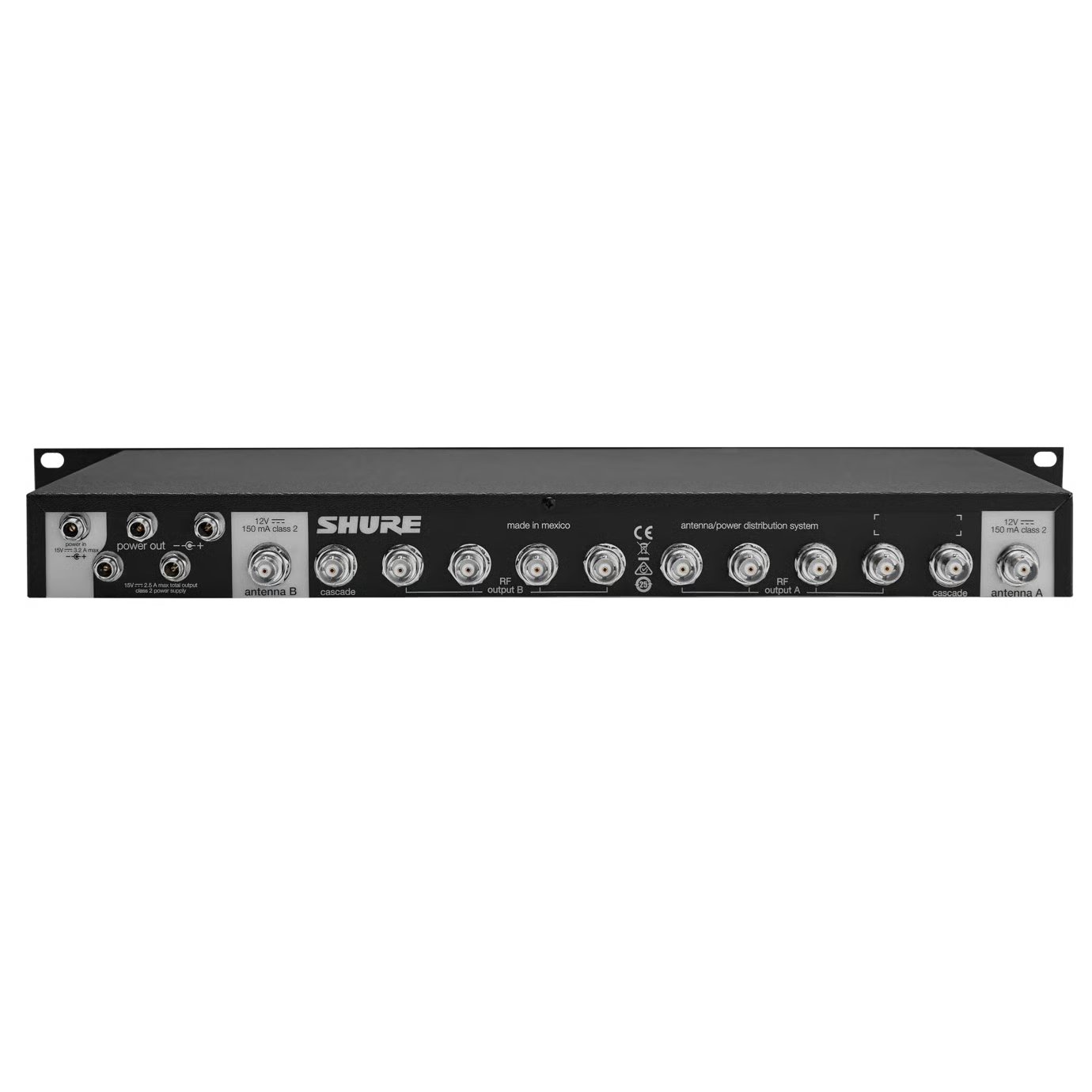

Shure UA844+V/LC VHF Antenna Distribution System
The Shure UA844+V/LC VHF Antenna Distribution System expands wireless microphone setups by splitting one pair of antennas to feed up to five receivers while amplifying the RF signal to compensate for insertion loss. Operating in the 174-216 MHz VHF range, it ensures reliable signal distribution with low distortion for professional applications. Constructed for rack installation, the system includes front-mounting antenna hardware and rack-mount hardware, along with DC power distribution to support connected receivers. It simplifies large-scale wireless deployments in houses of worship, live stage, theater, and rehearsals by reducing cable clutter and setup complexity while allowing cascade configurations for expanded systems.
This less-cables variant focuses on core distribution functionality, providing consistent RF performance and power feeds tailored for compatible VHF receivers. The active design maintains signal integrity across multiple outputs for dependable operation in sound reinforcement environments.
Features Chart
| Feature | Benefit |
|---|---|
| 5-way active RF signal splitter | Distributes one antenna pair efficiently to multiple receivers |
| VHF 174-216 MHz frequency range | Optimized for VHF wireless systems with reliable coverage |
| RF signal amplification | Compensates for insertion loss to preserve strong signal quality |
| Cascade ports for system expansion | Enables chaining up to five units in two-tier configuration |
| 4 DC power feeds for receivers | Supplies 15 VDC directly to receivers reducing additional power needs |
| Front-mounting antenna hardware | Facilitates convenient and accessible antenna connections |
| Rack-mount hardware included | Supports secure installation in standard 19-inch equipment racks |
| Antenna bias voltage outputs | Provides 12 VDC bias for powered antennas when required |
Specifications Table
| Specification | Details |
|---|---|
| Frequency Range | 174-216 MHz |
| Type | Active 5-way VHF antenna splitter and power distribution |
| RF Input Connectors | 2 x BNC |
| RF Output Connectors | 8 x BNC plus cascade ports |
| Power Requirements | 14-18 V DC via external supply |
| DC Outputs | 4 x 15 V DC (combined max 2.5 A) |
| Bias Voltage | 2 x 12 V DC (300 mA max) |
| Dimensions | 1.8 x 19 x 6.8 inches (45 x 483 x 172 mm) |
| Weight | 3.6 lbs (1.62 kg) |
| Impedance | 50 Ohms |
Compare Chart
| Aspect | Shure UA844+V/LC | Shure UA844+SWB | Sennheiser ASA 214 |
|---|---|---|---|
| Frequency Range | 174-216 MHz VHF | 470-960 MHz UHF | Model dependent UHF |
| Receiver Support | Up to 5 per unit | Up to 5 per unit | Up to 4 per unit |
| Cascade Capability | Up to 5 units | Up to 5 units | Good cascading options |
| Power Distribution | 4 x 15 V DC feeds | 4 DC outputs | Power distribution included |
| RF Gain/Performance | -1 to +1 dB gain | -1 to +1 dB gain | Active amplification |
| Rack Mount | Included hardware | Included hardware | Rack mountable |
| Cables Included | Less cables variant | Varies by model | Antenna cables |
| Best For | VHF QLX-D and ULX-D systems | Wideband UHF setups | Sennheiser focused setups |
FAQ
- What frequency band does the UA844+V/LC operate in? It is designed for the VHF range of 174-216 MHz, supporting compatible Shure wireless systems in that band.
- How many receivers can one unit support? A single UA844+V/LC can distribute signal to up to five compatible receivers from one antenna pair.
- Is the system compatible with non-Shure receivers? It works with other VHF receivers operating in 174-216 MHz assuming standard BNC connections, though power distribution may require verification.
- Can multiple units be cascaded? Yes, up to five UA844+V/LC systems can be connected in a two-tier configuration for larger channel counts.
- What is included with the less cables variant? The unit, front-mounting antenna hardware, and rack-mount hardware are provided; BNC antenna cables must be purchased separately.
