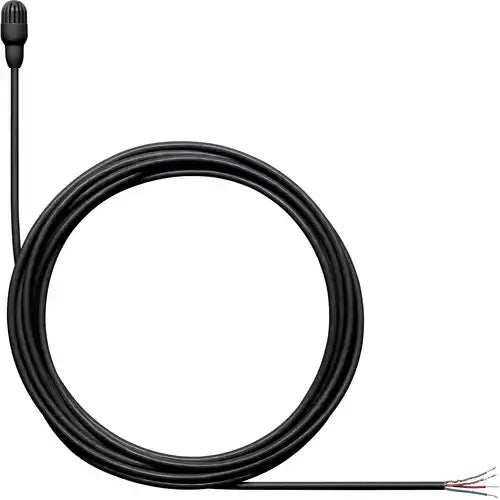

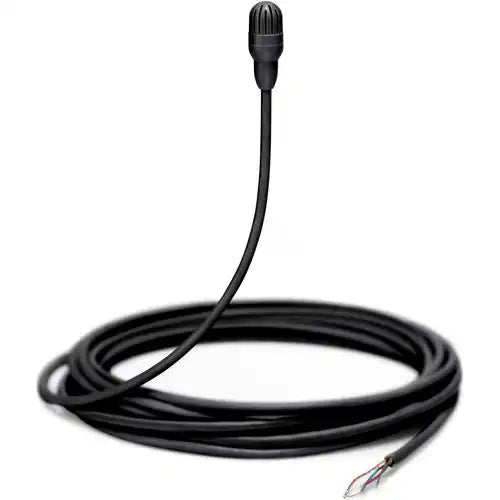

Shure TL47B/O-NC-A TwinPlex Omnidirectional Lavalier Microphone (Black, Low Sensitivity, No Connector / Pigtail Leads)
Shure TL47B/O-NC-A TwinPlex Omnidirectional Lavalier Microphone (Black, Low Sensitivity, No Connector / Pigtail Leads) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Shure TL47B/O-NC-A TwinPlex Omnidirectional Lavalier Microphone (Bl...
The Shure TL47B/O-NC-A is a professional-grade omnidirectional lavalier microphone engineered for clarity and discretion in broadcast, theater, and live speech use. Its dual-diaphragm condenser capsule captures a full, natural frequency range from 20 Hz to 20 kHz. With a low sensitivity of –45 dBV, it handles up to 142 dB SPL without distortion. This version is provided with unterminated pigtail leads, giving technicians full flexibility to wire the preferred connector. The 1.6 mm paintable, flexible cable resists kinks and memory, while a superhydrophobic coating on the caps offers moisture resistance. Compact yet durable, the TL47B/O-NC-A is designed to deliver premium sound quality even in demanding environments.
Features
| Feature | Description |
|---|---|
| Dual-diaphragm condenser capsule | Delivers natural, full-bandwidth audio |
| Omnidirectional pattern | Picks up sound uniformly around the mic |
| Low sensitivity | –45 dBV ensures headroom for dynamic sources |
| High SPL handling | Capable up to 142 dB SPL (1 kHz, 1% THD) |
| Unterminated leads | Pigtail format allows custom connector wiring |
| Slim, paintable cable | 1.6 mm diameter, flexible and discreet |
| Moisture protection | Superhydrophobic coating guards against sweat |
| Use cases | Ideal for theater, broadcast, presentation, hidden miking |
Specifications
| Specification | Value |
|---|---|
| Capsule Type | Dual-diaphragm, prepolarized condenser |
| Polar Pattern | Omnidirectional |
| Frequency Response | 20 Hz – 20 kHz |
| Sensitivity | –45.0 dBV (5.62 mV at 1 kHz) |
| Self-Noise | 24.5 dB SPL-A |
| Signal-to-Noise Ratio | 69.5 dB |
| Maximum SPL | 142 dB SPL (1 kHz, 1% THD) |
| Dynamic Range | 117.5 dB |
| Cable Diameter | 1.6 mm |
| Connector | Unterminated pigtail leads |
| Operating Voltage | ~5 V DC |
| Current Draw | 120 – 240 µA |
| Weight (with cable) | ~12 g (0.42 oz) |
