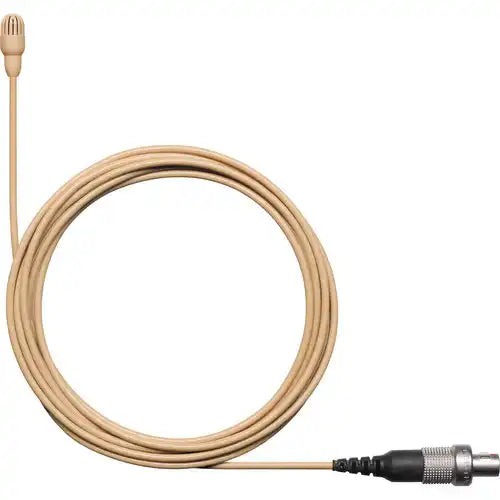

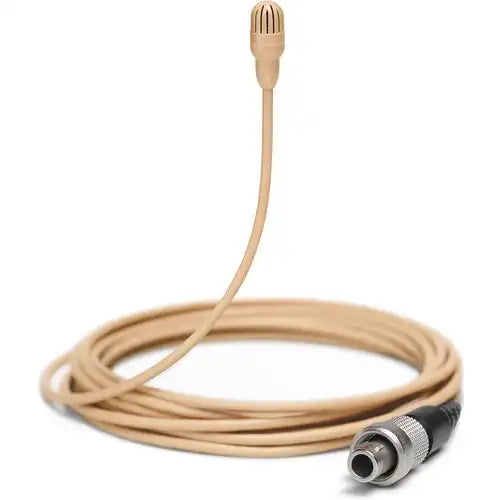

Shure TL46T/O-LEMO TwinPlex Omnidirectional Lavalier Microphone
The Shure TL46T/O-LEMO is a high-sensitivity, sub-miniature omnidirectional lavalier microphone designed for professional applications such as theater, broadcast, and live speech. It features a dual-diaphragm, prepolarized condenser capsule that delivers natural sound with a wide frequency response of 20 Hz to 20 kHz. The microphone's high sensitivity provides a high signal-to-noise ratio, ensuring clear audio capture even in challenging environments. Its paintable, medical-grade 1.6 mm diameter cable resists kinks and maintains flexibility, making it easy to conceal. The microphone is terminated with a 3-pin LEMO connector for direct compatibility with many wireless transmitters.
Key Features
-
Dual-Diaphragm Condenser Capsule: Captures full, natural sound with clarity.
-
Omnidirectional Polar Pattern: Provides consistent pickup from all directions.
-
High Sensitivity: Offers a high signal-to-noise ratio, ideal for dialogue and medium SPL applications.
-
Paintable Cable: 1.6 mm diameter, flexible, and easy to conceal.
-
Moisture-Resistant Frequency Caps: Interchangeable caps with a superhydrophobic coating to prevent sweat-outs.
-
Connector: 3-pin LEMO termination for compatibility with wireless systems.
Specifications
| Specification | Value |
|---|---|
| Capsule Type | Dual-Diaphragm, Prepolarized Condenser |
| Polar Pattern | Omnidirectional |
| Frequency Response | 20 Hz – 20 kHz |
| Sensitivity | -37.0 dBV (14.1 mV) at 1 kHz |
| Self-Noise (A-Weighted) | 24.0 dB SPL-A |
| Signal-to-Noise Ratio | 70.0 dB |
| Maximum SPL | 134 dB SPL (1 kHz at 1% THD) |
| Cable Diameter | 1.6 mm |
| Cable Length | 1.67 m |
| Connector | 3-pin LEMO |
| Operating Voltage | ~5 V DC |
| Current Draw | 120 to 240 µA |
| Weight | ~12 g |
