Shure SLXD3+=-G57

Product Overview

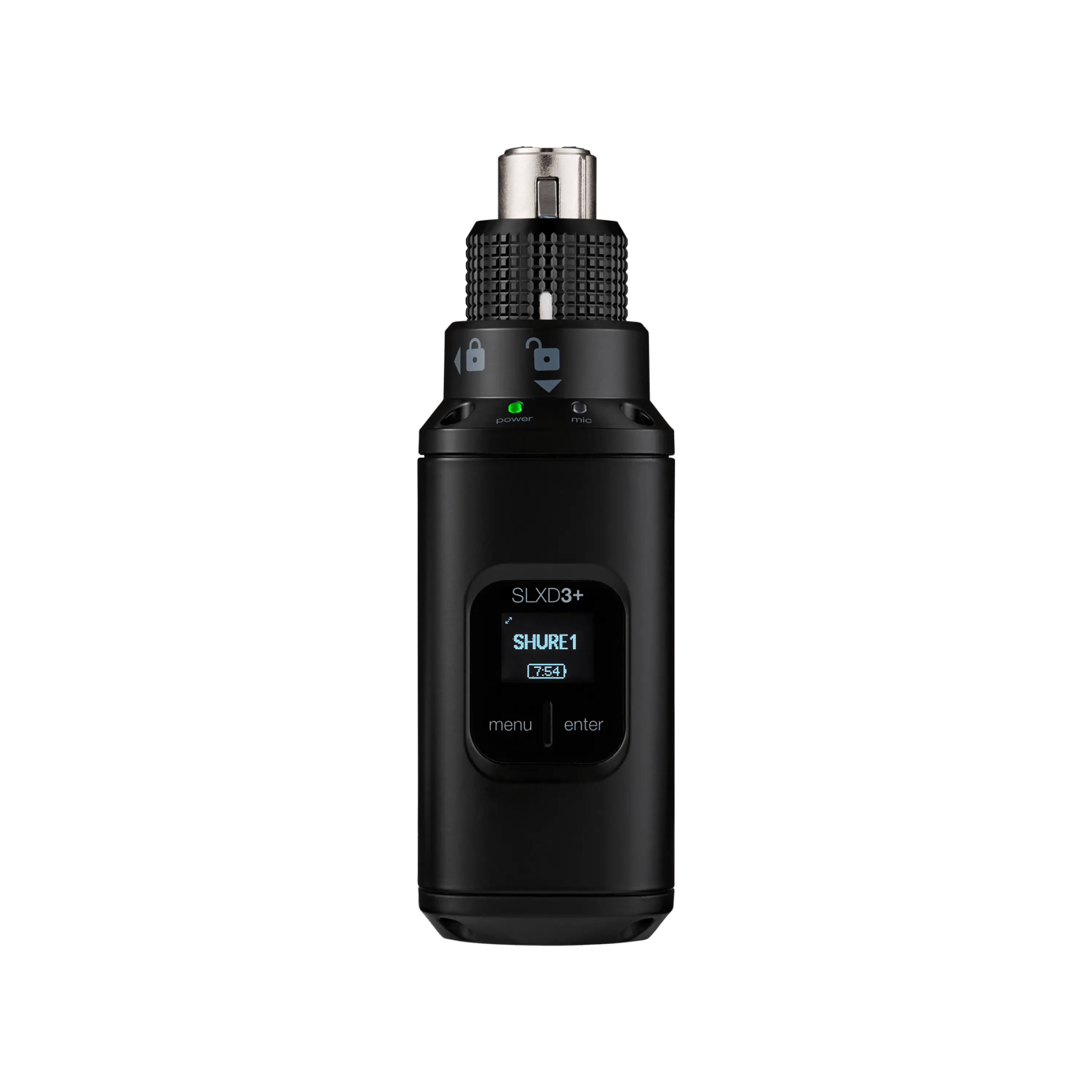

The Shure SLXD3+ is a digital plug-on wireless transmitter built for AV installation projects that need to convert an existing wired XLR microphone into a wireless channel without replacing the microphone itself. This SLX-D plug-on transmitter attaches directly to the XLR connector of a dynamic or condenser microphone, delivering 24-bit digital audio over Shure's SLX-D platform. It is a practical choice for houses of worship, auditoriums, and training rooms that already own preferred wired microphones and want to add wireless flexibility without a capsule change.

Product Description

The SLXD3+ mounts directly onto the XLR output of a wired microphone, supplying phantom power where needed and transmitting the microphone's signal digitally to a paired SLX-D receiver. This approach lets integrators keep a preferred wired microphone, such as a specific condenser or dynamic capsule already in a venue's inventory, while adding wireless mobility for the presenter or performer holding it.

The transmitter delivers 24-bit digital audio with greater than 118 dB of dynamic range and 2.8 ms of latency, along with a 138 MHz wide-tuning range for frequency coordination flexibility. ShowLink Ease allows remote adjustment of transmitter parameters from the receiver, and embedded Digital Feedback Reducer software automatically reduces feedback in difficult acoustic spaces. Wireless Workbench software and the WWB Mobile app provide RF monitoring and control, and the transmitter runs up to 8 hours on 2 AA batteries or an optional Shure SB903 rechargeable battery.

Key Features

• Plug-On XLR Design — Converts an existing wired microphone into a wireless channel without a capsule change.
• 24-Bit Digital Audio — Greater than 118 dB dynamic range with 2.8 ms latency.
• 138 MHz Wide-Tuning Range — Broad frequency coverage for multi-channel coordination.
• ShowLink Ease and Embedded DFR — Remote parameter adjustment and automatic feedback reduction.
• Up to 8 Hours of Battery Life — Runs on 2 AA batteries or an optional Shure SB903 rechargeable.

Typical Applications

• House of worship
• Auditorium
• Training room
• Commercial meeting space
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Does the SLXD3+ include a microphone?
No. The SLXD3+ is a plug-on transmitter that attaches to an existing wired XLR microphone the venue already owns.

Is a receiver included with the SLXD3+?
The SLXD3+ transmitter must be paired with a compatible SLX-D+ receiver, such as the SLXD4+ or SLXD4D+, to complete the wireless system.

Does the SLXD3+ supply phantom power to condenser microphones?
Yes, the plug-on transmitter is designed to supply phantom power to condenser microphones that require it.

How long does the battery last?
Up to 8 hours on 2 AA batteries, or comparable runtime using an optional Shure SB903 lithium-ion rechargeable battery.

What warranty applies to this transmitter?
Shure covers the SLXD3+ under its standard manufacturer warranty. Contact Creation Networks for current terms and AV integration support.
