Shure SLXD2+/N8C=-G57

Product Overview

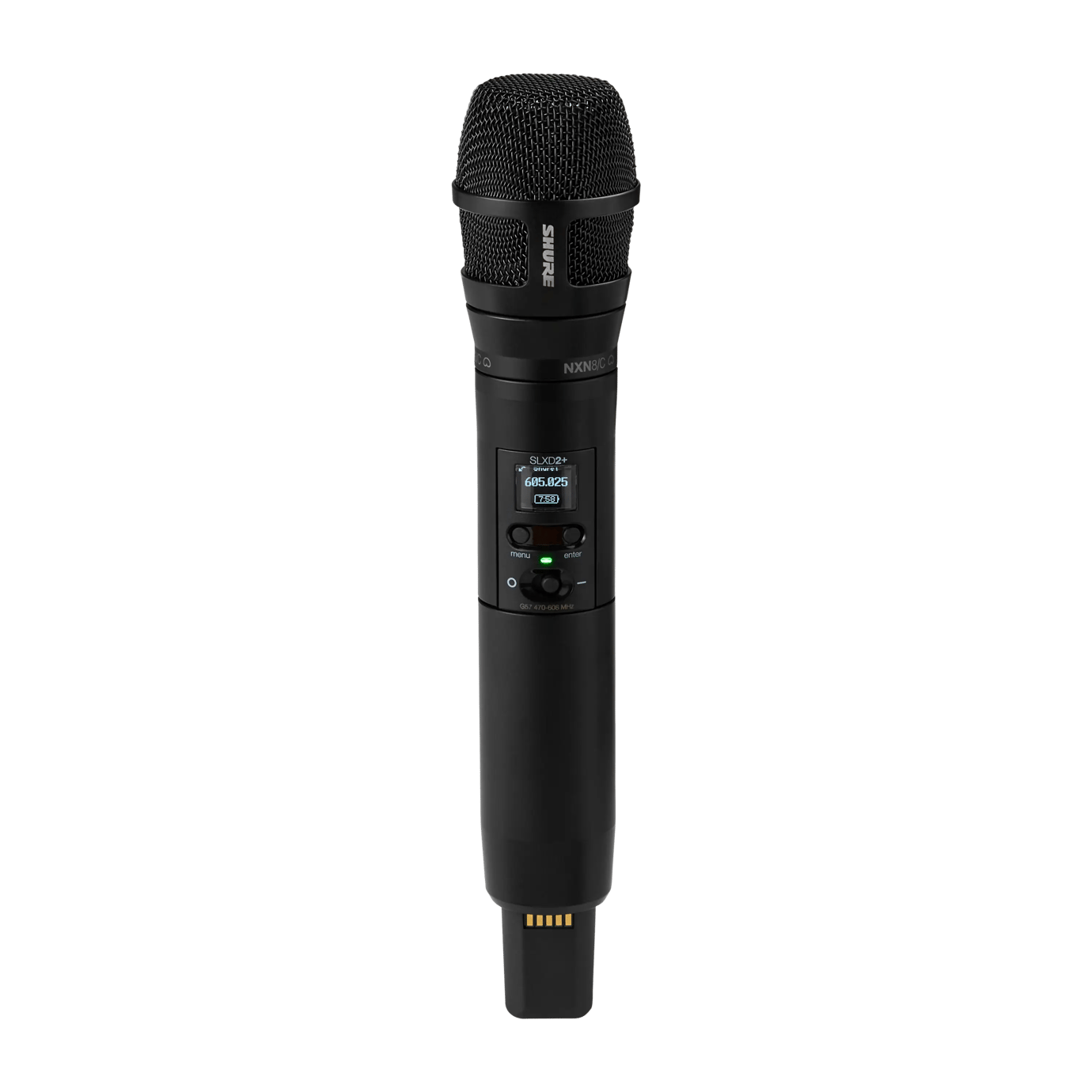

The Shure SLXD2/N8CB is a digital handheld wireless transmitter built around the Nexadyne 8/C cardioid dynamic capsule, designed for commercial AV installation projects that want condenser-like clarity from a dynamic capsule. This SLX-D digital wireless handheld transmitter delivers 24-bit digital audio with a wide 138 MHz tuning range, giving AV integrators frequency flexibility when coordinating multiple wireless channels in a venue. It is a practical choice for houses of worship, auditoriums, and lecture halls specifying a modern dynamic capsule for confident speech presentation and vocal performance.

Product Description

The SLXD2/N8CB pairs Shure's SLX-D digital wireless platform with the Nexadyne 8/C capsule, a cardioid dynamic microphone using Shure's Revonic dual-transducer design, which combines two separate but interdependent sets of diaphragms, voice coils, and magnets to deliver condenser-like clarity with a crisp, natural high end. The transmitter delivers greater than 118 dB of dynamic range and 2.8 ms of latency, keeping the wireless signal close to a wired connection in feel during live use.

ShowLink Ease lets integrators adjust transmitter parameters remotely over the air from a linked SLX-D receiver, so gain and other settings can be tuned without physically handling the transmitter mid-event. Embedded Digital Feedback Reducer software automatically reduces feedback in challenging acoustic spaces, and the transmitter runs up to 8 hours on 2 AA batteries or an optional Shure SB903 lithium-ion rechargeable battery. Wireless Workbench software and the WWB Mobile app allow RF status monitoring and parameter control from a desktop or mobile device.

Key Features

• Nexadyne 8/C Cardioid Capsule — Revonic dual-transducer design delivers condenser-like clarity from a dynamic capsule.
• 24-Bit Digital Audio — Greater than 118 dB dynamic range with 2.8 ms latency.
• 138 MHz Wide-Tuning Range — Broad frequency coverage for multi-channel coordination.
• ShowLink Ease — Remote transmitter parameter adjustment from the linked receiver.
• Embedded Digital Feedback Reducer — Automatically reduces feedback in difficult acoustic environments.
• Up to 8 Hours of Battery Life — Runs on 2 AA batteries or an optional Shure SB903 rechargeable.

Typical Applications

• House of worship
• Auditorium
• Training room
• Commercial meeting space
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Does the SLXD2/N8CB require a separate receiver?
Yes. The SLXD2/N8CB is a handheld transmitter; it must be paired with a compatible SLX-D+ receiver such as the SLXD4+ or SLXD4D+ to complete the wireless system.

What is the Nexadyne 8/C capsule?
It is a cardioid dynamic capsule using Shure's Revonic dual-transducer design, which delivers condenser-like clarity and a crisp, natural high end from a dynamic microphone.

How long does the battery last?
Up to 8 hours on 2 AA batteries, or comparable runtime using an optional Shure SB903 lithium-ion rechargeable battery.

Can transmitter settings be adjusted remotely during an event?
Yes. ShowLink Ease allows gain and other parameters to be adjusted remotely from the linked receiver.

What warranty applies to this transmitter?
Shure covers the SLXD2/N8CB under its standard manufacturer warranty. Contact Creation Networks for current terms and AV integration support.
