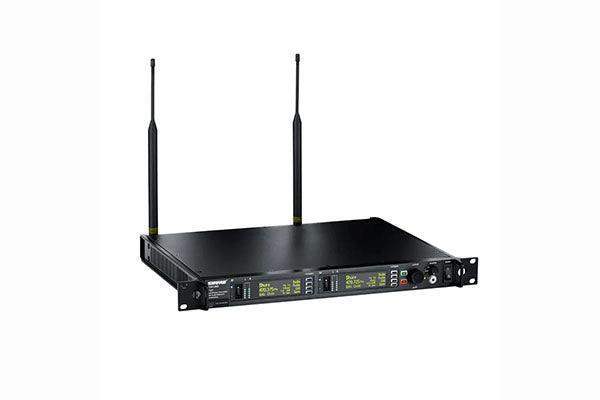

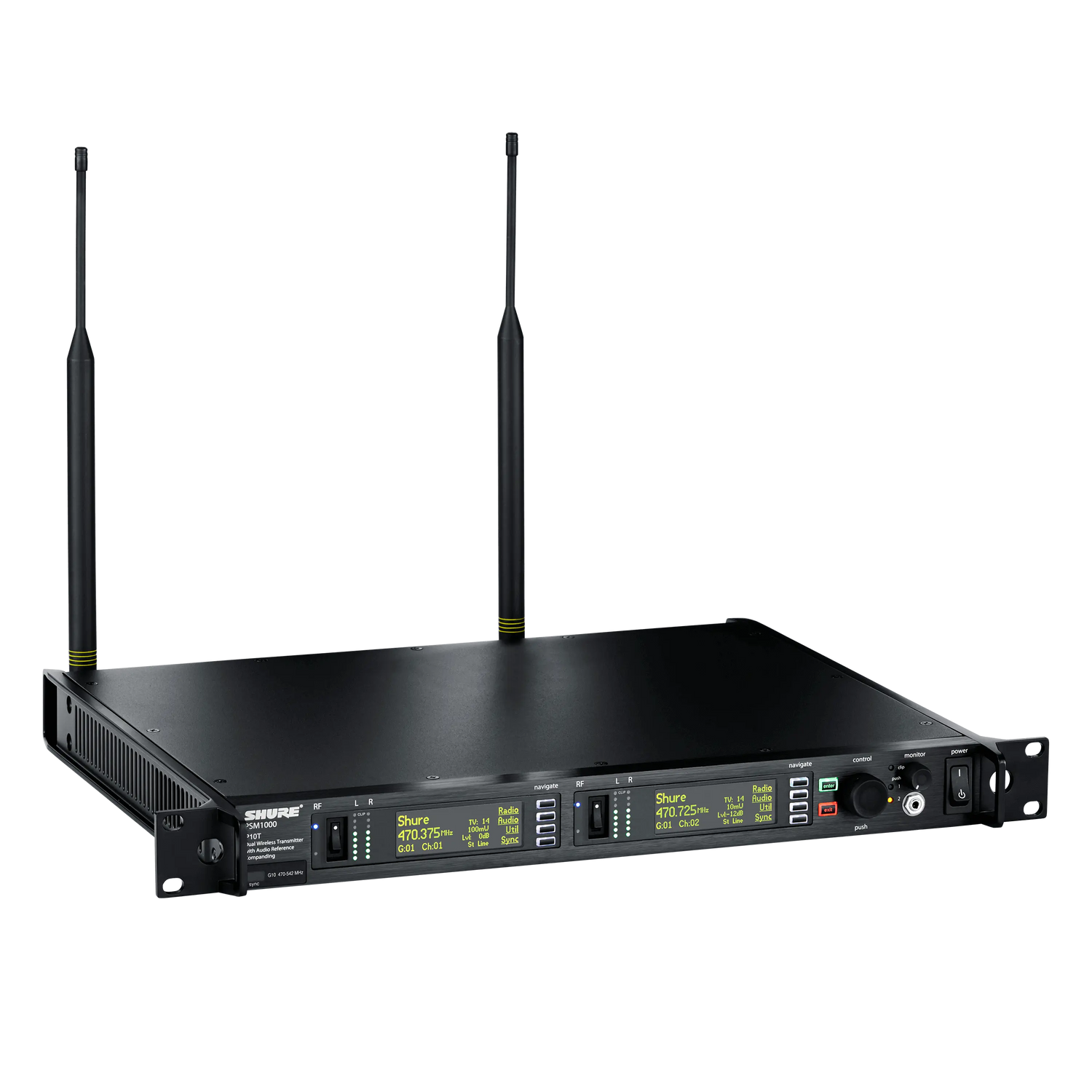

Shure P10T PSM1000 Dual Wireless Transmitter

Product Overview

The Shure P10T is a full-rack, dual-channel wireless transmitter designed for the PSM1000 Personal Monitor System, purpose-built for professional touring and fixed-installation IEM deployments. Supporting two independent monitor mixes simultaneously, the P10T operates across a 72 MHz tuning bandwidth and integrates with Shure's Wireless Workbench software for centralized RF management. Its all-metal, touring-grade chassis makes it a reliable choice for broadcast studios, houses of worship, and permanent commercial AV installations where system uptime is non-negotiable.

Product Description

The Shure P10T dual-channel wireless transmitter anchors the PSM1000 in-ear monitoring system, delivering two fully independent stereo mixes to P10R+ bodypack receivers. Balanced XLR and ¼" inputs accept signals directly from stage patch bays or FOH consoles, while dual Ethernet ports enable daisy-chaining for multi-rack system integration and networked control via Wireless Workbench. PSM900 system backwards compatibility protects existing infrastructure investments when upgrading to PSM1000. A front-panel headphone output lets engineers verify monitor mixes directly at the rack without additional equipment. Available in multiple frequency bands to meet FCC and regional RF requirements. For related PSM1000 system components, see the Shure P10TR+425CL PSM1000 Dual-Channel In-Ear Monitor System.

Key Features

• Dual-Channel Transmission — Broadcasts two independent stereo monitor mixes simultaneously on separate RF frequencies, supporting two performers from a single 1RU rack position.
• 72 MHz Tuning Bandwidth — Wide tuning range across the supported frequency band provides maximum flexibility for RF coordination in congested spectrum environments.
• Wireless Workbench Integration — Full remote control and monitoring via Shure's Wireless Workbench software enables centralized system management for large-scale installations and touring rigs.

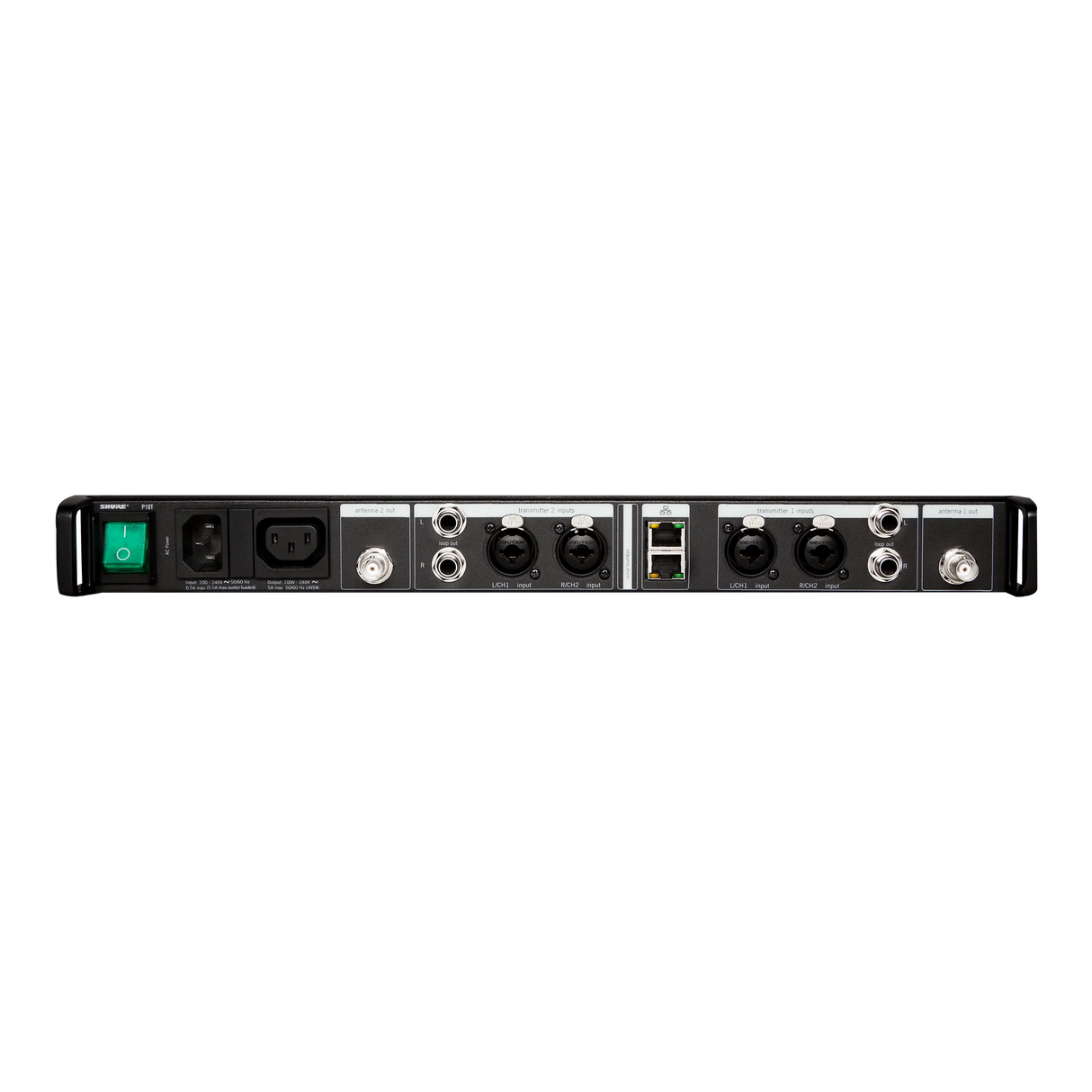

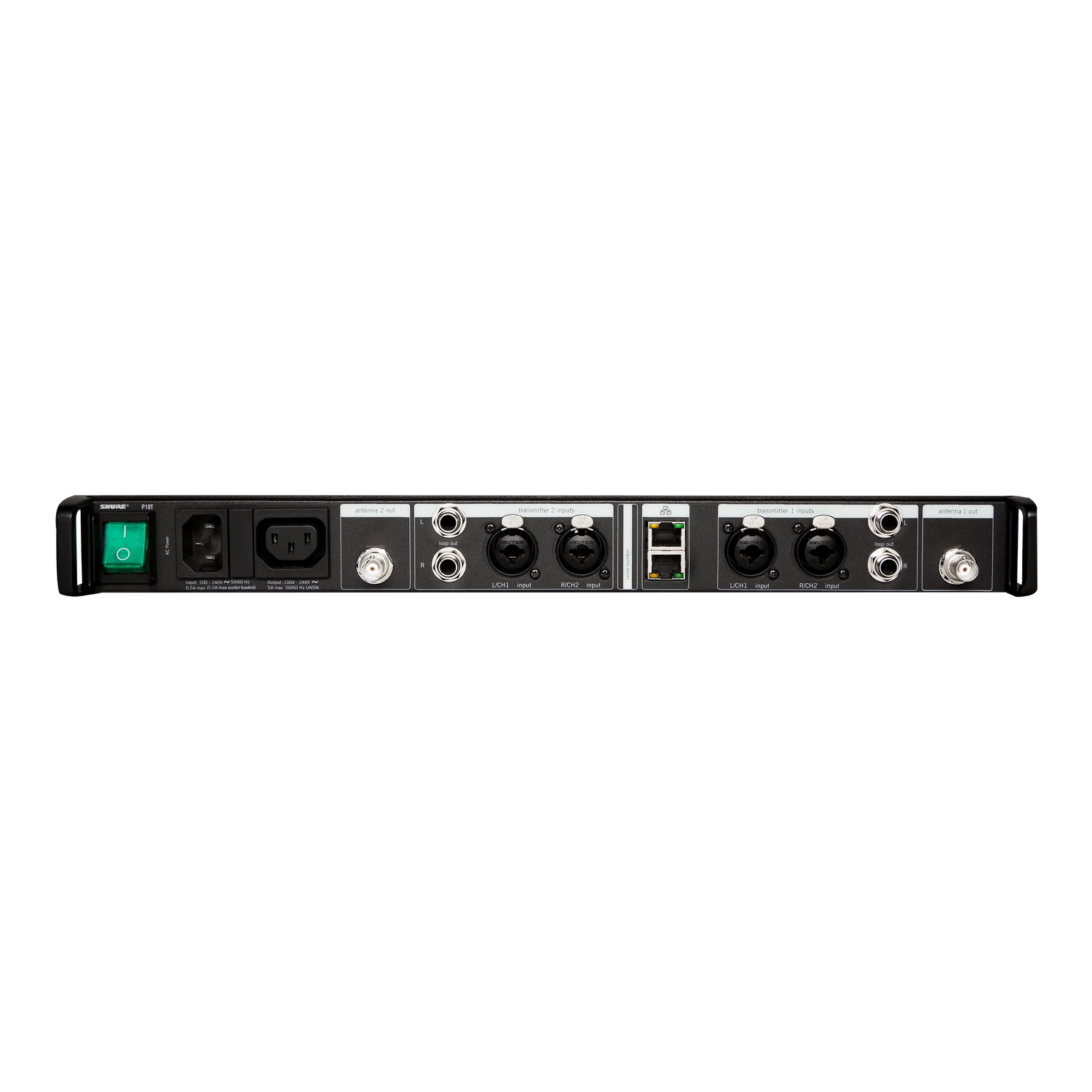

• Balanced XLR and ¼" Inputs — Professional balanced audio connections on both XLR and ¼" TRS allow direct integration with FOH consoles, stage patch panels, and professional analog audio infrastructure.
• Dual Ethernet Ports — Pass-through Ethernet ports support daisy-chain networking across multiple rack units for scalable, distributed IEM system deployment.
• PSM900 Backwards Compatibility — Works with existing PSM900 bodypack receivers, protecting prior infrastructure investments and simplifying hybrid system configurations.

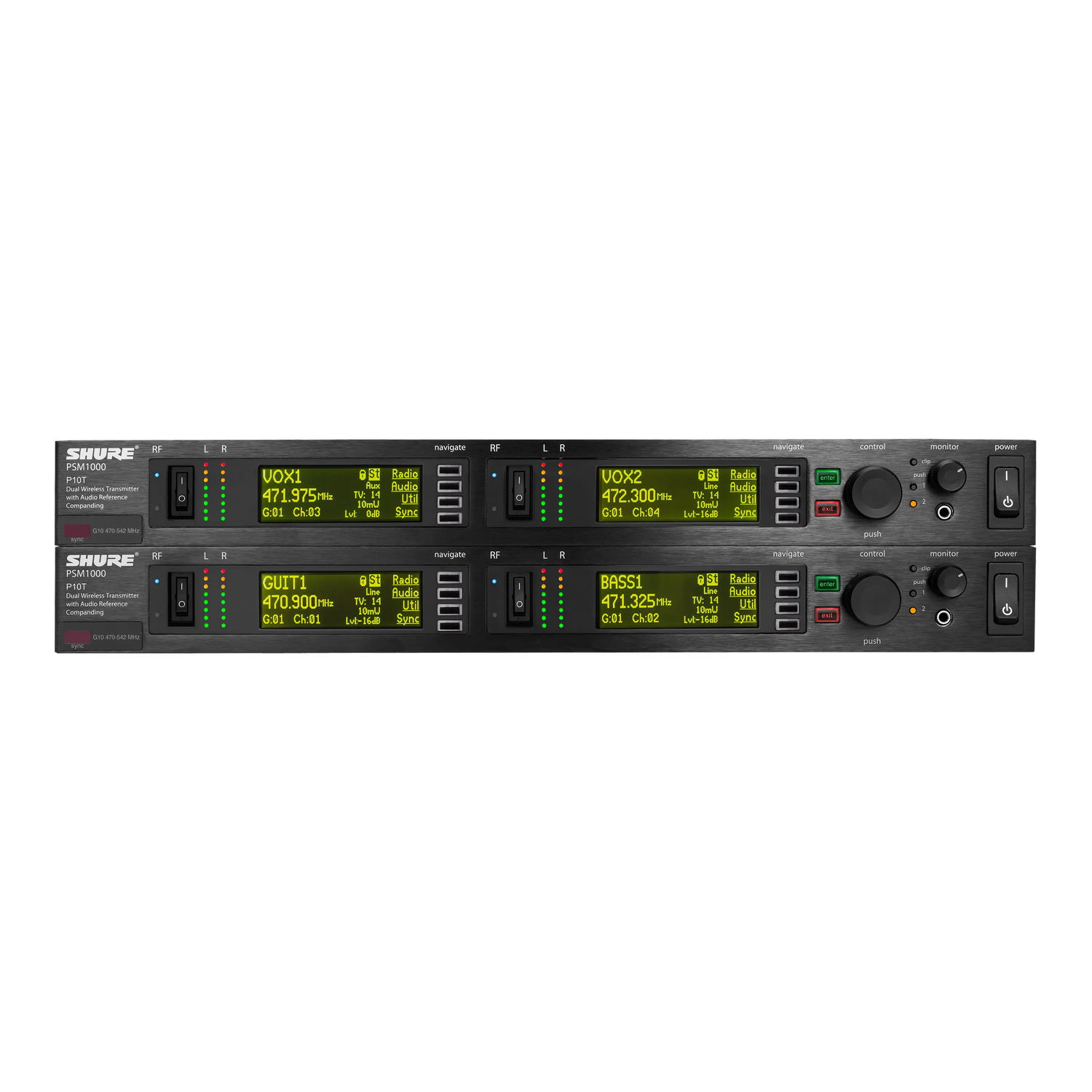

• Front-Panel Headphone Monitor Output — Built-in 3.5mm headphone jack allows engineers to audition either monitor mix channel at the rack without additional monitoring equipment.
• Touring-Grade All-Metal Chassis — Full-rack steel construction is built to withstand the demands of professional touring and permanent commercial installation environments.

Typical Applications

• Broadcast studio
• House of worship
• Auditorium
• Commercial meeting space
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Is the P10T compatible with PSM900 bodypack receivers?
Yes. The P10T includes backwards compatibility with PSM900 bodypack receivers, allowing mixed PSM1000 and PSM900 deployments within the same system infrastructure.

How many monitor mixes can the P10T transmit simultaneously?
The P10T transmits two independent stereo monitor mixes on separate RF channels simultaneously, each accessible by a paired P10R+ bodypack receiver tuned to the respective frequency.

Can the P10T be managed remotely?
Yes. The P10T connects to a local area network via its dual Ethernet ports and is fully controllable through Shure's Wireless Workbench software, enabling remote frequency coordination, gain control, and system monitoring from a central AV control position.

What input connections does the P10T support?
The P10T provides balanced XLR and ¼" TRS inputs on each channel, accommodating direct connection from FOH mixing consoles, stage patch bays, and other professional balanced audio sources.

What warranty coverage applies to the P10T?
Shure products sold through authorized commercial AV resellers like Creation Networks are covered by Shure's standard manufacturer warranty. Contact us at creationnetworks.net for warranty support and registration assistance.
