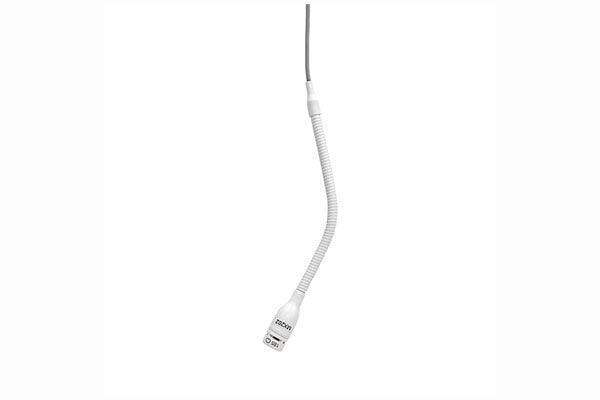

Shure MX202WP Overhead Microphone with Plate Mount (White)
Description
The white MX202WP-A/C Microflex Overhead Cardioid Microphone with Plate Mount and Screw Terminals Connector from Shure is designed to capture high-quality audio in a compact adjustable package for applications such as miking a choir, distance learning in a classroom, and for live stage and theater environments with performance groups.
The MX202WP-A/C overhead uses a modular design with interchangeable mic cartridges; this model features a cardioid capsule attached to a flexible 4" gooseneck and a 30' cable. All of the mic capsules offer a wide dynamic range and a 50 Hz to 17 kHz frequency response.
Features
- Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
- Interchangeable cartridges that provide an optimal polar pattern choice for each application
- Balanced, transformerless output for increased immunity to noise over long cable runs
- Supplied stand-mount adapter for portable applications (in-line preamplifier versions only)
- Off-white or black finish that blends unobtrusively with most surroundings
- Preamp options available offer easy installation in ceilings or microphone stands
- When combined with the high sensitivity cartridge's wide frequency response, these microphones provide accurate sound reproduction with minimum RF interference or electromagnetic hum
- C = Cardioid
- S = Supercardioid
- N = No cartridge
Specification
| Form Factor | Boundary/Surface Mount / Gooseneck |
| Sound Field | Mono |
| Operating Principle | Pressure Gradient |
| Capsule | 1 x Condenser |
| Polar Pattern | Cardioid |
| Orientation | End Address |
| Circuitry | Solid-State |
| Pad | None |
| High-Pass Filter | None |
| Tone Adjustment | None |
| Indicators | None |
| On-Board Controls | None |
| Windscreen | Foam (Included) |
| Frequency Range | 50 Hz to 17 kHz |
| Maximum SPL | 124 dB SPL Peak |
| Impedance | 180 Ohms |
| Sensitivity | -35 dB at 1 kHz |
| Dynamic Range | 96.2 dB A-Weighted |
| Signal-to-Noise Ratio | 66 dB A-Weighted |
| Equivalent Noise Level | 28 dB A-Weighted |
| CMRR | 45 dB |
| Output Connectors (Analog) | 1 x Screw Terminal 3-Pin Male (on Preamp) |
| Cable Length | 30' / 9.14 m |
| Operating Voltage | 11 to 52 V |
| Operating Current Consumption | 2.0 mA |
| Color | White |
| Mounting | Surface-Mount (with Included Hardware) |
| Operating Temperature | 0 to 135°F / -17.8 to 57.2°C |
| Operating Humidity | 0 to 95% |
| Storage Temperature | -20 to 165°F / -28 to 73°C |
| Dimensions | ø: 0.46 x L: 5.69" / ø: 11.68 x L: 144.53 mm |
| Weight | 17.8 oz / 504.63 g |
| Package Weight | 0.915 lb |
| Box Dimensions (LxWxH) | 10 x 5.1 x 3.2" |
