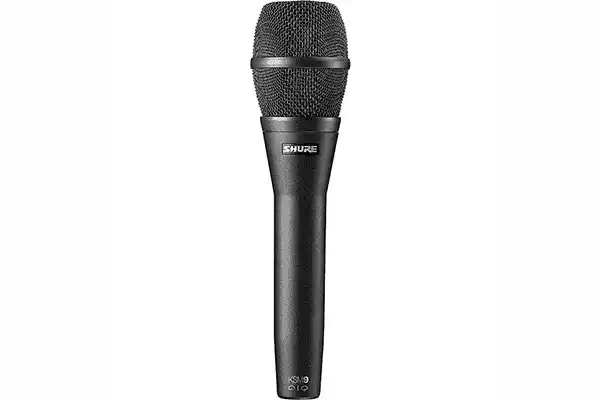

Shure KSM9/CG Dual Pattern (Cardiod/Supercardiod) Condenser Handheld Vocal Microphone (Charcoal)

Product Overview

The Shure KSM9/CG is a premium handheld condenser vocal microphone with switchable cardioid and supercardioid patterns, built for detailed, articulate vocal capture in live sound reinforcement. Its dual gold-layered Mylar diaphragm design delivers studio-level quality on stage, making it a leading handheld condenser microphone for touring, house of worship, and broadcast vocal applications. The charcoal finish and selectable polar patterns give engineers flexible control over gain before feedback and pickup.

Product Description

The KSM9/CG captures vocal subtlety with exceptional detail for clear articulation and precise reproduction in demanding live environments. A dual gold-layered, low-mass Mylar diaphragm design provides consistency across all frequencies, more gain before feedback, and reduced proximity effect compared with typical handheld microphones. Switchable polar patterns let the engineer choose cardioid for broader pickup or supercardioid for tighter rejection on loud stages, adapting the microphone to the room and monitor setup. The microphone includes a shock mount, gold-plated connectors, and an aluminum carrying case, and it is a premier capsule choice across Shure Axient, UHF-R, and ULX-D wireless systems. As a condenser microphone it requires phantom power and connects through a standard XLR, suiting house of worship, auditorium, and broadcast studio vocal capture.

Key Features

• Switchable Cardioid/Supercardioid Patterns — Selectable polar patterns let the engineer match pickup and rejection to the venue and monitor configuration.
• Dual Gold-Layered Mylar Diaphragm — The low-mass dual diaphragm design delivers detailed, consistent vocal reproduction across the frequency range.
• More Gain Before Feedback — Consistent off-axis response increases usable gain before feedback in live reinforcement.
• Reduced Proximity Effect — Controlled proximity effect maintains a natural tone as the vocalist works the microphone closely.
• Wireless System Compatible — A premier capsule choice for Shure Axient, UHF-R, and ULX-D handheld wireless transmitters.

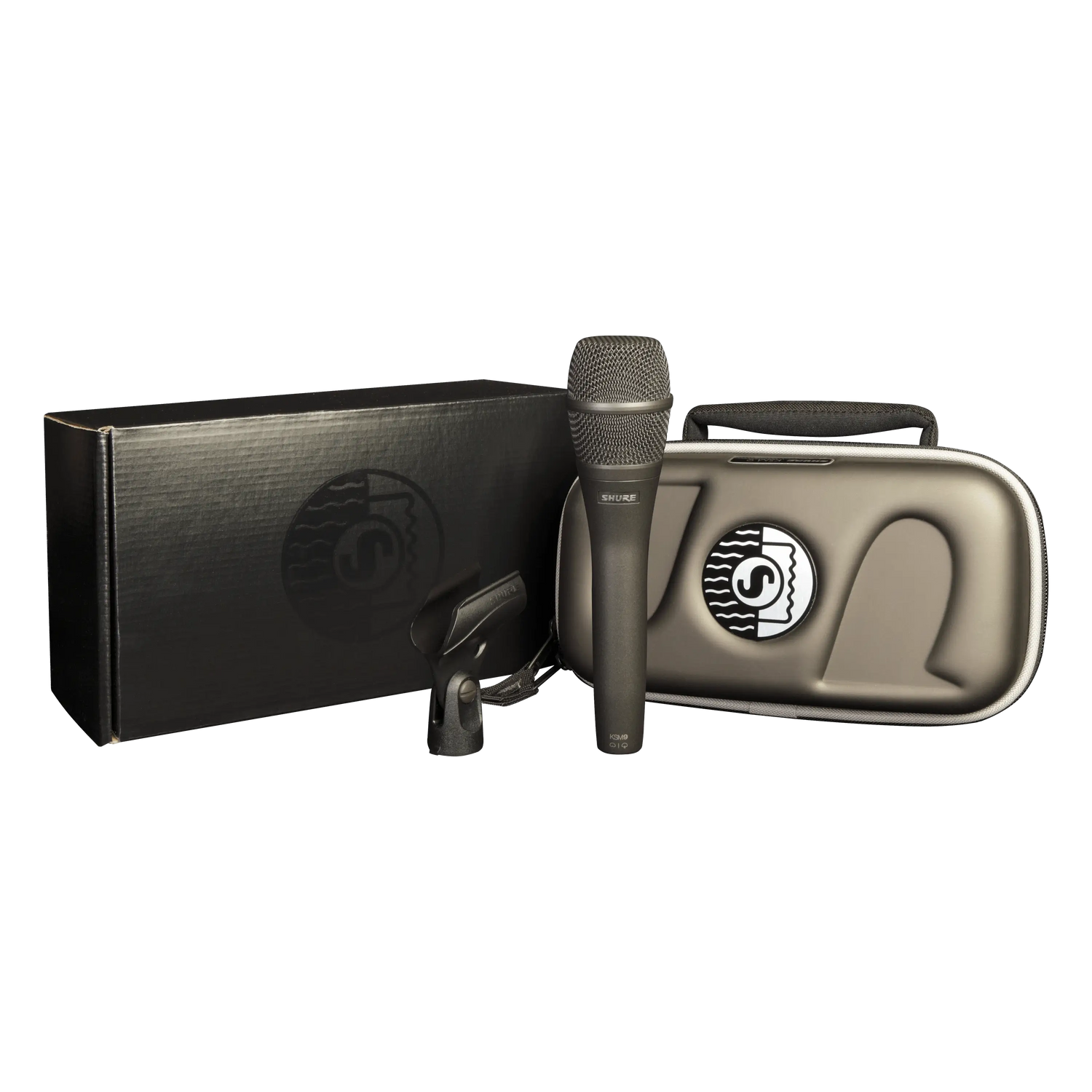

• Includes Shock Mount and Case — Ships with a shock mount, gold-plated connectors, and an aluminum carrying case.

Typical Applications

• House of worship
• Auditorium
• Broadcast studio
• Multi-purpose room

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Does the KSM9/CG require phantom power?
Yes. As a condenser microphone it requires phantom power from a mixer, preamp, or compatible wireless transmitter.

When should I switch between cardioid and supercardioid?
Use cardioid for broader pickup and a more natural room feel, and supercardioid for tighter rejection and higher gain before feedback on loud stages.

Can it be used as a wireless handheld capsule?
Yes. The KSM9 capsule is available for Shure Axient, UHF-R, and ULX-D handheld transmitters.

Is it suitable for house of worship systems?
Yes. Its detail, reduced proximity effect, and high gain before feedback make it effective for lead vocals in installed worship and auditorium systems.

What warranty and support apply?
The microphone carries Shure's manufacturer warranty. Creation Networks provides procurement and integration support for commercial AV projects.
