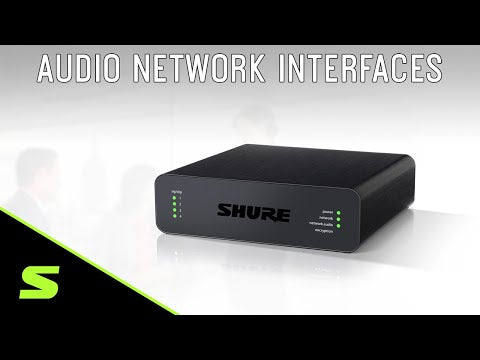

Shure ANI4IN-XLR Audio Network Interface (XLR Connectors)

Availability: Call for Availability
Availability: Direct Ship
Shure SKU: ANI4IN-XLR
No reviews
Price:
$624.00 $874.00

Description

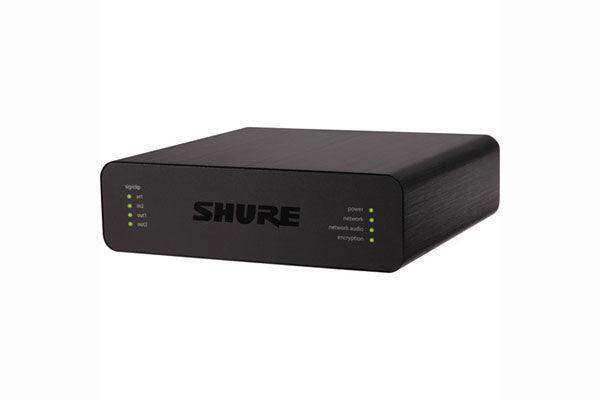

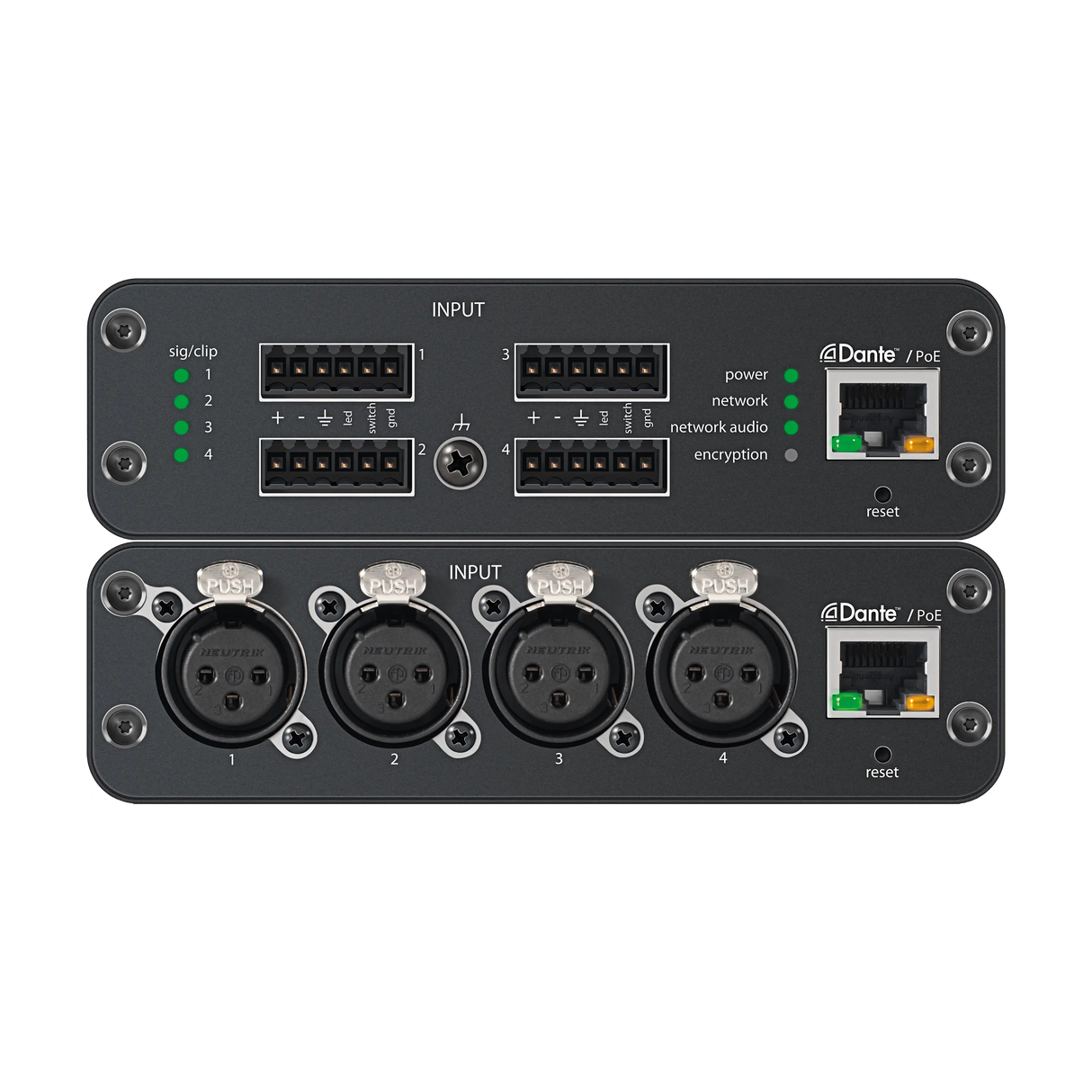

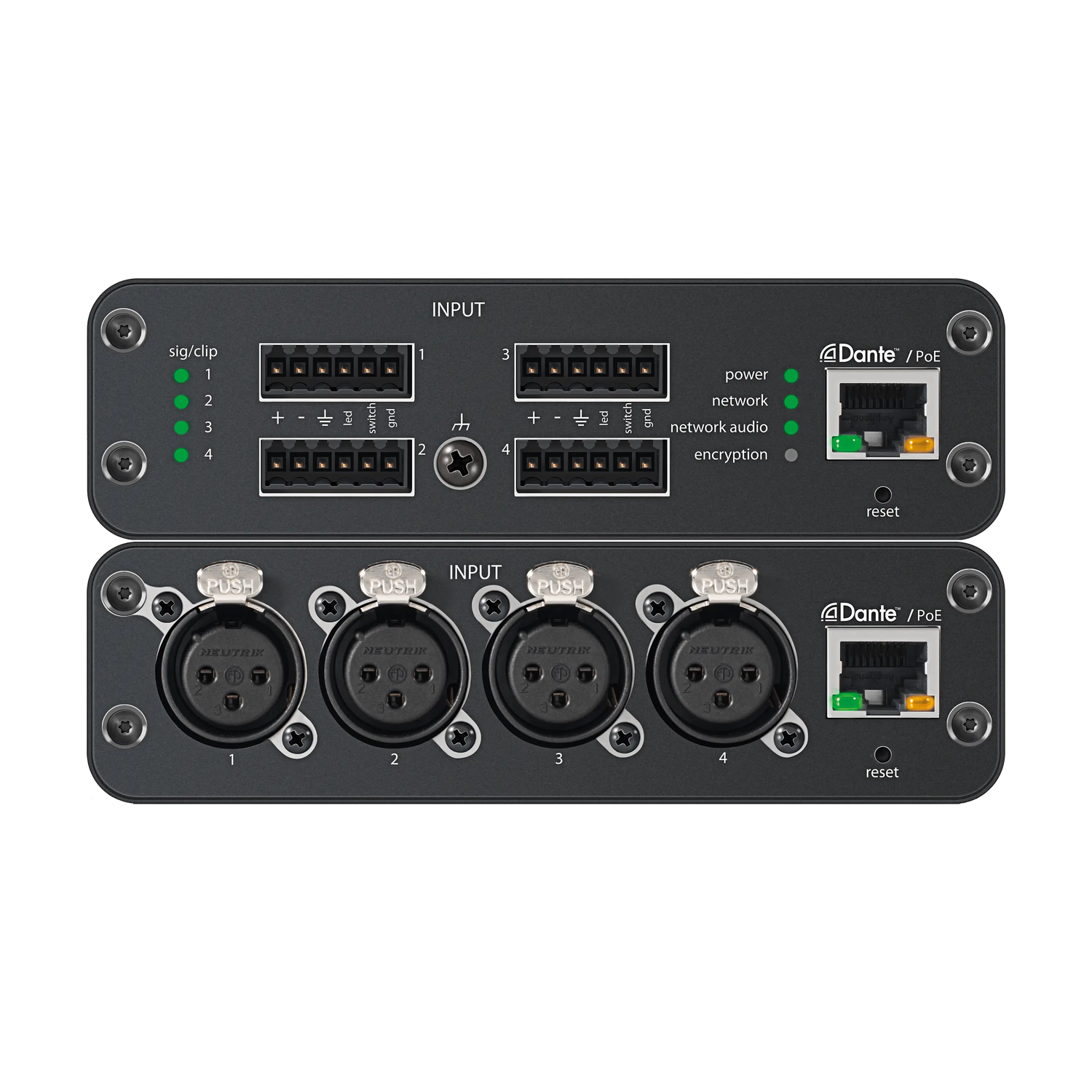

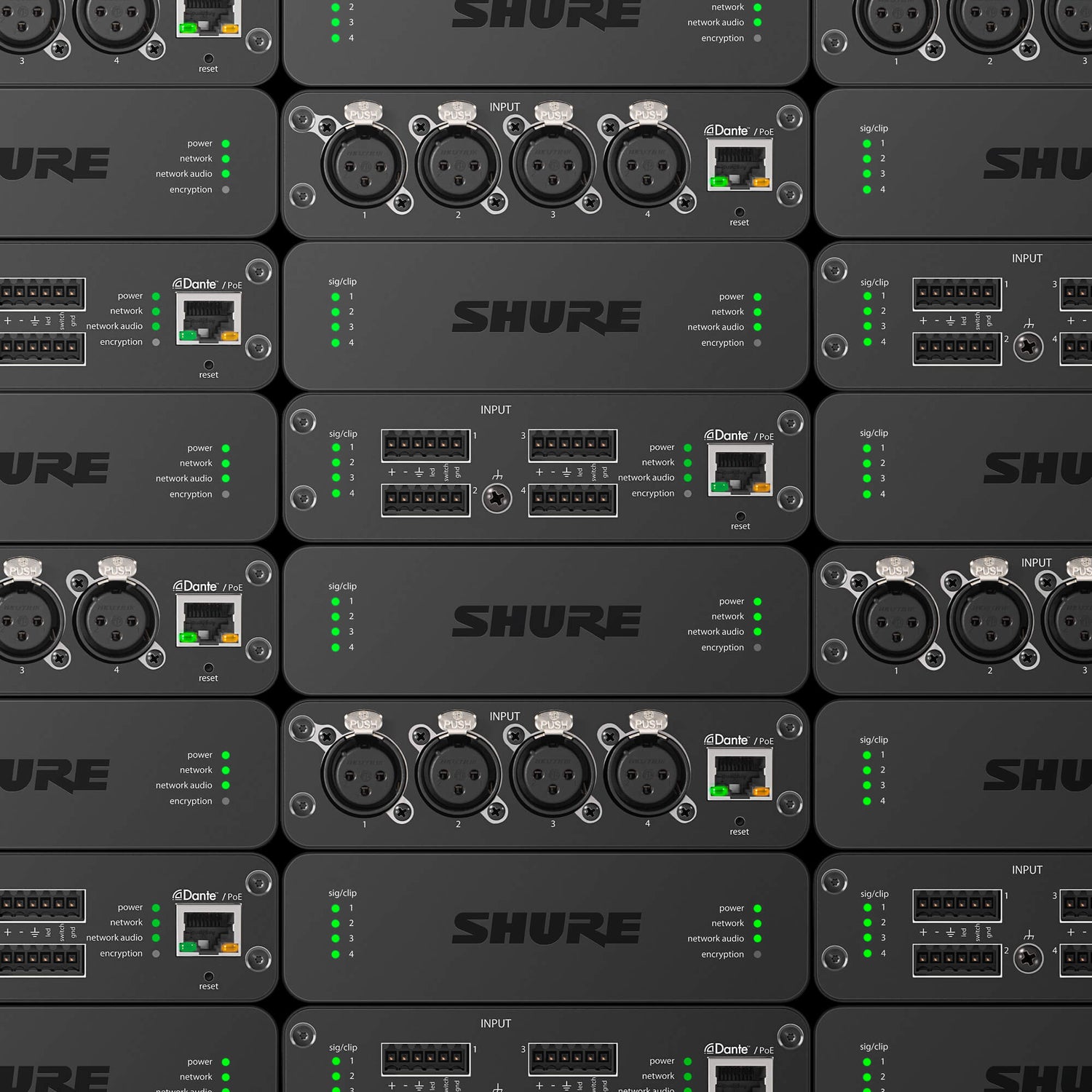

The 1/3 RU Microflex Advance Dante Mic/Line Audio Network Interface Unit from Shure is an interface unit with four 3-pin XLR input ports that convert four line or microphone analog signals onto a Dante network for audio routing and browser-based control. It features a single Ethernet port, customizable EQ settings, channel summing, and LEDs that indicate the device status and audio signal. It is compatible with third party control systems.

  • Single Ethernet port carries Dante audio, power (PoE - class 0)
  • Control strings for third-party preset controllers including Crestron and AMX
  • Four band C/S PEQ on every channel
  • Provides channel summing to combine input signals and send them over a single Dante channel
  • Browser-based software control for all device parameters, per input channel for preamp gain, phantom power, mute control, digital gain, and polarity control
Inputs (Analog) 2 x 3-pin XLR connectors
Outputs (Analog) 2 x 3-pin XLR connectors
Dante Connection 1 x RJ45
Channel Count: 2 inputs, 2 outputs
Polarity Non-inverting, any input to any output
Power Requirements Power over Ethernet (PoE), Class 0 (PoE Plus compatible)
Power Consumption 11 W maximum
Application Control HTML5
Operating Temperature Range 20 to 104°F (-6.7 to 40°C)
Storage Temperature Range 20 to 165°F (-29 to 74°C)
Thermal Dissipation Maximum: 12.1 W (41.3 BTU/hr)
Typical: 9.8 W (33.7 BTU/hr)
Audio
Frequency Response 20 Hz to 20 kHz ±1 dB
Dante Audio Flows Sampling Rate: 24-bit/48 kHz
Latency Does not include Dante latency
Analog to Dante: 0.35 ms
Dante to Analog: 0.71 ms
Analog Gain Range 51 dB (adjustable in 3 dB steps)
Dynamic Range 113 dB, 20 Hz to 20 kHz, A-weighted, typical
Equivalent Input Noise 20 Hz to 20 kHz, A-weighted, input terminated with 150 Ohms
Analog Gain Setting = +0 dB, -93 dBV
Analog Gain Setting = +27 dB, -119 dBV
Analog Gain Settings = +51 dB, -130 dBV
Total Harmonic Distortion (THD) <0.05% @ 1 kHz, 0 dBV input, 0 dB analog gain
Common Mode Rejection Ratio >70 dB, 50 Ohms balanced source @ 1 kHz
Input Impedance 5 kOhms
Output Impedance 150 Ohms
Input Clipping Level Analog Gain Setting = +0 dB, +20 dBV
Analog Gain Setting = +27 dB, -7 dBV
Analog Gain Setting = +51 dB, -31 dBV
Analog Output Levels Selectable Line 0 dB
Aux -20 dB
Mic -46 dB
Digital Signal Processing (DSP) Per Channel: Equalizer (4-band Parametric, Dante channels only), Mute, Limiter, Gain (140 dB range)
System: Channel Summing
Networking Cat 5e or higher (shielded cable recommended)
Dimensions 1.6 x 5.5 x 5.0" (4 x 14 x 12.8 cm)
Weight 1.5 lb (672 g)
