Sennheiser Supercardioid condenser capsule head for wireless systems with Shure interface, nickel (008722)
Sennheiser Supercardioid condenser capsule head for wireless systems with Shure interface, nickel (008722) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sennheiser Supercardioid condenser capsule head for wireless system...
Product Overview

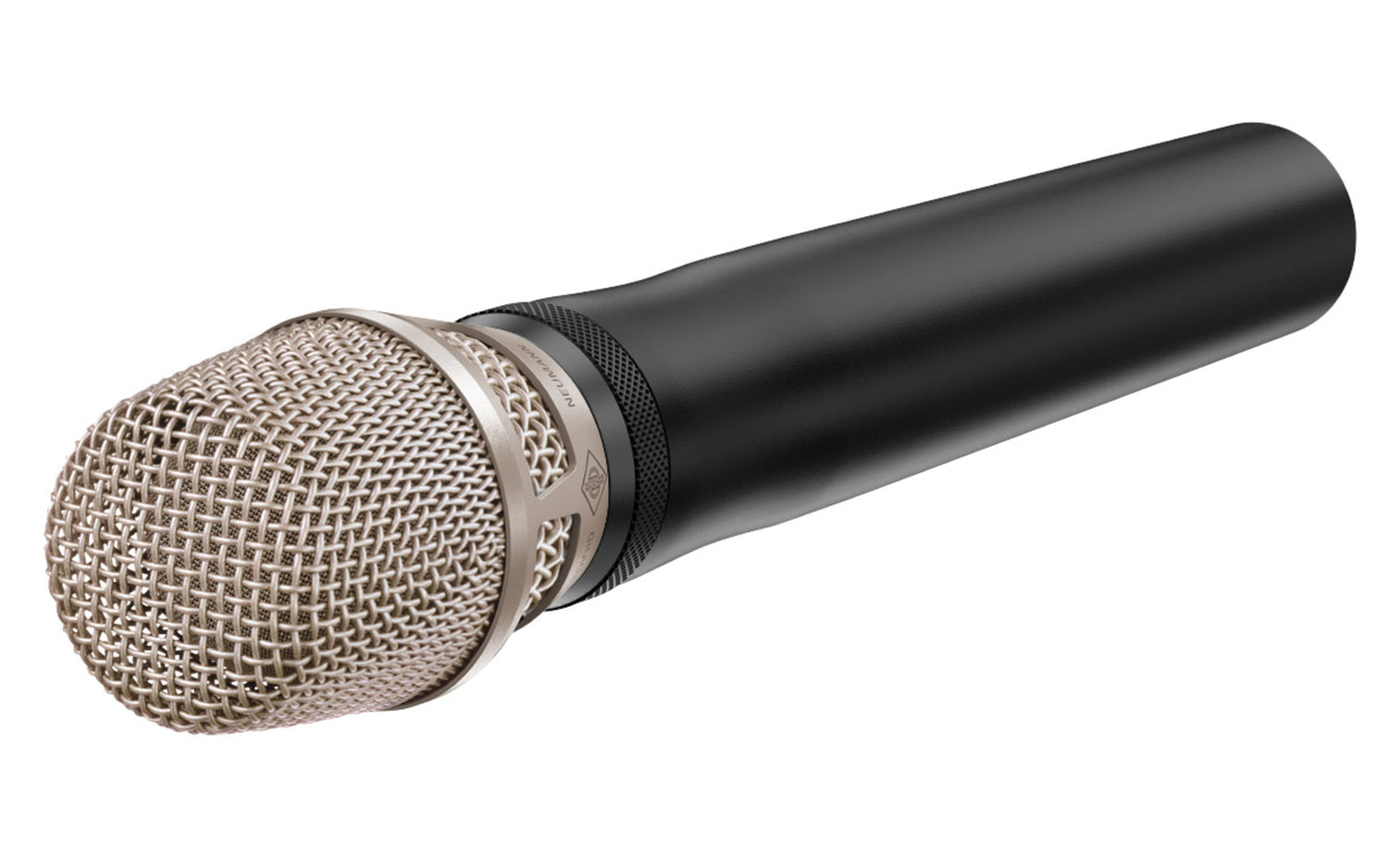

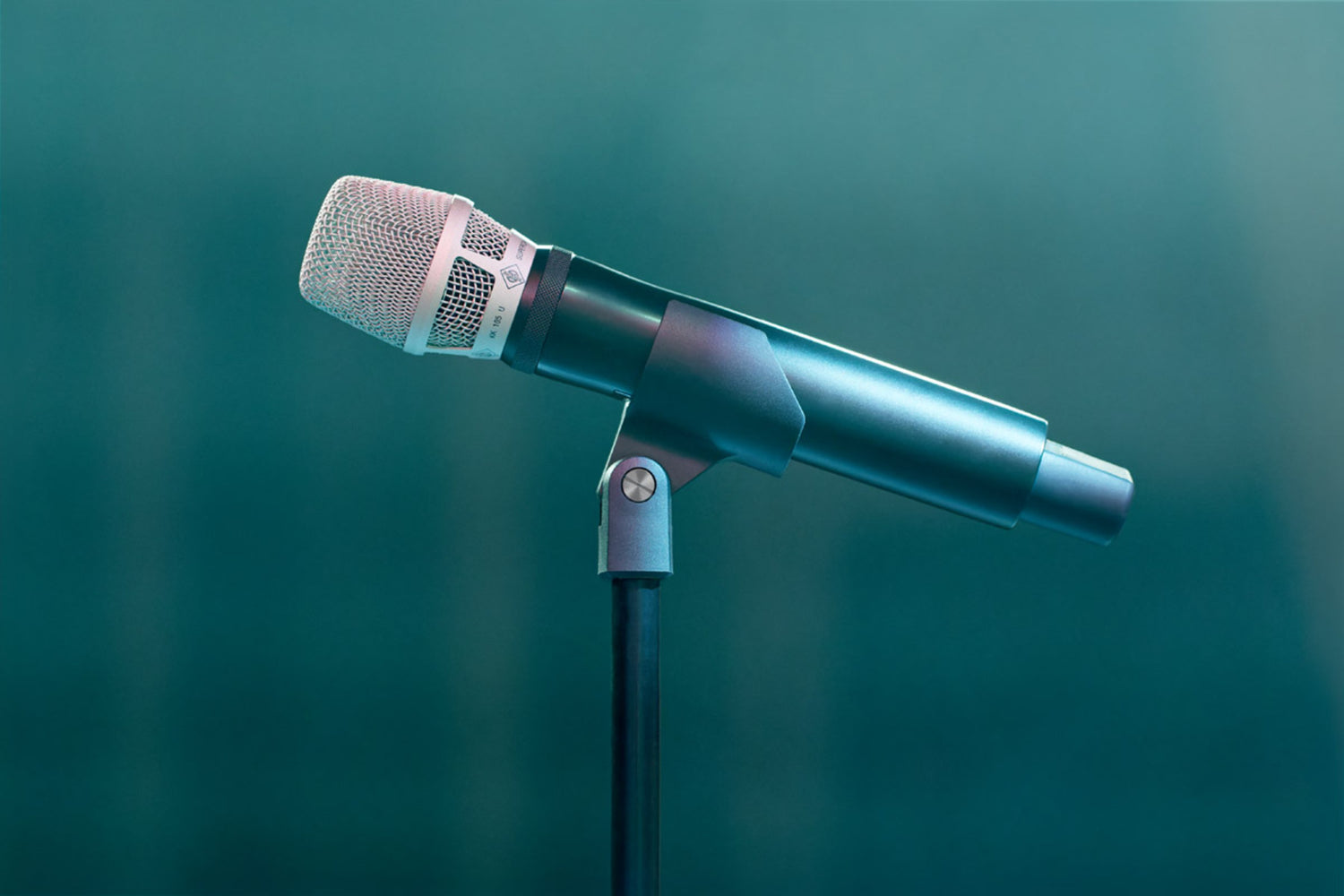

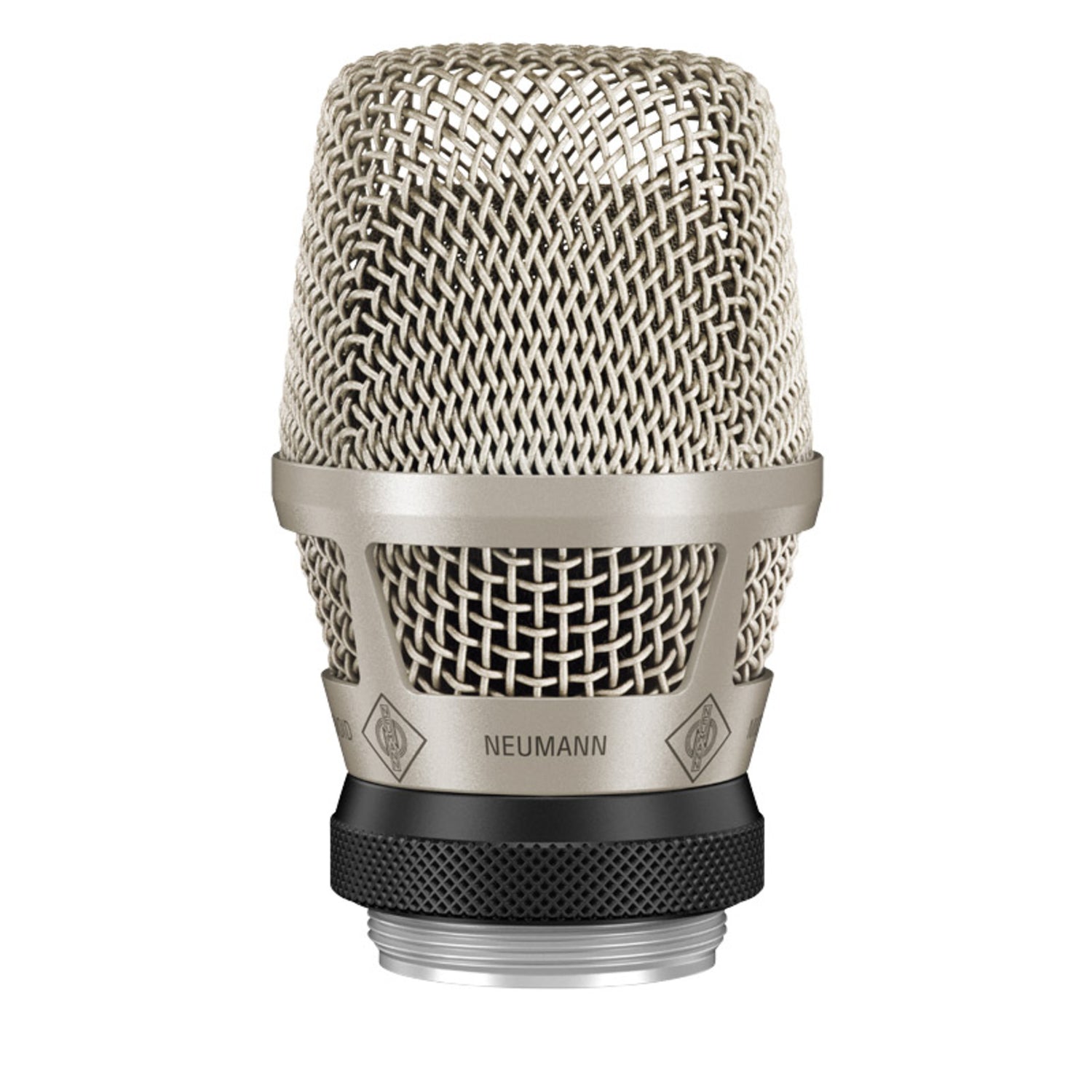

The Neumann KK 105 U Supercardioid Condenser Capsule (Nickel) — SKU 008722 — is a professional wireless capsule head for third-party handheld transmitters with a Shure-compatible interface. Based on the same supercardioid condenser element as the KMS 105-derived KK 105 S, it delivers tighter directional control and higher gain before feedback than the cardioid KK 104 U, making it the preferred choice for high-SPL live vocal, broadcast, and stage wireless deployments on Shure platform transmitters.
Product Description
The KK 105 U (nickel) brings Neumann’s KMS 105 supercardioid capsule technology to Shure-compatible wireless handheld transmitters. The supercardioid polar pattern uses a single polar pattern design that holds consistent uniformity from 80 Hz to 20 kHz, providing stable, predictable off-axis rejection at all frequencies. Maximum SPL handling is 150 dB (THD 0.5%), covering the most demanding high-energy vocal and stage sources. The multi-level wire gauze acoustic filter provides pop protection while maintaining open high-frequency response, and expanded-pore internal foam protects against moisture and condensation. The nickel finish matches nickel-body Shure transmitters. Includes a large nylon carry bag. Special-order item.
Key Features
- Neumann KMS 105 Supercardioid Element — Same K 105 condenser capsule as the KK 105 S; Shure interface for third-party transmitter compatibility.
- Shure-Compatible Interface — Fits third-party Shure-interface handheld wireless transmitters.
- Supercardioid Polar Pattern — Tight directional control with maximum side and rear rejection for high gain before feedback.
- 150 dB Max SPL (THD 0.5%) — Handles the highest-SPL vocal and stage sources.
- Multi-Level Wire Gauze Acoustic Filter — Balanced pop protection with minimal high-frequency attenuation.
- Moisture-Resistant Foam — Expanded-pore foam protects against humidity and condensation.
- Nickel Finish — Matches nickel-body third-party transmitters.

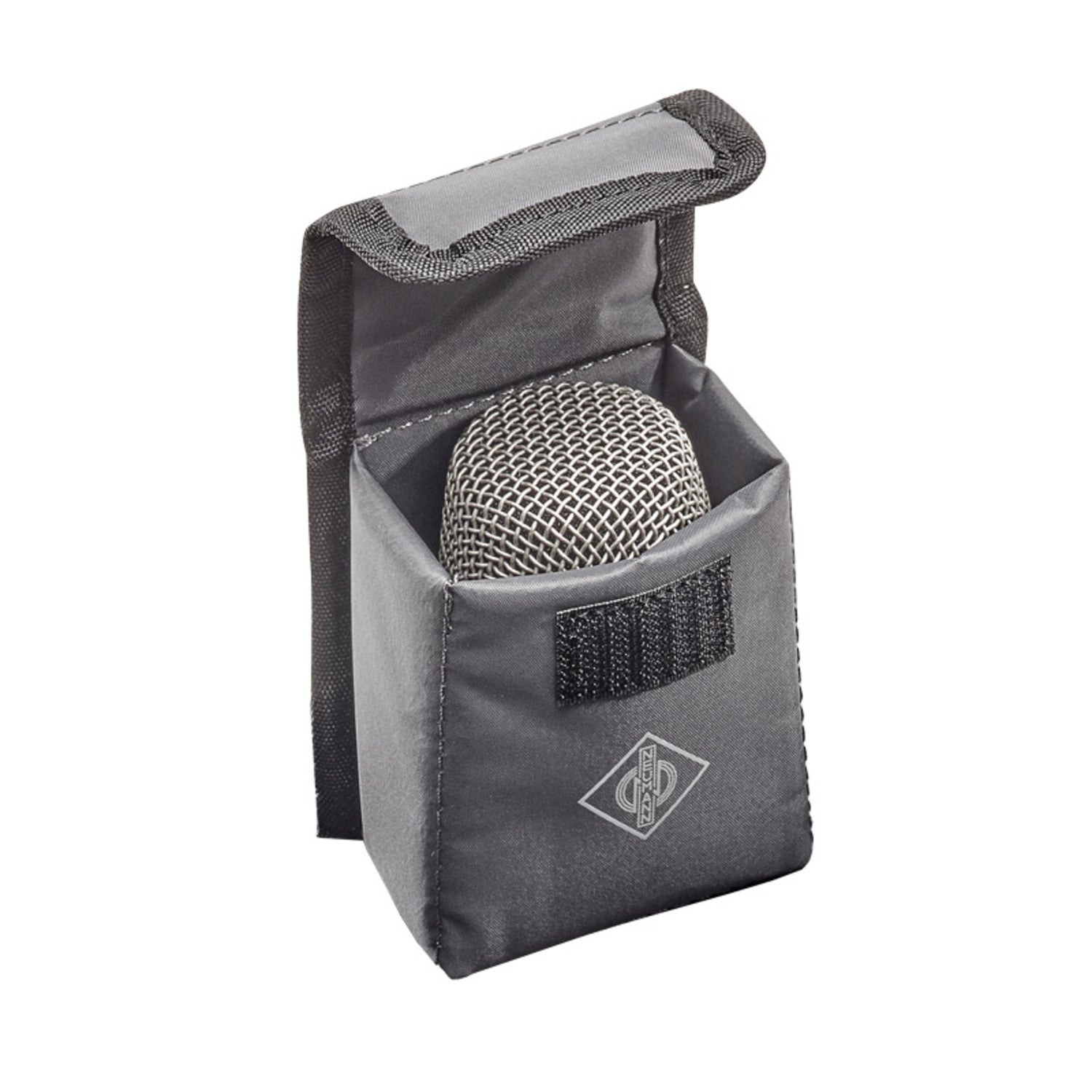

- Includes Nylon Carry Bag — Large bag for capsule and accessories.
Typical Applications
- House of worship lead vocal wireless on Shure platforms in high-SPL environments
- Broadcast studio and ENG handheld wireless
- Live theatre and performing arts wireless vocal
- Auditorium and touring production wireless
- Corporate event wireless presenter microphone
Technical Specifications
| Parameter | Value |
|---|---|
| SKU | 008722 |
| Color | Nickel |
| Interface | Shure-compatible (third-party) |
| Polar Pattern | Supercardioid |
| Transducer Type | Permanently polarized condenser (Neumann K 105) |
| Frequency Range | 80 Hz – 20 kHz |
| Max SPL (THD 0.5%) | 150 dB |
| Compatible With | Third-party transmitters with Shure interface |
| Grille Type | Multi-level wire gauze acoustic filter |
| Includes | KK 105 U capsule (nickel), large nylon carry bag |
Frequently Asked Questions
- Will this capsule fit Sennheiser transmitters?
- No. The KK 105 U is for third-party Shure-interface transmitters. For Sennheiser SKM 5000/5200, use the KK 105 S (008474). For Sennheiser 2000/6000/9000 Series, use the KK 205 (008653).
- When should I choose the KK 105 U supercardioid over the KK 104 U cardioid?
- Choose the KK 105 U for higher-SPL environments, denser multi-channel wireless setups, or when maximum side and rear isolation is needed. The KK 104 U suits vocalists with wider movement patterns in lower-SPL settings.
- What is the lead time?
- Special order. Contact Creation Networks at creationnetworks.net for availability.
- What warranty applies?
- Standard 2-year Neumann / Sennheiser warranty.
