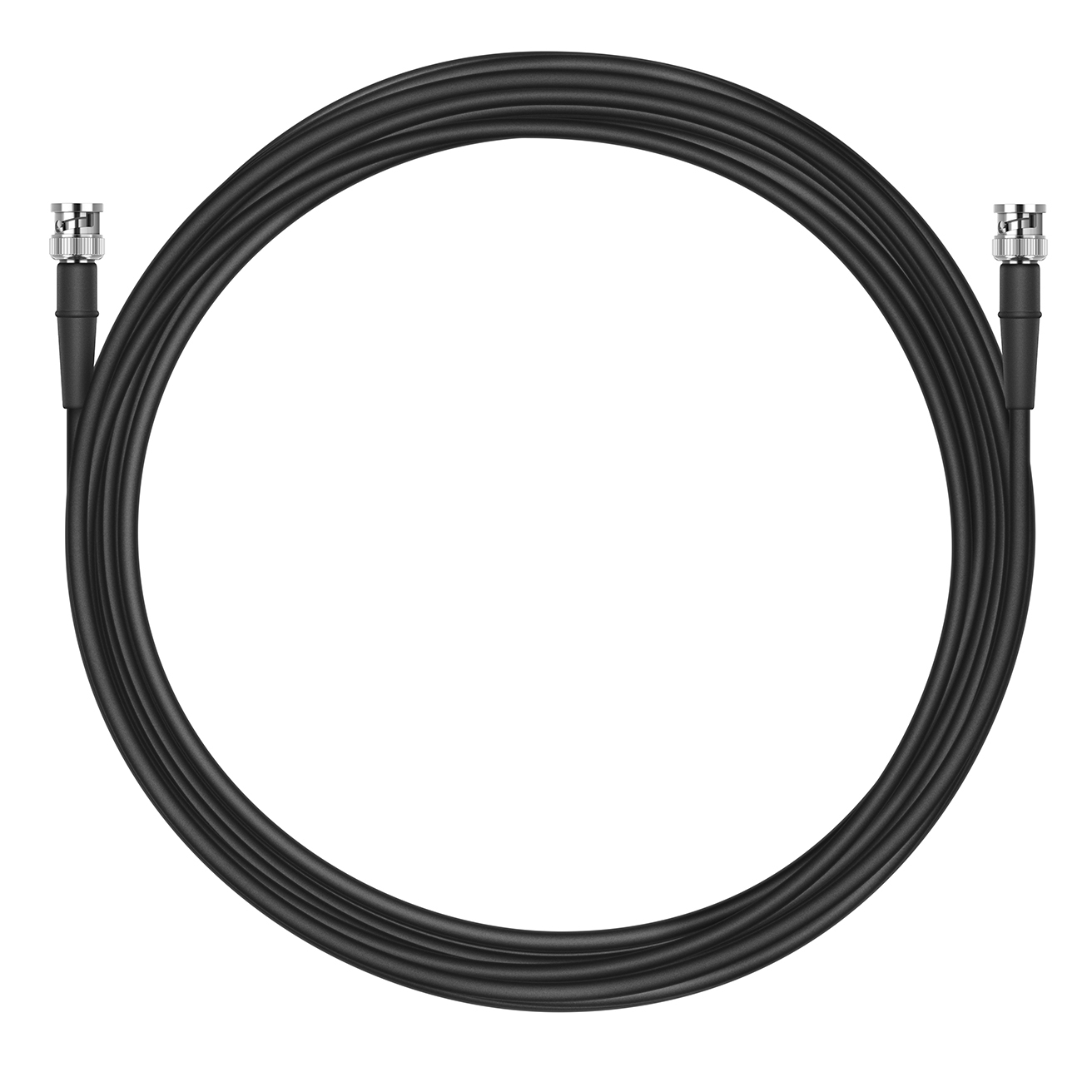

Sennheiser GZL RG 8x - Low-Damping BNC Antenna Cable (10 m) - 700164
Product Overview
The Sennheiser GZL RG 8x is a low-damping 50 Ohm coaxial RF antenna cable with BNC connectors for antenna distribution to wireless microphone receivers in rack-mount commercial AV systems. This 10 m low-loss cable is engineered for longer antenna runs where signal attenuation must be minimized, such as auditoriums and broadcast studios.
Product Description
With a 6.15 mm low-damping construction and BNC connectors on both ends, the GZL RG 8x delivers lower attenuation than standard RG 58 cable, preserving RF signal strength over distance. It is rated to 50 Ohm, supports operation up to 1,000 MHz, and withstands a -40 C to +85 C temperature range.
At 10 m, this RG 8x cable is well suited to extended runs between rack-mounted receivers and remote antennas in large-venue wireless microphone deployments. Matching Sennheiser antenna and receiver hardware keeps impedance consistent across the RF chain.
Key Features
- 50 Ohm coaxial construction — Matches Sennheiser antenna and receiver impedance for clean RF transfer.
- BNC connectors — Standard BNC terminations on both ends for rack-mount antenna distribution.
- Low-damping design — Minimizes signal attenuation over longer runs.
- Wide temperature range — Rated -40 C to +85 C for install and touring environments.
- Up to 1,000 MHz — Supports UHF wireless microphone antenna distribution.
Technical Specifications
| Cable type | Low-damping coaxial RF antenna cable |
|---|---|
| Characteristic impedance | 50 Ohm |
| Connectors | BNC (both ends) |
| Cable length | 10 m |
| Cable diameter | 6.15 mm |
| Max. operating frequency | up to 1,000 MHz |
| Operating temperature | -40 C to +85 C |
| Warranty | 2 years |
| Country of origin | China |
