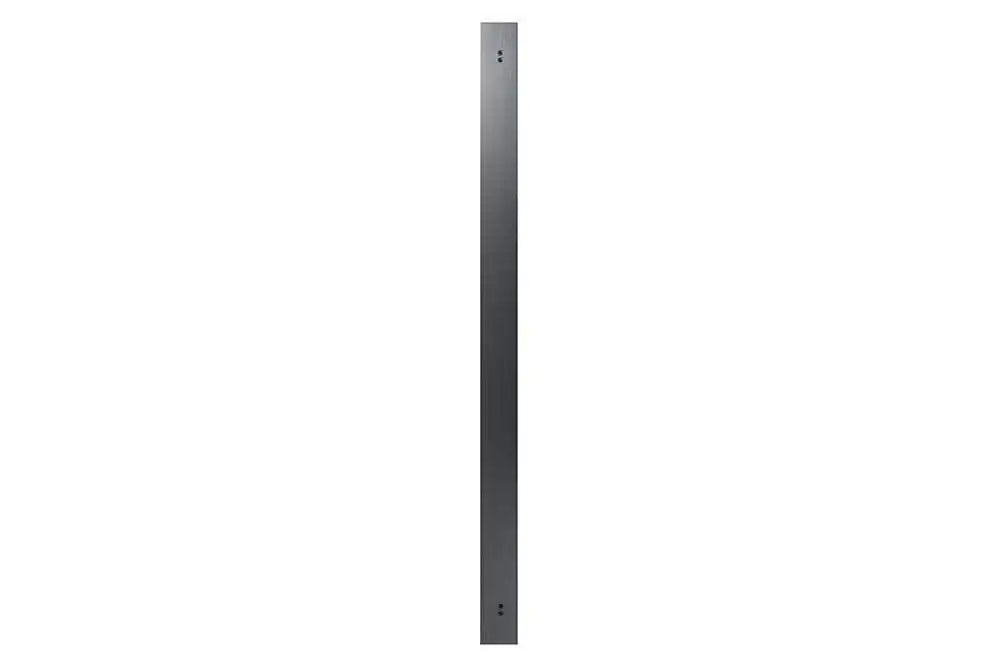

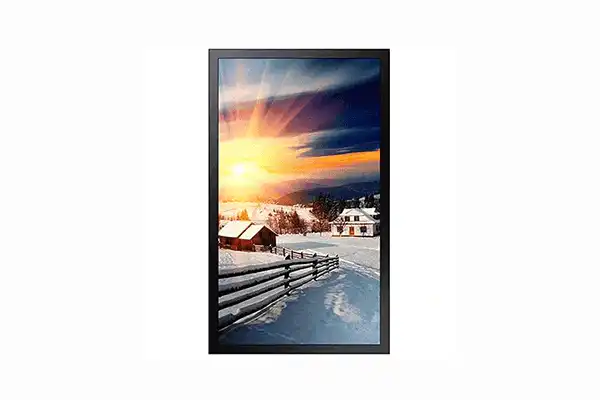

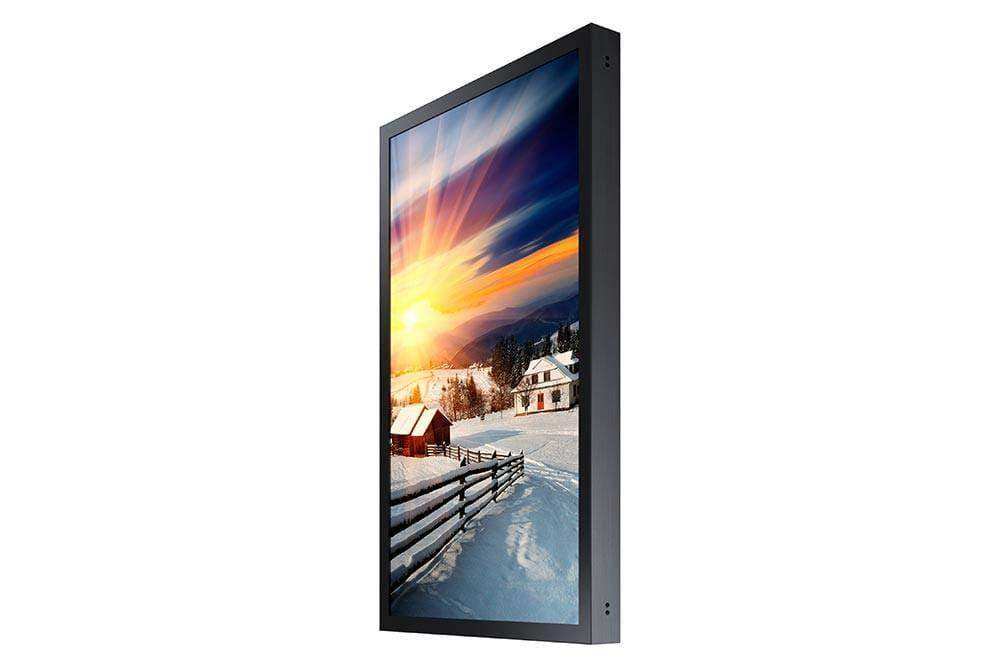

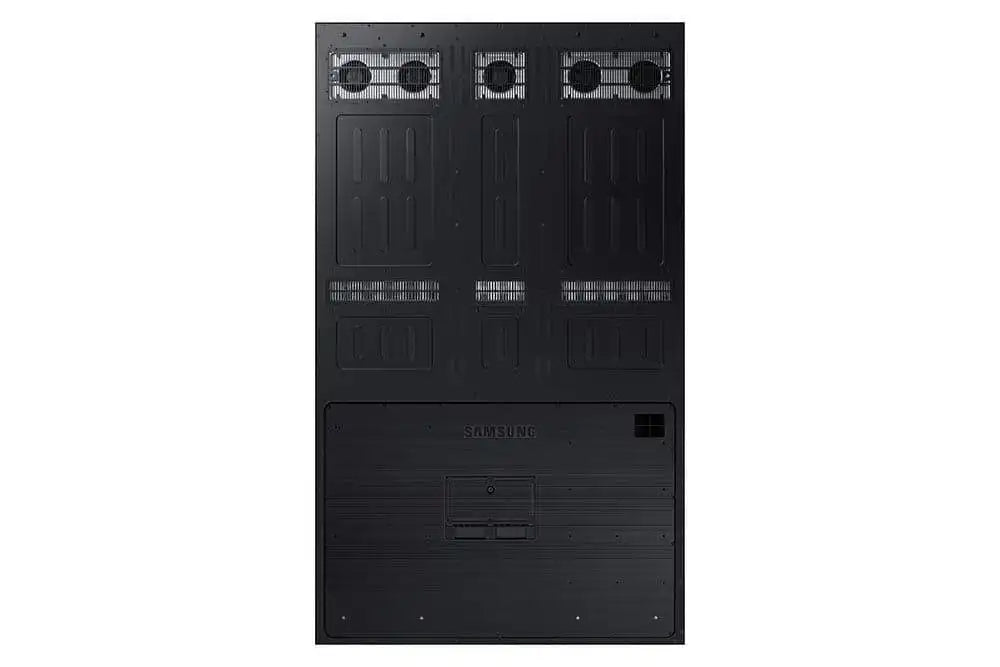

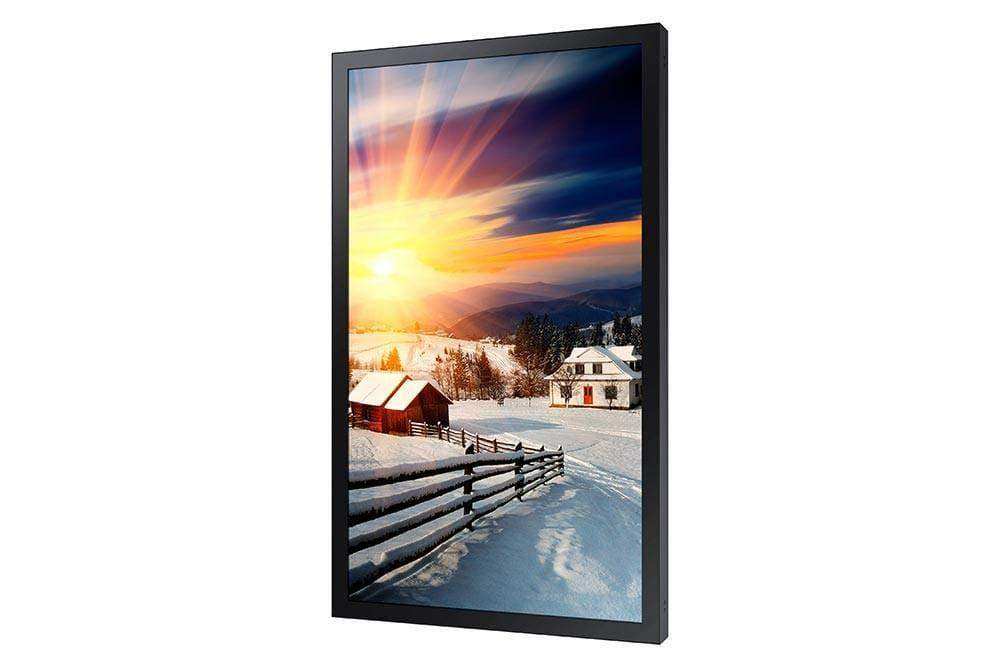

Samsung OHN-S Series 85" Class 4K UHD Single-Sided Outdoor Digital Signage Display (kit type for harsh conditions) with Glass

Availability: Call for Availability
Availability: Direct Ship
Samsung SKU: OH85N-S
No reviews
Price:
$36,415.00 $44,818.00

Description

Samsung’s OH85N-S Series outdoor displays are designed to endure harsh outdoor conditions and deliver your message with exceptional clarity around the clock. Perfect for bus stops and roadside billboards with high brightness and a built-in dimming sensor, your content will shine day or night. Plus, you can easily manage your signage remotely thanks to an embedded media player.

  • Find convenience in an all-in-one solution with an embedded power box and network hub
  • Clearly showcase featured content through an ultra-slim depth (85 mm.) design
  • Validate overall endurance with IK10 certifi cation
  • Ensure 24/7, IP56-certifi ed durability in extreme weather environments
  • Leverage a fi lter-less self-cooling system for easy maintenance and reduced TCO
  • Deliver excellent visibility in direct sunlight through high 2,500nit brightness and anti-refl ection glass
  • Achieve convenient content management through an advanced, TIZEN-powered platform

Samsung’s OHN Series SMART Signage delivers an all-inclusive engagement solution that is completely equipped for virtually any outdoor environment. Featuring a slim depth (85 mm.) design, along with the added convenience of an embedded power box, the OHN Series displays ensure durability, fl exibility and 24/7 performance even in extreme temperatures. And with 2,500 nit brightness, a 5,000:1 contrast ratio and anti-refl ection glass, businesses can ensure their messages are showcased almost anytime or anywhere.

OH85N-SK (kit type for harsh conditions)

OH85N-DK Dual Sided (kit type for harsh conditions)

Display

Screen Size

85"

85"

Panel Technology

60Hz D-LED Local Dimming BLU

60Hz D-LED Local Dimming BLU

Resolution

3840 x 2160 (16:9)

3840 x 2160 (16:9)

Brightness

3,300 nits (w/o glass)

3,300 nits (w/o glass)

Contrast Ratio (Typical)

3000:1

3000:1

Viewing Angle

178˚ / 178˚

178˚ / 178˚

Orientation

Landscape / Portrait

Portrait

Response Time

8ms

8ms

Panel Surface Treatment

Anti-Reflection

Anti-Reflection

Features

Tuner

No

No

Wi-Fi / BT

No / No

No / No

Built in Speaker

No

No

Operation Time

24 / 7

24 / 7

Special

IP56-Rated Simple Enclosure Outdoor (Kit Version Requires Third-Party Glass), Polarized Sun Glasses-Viewable in Any Direction, Auto Brightness Control with Ambient Brightness Sensor, Temperature Sensor

IP5-Rated Simple Enclosure Outdoor (Kit Version Requires Third-Party Glass), Polarized Sun Glasses-Viewable in Any Direction, Auto Brightness Control with Ambient Brightness Sensor, Temperature Sensor

Input

RGB

DP 1.2

DP 1.2 (2)

Video

HDMI 2.0 (2)

HDMI 2.0 (4)

HDCP

HDCP 2.2

HDCP 2.2

Audio

N/A

N/A

USB

USB 2.0 (1)

USB 2.0 (2)

Output

RGB

N/A

N/A

Video

N/A

N/A

Audio

Stereo Mini Jack

Stereo Mini Jack

External Control

External Control

RS232C (In), RJ45 (In)

RS232C (In), RJ45 (In)

External Sensor

N/A

N/A

Power / Operation

Power Supply

AC 100 - 240 V~ (+/- 10 %), 50/60 Hz

AC 100 - 240 V (+/- 10 %), 50/60 Hz

Power Consumption (Typical / Max)

1010W / 1800W

2020 W / 3600W

Power Consumption Sleep Mode / Off Mode

<1W

<1W

Operating Temperature / Operating Humidity

-30°C - 50°C / 10 - 100% (Non-Condensing)

-30°C - 50°C / 10 - 100% (Non-Condensing)

Internal Media

Player

Processor

Cortex A72 1.7GHz Quad-Core CPU

Cortex A72 1.7GHz Quad-Core CPU



On-Chip Cache Memory

L1 Instruction Cache: 48KB L1 Data Cache: 32KB

L2 Cache: 2MB

L1 Instruction Cache: 48KB L1 Data Cache: 32KB

L2 Cache: 2MB

Clock Speed

1.7GHz

1.7GHz

Main Memory Interface

2.5GB, LPDDR4 1.5GHz 64bit

2.5GB, LPDDR4 1.5GHz 64bit



Graphics

Graphic resolution: 1920 x 1080

Output resolution: Up to 3840 x 2160 (Scale up from graphic processing result)

- Supports OpenGL ES

Graphic resolution: 1920 x 1080

Output resolution: Up to 3840 x 2160 (Scale up from graphic processing result)

- Supports OpenGL ES

Storage (FDM)

8 GB (3.88 GB Occupied by O/S, 4.12GB Available)

8 GB (3.88 GB Occupied by O/S, 4.12GB Available)



Multimedia

Video Decoder

- MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC

- VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9

Audio Decoder

- AC3 (DD), MPEG

Video Decoder

- MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC

- VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9

Audio Decoder

- AC3 (DD), MPEG

IO Ports

USB 2.0

USB 2.0

Operating System

Tizen 4.0 (VDLinux)

Tizen 4.0 (VDLinux)

Dimensions /

Weight

VESA Standard Wall Mount Interface

1000 x 1118.4 (M8 x 4 Hole), 500 x 1118.4 (M8 x 4 Hole)

N/A

Product Dimension (without Stand) / Packing Dimensions

78.9" x 46.7" x 4.7" / 85.6" x 54.4" x 19.5" (without pallet)

79.2" x 47" x 9" / 89.9" x 59.4" x 22.7" (without pallet)

Bezel Width

N/A

N/A

Product Weight / Shipping Weight

302 lbs. / 407 lbs.

562 lbs. / 684.8 lbs.

Service

Standard Warranty

3 Years Parts Labor

3 Years Parts Labor
