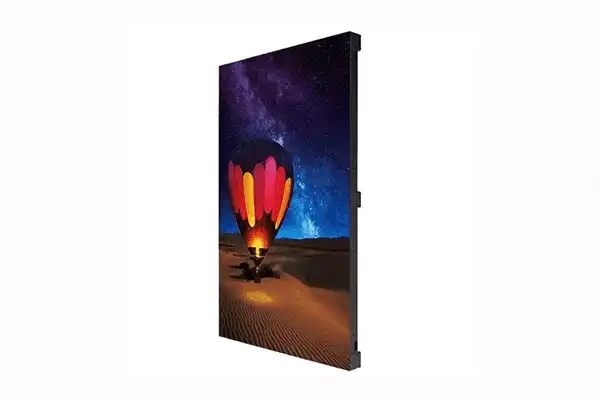

Samsung IF040H-D 4.0 Pixel Pitch Indoor Direct View LED Cabinet

Product Overview

The Samsung IF040H-D is a 4.0mm pixel pitch indoor direct view LED cabinet engineered for permanent commercial video walls in lobbies, control rooms, retail environments, and corporate spaces. This fine pitch dvLED cabinet delivers HDR-grade picture quality with full-front serviceability, making it a practical choice for AV integrators building scalable indoor LED signage. Each cabinet measures 480 x 720mm and tiles into seamless walls of virtually any size. With Dynamic Peaking brightness and 16-bit per color depth, it produces consistent, true-to-life imagery across the entire canvas.

Product Description

Designed for commercial-grade indoor deployment, the IF040H-D direct view LED cabinet combines Samsung's IF-D Series imaging technologies with installation flexibility that suits demanding integration projects. As shown in the product imagery, the cabinet uses Surface Mount Device (SMD) LEDs across a 120 x 180 pixel grid and applies an external black mask to close inter-pixel gaps, reinforcing uniform contrast under dynamic lighting. Scene Adaptive HDR with inverse tone mapping optimizes gradation scene by scene, while grayscale management preserves accurate red, green and blue reproduction even at low brightness levels common in museums and galleries. Full-front access lets technicians service modules and rear components without rear catwalk clearance, supporting tight wall-mounted installations. The cabinet supports convex and concave curved configurations up to 6,000R, as well as inclined and ceiling mounting, expanding video wall design options for AV system designers. Paired with a Samsung S-Box signal processor and the MagicINFO content platform, the IF040H-D streamlines UHD content delivery and remote management across an entire fine pitch LED signage network.

Key Features

• 4.0mm Pixel Pitch — The 4mm pitch suits mid-range indoor viewing distances typical of lobbies, retail floors, and large meeting spaces where audiences sit several feet from the wall.
• Dynamic Peaking Brightness — Peak brightness of 1,700 nit (1,200 nit maximum sustained) lets content stay legible against ambient and natural lighting interference.
• 16-Bit Per Color Depth — Deep color processing with a 7,000:1 peak contrast ratio renders smooth gradients and true-to-life skin tones without oversaturation.
• External Black Mask — A black mask module closes gaps in the LED framework to eliminate glittering and maintain uniform contrast across the video wall.
• Full-Front Serviceability — Front access to critical components allows clean, close-to-wall installations and fast maintenance without rear clearance.
• Curved and Ceiling Installation — Convex and concave configurations up to 6,000R plus inclined and ceiling mounting expand creative deployment possibilities.
• S-Box and MagicINFO Integration — Centralized UHD signal distribution and remote content scheduling, monitoring, and troubleshooting across the entire signage network.
• 100,000-Hour LED Lifetime — Rated to half brightness at 100,000 hours for long-term commercial operation with low total cost of ownership.

Typical Applications

• Corporate lobby and reception video walls
• Conference room and boardroom presentation displays
• Auditorium and all-hands room main-stage screens
• Broadcast studio set backdrops
• Government and command space information walls
• Multi-purpose room and commercial meeting space signage

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What signal processor does the IF040H-D require?

The IF040H-D pairs with a Samsung S-Box signal processor, which distributes UHD content across multiple cabinets without external splitters. The S-Box also unlocks the adjustable 2,800 - 10,000K color temperature range and integrates with MagicINFO for content scheduling.

How many cabinets do I need for my video wall?

Each cabinet is 480 x 720mm with a 120 x 180 pixel resolution. Your integrator calculates cabinet count by dividing the target wall dimensions by the cabinet size; cabinets tile in both portrait and landscape orientations for flexible aspect ratios. Contact our team for a layout calculation.

Can the IF040H-D be installed on a curved or ceiling surface?

Yes. The IF040H-D supports convex and concave curved configurations up to 6,000R and is one of the IF-D models rated for inclined and ceiling installation, making it suitable for creative architectural integration.

Is this cabinet suitable for high-ambient-light environments?

The IF040H-D reaches 1,700 nit peak brightness through Dynamic Peaking technology, which keeps content legible against natural and ambient lighting. For full direct-sunlight outdoor use, choose an outdoor-rated LED series instead, as this cabinet carries an IP20 indoor rating.

What warranty and support are available?

Samsung commercial direct view LED products carry a manufacturer commercial warranty. Creation Networks provides pre-sale system design support and post-sale assistance. Browse our full Samsung commercial display collection or contact our AV team for project quoting.
