Samsung WA86D 86" WAD Series Interactive Display

Samsung WA86D – 86" Interactive Display with 40-Point Touch and OPS Slot

Product Overview

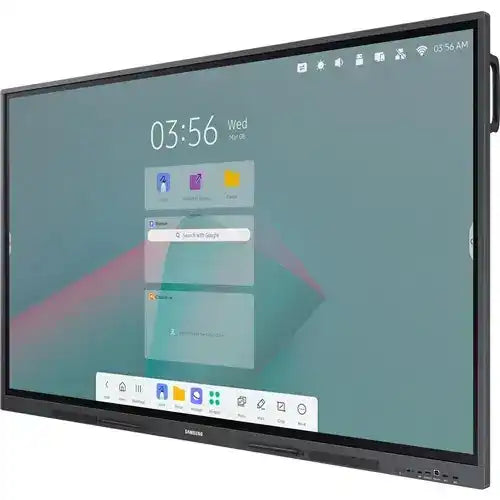

The Samsung WA86D is an 86-inch interactive flat panel display featuring 40-point infrared touchscreen capability, Wi-Fi 6, USB-C with DisplayPort Alt Mode, RS-232c serial control, and an OPS expansion slot for optional compute modules. Designed for large conference rooms, training centers, and enterprise collaboration environments, it provides 4K UHD interactive display performance at 86 inches with direct LED backlighting and anti-glare finish. The WA86D is part of Samsung's WAD series, positioned as a higher-specification option versus the WA86F with broader connectivity and a confirmed full technical specification set.

Product Description

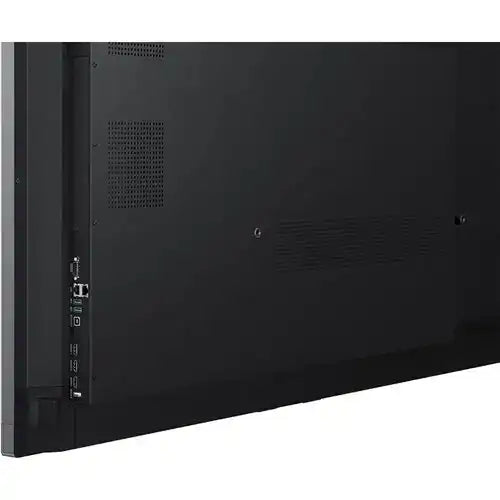

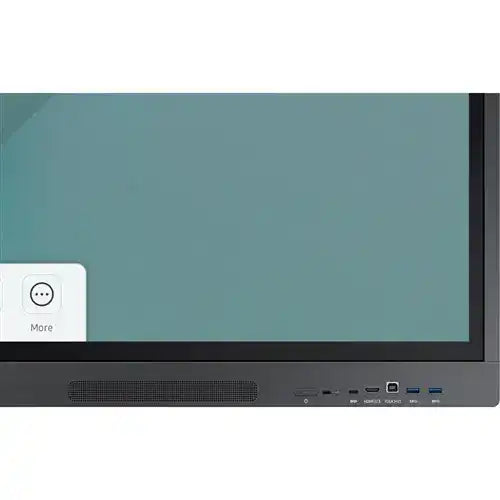

The WA86D uses a 4K UHD direct LED panel at 85.6-inch viewable size with 400-nit brightness and 1200:1 contrast ratio for use in ambient-light commercial environments. The 40-point infrared touch system supports multi-user simultaneous interaction for collaborative whiteboarding, annotation, and touch-enabled application control at the 86-inch scale. Anti-glare panel coating reduces reflections in conference rooms with mixed lighting conditions. USB-C with DisplayPort Alt Mode, touchscreen control passthrough, and audio provides single-cable laptop connectivity for conference room users. Four USB-A ports and three USB-B touchscreen control ports support comprehensive peripheral connectivity. Wi-Fi 6 provides high-throughput wireless for screen sharing and networked content. RS-232c via DB-9 serial connector enables integration with Crestron, AMX, Extron, and room control processors. Two RJ45 Gigabit Ethernet ports support dual-network or cascaded network configurations. TOSLINK optical digital audio output enables connection to room speaker systems. VGA input provides legacy source connectivity for older PCs and presentation systems. An OPS slot supports optional compute modules for built-in PC operation.

Key Features

• 40-Point Infrared Touchscreen — Supports 40 simultaneous touch inputs for multi-user collaborative whiteboarding and interactive application control at 86" scale.
• 86" 4K UHD Direct LED Panel — 3840 x 2160 resolution at 85.6" viewable size with 400-nit brightness for commercial ambient-light environments.
• Anti-Glare Finish — Reduces reflections in meeting rooms with mixed ambient lighting for consistent legibility during presentations.
• USB-C with DP Alt Mode — Single-cable connection for video, touchscreen control passthrough, and audio from a connected laptop.
• Wi-Fi 6 (802.11ax) — High-throughput wireless for screen sharing and networked content delivery in dense commercial wireless environments.
• RS-232c Serial Control — DB-9 serial port for integration with Crestron, AMX, Extron, and professional AV room control systems.
• Dual Gigabit Ethernet — Two RJ45 GbE ports support dual-network connectivity or cascaded network configurations in enterprise deployments.
• TOSLINK Optical Audio Output — Digital audio output for connection to room speaker systems and audio processors.
• VGA Input — Legacy analog video input for compatibility with older PCs and existing AV infrastructure.
• OPS Expansion Slot — Accepts optional PC compute modules for built-in Windows operation without external PC hardware.

Typical Applications

• Large conference room interactive presentation and whiteboard display
• Corporate training center primary interactive display
• Boardroom interactive display in large-format environments
• Government and commercial multi-purpose room collaboration display
• Education and training facility touch-enabled screen

Technical Specifications

Competitor Comparison

The WA86D offers dual Gigabit Ethernet ports, TOSLINK optical audio output, and VGA legacy input alongside 40-point touch and Wi-Fi 6 — a connectivity profile that exceeds both the Sharp/NEC AQUOS BOARD and Newline TT-8622Q in enterprise deployment flexibility.

Frequently Asked Questions

Does the WA86D support single-cable laptop connectivity?

Yes. The USB-C port with DisplayPort Alt Mode carries video, touchscreen control, and audio in a single cable from a connected laptop, eliminating the need for separate video and USB cables.

What is the OPS slot used for in the WA86D?

The OPS slot accepts optional compute modules that add a built-in Windows PC to the display, enabling full Windows application operation without external PC hardware.

Can the WA86D be integrated with Crestron or AMX control systems?

Yes. The RS-232c DB-9 serial port enables direct integration with Crestron, AMX, Extron, and other professional AV control processors for room automation and input switching.

What are the dual Gigabit Ethernet ports used for?

Dual Ethernet ports support simultaneous connection to two separate network segments or cascaded display configurations in enterprise deployments with isolated AV and IT networks.

Does the WA86D include VGA input for legacy connectivity?

Yes. One VGA (DE-15) input is included for compatibility with older PCs and existing AV infrastructure that does not support HDMI output.
