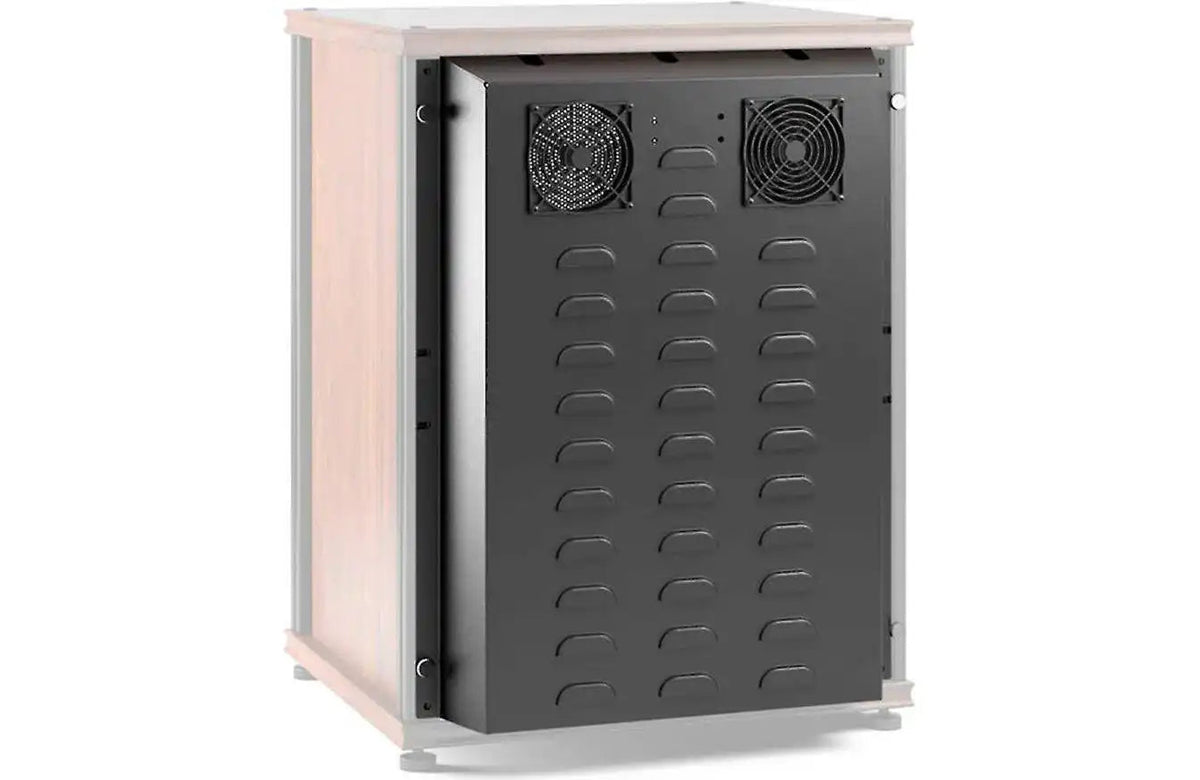

Salamander 30" Extended Rear Panel w/ Active Cooling, Black - SA/XR30/AC

Product Overview

The Salamander SA/XR30/AC is a 30 in extended rear panel with integrated active cooling, finished in black. It combines the added depth clearance of the standard extended panel with powered exhaust, addressing both the space and the heat problems of a densely loaded AV cabinet in one component.

Product Description

Deeper equipment and hotter equipment usually arrive together. A cabinet loaded with a codec, a matrix switcher, a DSP, and power conditioning needs clearance behind the chassis for connectors and cable bends, and it needs a way to move the heat those devices generate out of the enclosure. Specifying an extended panel without cooling solves half the problem and leaves the other half to accumulate.

This panel adds 30 in of rear depth so connector boots and minimum cable bend radii are respected, and its active cooling drives heated air out of the cabinet rather than letting it stall at the top. Pairing it with a bottom vent such as SA/BVAC completes the airflow path with a defined cool-air intake at the base. For help sizing thermal capacity against an equipment list, contact the Creation Networks AV team.

Key Features

• 30 in Extended Depth — Clearance for connector boots and cable bend radius.
• Active Cooling — Powered exhaust rather than passive venting alone.
• Single Component Solution — Addresses depth and heat without two separate parts.
• Closed Enclosure — Keeps a finished cabinet rear rather than an open back.
• Pairs with Bottom Intake — Works with SA/BVAC for a complete airflow path.
• Black Finish — Matches Salamander cabinet interiors.

Typical Applications

• Densely loaded cabinets with codec, switcher, DSP, and power conditioning
• Installations with both deep chassis and continuous-duty heat loads
• Rooms with limited HVAC coverage at the equipment position
• Cabinets where passive ventilation has not controlled temperature
• Standardized room builds specifying a single rear panel across sites

Technical Specifications

Frequently Asked Questions

Is a bottom vent still needed with this panel?

For heavily loaded cabinets, yes. Exhaust works best with a defined cool-air intake, which SA/BVAC provides at the cabinet base. Lighter loads may be adequately served by the panel alone.

How does it differ from SA/XR30?

SA/XR30 provides the same 30 in depth without active cooling. Choose SA/XR30/AC when the equipment load generates heat that passive ventilation cannot clear.

Does it increase the cabinet's overall footprint?

Yes. The panel extends the cabinet rear, so confirm the resulting depth against the room layout, especially where the cabinet sits against a wall.

Who handles warranty and support?

Salamander Designs warranty coverage applies as published by the manufacturer. For claims or thermal design help, contact Creation Networks support.
