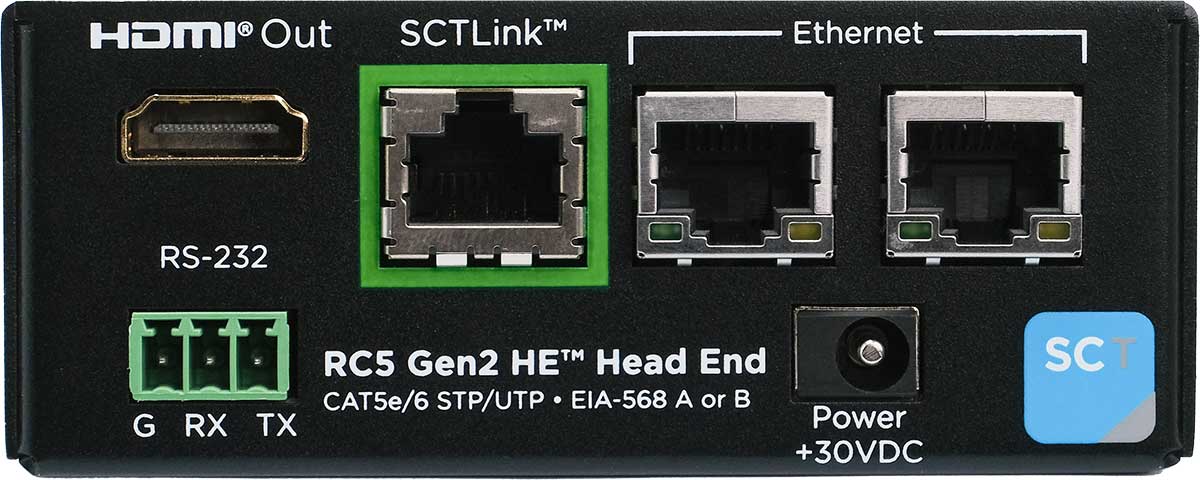

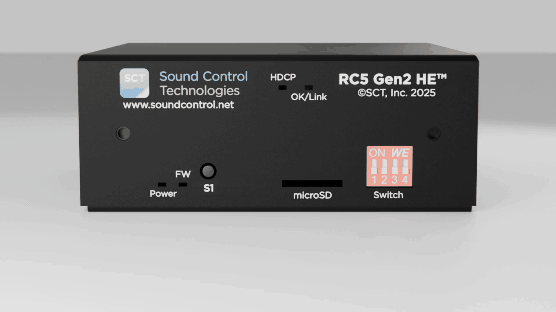

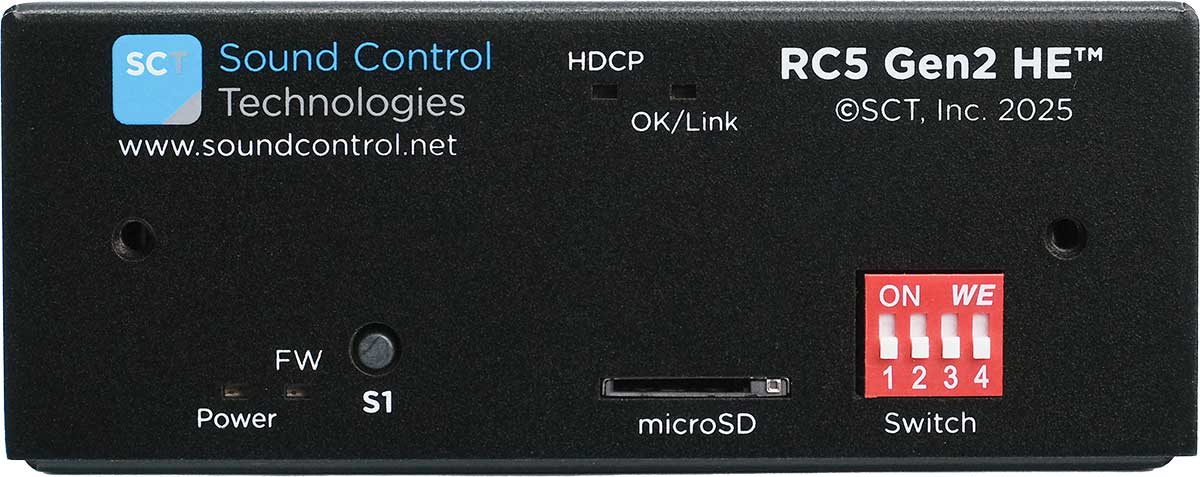

Sound Control Technologies RC5-HE – RemoteCam5 Head-End Replacement Module

Product Overview

The Sound Control Technologies RC5-HE is the head-end replacement module for the RemoteCam5 camera extension platform. RemoteCam5 Gen2 delivers 4K30 HDMI video, Ethernet, control, and camera power over a single CAT cable up to 100 meters between the codec rack and a PTZ camera. This replacement module lets AV integrators and facilities managers restore a failed RemoteCam5 installation by swapping only the rack-side head-end module, keeping the camera-end module and installed cabling in place.

Product Description

In a RemoteCam5 system, the head-end module sits in the equipment rack near the codec and links to the RC5-CE camera-end module over the SCTLink CAT cable. The platform supports Cisco, Poly, Panasonic, Sony, and other professional PTZ cameras depending on kit configuration, carrying HDMI video up to 4K30, Ethernet for control and Cisco Control Hub integration, and camera power on the single link. When troubleshooting isolates a fault to the rack side, replacing only the RC5-HE restores full system operation without disturbing the camera-end module, camera cabling, or the field-run CAT link. The module is a like-for-like replacement built to the original RemoteCam5 specification and pairs directly with the installed camera-end electronics. It mounts on the SCT rack shelf supplied with RemoteCam5 kits for proper ventilation and cable management, making the swap a quick rack-side service task rather than a full system replacement.

Key Features

• RemoteCam5-Specific Replacement — Drop-in head-end module for RemoteCam5 camera extension systems.
• Field-Replaceable — Restores a failed system without replacing the camera-end module, power supply, or installed CAT cabling.
• 4K30 Video Path — Maintains the platform's HDMI video transport up to 4K@30 over the SCTLink connection.
• Ethernet and Control Support — Preserves Ethernet transport and camera control, including Cisco Control Hub integration on Gen2 systems.
• Rack-Side Installation — Mounts at the codec rack on the SCT rack shelf for clean service access.

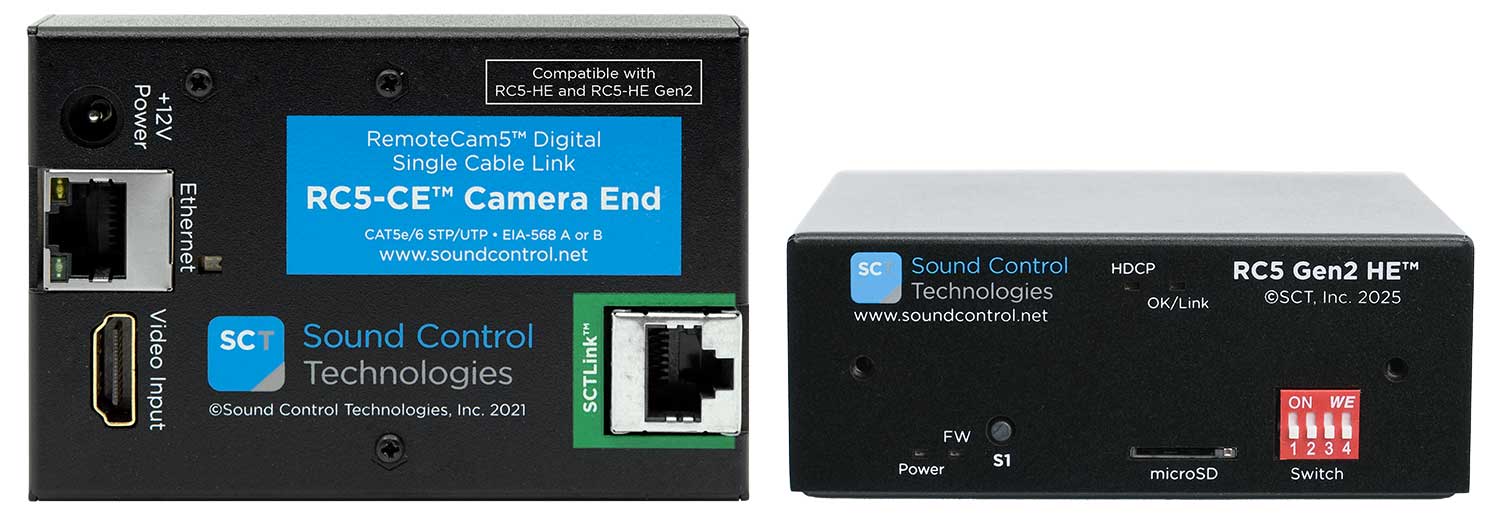

• Like-for-Like Pairing — Pairs directly with the existing RC5-CE camera-end module over the installed link cable.

Typical Applications

• Boardroom
• Conference room
• Training room
• All-hands room
• Multi-purpose room
• Government space

Technical Specifications

Frequently Asked Questions

Is the RC5-HE compatible with other RemoteCam platforms?

No. The RC5-HE is the head-end replacement specifically for RemoteCam5 systems. RemoteCam4, RemoteCam6, and RemoteCam8 require their own HE modules; the platforms are not interchangeable.

How do I know whether I need the RC5-HE or the RC5-CE?

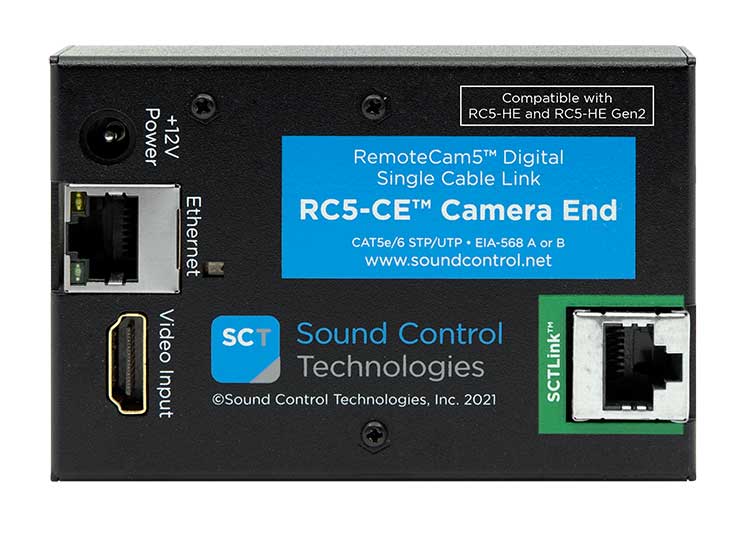

The RC5-HE is the rack-side (codec end) module; the RC5-CE is the camera-side module. If the fault is at the camera location, you need the RC5-CE. Contact Creation Networks for diagnostic support.

Will the RC5-HE pair with my existing camera-end module and cabling?

Yes. It is a like-for-like replacement that pairs directly with the installed RC5-CE over your existing CAT link cable.

Does the RC5-HE include a power supply?

No. The replacement module reuses the power supply from your existing RemoteCam5 kit. Contact Creation Networks if you also need a replacement power supply.

What warranty applies to this replacement module?

Sound Control Technologies provides a standard advance replacement limited warranty. Contact Creation Networks for current warranty terms.
