Product Overview

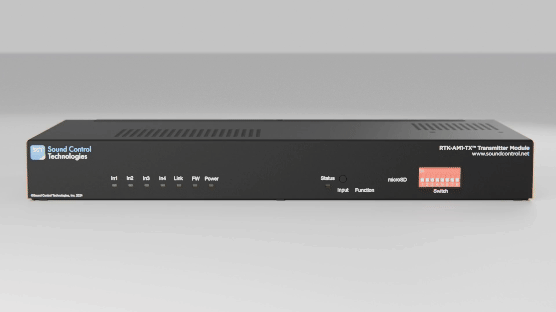

The Sound Control Technologies RTK-AM1-TX is the replacement transmitter module for the RTK-AM1 conference table extension kit. It serves as the table-end transmitter unit of the RTK-AM1 system, providing the USB-C tabletop connection with DisplayPort Alt Mode and 60W power delivery for BYOM applications, plus support for up to four PoE devices and three HDMI inputs. This replacement module allows AV integrators and facilities teams to restore a failed RTK-AM1 system without replacing the full kit.
Product Description

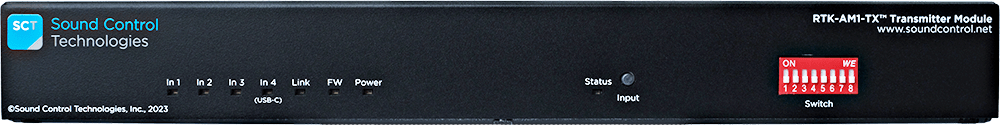

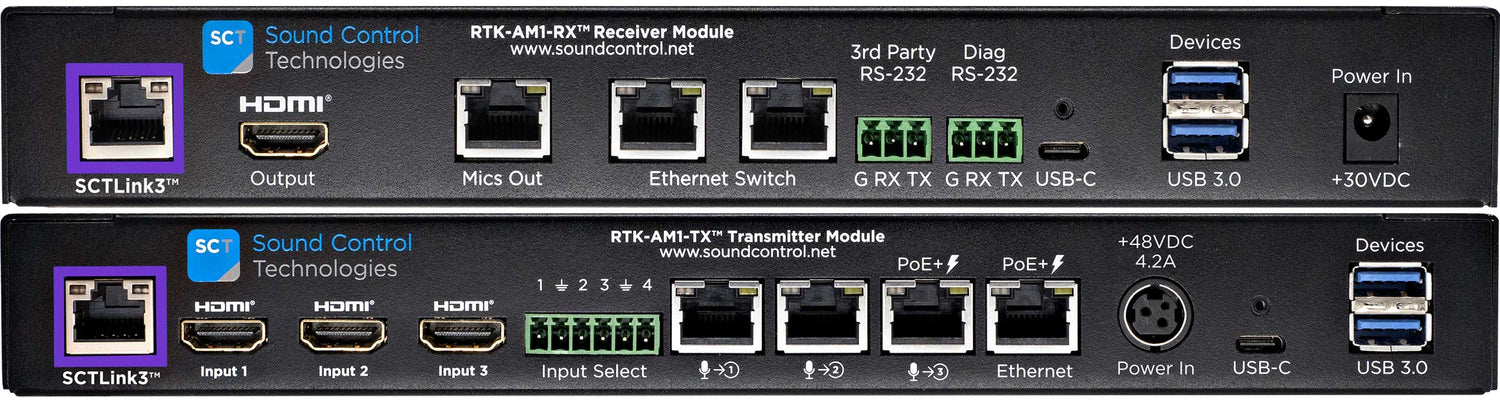

The RTK-AM1-TX is the transmitter (table-end) component of the RTK-AM1 RemoteTableKit system. In an RTK-AM1 installation, the TX module sits at the conference table and provides the user-facing connections: a USB-C port with DisplayPort Alt Mode and 60W power delivery for BYOM laptop connections, up to four PoE device ports (for cameras, microphones, and touch panels), and three HDMI inputs for content sharing. The RTK-AM1-TX communicates with the RTK-AM1-RX (codec-end receiver) over the CAT cable infrastructure.
Purchasing the RTK-AM1-TX as a standalone replacement module enables field repair of an RTK-AM1 system without the cost of replacing the full kit. It is also appropriate for sparing in large RTK-AM1 deployments. MSRP: $2,028. Country of origin: USA/Taiwan.
Key Features
- Replacement RTK-AM1 Transmitter — Direct replacement for the table-end transmitter in any RTK-AM1 installation, restoring full system function.
- USB-C with DP Alt Mode and 60W Power — Provides the tabletop USB-C connection with DisplayPort Alt Mode and 60W power delivery for BYOM laptop users.
- Up to Four PoE Device Ports — Supplies PoE to up to four connected devices (cameras, microphones, touch panels) at the table.
- Three HDMI Inputs — Supports up to three HDMI content sources for sharing to the room display.
- 4x1 Switching — Functions as a 4x1 input switch, selectable from the Cisco touch panel in Cisco codec installations.
- No Programming Required — Replacement is plug-in compatible with existing RTK-AM1-RX installations.
Typical Applications
- Field replacement of a failed RTK-AM1-TX in a boardroom or conference room installation
- Spare module stocking for enterprise or government facilities with multiple RTK-AM1 deployments
- Component-level repair of RTK-AM1 systems without full kit replacement
Technical Specifications
| Specification | Detail |
|---|---|
| Model/SKU | RTK-AM1-TX |
| Module Type | Replacement Transmitter (Table End) |
| Parent System | RTK-AM1 RemoteTableKit |
| USB-C | DP Alt Mode, 60W Power Delivery |
| PoE Device Ports | Up to 4 |
| HDMI Inputs | 3 |
| Switching | 4x1 |
| MSRP | $2,028 |
| Unit of Measure | Each |
| Country of Origin | USA/Taiwan |
Frequently Asked Questions
Is the RTK-AM1-TX compatible with my existing RTK-AM1-RX?
Yes. The RTK-AM1-TX is designed to pair with the RTK-AM1-RX as a direct replacement in any existing RTK-AM1 installation.
Do I need to reconfigure the system after replacing the TX module?
No. The RTK-AM1-TX is plug-in compatible. No programming or reconfiguration is required after module swap.
Can I purchase just the TX without the RX?
Yes. The RTK-AM1-TX is available as a standalone module. The RTK-AM1-RX is sold separately if the receiver also requires replacement.
What warranty applies?
Contact Creation Networks for current Sound Control Technologies warranty terms for the RTK-AM1-TX.
