Sound Control Technologies RTK-X57 – Conference Table Extension Kit for Poly X50/X70
Sound Control Technologies RTK-X57 – Conference Table Extension Kit for Poly X50/X70 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sound Control Technologies RTK-X57 – Conference Table Extension Kit...
Product Overview
The Sound Control Technologies RTK-X57 RemoteTableKit is a conference table extension kit built exclusively for the Poly Studio X50, Studio X52, Studio X70, and Studio Video Bar. It delivers power, video, audio, control, USB, and Ethernet from the conference room table to the codec over a single CAT cable with no configuration required. The RTK-X57 also supports BYOM operation via Poly Device Mode and provides PoE for Poly TC8 and TC10 touch panels.
Product Description

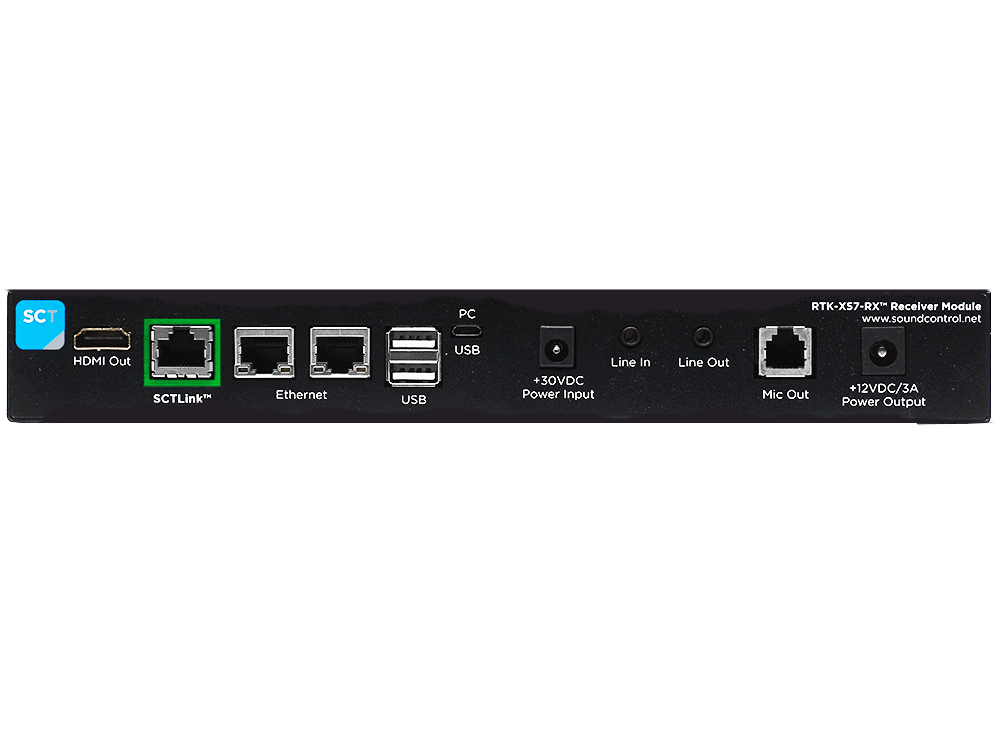

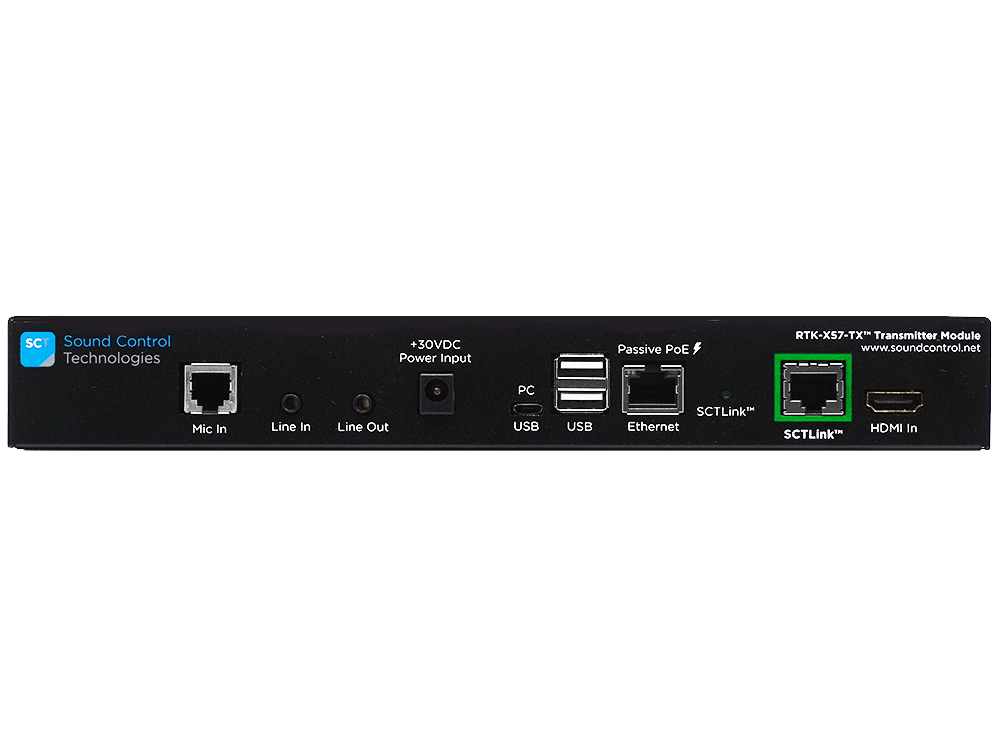

The RTK-X57 enables a clean, low-profile table connection for Poly X-series video bar deployments by running all signals — power, video, audio, RS-232 control, USB, and Ethernet — over a single CAT cable between the tabletop transmitter (TX) and the codec-end receiver (RX). This eliminates the need to route multiple discrete cables through walls, floors, or ceiling plenum, significantly reducing installation time and infrastructure cost.
In traditional conferencing mode, the RTK-X57 connects the Poly X50/X70 to the room's display and control systems via the table unit. When the Poly codec is placed into Poly Device Mode, the RTK-X57 delivers a full BYOM experience — laptop users at the table can take over the room's display, camera, and audio through a single USB-C connection. PoE output at the table supports the Poly TC8 or TC10 touch panel, keeping the table surface uncluttered. The Poly Expansion Mic is also supported. MSRP: $2,925. Country of origin: USA/Taiwan.
Key Features
- Single CAT Cable Infrastructure — Power, video, audio, USB, Ethernet, and control signals all run over one CAT cable from table to codec rack, reducing conduit requirements and installation labor.
- BYOM Support via Poly Device Mode — When the Poly X50/X70 is in Device Mode, the RTK-X57 delivers a complete BYOM experience with display takeover, camera, and audio control over USB-C at the table.
- PoE for Touch Panels — Powers Poly TC8 and TC10 touch panels over PoE directly from the table transmitter unit.
- Poly Expansion Mic Compatible — Supports connection of the Poly Expansion Mic through the kit for expanded microphone coverage.
- No Configuration Required — Plug-in installation; no programming, control system scripting, or software setup needed.
- Purpose-Built for Poly X-Series — Engineered specifically for Poly Studio X50, X52, X70, and Studio Video Bar platforms.

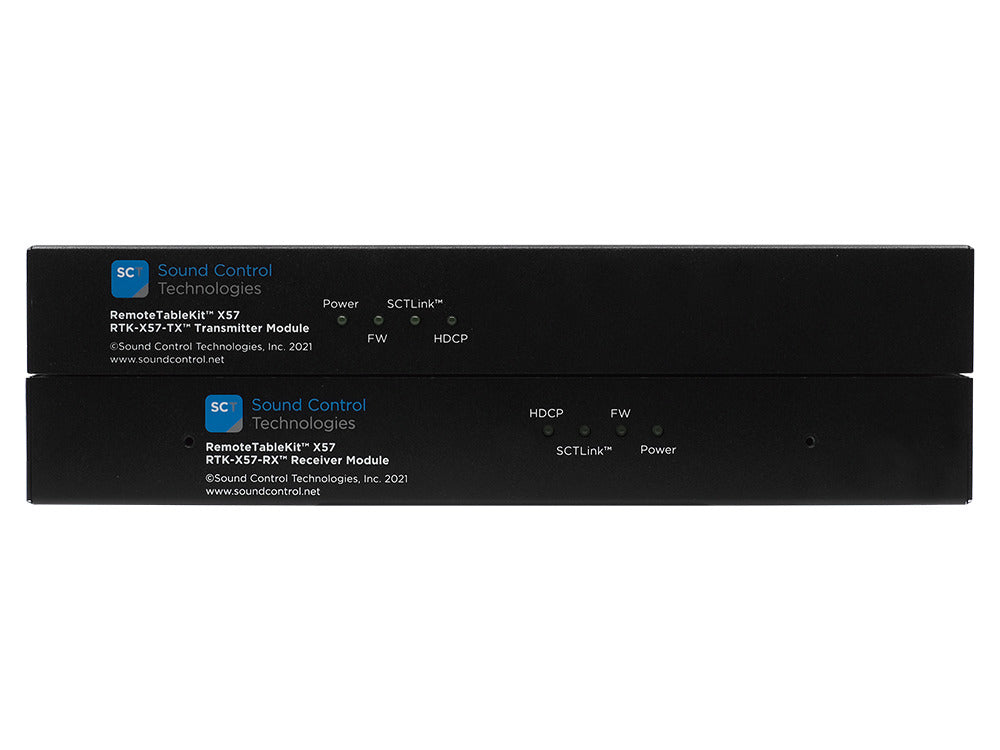

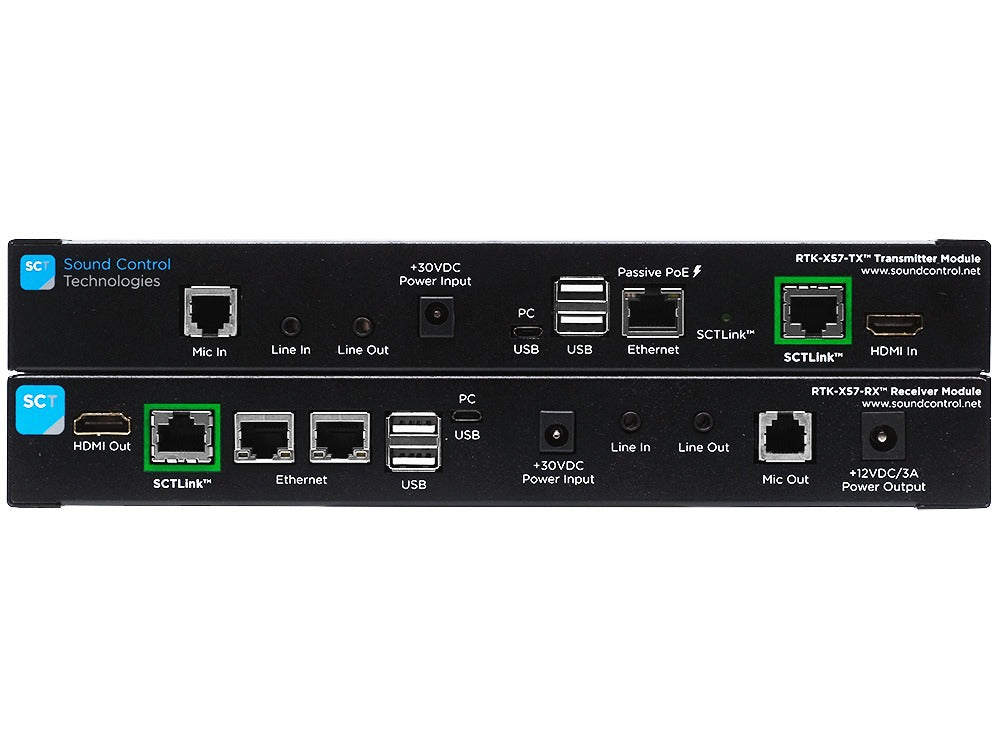

- Complete TX/RX Kit — Includes both the table-end transmitter and codec-end receiver modules.
Typical Applications
- Conference room with Poly Studio X50 or X70 requiring a clean single-cable table connection
- Boardroom BYOM/BYOD installation with Poly Device Mode workflow
- Commercial meeting space with Poly touch panel control at the table
- All-hands room or training room with Poly X-series video bar
- Multi-purpose room supporting both dedicated conferencing and BYOM users
Technical Specifications
| Specification | Detail |
|---|---|
| Model/SKU | RTK-X57 |
| Compatible Codecs | Poly Studio X50, Studio X52, Studio X70, Studio Video Bar |
| Signals Carried | Power, video, audio, USB, Ethernet, control (RS-232) |
| Cable Infrastructure | Single CAT cable (TX to RX) |
| Touch Panel PoE | Poly TC8, TC10 |
| Expansion Mic Support | Poly Expansion Mic |
| BYOM Support | Yes (Poly Device Mode) |
| Configuration Required | None |
| MSRP | $2,925 |
| Unit of Measure | Each (kit) |
| Country of Origin | USA/Taiwan |
Frequently Asked Questions
Which Poly codecs does the RTK-X57 support?
The RTK-X57 is designed exclusively for the Poly Studio X50, Studio X52, Studio X70, and Studio Video Bar. It is not compatible with other Poly codec families such as the G7500 or older Poly/Polycom units.
How does BYOM work with the RTK-X57?
When the Poly codec is placed into Poly Device Mode, the RTK-X57's table transmitter presents a USB-C connection point. A laptop connected at the table can take over the room's display, camera, and audio system, providing a full BYOM experience without requiring additional adapters or cables.
Does the RTK-X57 require configuration or programming?
No. The RTK-X57 is plug-in compatible with supported Poly codecs. No control system programming, network configuration, or software installation is required.
What touch panels are supported?
The RTK-X57 provides PoE to the Poly TC8 and TC10 touch panels. Power is delivered from the table transmitter unit, keeping the table surface free of additional power adapters.
Are replacement modules available?
Yes. The RTK-X57-RX and RTK-X57-TX replacement modules are available separately through Creation Networks, allowing individual module replacement without purchasing a complete new kit.
What warranty applies to the RTK-X57?
Contact Creation Networks for current Sound Control Technologies warranty terms for the RTK-X57.
