Sound Control Technologies RCU3SL-C10 – USB3 Camera Extension Kit for Sony SRG-X40UH
Sound Control Technologies RCU3SL-C10 – USB3 Camera Extension Kit for Sony SRG-X40UH is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sound Control Technologies RCU3SL-C10 – USB3 Camera Extension Kit f...
Product Overview
The Sound Control Technologies RCU3SL-C10 RemoteCamUSB3SL is a USB 3.2 Gen1 camera extension kit configured specifically for the Sony SRG-X40UH PTZ camera. It extends USB 3.2 Gen1 (5 Gbps), RS-232 VISCA camera control, and camera power delivery up to 100 meters over a single CAT cable. The RCU3SL-C10 is designed for conference room and commercial AV installations where the Sony SRG-X40UH must be positioned beyond the native USB cable reach of the host codec or computer.
Product Description
The RCU3SL-C10 carries USB 3.2 Gen1 data, RS-232 VISCA PTZ control, and USB Power Delivery simultaneously over a single structured CAT cable. The camera-end (CE) module is specifically configured for the Sony SRG-X40UH's connector and power requirements, ensuring proper operation of this PTZ camera over the extended cable run without the need for additional adapters or power injectors.
Power Delivery supports 5V, 9V, or 12V at 3A (36W maximum) and 15V at 2.4A, plus a separate 5V camera power path at up to 1.2A. RS-232 VISCA enables full PTZ pan, tilt, and zoom control from the host system. The kit includes both CE and HE modules. MSRP: $2,155. Country of origin: USA/Taiwan.
Key Features
- Configured for Sony SRG-X40UH — Camera-end (CE) module cabling and power delivery are matched to the Sony SRG-X40UH PTZ camera's interface and requirements.
- Up to 100m USB 3.2 Gen1 Extension — Extends USB 3.2 Gen1 (5 Gbps) camera data up to 100 meters over a single CAT cable.
- RS-232 VISCA PTZ Control — Carries VISCA control signals for full pan, tilt, and zoom operation over the same CAT cable.
- USB Power Delivery (USB-PD) — Supplies 5V/9V/12V at 3A or 15V at 2.4A (36W maximum) to the camera over the CAT run.
- 5V Camera Power Path — Independent 5V at up to 1.2A for camera power requirements outside USB-PD spec.

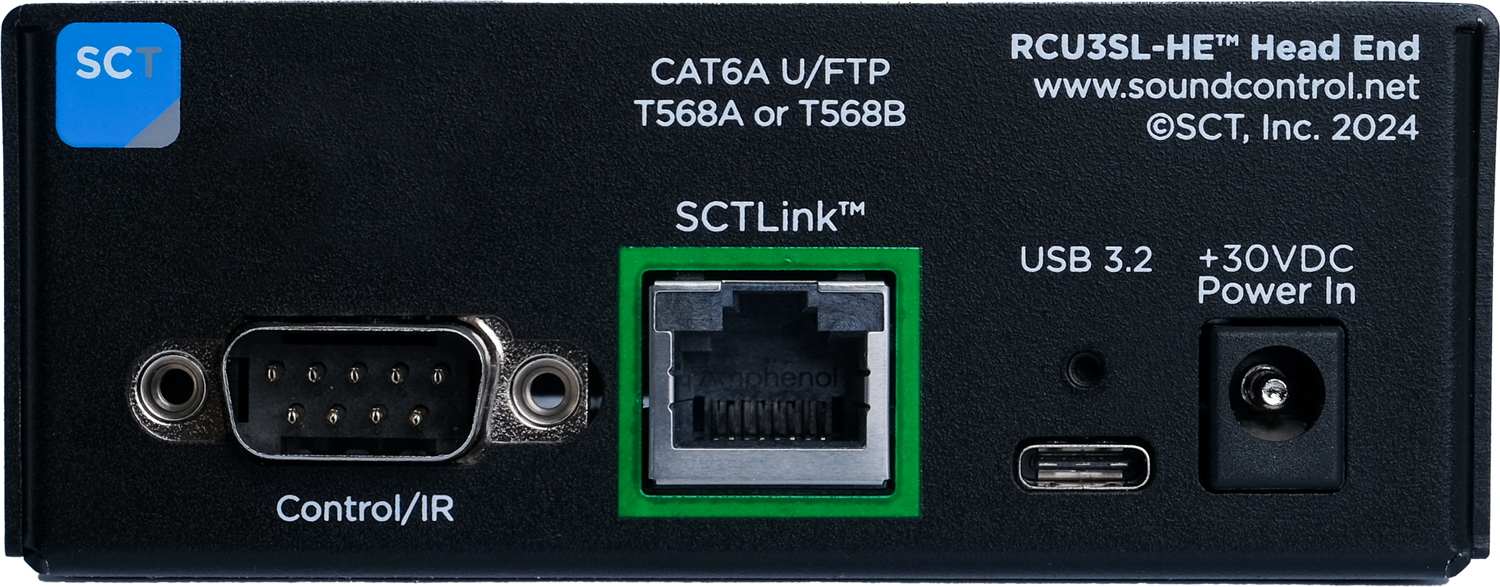

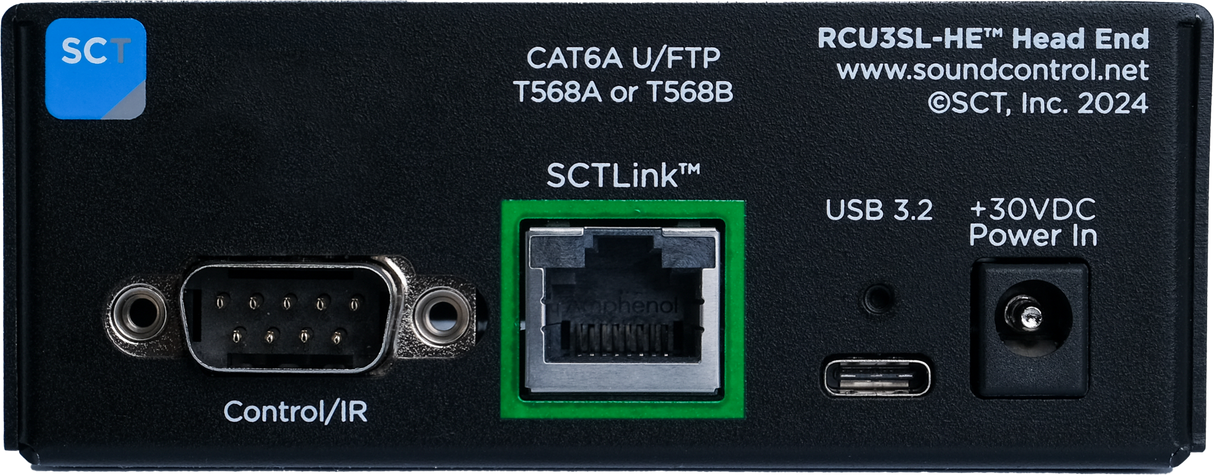

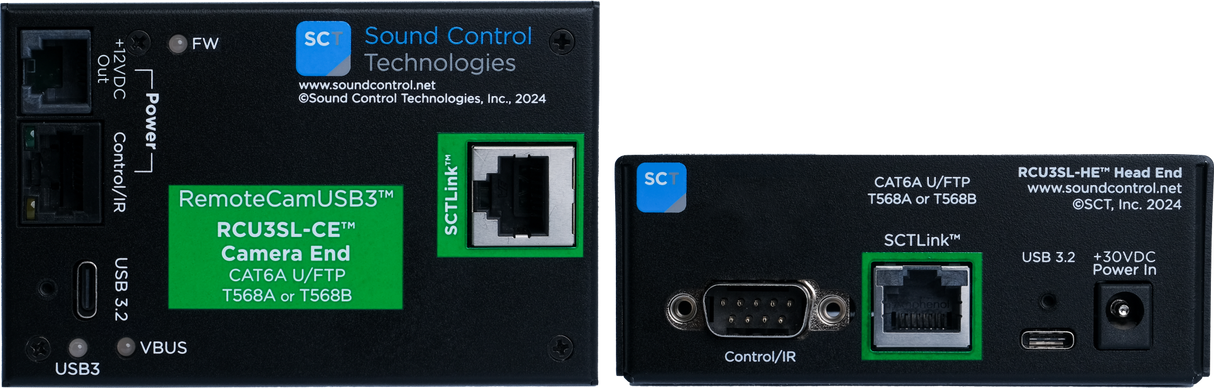

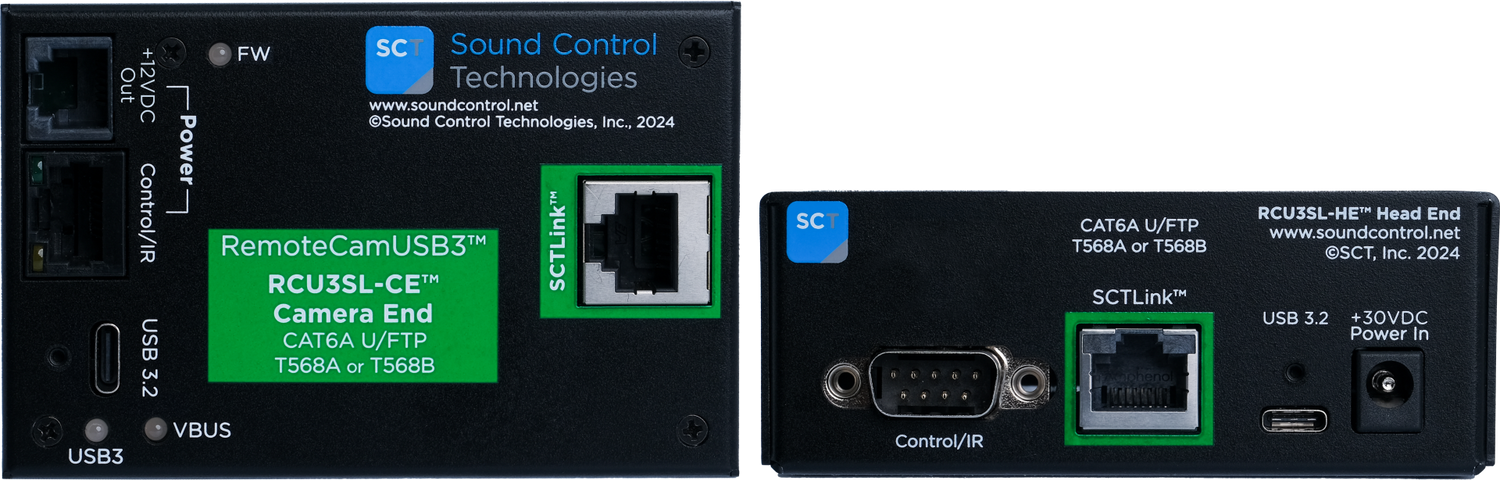

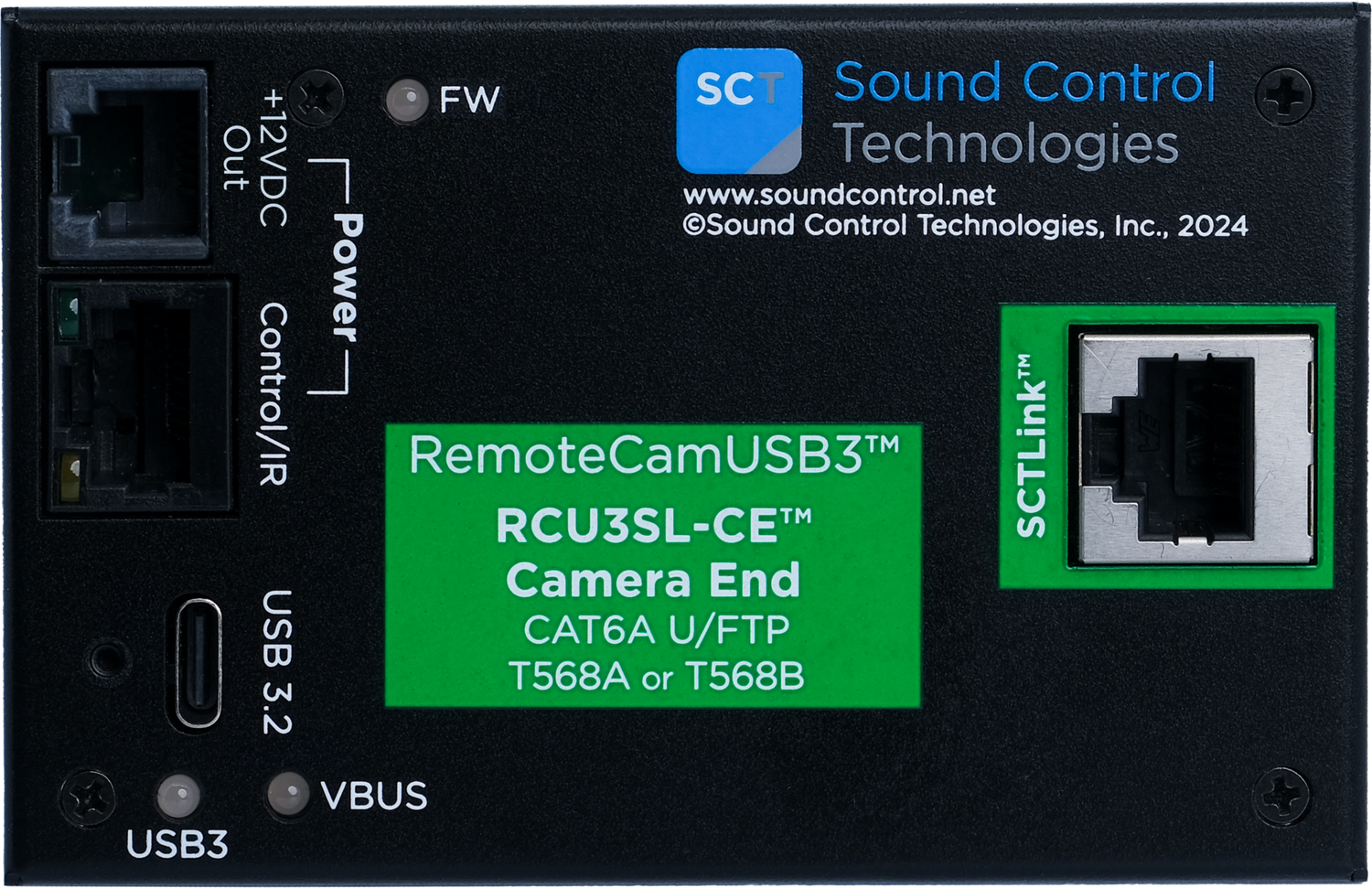

- Complete CE/HE Kit — Includes camera-end (CE) and head-end (HE) modules for a ready-to-install system.
Typical Applications
- Conference room with Sony SRG-X40UH PTZ camera requiring extended USB and control cabling
- Boardroom where the Sony SRG-X40UH is positioned at the front of the room, away from the codec
- Government or commercial space with Sony PTZ cameras and structured CAT cabling
- Broadcast studio or auditorium using Sony SRG-X40UH as a conferencing or presentation camera
Technical Specifications
| Specification | Detail |
|---|---|
| Model/SKU | RCU3SL-C10 |
| Compatible Camera | Sony SRG-X40UH |
| USB Standard | USB 3.2 Gen1 (5 Gbps) |
| Maximum Extension Distance | Up to 100 meters |
| Camera Control | RS-232 VISCA |
| USB-PD Output | 5V/9V/12V @ 3A or 15V @ 2.4A (36W max) |
| 5V Camera Power | Up to 1.2A |
| Cable Infrastructure | Single CAT cable (CE to HE) |
| Kit Includes | RCU3SL-CE (Camera End), RCU3SL-HE (Head End) |
| MSRP | $2,155 |
| Unit of Measure | Each (kit) |
| Country of Origin | USA/Taiwan |
Frequently Asked Questions
Is the RCU3SL-C10 compatible only with the Sony SRG-X40UH?
The RCU3SL-C10's camera-end module is configured specifically for the Sony SRG-X40UH. For other Sony camera models or other manufacturers, a different RCU3SL variant may be required. Contact Creation Networks to confirm compatibility for your specific camera.
Does it carry PTZ camera control?
Yes. RS-232 VISCA control signals are extended over the same CAT cable as USB data and power, enabling full PTZ control of the Sony SRG-X40UH from the host system.
What is the maximum extension distance?
Up to 100 meters over a single CAT cable for USB 3.2 Gen1 data, VISCA control, and camera power simultaneously.
Are individual replacement modules available?
Yes. The RCU3SL-CE and RCU3SL-HE are sold separately through Creation Networks for field replacement.
What warranty applies?
Contact Creation Networks for current Sound Control Technologies warranty terms for the RCU3SL-C10.
