Sound Control Technologies RCU2S-LMU – USB 2.0 Extension Kit for Logitech MeetUp

Product Overview

The Sound Control Technologies RCU2S-LMU is a USB 2.0 camera extension kit designed for the Logitech MeetUp conference camera. It extends USB 2.0/UVC video, bi-directional audio, and 5V/12V camera power up to 300 feet over a single CAT cable, enabling the Logitech MeetUp to be placed at distance from a rack-mounted codec or host system. The LMU cable kit is matched to the Logitech MeetUp USB interface. This is the purpose-built SCT solution for AV integrators deploying the Logitech MeetUp in conference rooms and huddle rooms where the device needs to reach a rack or host at extended cable distance.

Product Description

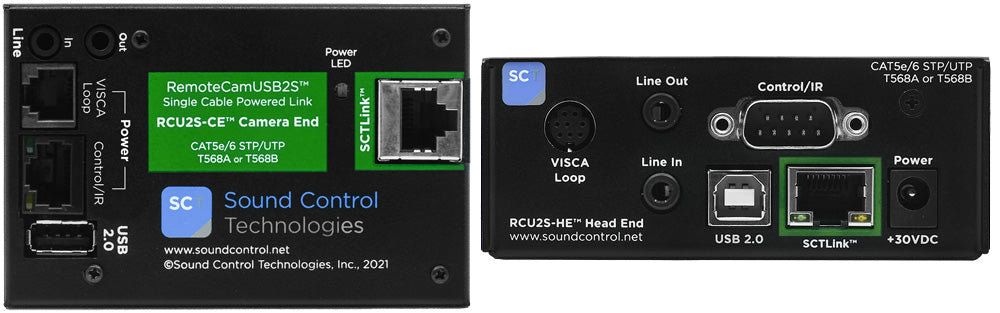

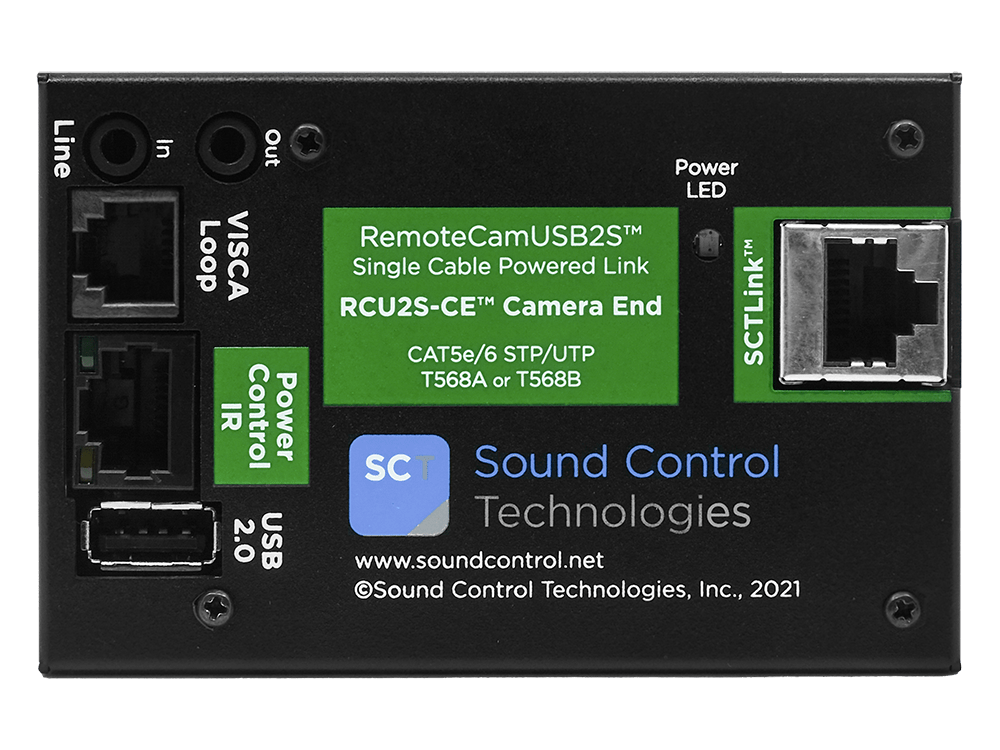

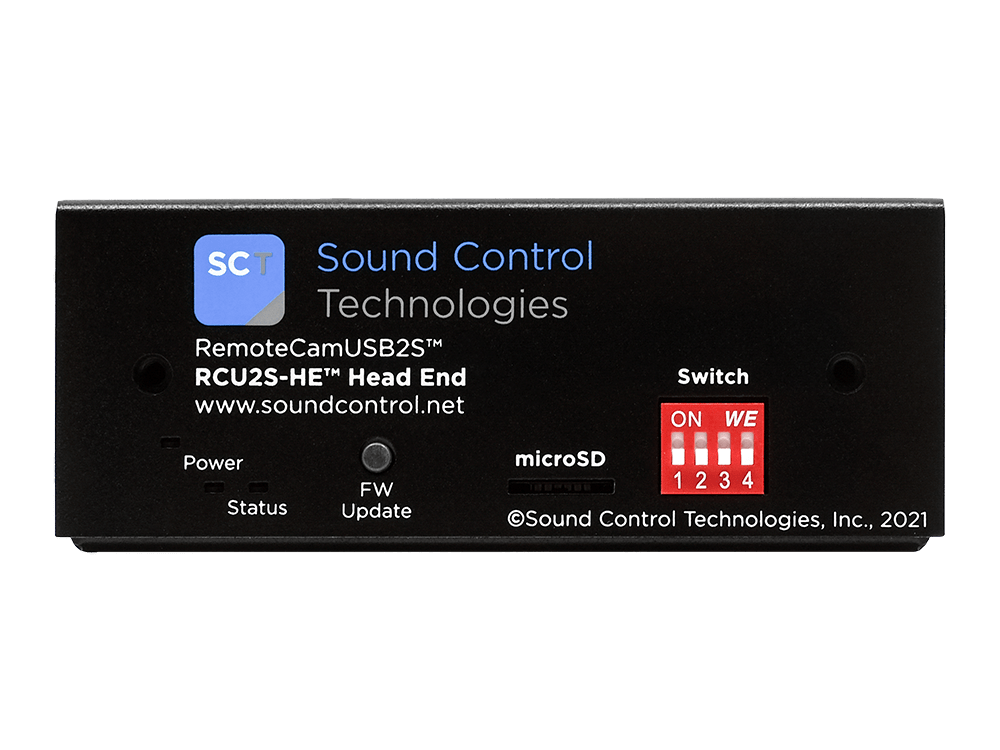

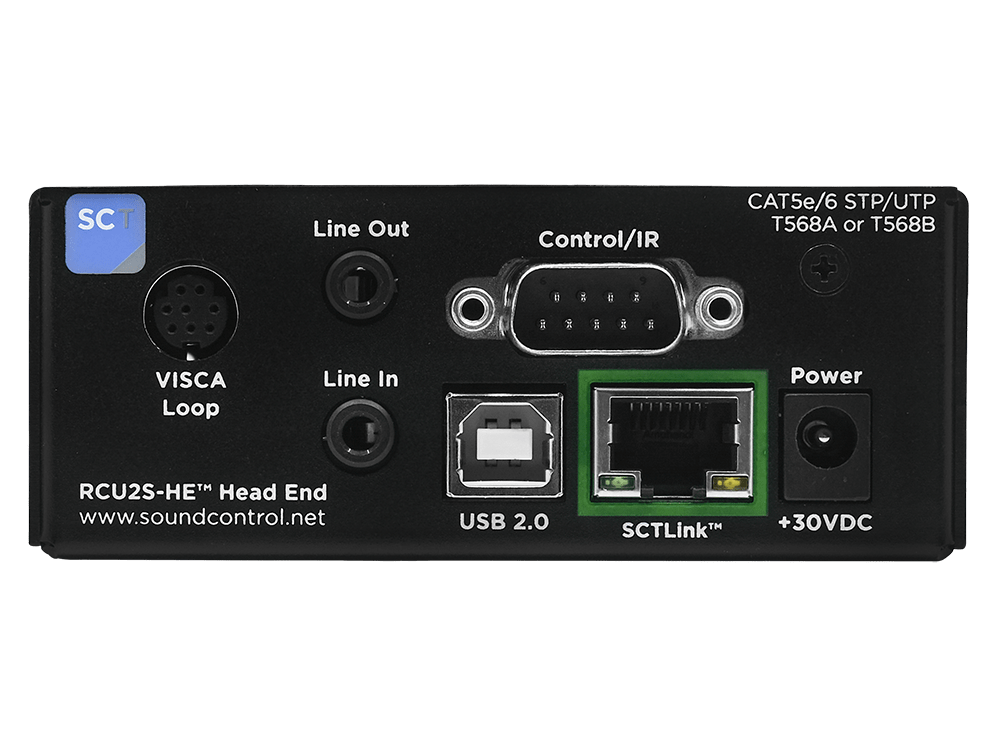

The RCU2S-LMU places a Head End (HE) unit at the codec or USB host and a Camera End (CE) unit at the Logitech MeetUp mounting location. A single CAT5e or CAT6 cable run between these units carries USB 2.0/UVC video, bi-directional audio, and 5V/12V camera power. The LMU cable kit provides the specific USB connection matched to the Logitech MeetUp. Power delivery at the camera end supports 5V and 12V DC, so no separate power supply is needed at the MeetUp mounting location.

The bi-directional audio channel supports the Logitech MeetUp's integrated beamforming microphone and speaker audio over the extension run. UVC compliance ensures the Logitech MeetUp is recognized as a standard USB video device on any USB 2.0 host without proprietary drivers — compatible with Microsoft Teams Rooms, Zoom Rooms, Cisco, Poly, and BYOD/BYOM conference platforms. The single-cable approach simplifies installation in rooms where the Logitech MeetUp is at the display or table and the host is rack-mounted at distance.

Key Features

• Logitech MeetUp Specific Cable Kit — Matched to the Logitech MeetUp USB interface for verified connectivity.
• 300-Foot USB 2.0 Extension — Extends USB/UVC signal up to 300 feet over a single CAT5e or CAT6 cable.
• Integrated 5V/12V Camera Power — No separate power supply required at the Logitech MeetUp location.
• Bi-Directional Audio Transport — Carries Logitech MeetUp microphone and speaker audio between camera and head end.
• UVC Plug-and-Play — No proprietary drivers required on Windows, macOS, or Linux hosts.
• Single CAT Cable Run — USB video, audio, and power in one structured cabling path.
• Commercial-Grade Construction — USA/Taiwan manufactured for commercial AV installation reliability.

Typical Applications

• Conference room Logitech MeetUp installations with rack-mounted codecs
• Huddle room deployments with Logitech MeetUp at the display and host at rack
• Multi-purpose room builds standardizing on Logitech MeetUp cameras
• Corporate Microsoft Teams Rooms or Zoom Rooms integration with Logitech MeetUp
• BYOD/BYOM conference rooms with Logitech MeetUp over extended cable runs

Technical Specifications

Frequently Asked Questions

Is this kit specific to the Logitech MeetUp?

Yes. The RCU2S-LMU is matched to the Logitech MeetUp. For the Logitech Rally Camera, see the RCU2S-LRC. Contact Creation Networks to confirm compatibility before ordering.

Will the Logitech MeetUp audio (microphone and speaker) work through the extension?

The bi-directional audio channel is carried through the extension. Microphone and speaker audio functionality depends on the Logitech MeetUp's USB audio implementation and the host system's configuration.

Is this compatible with Microsoft Teams Rooms and Zoom Rooms?

Yes. The Logitech MeetUp is recognized as a standard UVC/UAC device by any compatible host, including Microsoft Teams Rooms and Zoom Rooms.

What cabling is required?

A single CAT5e or CAT6 cable run up to 300 feet between the Head End and Camera End. Standard TIA-568 structured cabling practices apply.

What warranty applies?

Contact Creation Networks for current Sound Control Technologies warranty terms for this product.
