Sound Control Technologies RCU2S-E4U – USB 2.0 Extension Kit for Poly EagleEye IV

Product Overview

The Sound Control Technologies RCU2S-E4U is a USB 2.0 camera extension kit engineered for deployments using the Poly EagleEye IV USB camera. It extends USB 2.0/UVC video, bi-directional audio, and camera power up to 300 feet over a single CAT cable, connecting the camera to a rack-mounted codec or host system without discrete cable runs. The RCU2S-E4U includes a camera-specific cable kit matched to the Poly EagleEye IV USB interface, ensuring a clean and verified connection. This is an ideal solution for AV integrators standardizing on Poly cameras across conference room and boardroom deployments.

Product Description

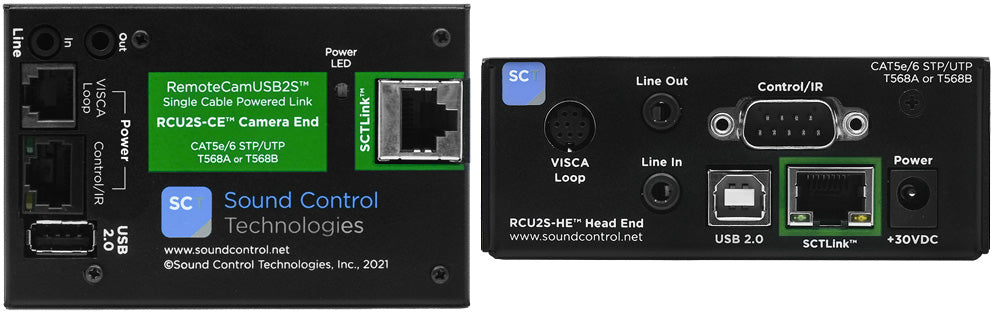

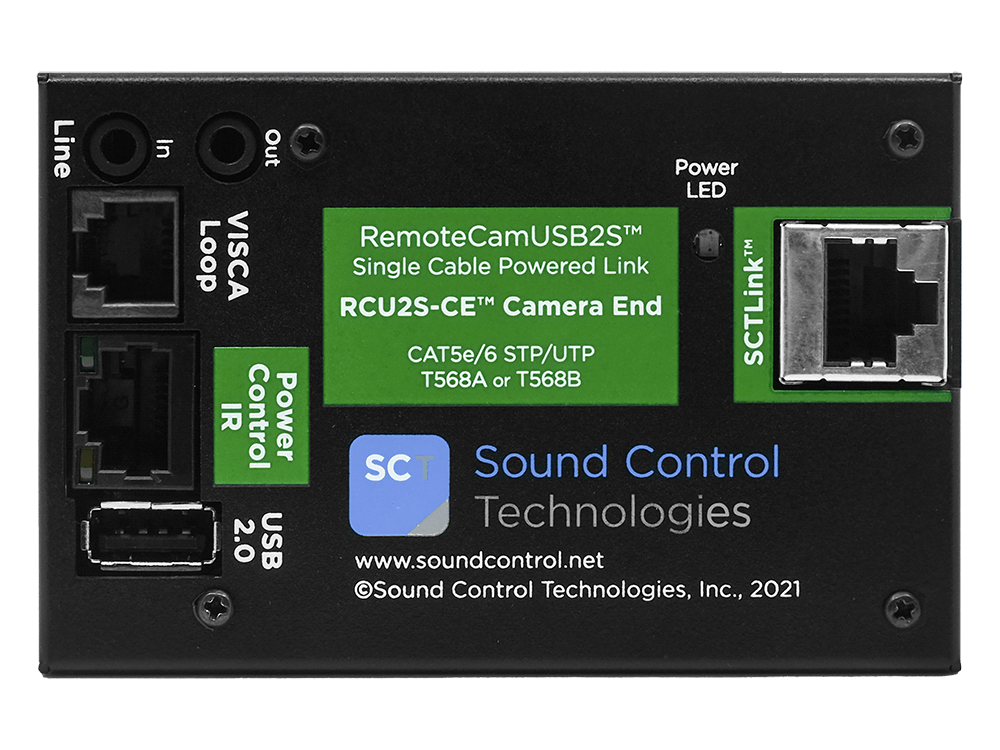

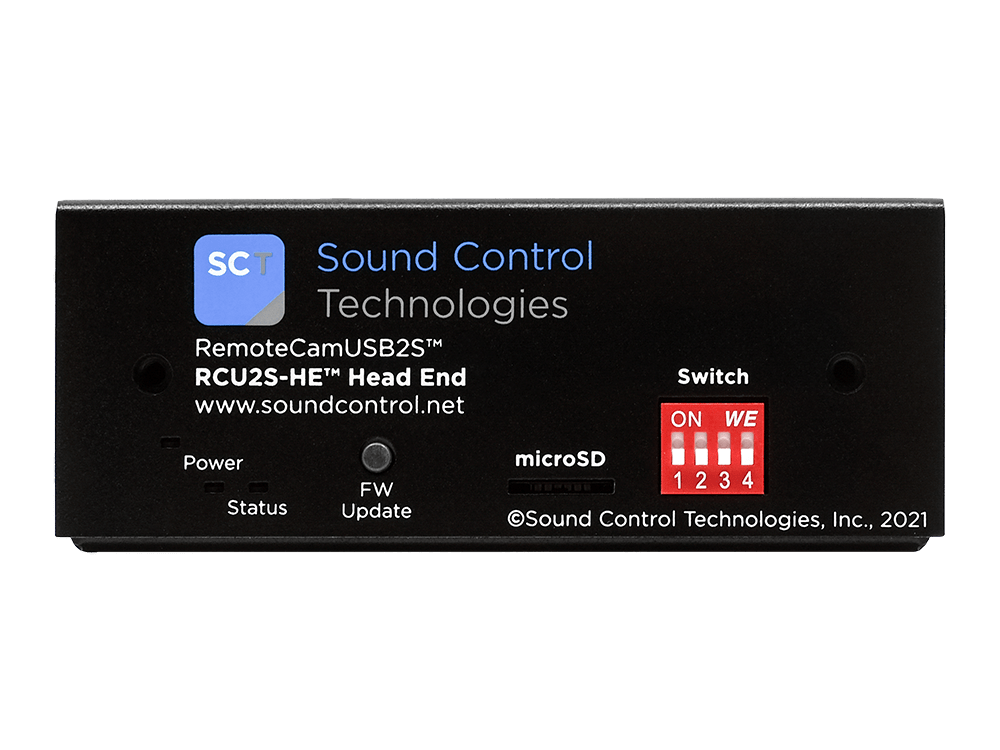

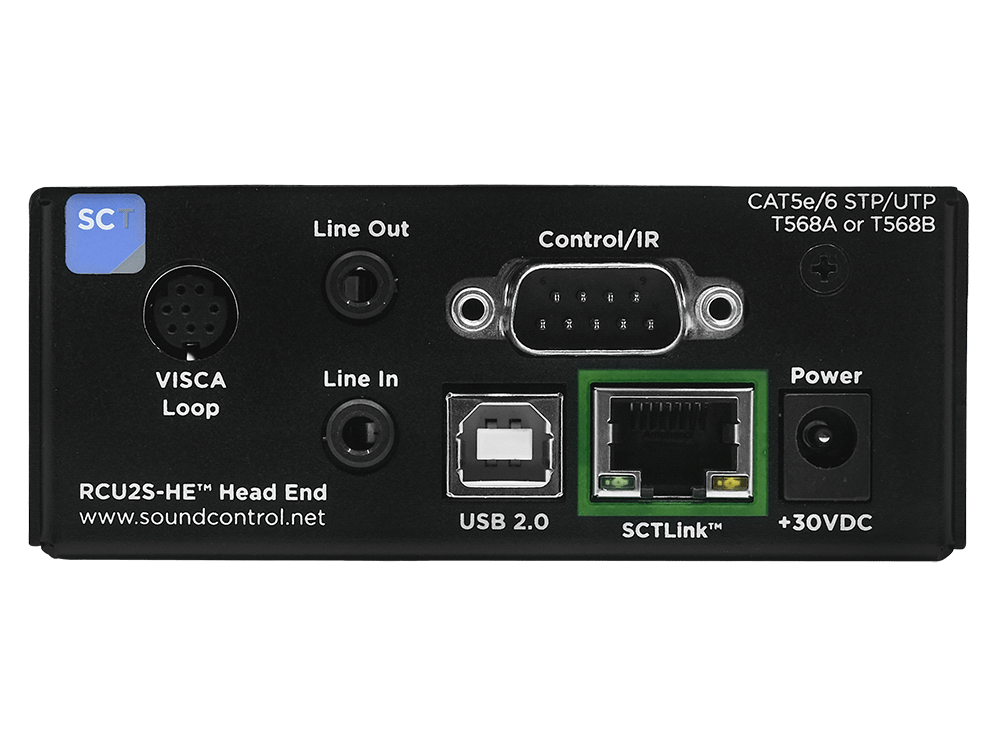

The RCU2S-E4U extends Poly EagleEye IV USB camera connectivity up to 300 feet over a single CAT5e or CAT6 infrastructure cable. The system uses a two-unit architecture: a Head End (HE) placed at the codec or host, and a Camera End (CE) positioned at the camera mounting location. The camera-specific cable kit included with the E4U designation provides a direct, verified connection to the Poly EagleEye IV USB port.

Signal transport includes USB 2.0/UVC video for host recognition of the camera as a standard UVC device, bi-directional audio for microphone or intercom channel support, and 5V/12V DC power delivery at the camera end — eliminating the need for a separate local power supply. The RCU2S platform requires no special drivers on Windows or macOS hosts, and integrates cleanly with Poly Group Series, Poly Studio X, and similar platforms that use the EagleEye IV as a peripheral USB camera.

For AV system designers working with Poly camera ecosystems, the RCU2S-E4U provides a single-cable solution that supports structured cabling standards and simplifies installation in rooms where the codec is rack-mounted away from the camera position. Replacement modules (RCU2S-CE and RCU2S-HE) are available separately for service or spares inventory.

Key Features

• Poly EagleEye IV Compatible — Includes camera-specific cable kit for a direct, verified connection to the Poly EagleEye IV USB camera interface.
• 300-Foot USB 2.0 Extension — Extends USB/UVC signal up to 300 feet over a single CAT5e or CAT6 cable run.
• Integrated 5V/12V Camera Power — Delivers camera power over the CAT cable, eliminating a separate power supply at the camera end.
• Bi-Directional Audio Transport — Supports bi-directional audio for microphone or intercom channel integration between camera and head end.
• UVC Plug-and-Play — No proprietary drivers required; works with Windows, macOS, and Linux hosts.
• Single CAT Cable Run — Consolidates video, audio, and power into standard structured cabling infrastructure.
• Commercial-Grade Manufacturing — Produced in the USA and Taiwan for commercial AV installation reliability.

Typical Applications

• Conference room deployments with Poly EagleEye IV cameras and rack-mounted codecs
• Boardroom AV installations requiring extended USB camera cable runs
• Corporate meeting space builds standardizing on Poly camera platforms
• Multi-purpose rooms with centralized AV equipment racks
• Training room installations with fixed PTZ camera positions

Technical Specifications

Frequently Asked Questions

Is this kit specifically for the Poly EagleEye IV USB version?

Yes. The RCU2S-E4U includes a cable kit matched to the Poly EagleEye IV USB interface. It is not intended for HDCI or other EagleEye IV connection variants. Confirm your camera's connection type before ordering.

Does this work with Poly Group Series codecs?

The RCU2S-E4U extends the USB camera signal to any USB 2.0 host. Poly Group Series and similar platforms that accept USB cameras will recognize the EagleEye IV through this extension kit as a standard UVC device.

What cable type is required between the Head End and Camera End?

A single CAT5e or CAT6 cable run is required. Standard TIA-568 structured cabling practices apply. Maximum supported distance is 300 feet.

Are there RS-232 serial control features in the RCU2S-E4U?

The standard RCU2S-E4U carries USB 2.0, audio, and camera power. For a variant with RS-232 serial control loop (for PTZ camera control over the same CAT run), consult Creation Networks about RCU2S models with the A8 or B6 suffix designations.

What warranty applies to this product?

Contact Creation Networks for current Sound Control Technologies warranty terms applicable to this product.

Can the Camera End or Head End be replaced separately?

Yes. RCU2S-CE (Camera End) and RCU2S-HE (Head End) replacement modules are available separately. Contact Creation Networks for details.
