Sound Control Technologies RCU2S-CA8 – USB 2.0 + RS-232 Extension Kit for AVer Cameras
Sound Control Technologies RCU2S-CA8 – USB 2.0 + RS-232 Extension Kit for AVer Cameras is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sound Control Technologies RCU2S-CA8 – USB 2.0 + RS-232 Extension K...
Product Overview
The Sound Control Technologies RCU2S-CA8 is a USB 2.0 camera extension kit with RS-232 serial control loop, designed specifically for AVer camera deployments. It extends USB 2.0/UVC video, bi-directional audio, RS-232 PTZ control, and 5V/12V camera power up to 300 feet over a single CAT cable. The CA8 designation indicates compatibility with AVer cameras and inclusion of the RS-232 serial control channel — enabling full PTZ camera control alongside USB video over the same structured cabling run. This kit is suited for conference rooms and boardrooms using AVer PTZ cameras with codec-based or control system RS-232 control.
Product Description

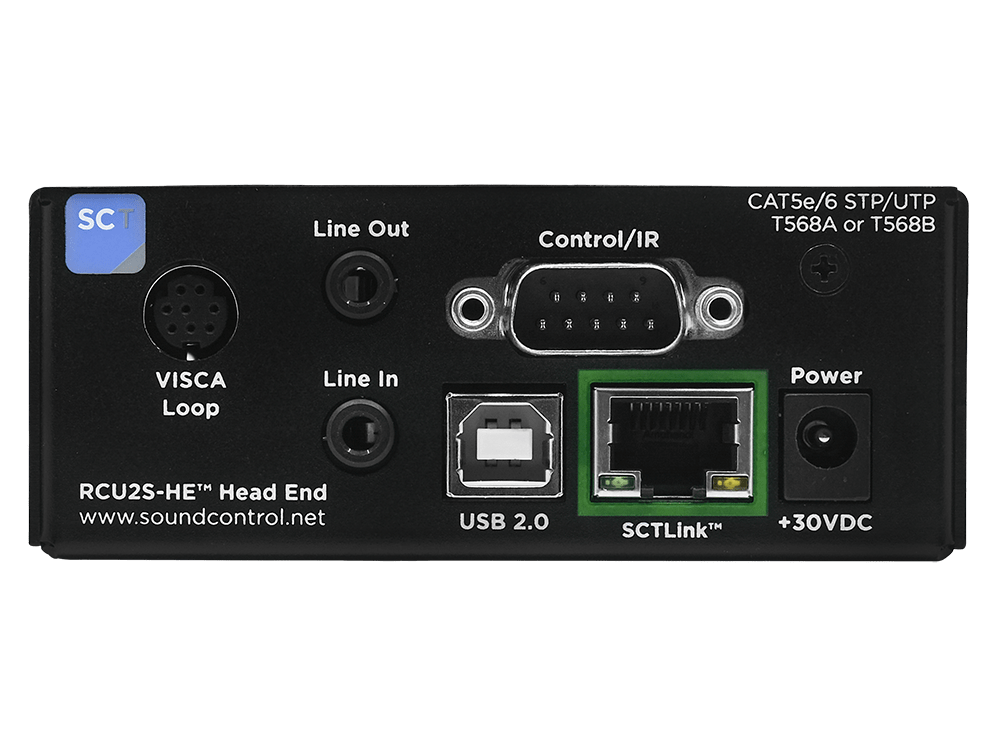

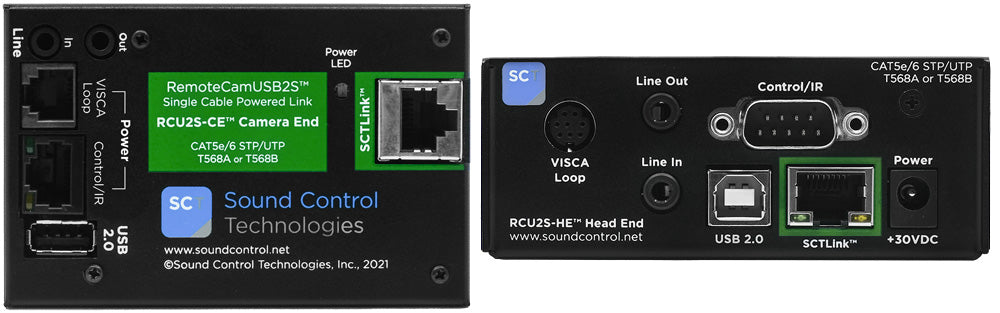

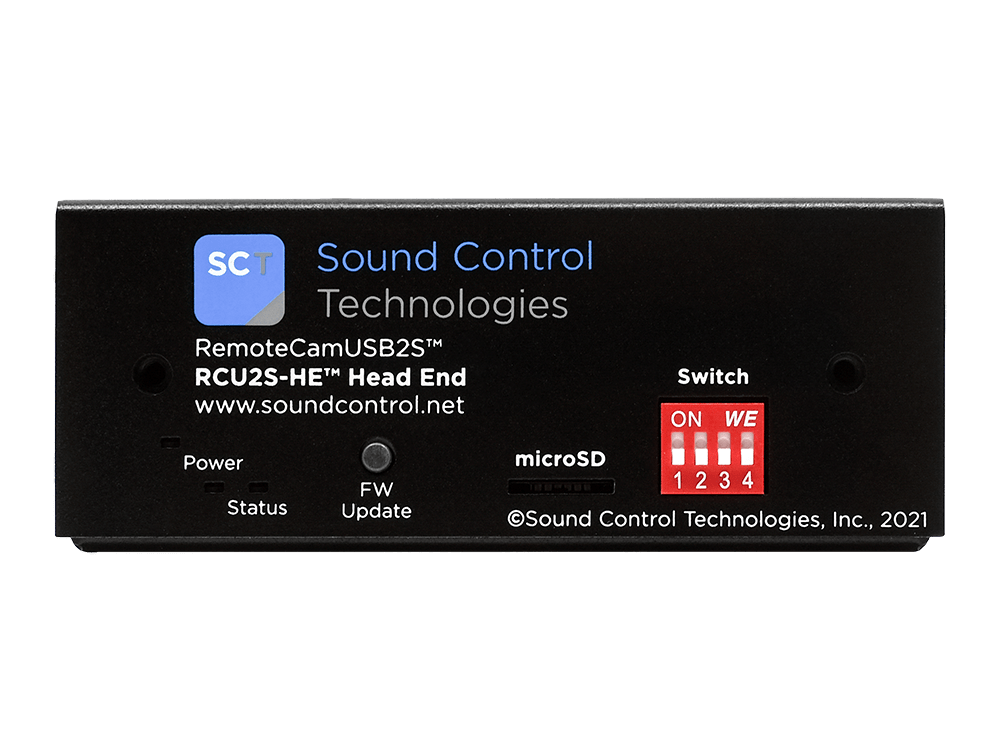

The RCU2S-CA8 extends all required signals for AVer USB PTZ camera installations up to 300 feet over a single CAT5e or CAT6 cable. The Head End (HE) unit connects to the codec or USB host and RS-232 control source; the Camera End (CE) unit mounts at the AVer camera location and provides the camera-specific cable connections. The A8 designation confirms this kit includes the RS-232 serial control loop for bi-directional PTZ command transport alongside USB video.
Power delivery at the camera end supports 5V and 12V DC, so AVer cameras do not require a separate local power supply. The bi-directional audio channel is also carried, supporting microphone or intercom signal transport where the camera supports it. UVC compliance means the camera appears as a standard USB video device on any USB 2.0 host without proprietary drivers — compatible with Cisco, Poly, Logitech, and BYOM codec platforms.
The RS-232 loop is bidirectional, supporting PTZ control commands from the codec or control system and any applicable status feedback from the camera. This allows a single CAT cable run to replace what would otherwise require three separate cable types (USB, serial, and power) in a conventional installation.
Key Features
- RS-232 PTZ Control for AVer Cameras — Bi-directional RS-232 serial control loop carries PTZ commands over the same CAT cable as USB video and power.
- AVer Camera Compatibility — Includes cable kit matched to AVer USB camera interfaces for a verified, clean connection.
- 300-Foot USB 2.0 Extension — Extends USB/UVC signal up to 300 feet over a single CAT5e or CAT6 cable.
- Integrated 5V/12V Camera Power — Eliminates separate power supply at the camera mount location.
- Bi-Directional Audio — Audio channel for microphone or intercom use between camera and head end.
- UVC Plug-and-Play — No proprietary drivers required on Windows, macOS, or Linux.
- Single CAT Cable Infrastructure — USB video, RS-232 control, audio, and power in one structured cabling run.
Typical Applications
- Conference room AVer PTZ camera deployments with codec RS-232 control
- Boardroom AV installations using AVer cameras with centralized control systems
- Multi-purpose room builds with AVer PTZ cameras requiring serial control
- Corporate meeting spaces standardizing on AVer camera platforms
- Training room installations with AVer PTZ cameras under control system management
- Government space AV deployments with PTZ camera control requirements
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | RCU2S-CA8 |
| Product Family | RemoteCamUSB2S |
| Compatible Camera Brand | AVer |
| Signal Types Carried | USB 2.0/UVC video, RS-232 serial control loop, bi-directional audio, 5V/12V camera power |
| Maximum Extension Distance | 300 feet (approx. 90 m) over CAT5e/CAT6 |
| Camera Power Output | 5V and 12V DC |
| Serial Control | Bi-directional RS-232 |
| Unit of Measure | Each (complete kit) |
| Country of Origin | USA / Taiwan |
| MSRP | $1,945.00 |
Frequently Asked Questions
Which specific AVer camera models are supported by the RCU2S-CA8?
The CA8 configuration is designed for AVer cameras. Contact Creation Networks for the current SCT compatibility matrix confirming the exact AVer models supported by this cable kit.
Can the RS-232 control be used with a Crestron or AMX control system?
Yes. The RS-232 loop is a standard serial interface and is compatible with any RS-232 PTZ control source, including third-party control systems such as Crestron, AMX, and QSC.
Is Ethernet camera control included?
No. The RCU2S-CA8 carries USB 2.0, RS-232, audio, and camera power. For Ethernet IP camera control, see the RCU2E family.
Can I use this kit without the RS-232 control?
Yes. USB video, audio, and camera power operate independently of the RS-232 channel.
What cabling is required?
A single CAT5e or CAT6 cable run up to 300 feet. Standard TIA-568 structured cabling practices apply.
What warranty applies?
Contact Creation Networks for current Sound Control Technologies warranty terms for this product.
