Sound Control Technologies RCU2S-C30 – USB 2.0 Extension Kit for Panasonic Cameras
Sound Control Technologies RCU2S-C30 – USB 2.0 Extension Kit for Panasonic Cameras is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sound Control Technologies RCU2S-C30 – USB 2.0 Extension Kit for Pa...
Product Overview
The Sound Control Technologies RCU2S-C30 is a USB 2.0 camera extension kit designed for Panasonic camera deployments. It extends USB 2.0/UVC video, bi-directional audio, and 5V/12V camera power up to 300 feet over a single CAT cable, enabling Panasonic USB cameras to be placed at distance from a rack-mounted codec or host system. The C30 cable kit is matched to supported Panasonic camera interfaces — contact Creation Networks for the specific Panasonic models confirmed for this configuration. Suitable for conference rooms, boardrooms, and commercial AV installations where Panasonic cameras require extended USB runs over structured CAT cabling.
Product Description

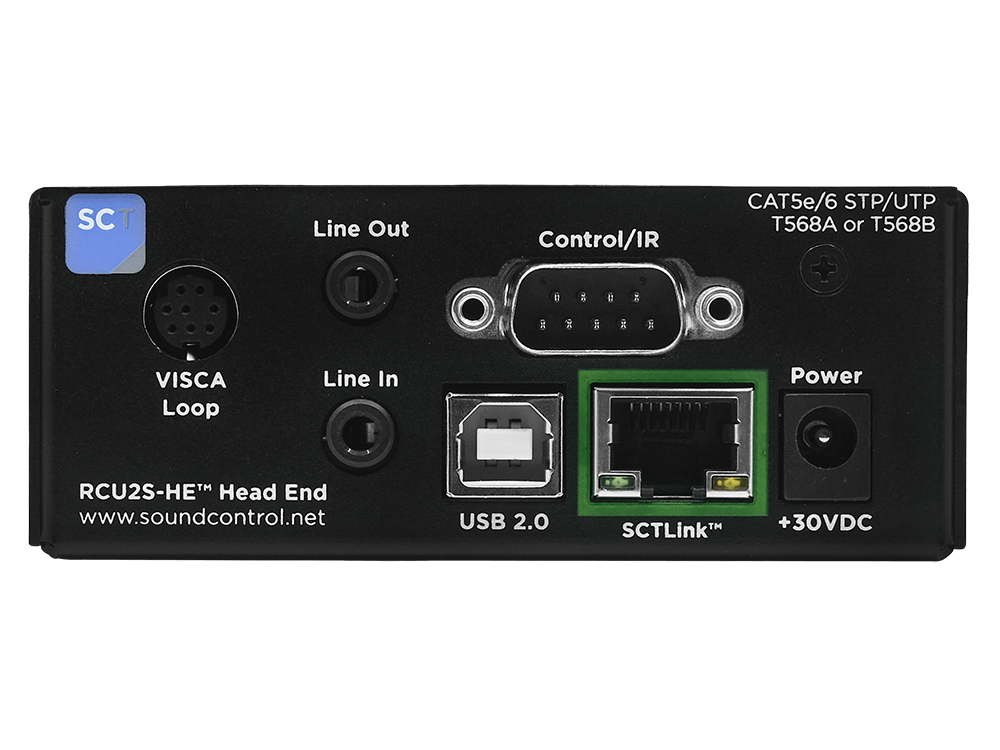

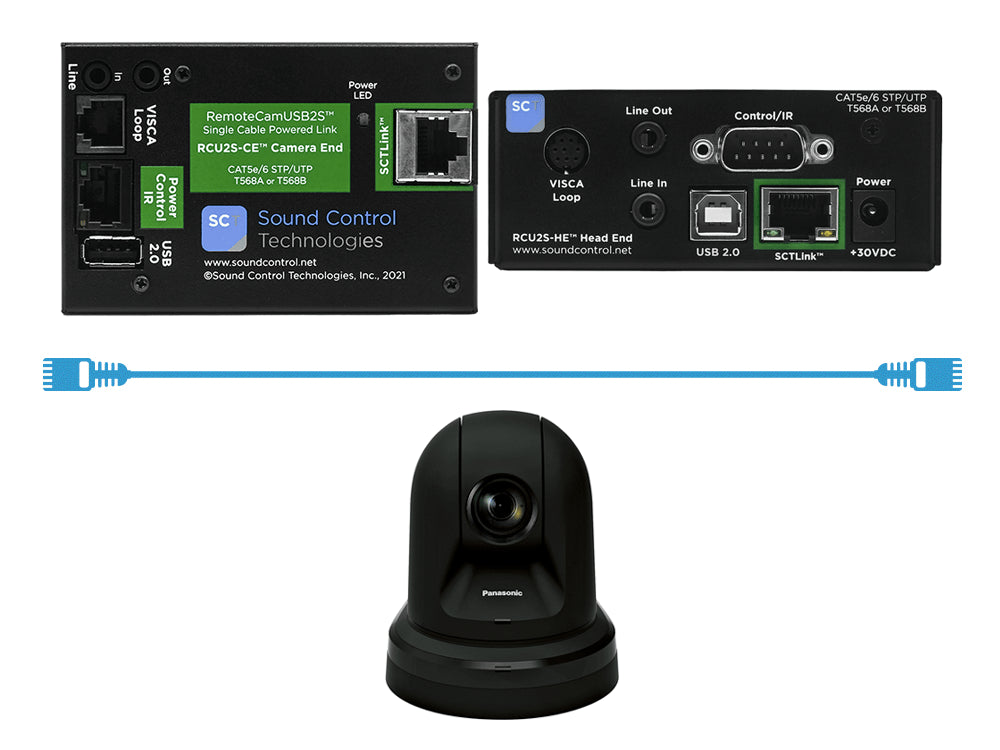

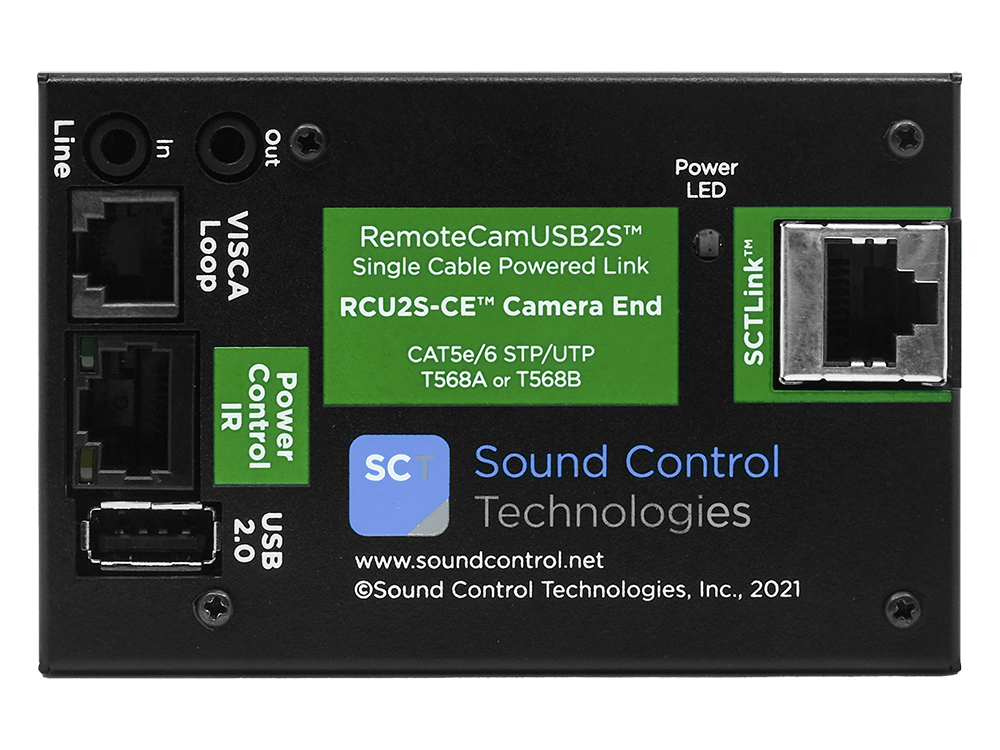

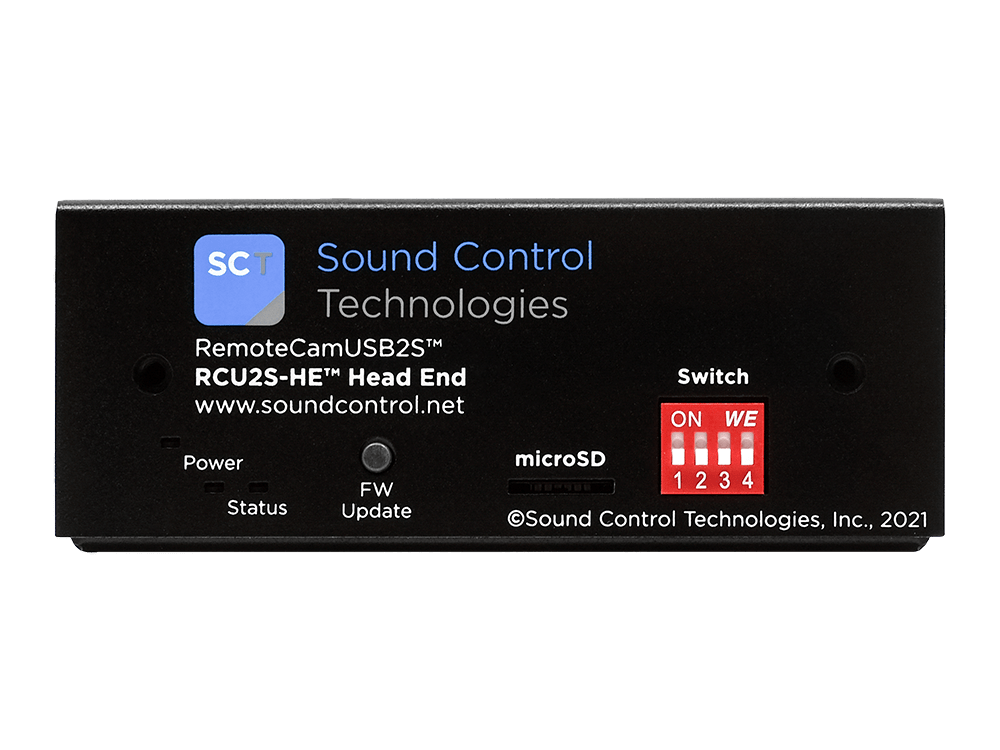

The RCU2S-C30 places a Head End (HE) unit at the codec or USB host and a Camera End (CE) unit at the Panasonic camera location. A single CAT5e or CAT6 cable run between these units carries USB 2.0/UVC video, bi-directional audio, and 5V/12V camera power. Power delivery at the camera end eliminates the need for a separate local power supply at the Panasonic camera mount. UVC compliance ensures the Panasonic camera appears as a standard USB video device on any USB 2.0 host without proprietary drivers.
The bi-directional audio channel supports microphone or intercom signal transport. The C30 variant does not include RS-232 serial control — for Panasonic cameras requiring RS-232 PTZ control over the same CAT run, see the RCU2S-CC8 or RCU2S-GC8. Replacement modules (RCU2S-CE and RCU2S-HE) are available separately.
Key Features
- Panasonic Camera Compatibility — Cable kit matched to supported Panasonic USB camera interfaces.
- 300-Foot USB 2.0 Extension — Extends USB/UVC signal up to 300 feet over a single CAT5e or CAT6 cable.
- Integrated 5V/12V Camera Power — No separate power supply needed at the Panasonic camera location.
- Bi-Directional Audio — Audio channel for microphone or intercom use between camera and head end.
- UVC Plug-and-Play — No proprietary drivers required on Windows, macOS, or Linux.
- Single CAT Cable Run — USB video, audio, and power in one structured cabling path.
- Commercial-Grade Manufacturing — USA/Taiwan made for commercial AV environments.
Typical Applications
- Conference room Panasonic USB camera installations with rack-mounted codecs
- Boardroom AV builds with Panasonic cameras requiring extended USB runs
- Multi-purpose room deployments standardizing on Panasonic camera platforms
- Corporate meeting spaces with Panasonic cameras over CAT cabling infrastructure
- Government space AV installations with Panasonic cameras
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | RCU2S-C30 |
| Product Family | RemoteCamUSB2S |
| Compatible Camera Brand | Panasonic |
| Signal Types Carried | USB 2.0/UVC video, bi-directional audio, 5V/12V camera power |
| Maximum Extension Distance | 300 feet (approx. 90 m) over CAT5e/CAT6 |
| Camera Power Output | 5V and 12V DC |
| Unit of Measure | Each (complete kit) |
| Country of Origin | USA / Taiwan |
| MSRP | $1,945.00 |
Frequently Asked Questions
Which Panasonic camera models are supported by the RCU2S-C30?
The C30 cable kit is matched to specific Panasonic models. Contact Creation Networks for the current SCT compatibility list for this configuration.
Does the RCU2S-C30 include RS-232 PTZ control for Panasonic cameras?
No. The C30 does not include RS-232 control. For Panasonic cameras requiring RS-232 PTZ control over the CAT run, see the RCU2S-CC8 or RCU2S-GC8.
What cabling is required?
A single CAT5e or CAT6 cable run up to 300 feet between the Head End and Camera End. Standard TIA-568 structured cabling practices apply.
What warranty applies?
Contact Creation Networks for current Sound Control Technologies warranty terms for this product.
