Sound Control Technologies RCU2S-B20 – USB 2.0 Camera Extension Kit Variant

Product Overview

The Sound Control Technologies RCU2S-B20 is a USB 2.0 camera extension kit designed for commercial AV installations requiring USB/UVC camera placement up to 300 feet from the codec or host system. Using a single CAT cable run, it carries USB 2.0 video, bi-directional audio, and 5V/12V camera power, eliminating multiple cable runs to the camera location. This kit is purpose-built for AV integrators deploying PTZ or fixed-angle USB cameras in conference rooms, boardrooms, and corporate meeting spaces. Contact Creation Networks to confirm camera compatibility for your specific model before ordering.

Product Description

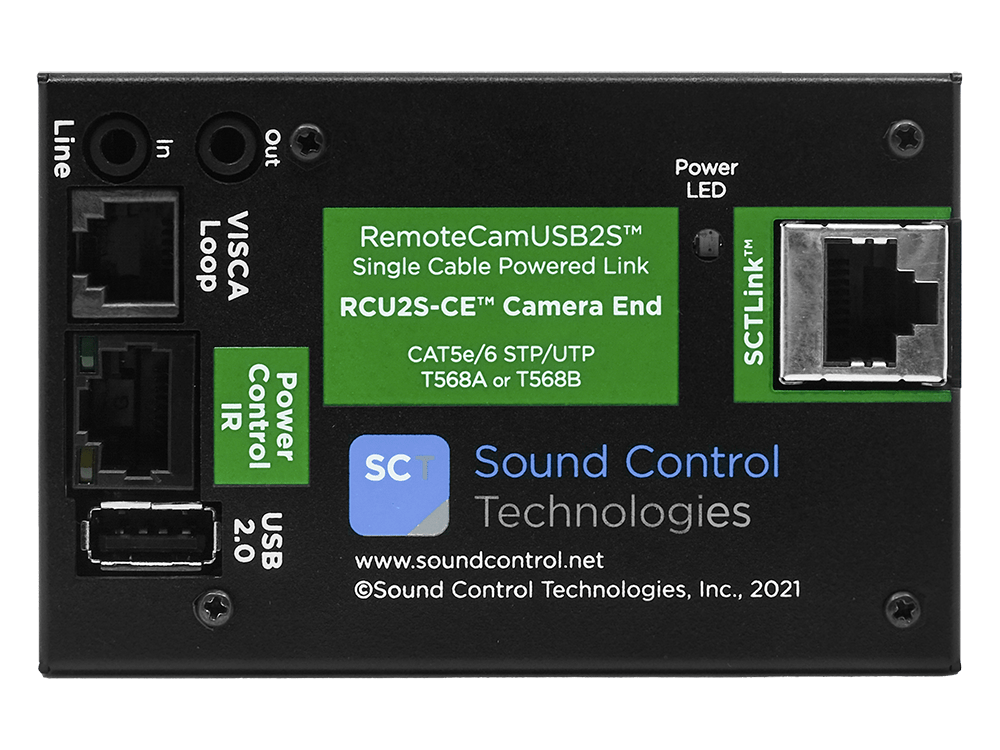

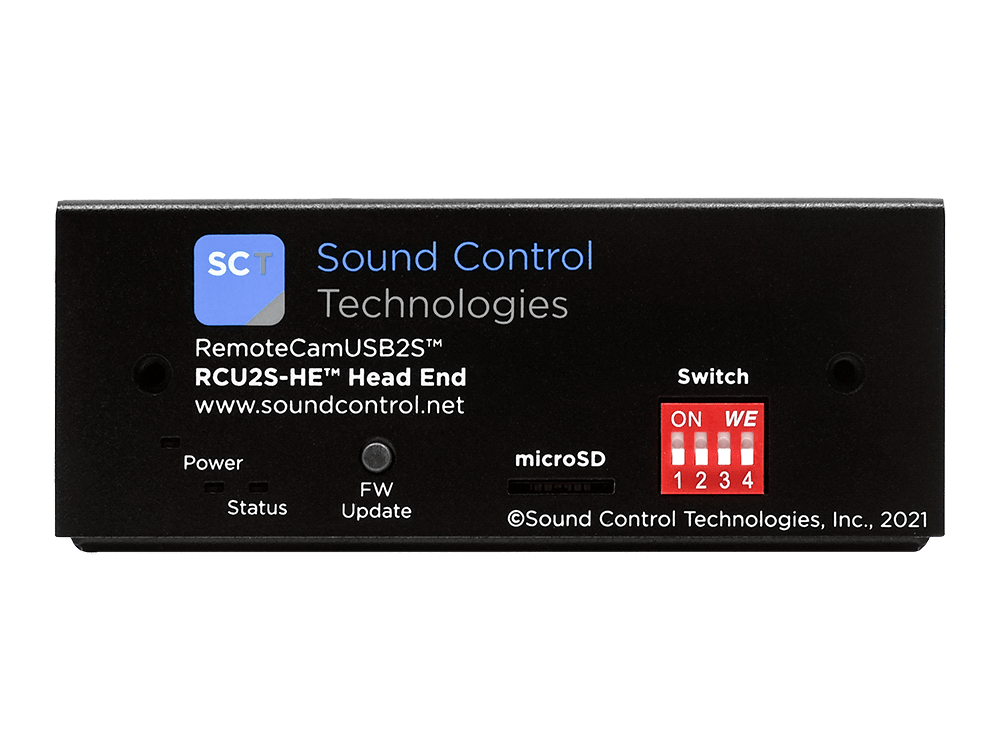

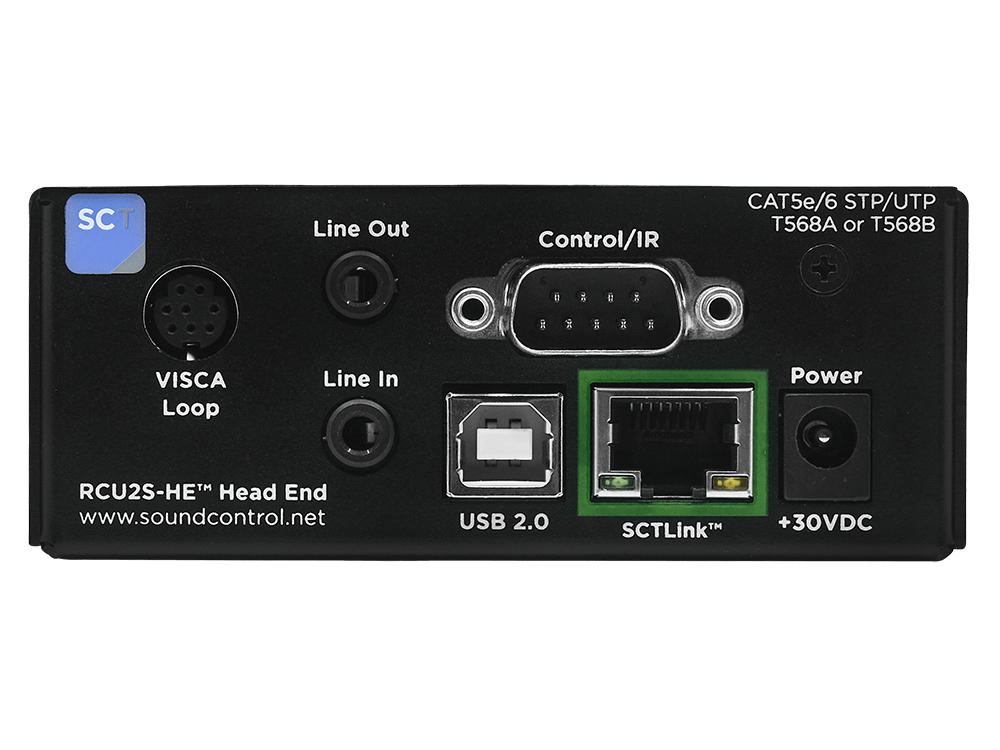

The RCU2S-B20 extends USB 2.0/UVC camera signal, bi-directional audio, and camera power over a single CAT cable for distances up to 300 feet (approximately 90 meters). The system consists of a Head End (HE) unit that connects to the codec or host computer, and a Camera End (CE) unit that mounts near the camera. Both units communicate over a standard CAT5e or CAT6 cable run, keeping installation clean and reducing points of failure compared to multiple discrete cable runs.

Power delivery at the camera end supports both 5V and 12V camera power outputs, accommodating a wide range of commercial USB cameras without a separate power supply at the camera location. The bi-directional audio channel allows codec-to-camera intercom or integrated microphone signal transport depending on the supported camera configuration. The RCU2S platform is UVC-compliant, so no additional drivers are required on Windows, macOS, or Linux hosts.

Each kit ships as a complete system ready for installation. The RCU2S-B20 variant includes the cable kit specific to supported camera models in the B20 configuration — consult the Creation Networks product team or the SCT compatibility matrix for the exact camera models supported by this SKU. For installations requiring Ethernet camera control in addition to USB extension, see the RCU2E family.

Key Features

• 300-Foot USB 2.0 Extension — Extends USB/UVC camera signals up to 300 feet over a single CAT5e or CAT6 cable, eliminating the need for USB repeaters or active extension dongles.
• Integrated Camera Power — Delivers 5V and 12V camera power over the CAT cable, removing the requirement for a local power supply at the camera mounting location.
• Bi-Directional Audio Transport — Carries bi-directional audio between the head end and camera end to support integrated microphone or intercom functions depending on the connected camera.
• UVC Plug-and-Play Compatibility — Operates as a standard USB Video Class device; no proprietary drivers required on Windows, macOS, or Linux hosts.
• Single CAT Cable Infrastructure — Consolidates USB video, audio, and power into one structured cabling run, simplifying installation and reducing cable clutter.

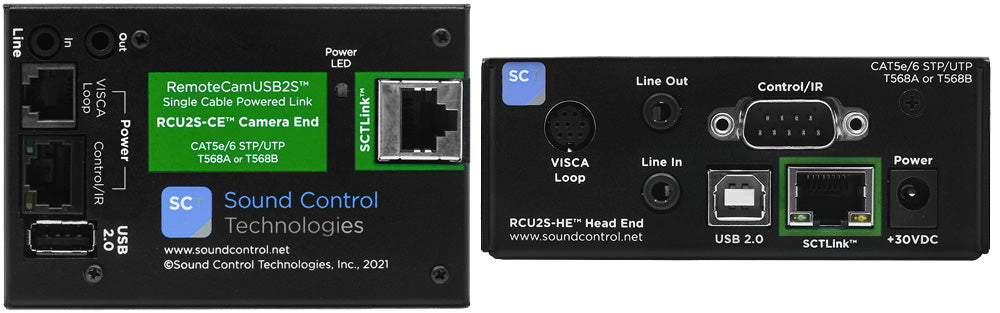

• Complete Kit Configuration — Includes Head End unit, Camera End unit, and camera-specific cable accessories matched to supported camera models.
• Commercial-Grade Construction — Manufactured in the USA and Taiwan to commercial AV installation standards for reliable long-term deployment.

Typical Applications

• Boardroom USB camera installations with rack-mounted codecs
• Conference room PTZ camera deployments over structured CAT cabling
• Multi-purpose room AV system builds requiring extended USB camera runs
• Corporate commercial meeting space integration with distance constraints
• Training room setups with centralized rack equipment and remote camera positions
• Government space AV installations with strict cabling requirements

Technical Specifications

Frequently Asked Questions

Which cameras are compatible with the RCU2S-B20?

The RCU2S-B20 is configured for specific camera models in the B20 cable kit configuration. Contact Creation Networks for the current SCT compatibility matrix to confirm your camera model is supported before purchasing.

Does the RCU2S-B20 require any special drivers?

No. The RCU2S operates as a UVC (USB Video Class) device and is plug-and-play compatible with Windows, macOS, and Linux operating systems without proprietary drivers.

What cable infrastructure is required?

A single CAT5e or CAT6 cable run between the Head End and Camera End units is required. Standard structured cabling practices apply. Shielded cable (STP/FTP) may be preferred in electrically noisy environments.

Can I use the RCU2S-B20 with any USB codec or computer?

The kit is compatible with any USB 2.0 host that supports UVC cameras, including Cisco, Poly, Logitech, and Crestron codec platforms, as well as standard Windows and Mac BYOD/BYOM setups.

Is Ethernet camera control included with the RCU2S-B20?

No. The RCU2S family carries USB 2.0, audio, and camera power only. If your camera requires Ethernet-based IP control (such as VISCA over IP), see the RCU2E family which adds an Ethernet channel.

What warranty applies to this product?

Contact Creation Networks for current Sound Control Technologies warranty terms applicable to this product.

Can replacement modules be purchased separately?

Yes. The RCU2S-CE (Camera End) and RCU2S-HE (Head End) replacement modules are available separately. Contact Creation Networks for pricing and availability.
