Sound Control Technologies RCU2S-B1B6 – USB 2.0 + RS-232 Extension Kit for AVer PTC500+
Sound Control Technologies RCU2S-B1B6 – USB 2.0 + RS-232 Extension Kit for AVer PTC500+ is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sound Control Technologies RCU2S-B1B6 – USB 2.0 + RS-232 Extension ...
Product Overview
The Sound Control Technologies RCU2S-B1B6 is a USB 2.0 camera extension kit with RS-232 serial control loop, designed for the AVer PTC500+ PTZ camera. It extends USB 2.0/UVC video, bi-directional audio, RS-232 PTZ control, and 5V/12V camera power up to 300 feet over a single CAT cable. The B6 designation indicates inclusion of the RS-232 serial control loop, and the kit is matched specifically to the AVer PTC500+ camera interface. This product is the purpose-built SCT solution for AV integrators deploying the AVer PTC500+ in conference rooms, boardrooms, and training rooms where the camera must be placed at distance from the codec or control system.
Product Description

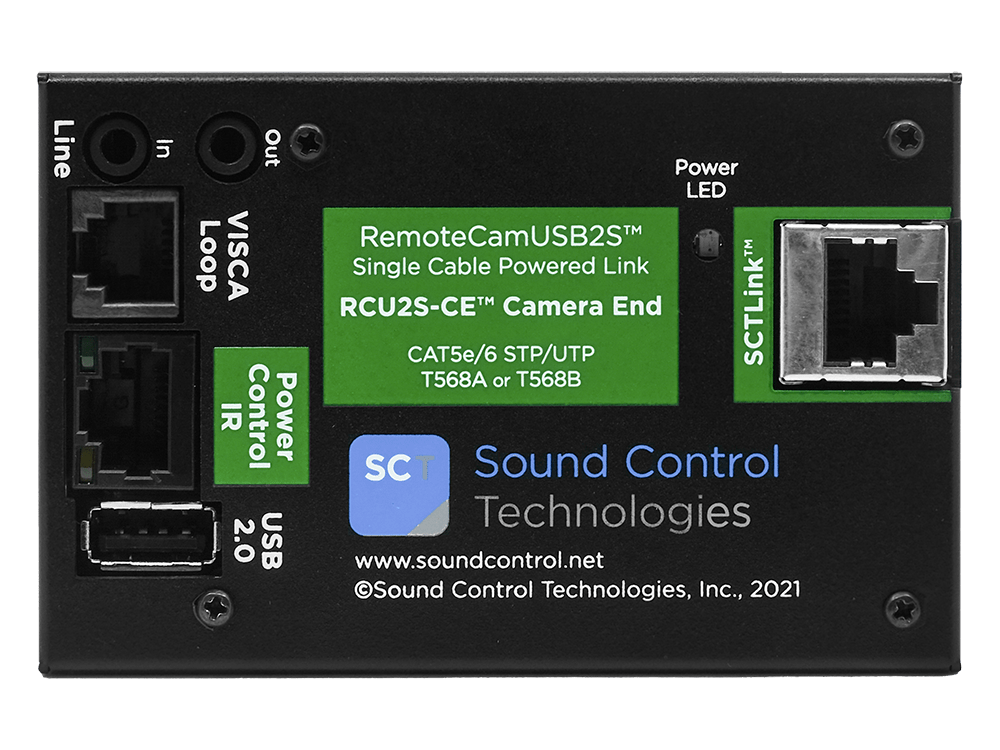

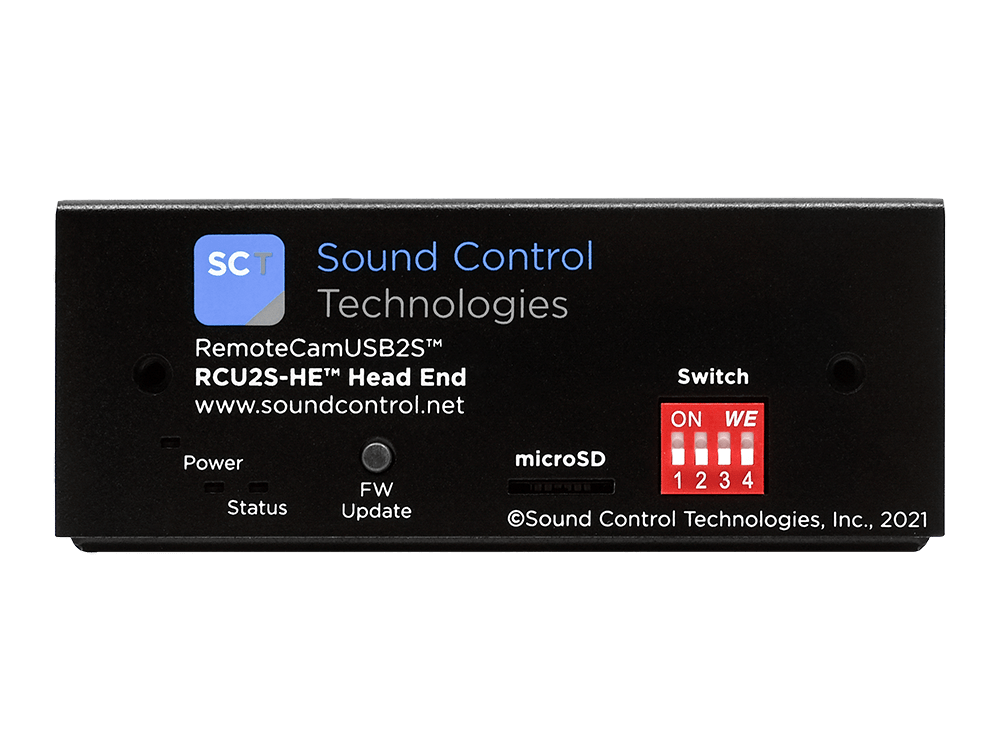

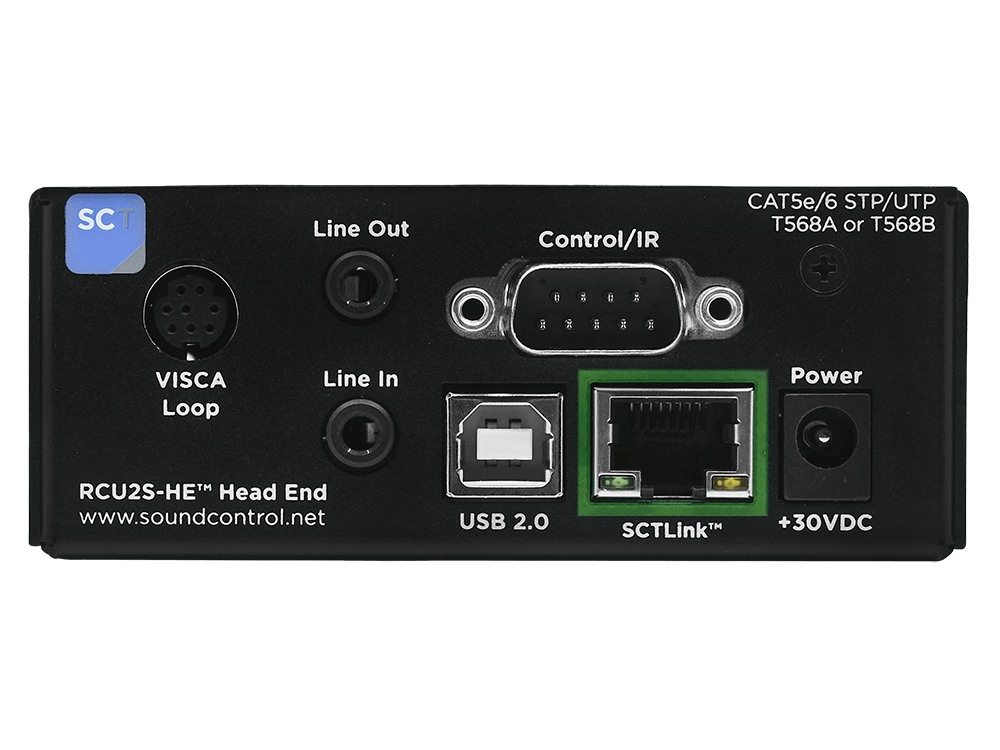

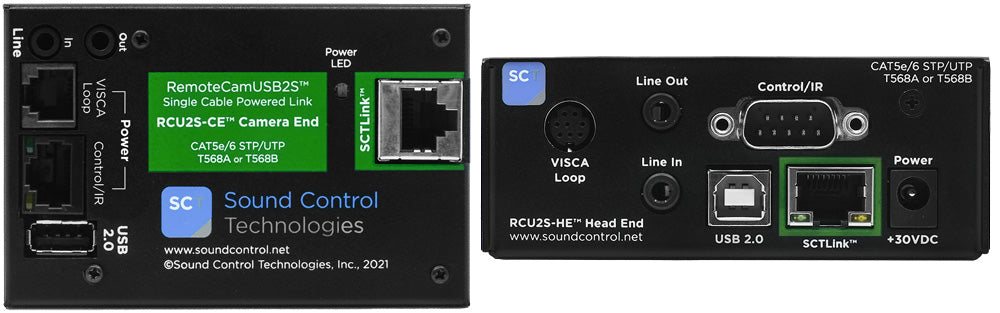

The RCU2S-B1B6 extends all required signals for an AVer PTC500+ deployment up to 300 feet over a single CAT5e or CAT6 cable run. The Head End (HE) connects to the codec or USB host and RS-232 control output; the Camera End (CE) connects directly to the AVer PTC500+ using the B1B6 cable kit. The RS-232 control loop is bidirectional, carrying PTZ control commands from the codec or control system to the camera and returning feedback where applicable.
Power delivery at the camera end supports 5V and 12V DC, so the AVer PTC500+ does not require a separate local power supply at the camera mount. The bi-directional audio channel is also carried, supporting any audio functionality of the connected camera. UVC compliance means the AVer PTC500+ is recognized as a standard USB video device on any USB 2.0 host without proprietary driver installation — compatible with Microsoft Teams Rooms, Zoom Rooms, Cisco, Poly, and BYOM platforms.
The single-cable approach — USB 2.0, RS-232, audio, and power over one CAT cable — replaces up to three separate cable runs in a conventional AVer PTC500+ installation. Replacement modules (RCU2S-CE and RCU2S-HE) are available separately.
Key Features
- AVer PTC500+ Specific Cable Kit — Designed and tested for the AVer PTC500+ PTZ camera interface for a verified, clean connection.
- RS-232 PTZ Control — Bi-directional RS-232 serial control loop carries PTZ commands over the same CAT cable as USB video.
- 300-Foot USB 2.0 Extension — Extends USB/UVC signal up to 300 feet over a single CAT5e or CAT6 cable.
- Integrated 5V/12V Camera Power — Eliminates a separate power supply at the AVer PTC500+ camera mounting location.
- Bi-Directional Audio Transport — Carries audio channel between camera and head end.
- UVC Plug-and-Play — No proprietary drivers required on Windows, macOS, or Linux hosts.
- Single CAT Cable Run — USB video, RS-232 control, audio, and power in one structured cabling path.
Typical Applications
- Conference room AVer PTC500+ PTZ camera installations with codec RS-232 control
- Training room AV deployments using AVer PTC500+ for instructor tracking
- Boardroom PTZ camera setups with centralized rack equipment and RS-232 camera control
- Government space AV installations with AVer PTC500+ cameras
- Multi-purpose room builds standardizing on the AVer PTC500+ camera platform
- All-hands room camera deployments with PTZ control at distance
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | RCU2S-B1B6 |
| Product Family | RemoteCamUSB2S |
| Compatible Camera | AVer PTC500+ |
| Signal Types Carried | USB 2.0/UVC video, RS-232 serial control loop, bi-directional audio, 5V/12V camera power |
| Maximum Extension Distance | 300 feet (approx. 90 m) over CAT5e/CAT6 |
| Camera Power Output | 5V and 12V DC |
| Serial Control | Bi-directional RS-232 |
| Unit of Measure | Each (complete kit) |
| Country of Origin | USA / Taiwan |
| MSRP | $1,945.00 |
Frequently Asked Questions
Is this kit specific to the AVer PTC500+?
Yes. The RCU2S-B1B6 is matched to the AVer PTC500+. Contact Creation Networks to confirm compatibility with other AVer PTC models before ordering.
Can the RS-232 control be used with a Crestron or AMX control system?
Yes. The RS-232 loop is a standard bi-directional serial interface compatible with any RS-232 PTZ control source, including Crestron, AMX, QSC, and codec-native control outputs.
Does the AVer PTC500+ require a separate power supply with this kit?
No. The RCU2S-B1B6 delivers 5V and 12V DC camera power at the camera end over the CAT cable, so a separate local power supply at the camera location is not required.
What cabling is required?
A single CAT5e or CAT6 cable run up to 300 feet between the Head End and Camera End. Standard TIA-568 structured cabling practices apply.
What warranty applies?
Contact Creation Networks for current Sound Control Technologies warranty terms for this product.
