Product Overview
The Sound Control Technologies RCU2S-B10 is a USB 2.0 camera extension kit that carries USB 2.0/UVC video, bi-directional audio, and 5V/12V camera power up to 300 feet over a single CAT cable. Designed for commercial AV integrators, it provides a clean, single-cable solution for placing USB cameras at distance from rack-mounted codecs or host systems. The B10 variant includes a specific camera cable kit — contact Creation Networks for supported camera models in this configuration. This kit is appropriate for conference rooms, boardrooms, and any commercial meeting space requiring extended USB camera runs over structured CAT infrastructure.
Product Description

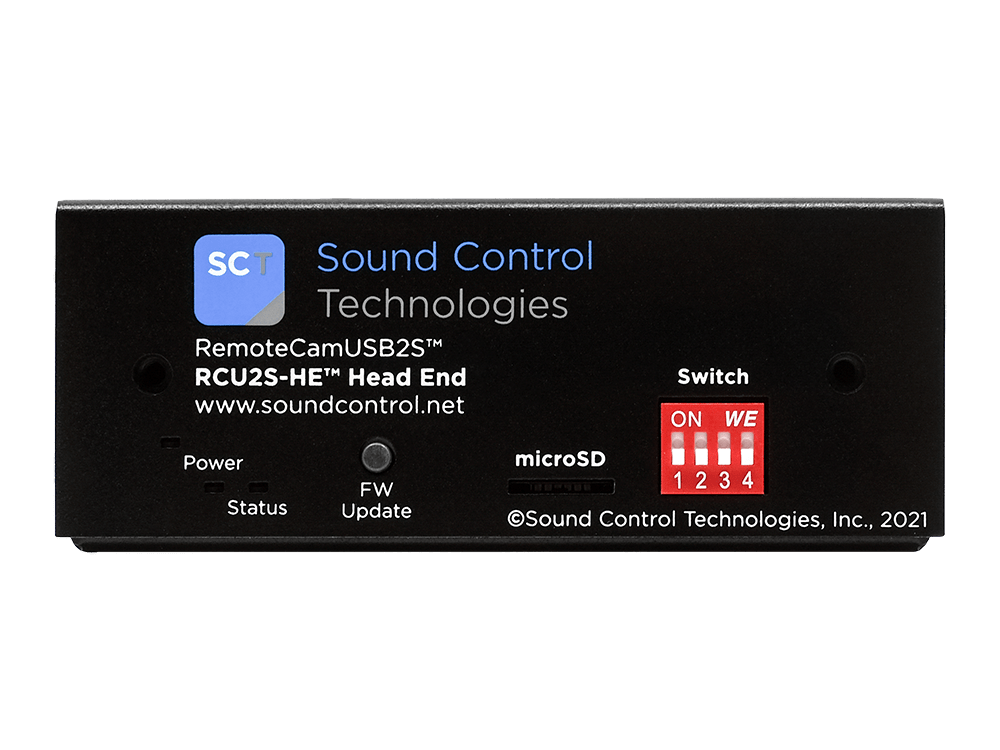

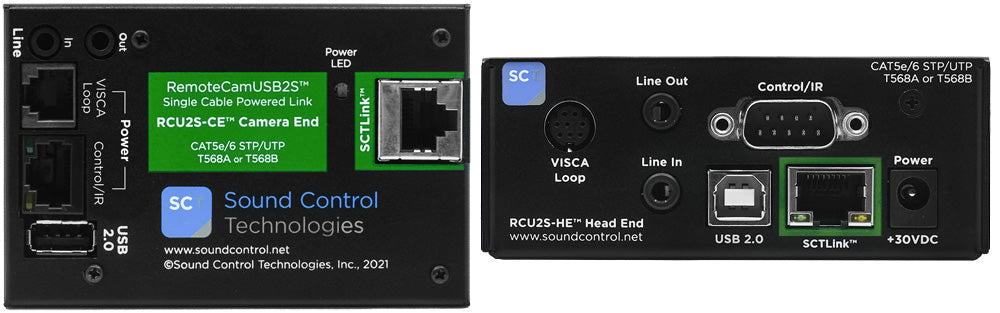

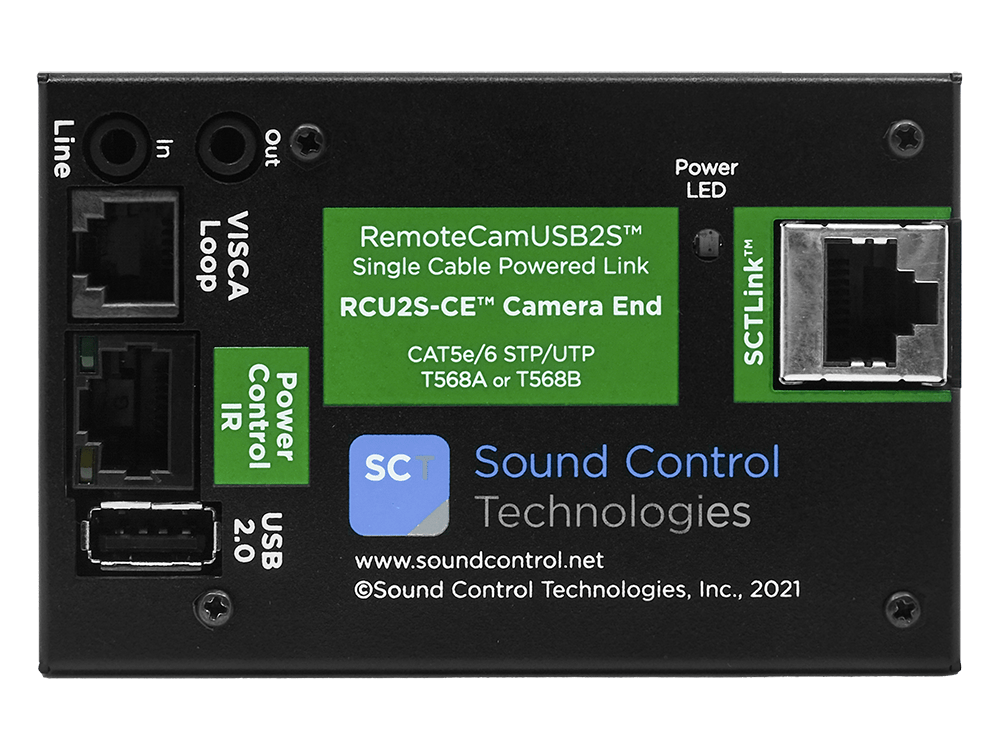

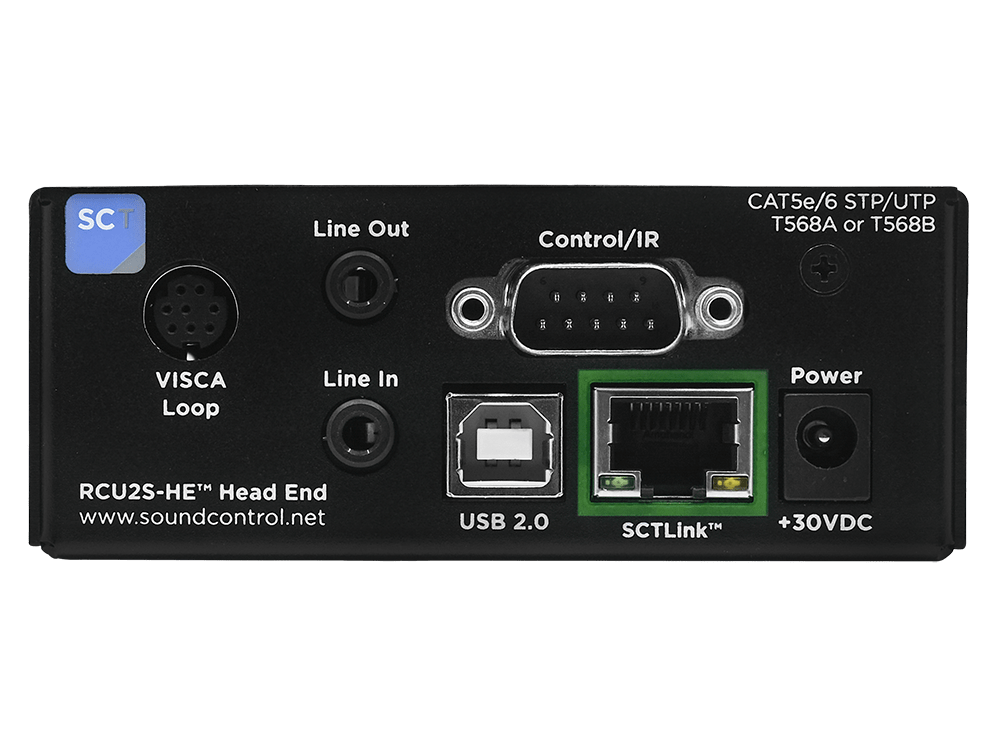

The RCU2S-B10 uses a two-unit architecture: a Head End (HE) unit connects to the codec or host, and a Camera End (CE) unit mounts near the camera. A single CAT5e or CAT6 cable run between these two units carries USB 2.0/UVC video, bi-directional audio, and camera power — eliminating the need for multiple discrete cable runs or USB repeaters.
Power delivery supports both 5V and 12V camera power outputs, accommodating a range of commercial USB cameras without a separate power supply at the camera position. The bi-directional audio channel supports microphone or intercom signal transport depending on camera configuration. The system is UVC-compliant, meaning the camera appears as a standard USB video device on any USB 2.0 host without proprietary driver installation.
The RCU2S-B10 is part of the RemoteCamUSB2S platform, which is used by AV integrators in commercial deployments worldwide for reliable single-cable USB camera extension. Replacement modules (RCU2S-CE and RCU2S-HE) are sold separately for service and spares planning.
Key Features
- 300-Foot USB 2.0 Extension — Extends USB/UVC camera signal up to 300 feet over a single CAT5e or CAT6 cable run.
- Integrated 5V/12V Camera Power — Delivers camera power over the CAT cable, no separate power supply needed at the camera location.
- Bi-Directional Audio — Transports bi-directional audio between head end and camera end for microphone or intercom use.
- UVC Plug-and-Play — Standard USB Video Class compliance; no drivers required on Windows, macOS, or Linux.
- Single CAT Cable Run — All signal types in one structured cabling run, reducing installation complexity.
- Complete Kit — Includes Head End unit, Camera End unit, and camera-specific cable accessories for the B10 configuration.
- Commercial-Grade Construction — Manufactured in the USA and Taiwan for long-term commercial AV reliability.
Typical Applications
- Conference room USB camera installations with rack-mounted codecs
- Boardroom deployments requiring extended camera cable runs
- Multi-purpose room AV builds over existing structured CAT cabling
- Corporate commercial meeting space integration
- Training room fixed camera installations
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | RCU2S-B10 |
| Product Family | RemoteCamUSB2S |
| Signal Types Carried | USB 2.0/UVC video, bi-directional audio, 5V/12V camera power |
| Maximum Extension Distance | 300 feet (approx. 90 m) over CAT5e/CAT6 |
| Camera Power Output | 5V and 12V DC |
| Unit of Measure | Each (complete kit) |
| Country of Origin | USA / Taiwan |
| MSRP | $1,945.00 |
Frequently Asked Questions
Which cameras are compatible with the RCU2S-B10?
The B10 cable kit supports specific camera models. Contact Creation Networks for the current SCT compatibility matrix for this configuration.
Does the RCU2S-B10 require special drivers?
No. It is UVC-compliant and plug-and-play on Windows, macOS, and Linux without proprietary drivers.
What cable is needed between the Head End and Camera End?
A single CAT5e or CAT6 cable run up to 300 feet. Standard TIA-568 structured cabling practices apply.
Is RS-232 serial control included?
No. The RCU2S-B10 is a standard RCU2S configuration without RS-232. For RS-232 PTZ control over the same CAT run, see RCU2S variants with A8 or B6 suffix designations.
What warranty applies?
Contact Creation Networks for current Sound Control Technologies warranty terms for this product.
