Product Overview
The Sound Control Technologies RCU2E-C40 is a USB 2.0 camera extension kit for Sony PTZ cameras, built on the RemoteCamUSB2E platform. It extends USB 2.0/UVC video, Ethernet, 5V/12V/PoE camera power, and bi-directional audio over a single CAT cable run, with Sony-specific cable assemblies included. Designed for AV integrators and AV system designers deploying Sony cameras in conference rooms, boardrooms, broadcast studios, and commercial meeting spaces where long or complex cable runs are a design constraint.
Product Description

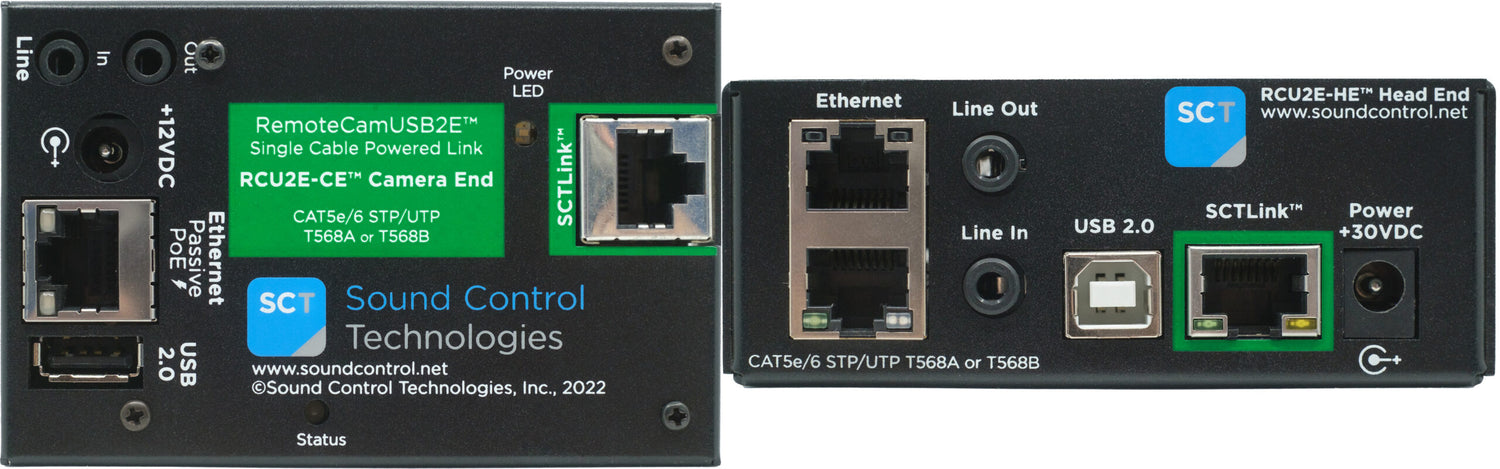

The RCU2E-C40 ships as a matched CE/HE module pair with the Sony-specific cable assembly required for compatible Sony PTZ cameras. The head-end module connects to a USB host — codec, dedicated PC, or BYOM platform — and a local Ethernet switch. The camera-end module supplies USB data, network connectivity, and camera power to the Sony camera over a single CAT 5e/6 run. Bi-directional audio is supported concurrently on the same cable infrastructure. No local power outlet is required at the camera mount for compatible Sony cameras. This kit simplifies cable plant design in conference rooms, broadcast studios, training rooms, and government spaces by consolidating all necessary signals on one CAT run.
Key Features
- Sony PTZ Camera Compatible — Includes the camera-specific cable assembly for supported Sony PTZ cameras.
- USB 2.0/UVC Extension — Full USB 2.0 bandwidth for UVC cameras delivered over CAT cable.
- Integrated Ethernet Channel — Dedicated Ethernet for Sony camera IP management on the same CAT run.
- 5V/12V/PoE Power Delivery — Camera power over CAT — no local outlet needed at the camera end.
- Bi-Directional Audio — Audio carried on the same cable for integrated AV installations.
- Complete Matched Kit — CE module, HE module, and Sony cable assembly included.
- Single CAT Cable Run — Consolidates USB, Ethernet, power, and audio to reduce conduit fill.
- Commercial-Grade — USA/Taiwan manufacture for permanent installation.
Typical Applications
- Conference rooms and boardrooms with Sony PTZ cameras
- Broadcast studio camera extension installations
- Corporate meeting spaces with BYOD/BYOM deployments
- Training rooms and multi-purpose rooms
- Government spaces and auditoriums with Sony camera systems
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | RCU2E-C40 |
| Product Family | RemoteCamUSB2E |
| Compatible Cameras | Sony PTZ cameras |
| Signal Types Carried | USB 2.0/UVC, Ethernet, 5V/12V/PoE Camera Power, Bi-Directional Audio |
| Cable Medium | CAT 5e/6 (field-terminated) |
| Includes | Camera-End (CE) module, Head-End (HE) module, Sony-specific cable assembly |
| Unit of Measure | Each (matched pair) |
| Country of Origin | USA/Taiwan |
| MSRP | $1,945.00 |
Frequently Asked Questions
Which Sony PTZ camera models are supported?
Contact Creation Networks or review the SCT compatibility documentation to confirm which Sony models are supported by the RCU2E-C40.
Is a power supply needed at the camera location?
For compatible Sony cameras, the RCU2E platform delivers power over the CAT cable. No local outlet is required at the camera mount.
What warranty applies?
Contact Creation Networks for current Sound Control Technologies warranty terms.
