Sound Control Technologies RCU2E-B00 – USB Camera Extension Kit for 1 Beyond, AVer, VHD, YeaLink

Product Overview

The Sound Control Technologies RCU2E-B00 is a USB 2.0 camera extension kit designed for PTZ cameras from 1 Beyond, AVer, VHD, and YeaLink, built on the RemoteCamUSB2E platform. It extends USB 2.0/UVC video, Ethernet, 5V/12V/PoE camera power, and bi-directional audio over a single CAT cable, with camera-specific cable assemblies included for all supported brands. AV integrators can deploy this kit in conference rooms, boardrooms, and corporate meeting spaces to place cameras exactly where room geometry requires without being constrained by cable routing.

Product Description

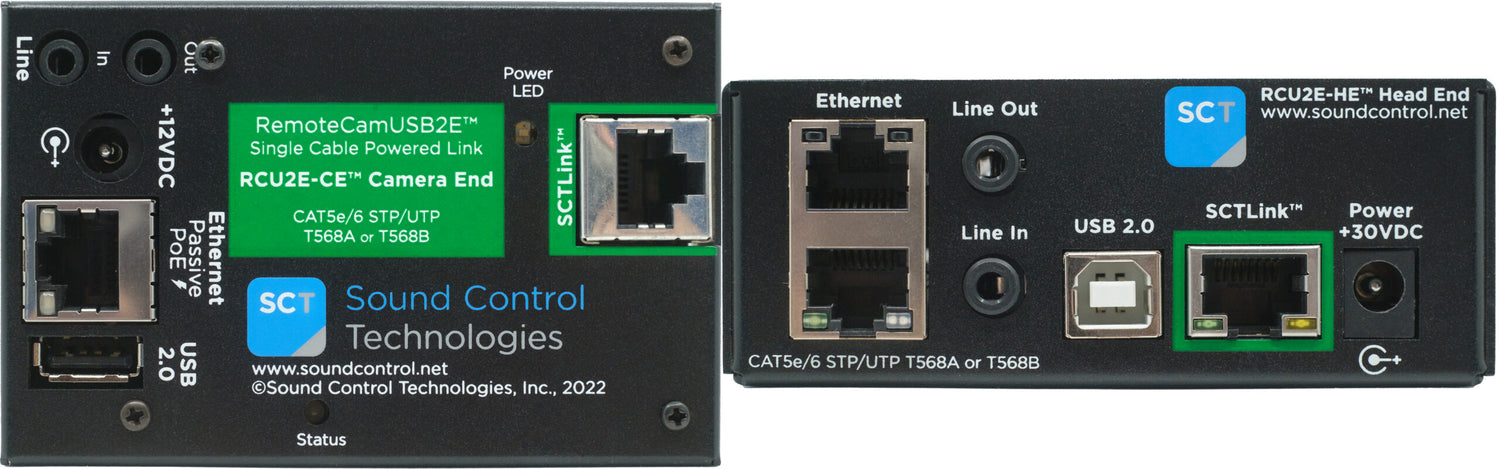

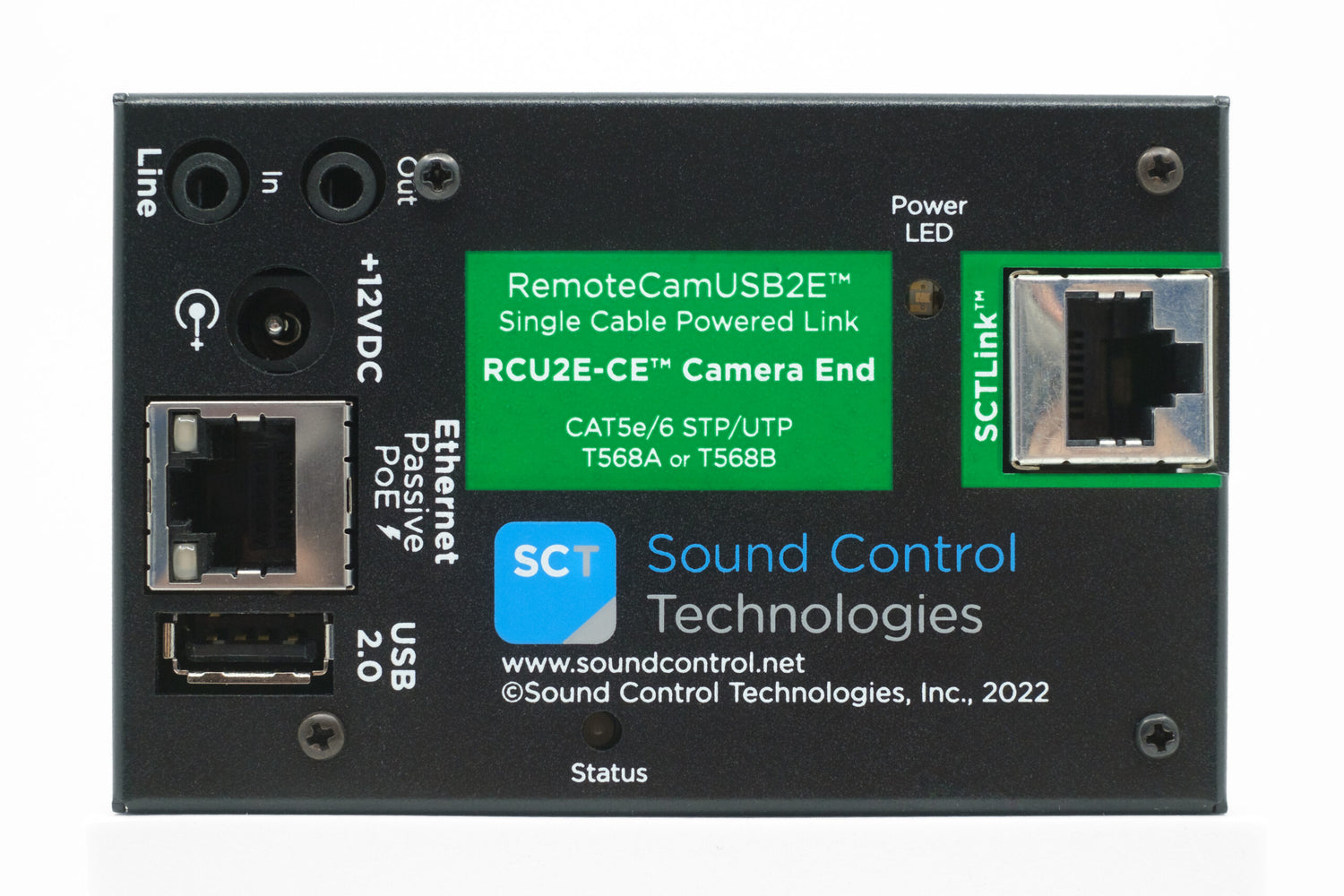

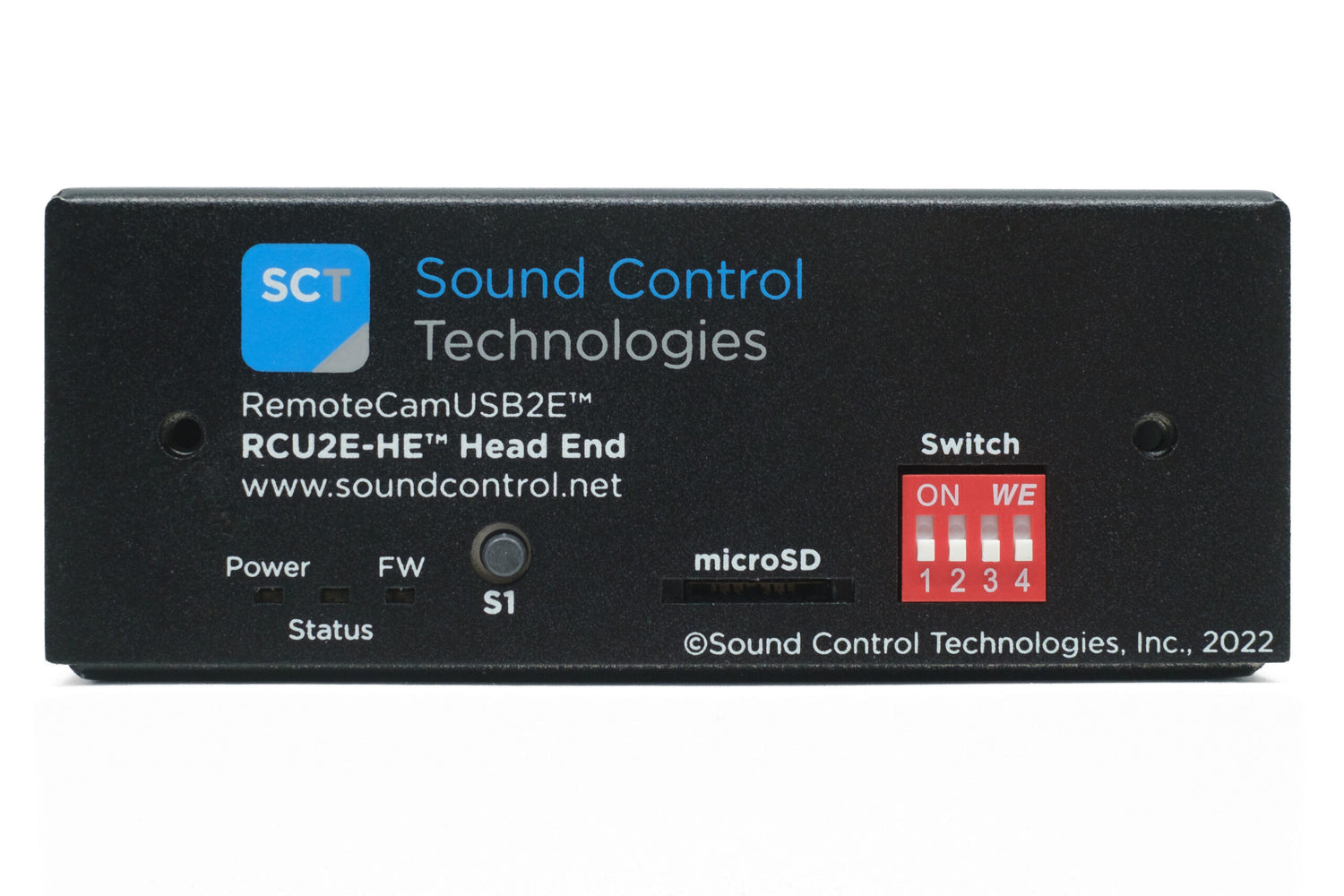

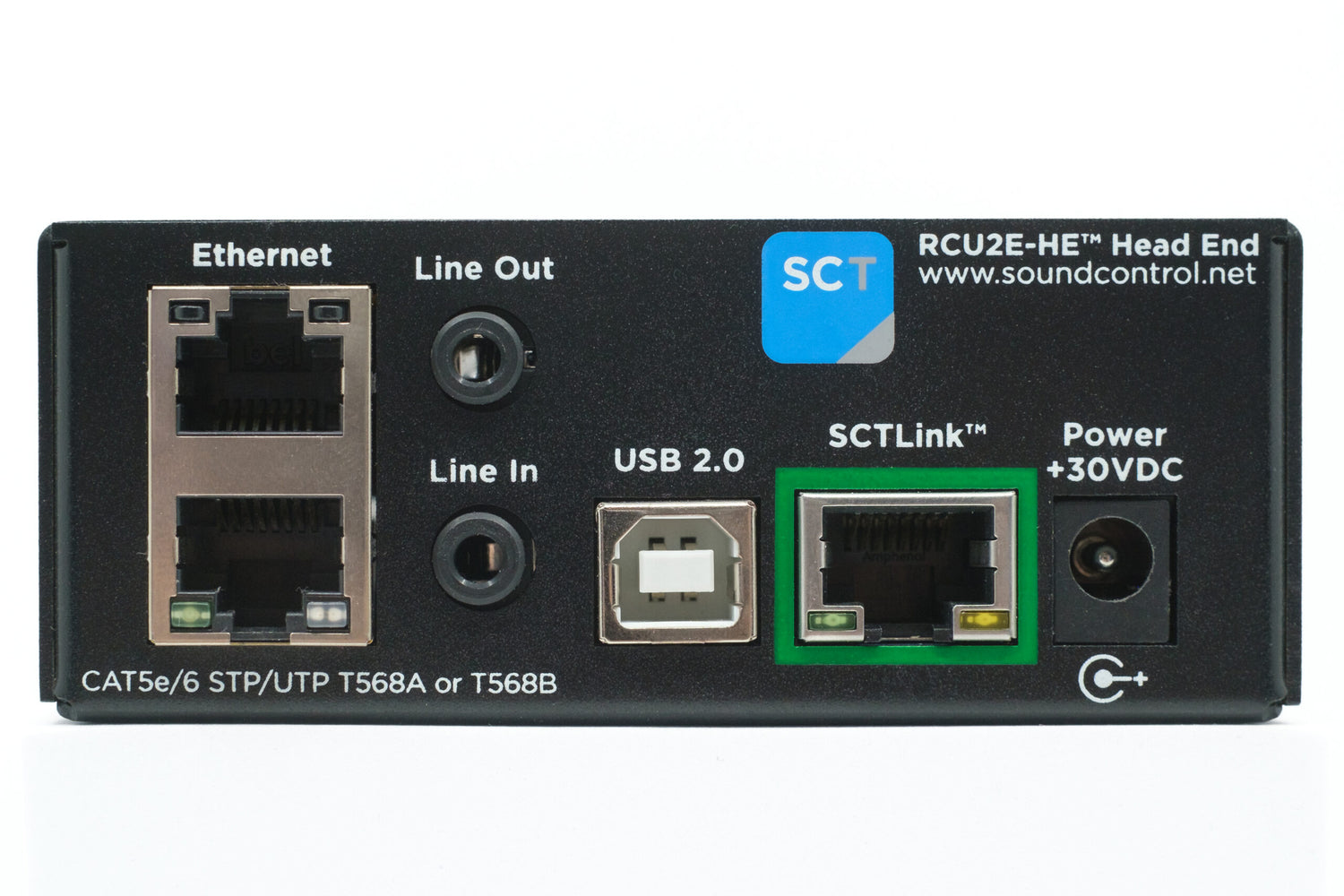

The RCU2E-B00 ships as a matched camera-end (CE) and head-end (HE) module pair, pre-configured with cable assemblies supporting cameras from 1 Beyond, AVer, VHD, and YeaLink. The head-end module connects to a USB host — codec, dedicated PC, or BYOM device — and a local Ethernet switch. The camera-end module then delivers USB data, network connectivity, and camera power to the installed PTZ camera. Bi-directional audio is carried concurrently on the same CAT cable infrastructure, simplifying AV system design. The RCU2E platform eliminates the need for a local power outlet at the camera location for compatible cameras, and consolidates USB, Ethernet, power, and audio on a single CAT 5e/6 run. The included camera-specific cable assembly removes the need to source proprietary connectors on-site. This kit is suited for permanent installation in conference rooms, training rooms, government spaces, and commercial meeting spaces.

Key Features

• Multi-Brand Camera Compatibility — Supports PTZ cameras from 1 Beyond, AVer, VHD, and YeaLink with the appropriate cable assembly included.
• USB 2.0/UVC Extension — Delivers full USB 2.0 bandwidth for UVC cameras over CAT cable.
• Integrated Ethernet — Carries a dedicated Ethernet channel for camera IP management on the same CAT run.
• 5V/12V/PoE Camera Power — Powers the camera over CAT cable — no local outlet needed at the camera end.
• Bi-Directional Audio — Bi-directional audio transport on the same cable for integrated AV room designs.
• Matched CE/HE Pair — Complete kit with both modules and camera-specific cable assembly ready for deployment.
• Single CAT Cable Run — Consolidates four signals on one cable, reducing conduit fill and installation labor.
• Commercial-Grade Construction — Manufactured in USA/Taiwan for permanent commercial installation.

Typical Applications

• Conference room camera installations with 1 Beyond, AVer, VHD, or YeaLink PTZ cameras
• Boardroom AV systems with extended camera cable runs
• Corporate meeting spaces with BYOD/BYOM codec deployments
• Training rooms and multi-purpose rooms
• All-hands rooms requiring flexible camera placement
• Government spaces with consolidated AV infrastructure

Technical Specifications

Frequently Asked Questions

Which specific 1 Beyond, AVer, VHD, and YeaLink models are supported?

Contact Creation Networks or refer to the SCT compatibility list to verify support for your specific camera models before ordering.

Is an external power supply needed at the camera location?

No. The RCU2E-B00 delivers 5V, 12V, and PoE power over the CAT cable. No local power outlet is required at the camera mount for compatible cameras.

What cable connects the CE and HE modules?

A field-terminated CAT 5e or CAT 6 cable runs between the two modules. Camera-specific assemblies at each end are included.

Is this compatible with BYOM or BYOD systems?

Yes. The head-end presents a standard USB 2.0 UVC device to any BYOD or BYOM platform that supports USB cameras.

What warranty applies?

Contact Creation Networks for current Sound Control Technologies warranty terms for the RCU2E product line.
