Product Overview
The Sound Control Technologies RCM-UNI is an on-wall camera mount for small round-base PTZ cameras in commercial video conferencing rooms. Part of the SCT RCM Series of dual-gang on-wall mounts, it conceals cabling and SCT camera-end extension modules behind the mount, with a finished cover hiding the 2-gang wall box for a clean installation above or below the display.
Product Description

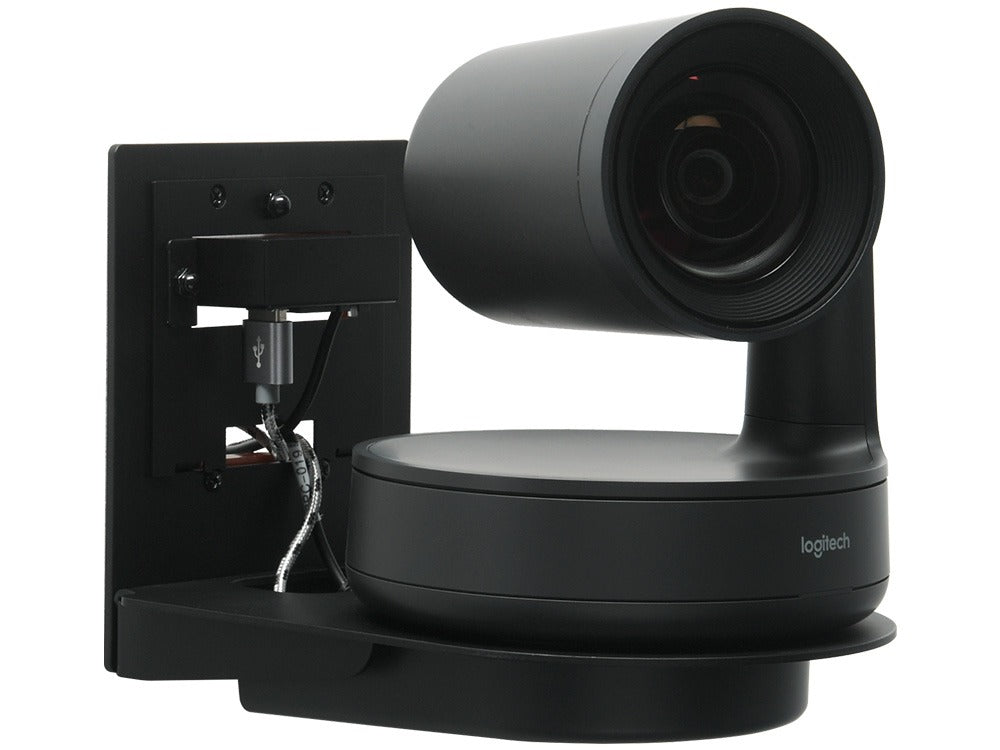

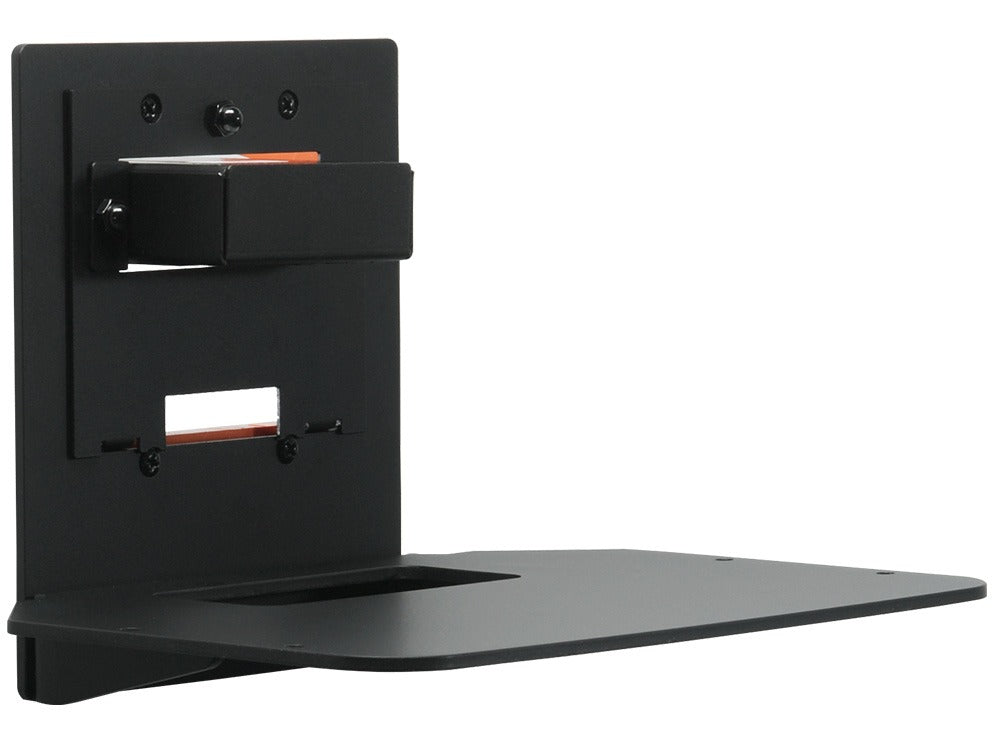

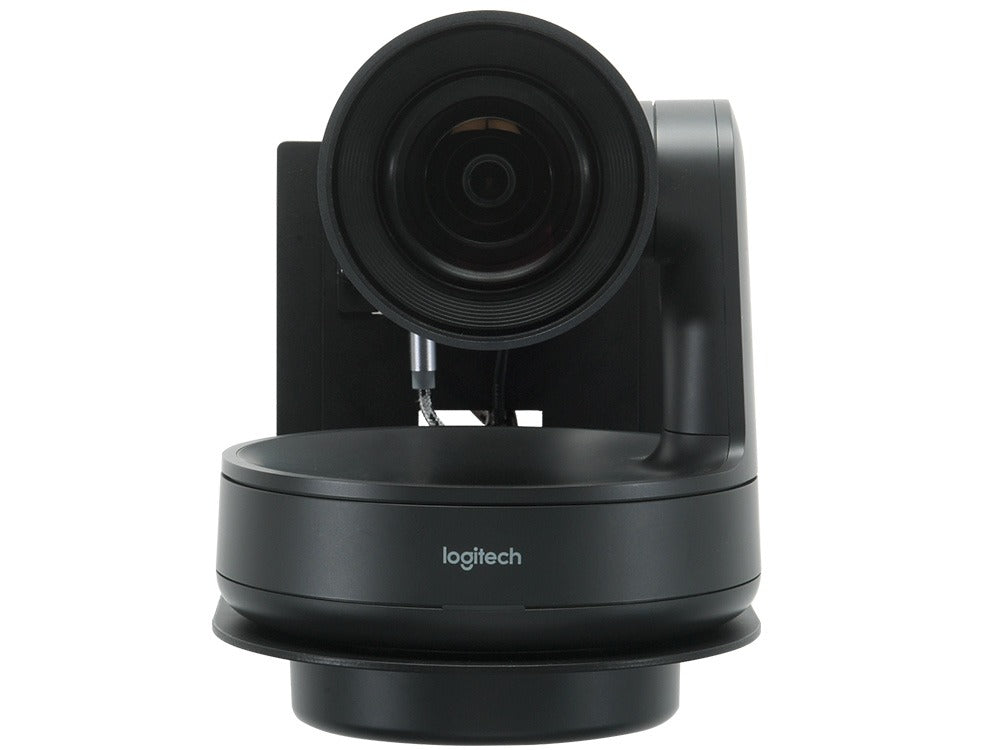

The RCM-UNI is the universal member of the RCM family, anchoring a small round-base PTZ camera to the wall over a standard 2-gang electrical box and routing cabling through the wall behind the mount plate. Supported cameras span the most widely deployed conference room PTZ models: Sony SRG-A12, SRG-A40, SRG-120DH, SRG-X40UH, SRG-X120, SRG-300H, and SRG-X400; Panasonic AW-HE38/HE40/HE42/HE60, AW-UE40/UE70/UE80/UE100, and AW-UN70; AVer CAM520 PRO, CAM520 PRO Advanced, and CAM540 PRO; Lumens VC-A series; PTZOptics PT12/20/30X models; QSC PTZ 12x72 and 20x60; Marshall CV620; the Cisco Webex PTZ 4K; and the HP Poly EagleEye IV USB. The included cover hides the gang box and cabling, and a break-out tab at the bottom of the cover provides a pass-through for surface-run cables. Like the rest of the RCM Series, the mount conceals the camera-end modules of SCT RC4, RC5, RCU2S, RCU2E, and RCU3SL extension kits, so an extended camera needs no visible electronics at the wall. Vendor-published installation instructions plus PDF, CAD, and Revit drawings support AV design coordination.
Key Features
- Universal Small Base Support — Fits small round-base PTZ cameras from Sony, Panasonic, AVer, Lumens, PTZOptics, QSC, Marshall, Cisco, and HP Poly.
- Dual-Gang Wall Box Installation — Mounts over a standard 2-gang electrical box, simplifying rough-in coordination with electrical contractors.
- Concealed Module Storage — Hides SCT RC4, RC5, RCU2S, RCU2E, and RCU3SL camera-end modules and cabling behind the mount.
- Finished Cover — The included cover conceals the gang box and cabling for a clean, client-facing appearance.
- Break-Out Cable Tab — A break-out tab at the bottom of the cover offers a pass-through option for surface-run cable management.
- Complete Design Documentation — Vendor-published installation instructions plus PDF, CAD, and Revit drawings support construction documentation.
Technical Specifications
| Model | RCM-UNI |
|---|---|
| Series | RCM Series Dual-Gang On-Wall Mounts |
| Mount Type | On-wall mount over 2-gang wall box, with finished cover |
| Supported Cameras | AVer CAM520 PRO / PRO Advanced / CAM540 PRO; Cisco Webex PTZ 4K; HP Poly EagleEye IV USB; Lumens VC-A70H, VC-A61P, VC-A60S, VC-A50PN/P, VC-A52S, VC-A51S; Marshall CV620; Panasonic AW-HE38/HE40/HE42/HE60, AW-UE40/UE70/UE80/UE100, AW-UN70; PTZOptics PT12/20/30X SDI and USB; QSC PTZ 12x72, 20x60; Sony SRG-A12, SRG-A40, SRG-120DH, SRG-X40UH, SRG-X120, SRG-300H, SRG-X400 |
| Module Concealment | Houses SCT RC4 / RC5 / RCU2S / RCU2E / RCU3SL camera-end modules |
| Cable Management | In-wall routing plus break-out tab pass-through on cover |
| Manufacturer | Sound Control Technologies, Norwalk, CT (USA) |
| Documentation | RCM Series installation instructions, PDF, CAD, and Revit drawings published by vendor |
