Sound Control Technologies RCM-SD3 – Wall Mount for Sony EVI-HD3 and EVI-HD7
Sound Control Technologies RCM-SD3 – Wall Mount for Sony EVI-HD3 and EVI-HD7 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sound Control Technologies RCM-SD3 – Wall Mount for Sony EVI-HD3 an...
Product Overview

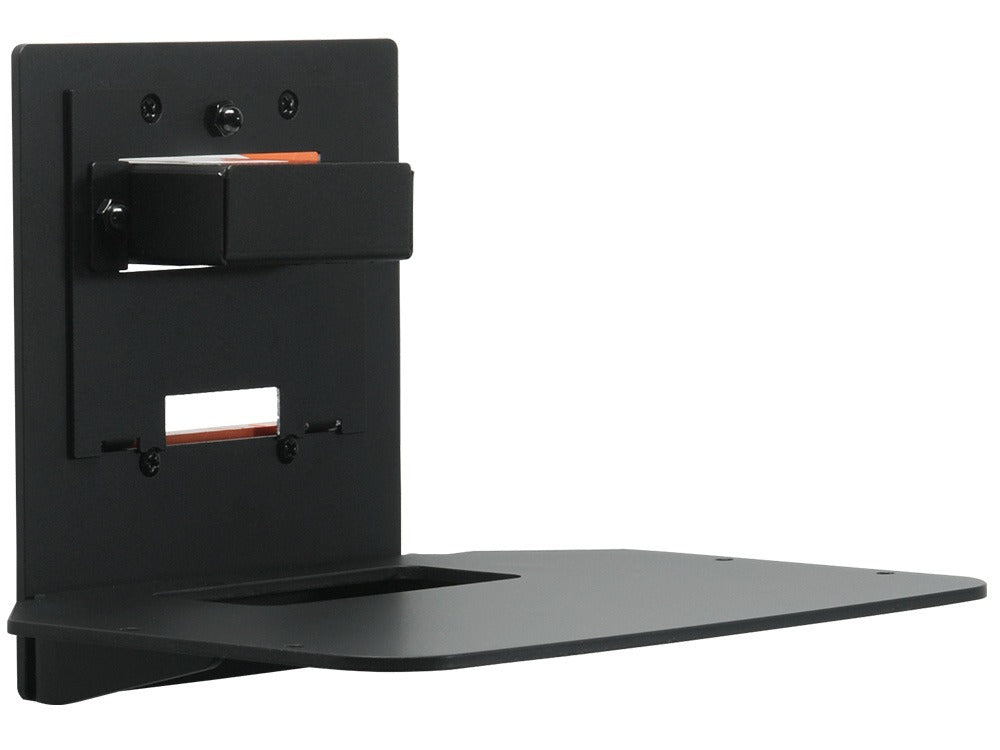

The Sound Control Technologies RCM-SD3 is an on-wall camera mount for the Sony EVI-HD3 and EVI-HD7 PTZ cameras in commercial video conferencing rooms. Part of the SCT RCM Series of dual-gang on-wall mounts, it conceals cabling and SCT camera-end extension modules behind the mount, with a finished cover hiding the 2-gang wall box for a clean installation above or below the display.
Product Description
The Sony EVI-HD3 and EVI-HD7 are HD PTZ cameras still in service across many installed conference rooms, classrooms, and codec-based video systems, and the RCM-SD3 gives them a purpose-matched wall mount. The mount anchors the camera over a standard 2-gang electrical box, routing cabling through the wall and concealing connections behind the mount plate. The included cover hides the gang box and remaining cabling, and a break-out tab at the bottom of the cover provides a pass-through for surface-run cables when in-wall routing is not possible. Like the rest of the RCM Series, the mount conceals the camera-end modules of SCT camera extension kits, so an EVI camera extended over category cable from a remote codec needs no visible electronics at the wall. For current-generation Sony SRG-series cameras, see the SCT RCM-UNI universal small-base wall mount.
Key Features
- Sony EVI-HD3/HD7 Fit — The mount is purpose-built for the base pattern of the Sony EVI-HD3 and EVI-HD7 PTZ cameras.
- Dual-Gang Wall Box Installation — Mounts over a standard 2-gang electrical box, simplifying rough-in coordination with electrical contractors.
- Concealed Module Storage — Hides SCT camera-end extension modules and cabling behind the mount.
- Finished Cover — The included cover conceals the gang box and cabling for a clean, client-facing appearance.
- Break-Out Cable Tab — A break-out tab at the bottom of the cover offers a pass-through option for surface-run cable management.
- Installed-Base Support — Keeps legacy Sony EVI camera rooms serviceable with a proper commercial-grade wall mount.
Technical Specifications
| Model | RCM-SD3 |
|---|---|
| Series | RCM Series Dual-Gang On-Wall Mounts |
| Mount Type | On-wall mount over 2-gang wall box, with finished cover |
| Supported Cameras | Sony EVI-HD3, Sony EVI-HD7 |
| Module Concealment | Houses SCT camera-end extension modules |
| Cable Management | In-wall routing plus break-out tab pass-through on cover |
| Manufacturer | Sound Control Technologies, Norwalk, CT (USA) |
