Sound Control Technologies RC4-USM – HDMI Camera Extension for Multiple Manufacturers

Product Overview

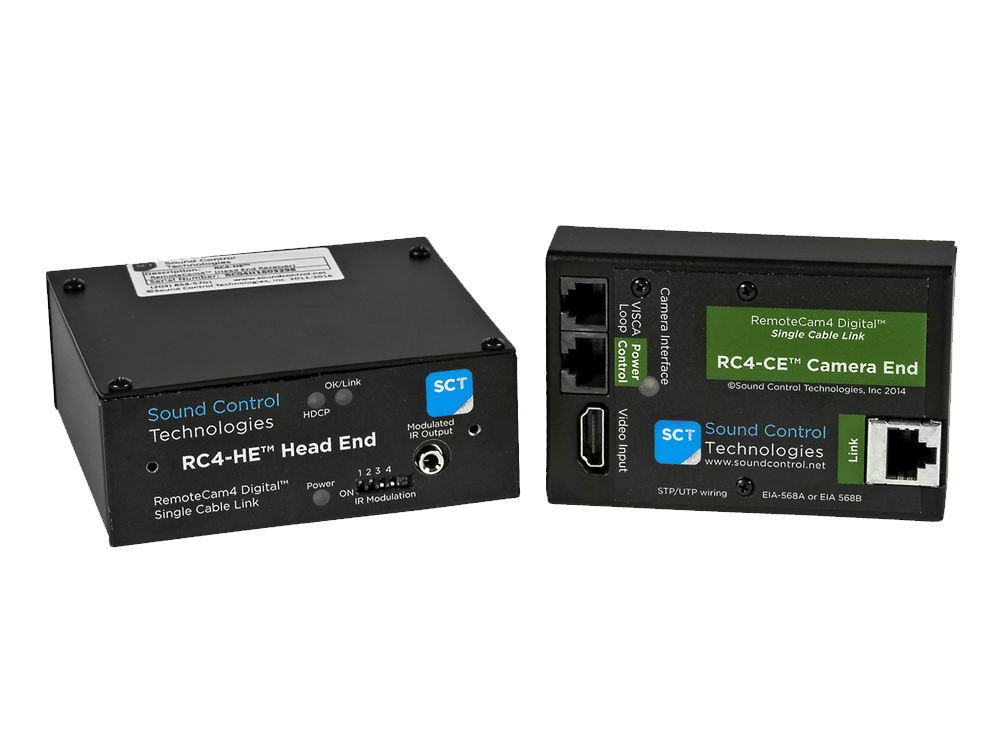

The Sound Control Technologies RC4-USM is a commercial-grade HDMI camera extension kit supporting a broad range of PTZ cameras from multiple manufacturers including Atlona, AVer, Lumens, and VHD. Using SCTLink™ technology, the RC4-USM extends HDMI video, RS-232 Visca PTZ control, and 12V DC camera power up to 100 meters over a single CAT cable. The kit targets cameras using a specific power and control cable configuration (8-pin Mini-DIN power, without the Visca loop used in the RC4-UNI), and includes the camera module, head-end module, a targeted cable set, and WPS-12 power supply.

Product Description

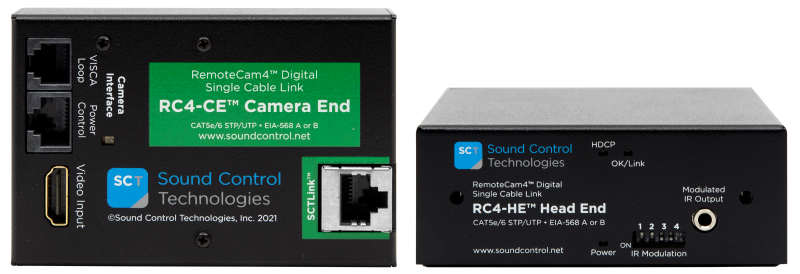

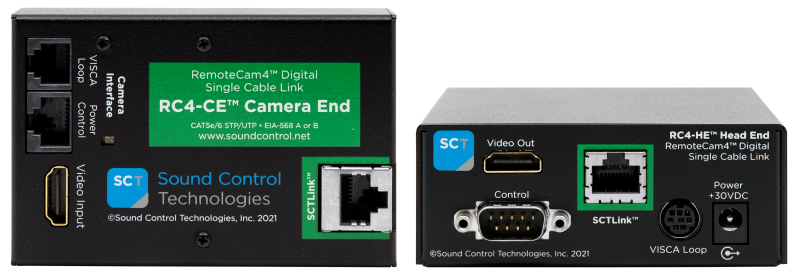

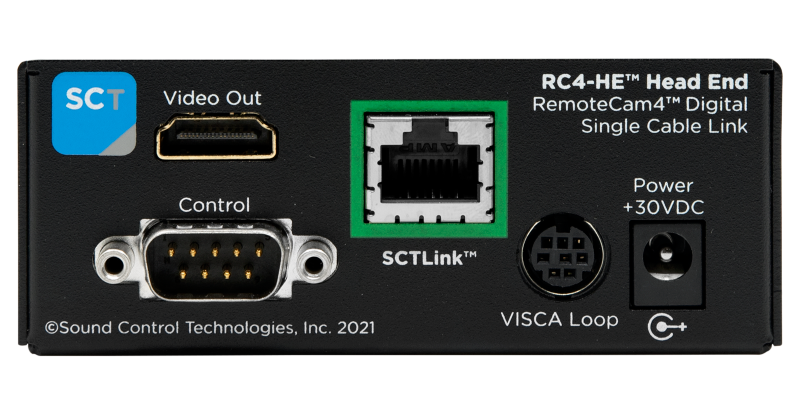

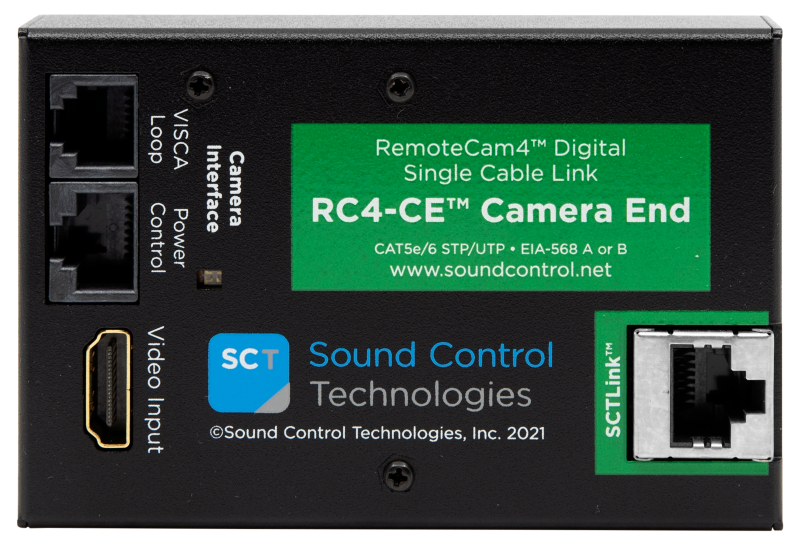

The RC4-USM serves installations with cameras including the Atlona HDVS-CAM-HDMI, AVer PTZ211, PTZ231, PTC300, PTC310UV2, PTC320UV2, PTZ310, PTZ310UV2, PTZ310UNV2, PTZ330, PTZ330UV2, PTZ330UNV2, TR311HN, PTZ313, PTZ313V2, TR311HWV2, TR313V2, TR323NV2, TR333NV2, Lumens VC-TR40, and VHD V60UL/V61UL/V63UL/V60CL/V61CL/V63CL. The system carries HDMI video, RS-232 Visca control, and 12V DC power over one CAT cable between the RC4-CE camera module and the RC4-HE head-end module. Included cables are: RCC-C001-0.3M (HDMI to HDMI camera cable), RCC-C005-0.3M (RJ45 Y cable to 8-pin Mini-DIN power cable), RCC-H001-1.0M (HDMI head-end cable), and WPS-12 power supply. This cable set is specific to the control interface of cameras on the RC4-USM compatibility list. For cameras with 8-pin Mini-DIN Visca loop requirements (Lumens VC-A series, Marshall, PTZOptics), the RC4-UNI is the appropriate kit.

Key Features

• Broad Multi-Manufacturer Compatibility — Supports cameras from Atlona, AVer, Lumens, and VHD with the appropriate power and control cable configuration.
• Targeted Cable Set — Includes HDMI and 8-pin Mini-DIN power cables specific to the RC4-USM camera list; no adapter sourcing required.
• Single-CAT Extension up to 100m — HDMI video, RS-232 Visca control, and 12V DC power over one CAT cable.
• No Programming Required — RS-232 Visca PTZ control passes transparently.
• 12V Camera Power Delivery — WPS-12 supply and RC4-CE eliminate a separate camera power run.
• Modular Design — RC4-CE and RC4-HE are individually replaceable.
• Commercial-Grade — USA/Taiwan manufactured for permanent AV installations.

Typical Applications

• Conference room deploying AVer PTZ310 or PTZ330 cameras at extended distance from the codec
• Corporate meeting space with VHD PTZ cameras integrated via RS-232 Visca control
• Training room using Atlona or Lumens VC-TR40 cameras requiring CAT cable extension
• Boardroom with AVer tracking cameras (TR311HN, TR323NV2, TR333NV2) positioned at ceiling level
• Commercial meeting space with multi-brand PTZ cameras using 8-pin Mini-DIN power interface

Technical Specifications

Frequently Asked Questions

How does the RC4-USM differ from the RC4-UNI?

Both are multi-manufacturer kits, but they target different camera control interfaces. The RC4-USM uses a cable set for cameras with 8-pin Mini-DIN power and RS-232 Visca without the loopback cable. The RC4-UNI includes 8-pin Mini-DIN Visca loop cables for cameras like Lumens VC-A series, Marshall, PTZOptics, and Sony SRG. Always confirm your camera model against the compatibility list before selecting a kit.

Does the kit include power for the camera at the remote location?

Yes. The WPS-12 power supply powers the head end, and the RC4-CE delivers regulated 12V DC to the camera at the far end. No separate power outlet is needed at the camera location.

What cable type is needed between modules?

CAT5e or better, maximum 100 meters, not included. Use plenum-rated cable (CMP) for in-plenum runs.

What warranty and support terms apply?

Contact Creation Networks for current Sound Control Technologies warranty terms and support options for this product.
