Sound Control Technologies RC4-P40 – HDMI Camera Extension for Panasonic AW-HE40 and AW-HE60

Product Overview

The Sound Control Technologies RC4-P40 is a commercial-grade HDMI camera extension kit engineered for Panasonic PTZ cameras including the AW-HE20, AW-UE20, AW-HE38H, AW-HN38H, AW-HE42, AW-UE70, and AW-UN70. Using SCTLink™ technology, the RC4-P40 extends HDMI video, RS-232 Visca PTZ control, and 12V DC camera power up to 100 meters over a single CAT cable. The kit includes Panasonic-specific interconnect cables—HDMI, Visca out (8-pin Mini-DIN to RJ11), and DC power—eliminating the need for adapters at installation time. No programming is required for standard Visca PTZ control.

Product Description

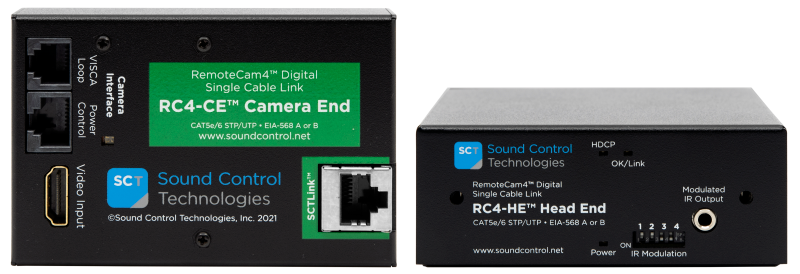

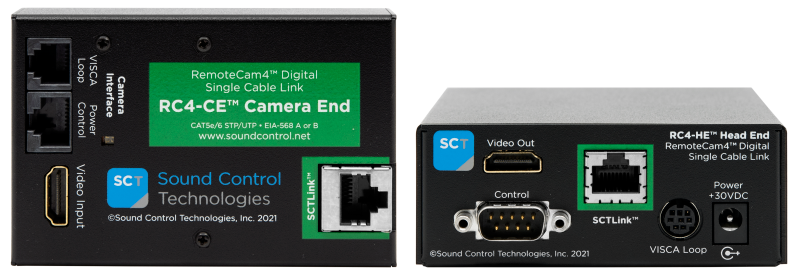

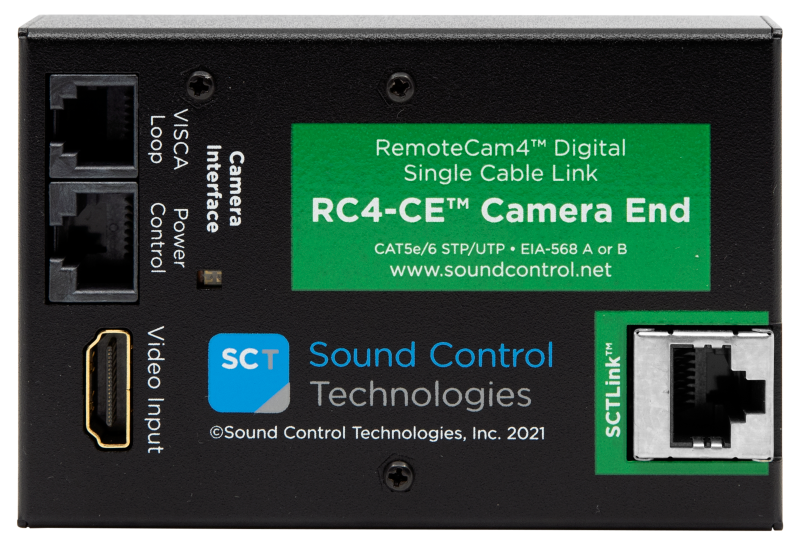

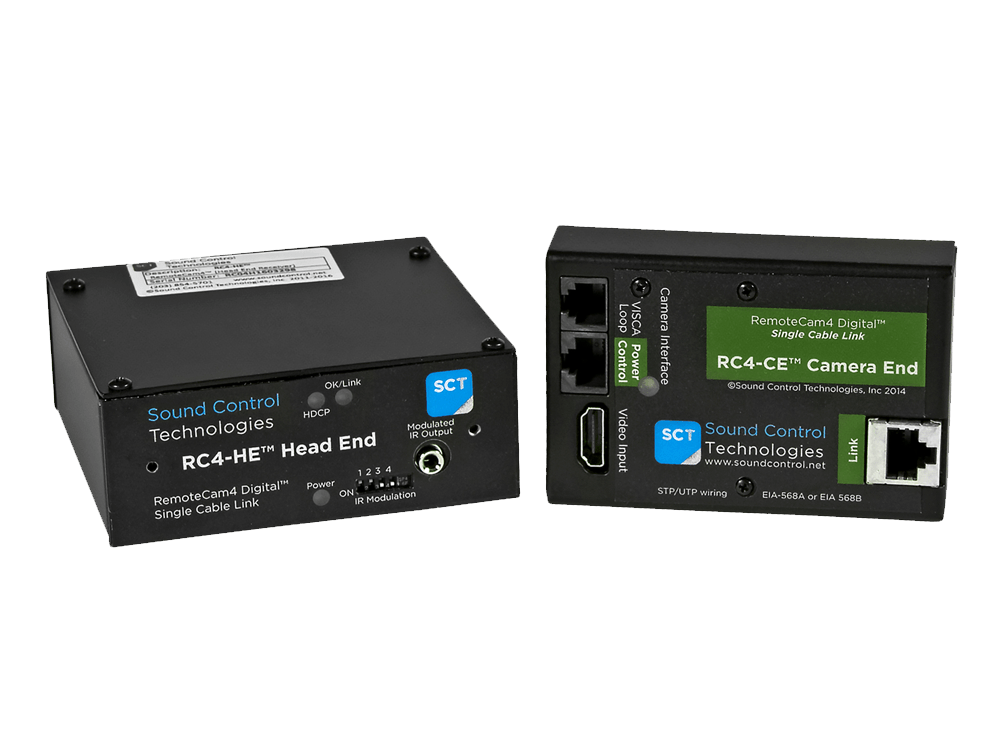

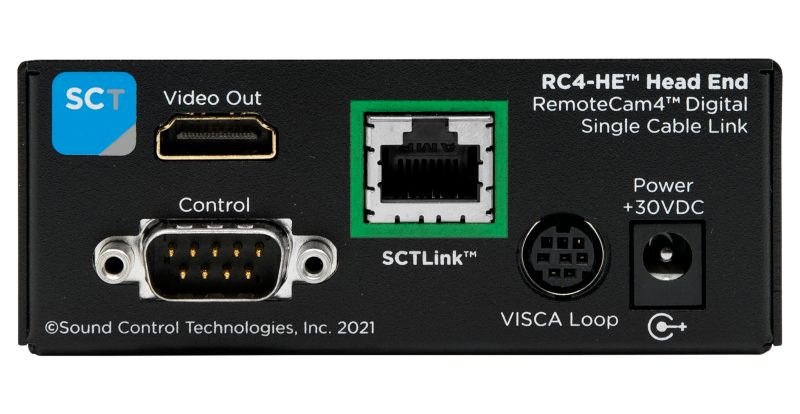

The RC4-P40 addresses the challenge of placing Panasonic PTZ cameras at distances beyond standard HDMI reach in boardrooms, conference rooms, and broadcast environments. The RC4-CE camera module mounts at the camera location and receives power, video, and Visca control from the RC4-HE head-end module via a single CAT cable run up to 100 meters. Cables included are Panasonic-specific: RCC-C001 (1' HDMI camera cable), RCC-C006 (1' Visca out, 8-pin Mini-DIN to RJ11), RCC-C008 (1' DC power camera cable), RCC-H001 (3' HDMI head-end cable), RCC-H010 (null modem DB9 serial head-end cable), and RCC-H004 (1' Visca loop head-end cable), along with the WPS-12 power supply. This cable set covers both Visca out and Visca loop connections used by Panasonic cameras. Supported cameras are the AW-HE20, AW-UE20, AW-HE38H, AW-HN38H, AW-HE42, AW-UE70, and AW-UN70—a range spanning Panasonic's compact and full-featured PTZ lineup. For Panasonic AW-HE130, a separate kit (RC4-P13) provides the appropriate cable configuration.

Key Features

• Panasonic-Specific Cable Set — Includes HDMI, 8-pin Mini-DIN Visca out (to RJ11), DC power, and Visca loop cables pre-matched to Panasonic PTZ cameras; no adapter sourcing required.
• Broad Panasonic PTZ Compatibility — Supports AW-HE20, AW-UE20, AW-HE38H, AW-HN38H, AW-HE42, AW-UE70, and AW-UN70.
• Single-CAT Extension up to 100m — HDMI video, RS-232 Visca control, and 12V DC camera power over one CAT cable run.
• No Programming Required — RS-232 Visca PTZ control passes transparently; no external control processor needed.
• 12V Camera Power Delivery — WPS-12 supply and RC4-CE eliminate a separate power run to the camera location.
• Modular Design — RC4-CE and RC4-HE modules are individually replaceable.
• Commercial-Grade Construction — USA/Taiwan manufactured for permanent AV deployment.

Typical Applications

• Boardroom or conference room with Panasonic AW-UE70 or AW-HE42 PTZ camera mounted at ceiling or wall
• Broadcast studio requiring Panasonic PTZ camera positioned at distance from the control system
• Government or corporate space deploying Panasonic AW-HE20 cameras over CAT infrastructure
• House of worship with Panasonic PTZ cameras mounted at elevated positions
• Training room or auditorium with Panasonic PTZ camera extension beyond HDMI distance limits

Technical Specifications

Frequently Asked Questions

Which Panasonic cameras does the RC4-P40 support?

The RC4-P40 supports Panasonic AW-HE20, AW-UE20, AW-HE38H, AW-HN38H, AW-HE42, AW-UE70, and AW-UN70. For Panasonic AW-HE130, see the RC4-P13, which uses a different cable configuration and mount (RCM-LCM large camera mount).

Why does the RC4-P40 include both a Visca out cable and a Visca loop cable?

Panasonic PTZ cameras use both Visca out (from the control system to the camera) and Visca loop (daisy-chain for multiple cameras) connections. The RC4-P40 cable set includes both RCC-C006 (Visca out) and RCC-H004 (Visca loop) to cover both control configurations without requiring additional cables on site.

Is there a difference between the RC4-P40 and RC4-P13?

Yes. The RC4-P40 targets Panasonic compact and mid-range PTZ cameras (HE20, HE42, UE70 series), while the RC4-P13 is designed for the larger Panasonic AW-HE130. The cable sets and compatible mounting hardware differ between the two kits.

Does the RC4-P40 require a separate power supply at the camera location?

No. The WPS-12 power supply connects at the head end, and the RC4-CE delivers regulated 12V DC to the camera remotely. No power outlet is required at the camera mount location.

What warranty and support terms apply?

Contact Creation Networks for current Sound Control Technologies warranty terms and support options for this product.
