Sound Control Technologies RC4-APA – HDMI Camera Extension for AVer CAM520 Pro

Product Overview

The Sound Control Technologies RC4-APA is a commercial-grade HDMI camera extension kit built for AVer cameras including the CAM520 Pro Advanced, CAM520 Pro3, CAM550, CAM570, MD120UI, MD330U, and MD330UI. Using SCTLink™ technology, the RC4-APA extends HDMI video, RS-232 Visca PTZ control, and 12V DC camera power up to 100 meters over a single CAT cable, connecting a remote PTZ camera to any compatible RS-232 codec or control system. The kit is plug-and-play with no programming required for standard Visca control. All AVer-specific interconnect cables are included, eliminating adapter sourcing at installation time.

Product Description

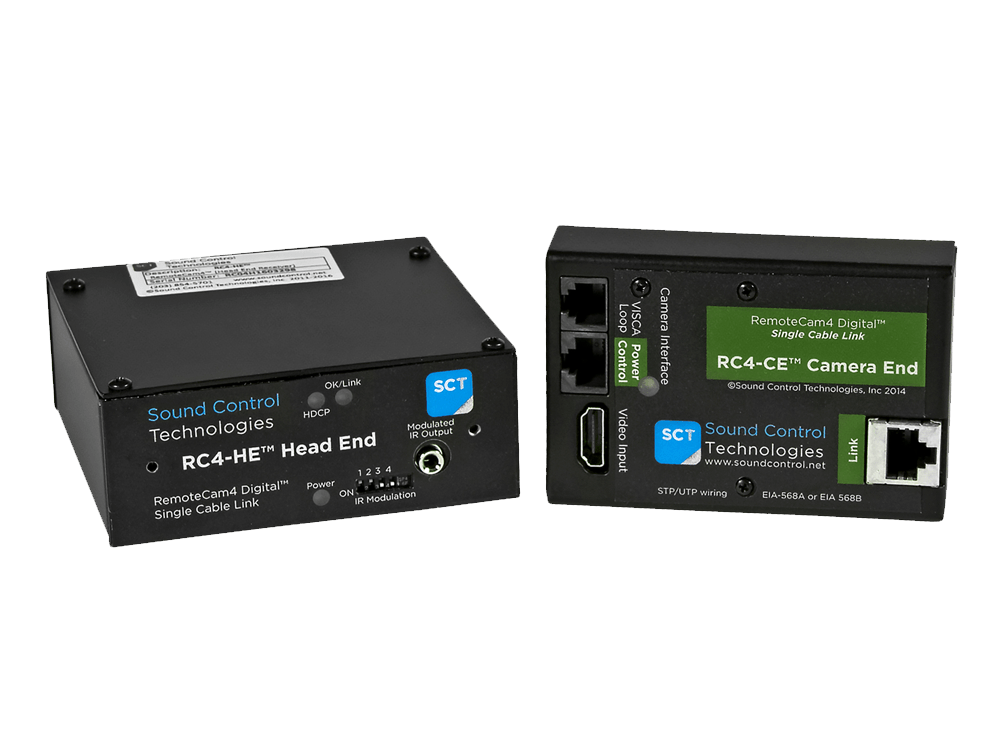

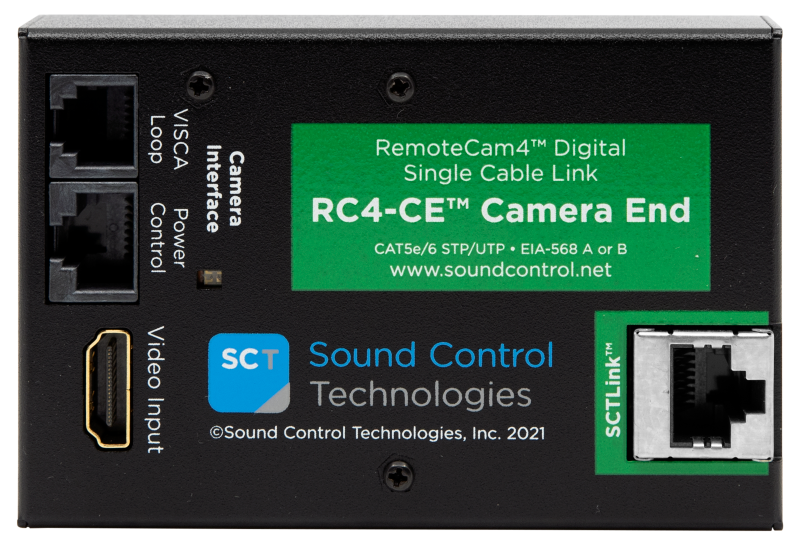

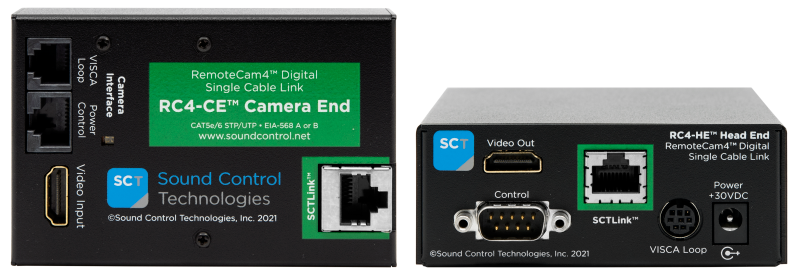

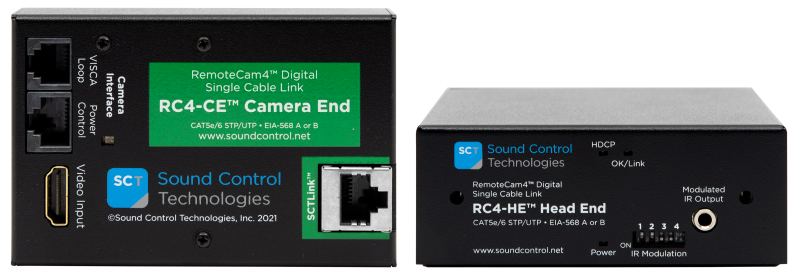

The RC4-APA uses two modules—the RC4-CE at the camera and the RC4-HE at the codec or head end—to transport three signal types over one CAT cable run up to 100 meters. HDMI video travels from camera to codec; RS-232 Visca control travels from codec to camera for full PTZ (pan, tilt, zoom) operation; and 12V DC power travels from the head end to the camera, eliminating a separate power run to the camera mount location. The kit includes AVer-specific cables: RCC-C001-0.3M (HDMI to HDMI camera cable), PPC-022-0.3M (RJ11 to 5.5x2.1mm DC plug power cable), RCC-C005-0.3M (RJ45 to 8-pin DIN control cable), RCC-H001-1.0M (HDMI head-end cable), RCC-H010-2.0M (DB9F to DB9F serial head-end cable), and the WPS-12 power supply. This combination covers video, control, and power without additional adapters. The RC4-APA is appropriate for any installation deploying AVer CAM520 Pro, CAM520 Pro3, CAM550, or CAM570 cameras at distances beyond standard HDMI cable reach. For installations also requiring a camera wall mount or rack shelf, the RC4-APA-K and RC4-APA-S project packs add those accessories.

Key Features

• Broad AVer Camera Compatibility — Supports AVer CAM520 Pro Advanced, CAM520 Pro3, CAM550, CAM570, MD120UI, MD330U, and MD330UI from a single kit SKU.
• Single-CAT Extension up to 100m — HDMI video, RS-232 Visca control, and 12V DC power over one CAT cable; no multi-cable bundles or HDMI extenders needed.
• AVer-Specific Cable Set — Includes HDMI, power (RJ11 to DC plug), and RS-232 serial cables sized and terminated for AVer cameras; no adapter sourcing required.
• No Programming Required — RS-232 Visca PTZ control passes transparently; no external control processor needed for basic PTZ operation.
• 12V Camera Power Delivery — WPS-12 power supply and RC4-CE eliminate the need for a separate power run to the camera location.
• Modular Design — RC4-CE and RC4-HE modules are individually replaceable if damaged.
• Commercial-Grade Construction — USA/Taiwan manufactured for permanent deployment in conference rooms, training rooms, and commercial meeting spaces.

Typical Applications

• Conference room with an AVer CAM520 Pro camera positioned above a display or on a wall, away from the codec rack
• Training room requiring a ceiling- or wall-mounted AVer PTZ camera connected to a far-end codec
• Corporate boardroom deploying multiple AVer cameras over CAT infrastructure
• Government or commercial meeting space with AVer camera and RS-232 codec integration
• Multi-purpose room with AVer PTZ camera and a control system driving Visca commands

Technical Specifications

Frequently Asked Questions

Which AVer cameras does the RC4-APA support?

The RC4-APA is compatible with the AVer CAM520 Pro Advanced, CAM520 Pro3, CAM550, CAM570, MD120UI, MD330U, and MD330UI. For AVer PTC500+ cameras, see the RC4-AS6. For AVer PTZ211, PTZ231, and similar models, see the RC4-USM.

What cable type is required between the RC4-CE and RC4-HE?

CAT5e or better is recommended. The CAT cable is not included in the kit and must be supplied by the installer. Maximum distance is 100 meters over a single, unpatched run.

Does the kit include power for the camera?

Yes. The WPS-12 power supply connects at the head end (RC4-HE), and the RC4-CE delivers regulated 12V DC to the camera at the remote location. No separate power outlet or power supply is needed at the camera end.

What codec or control system does the head end connect to?

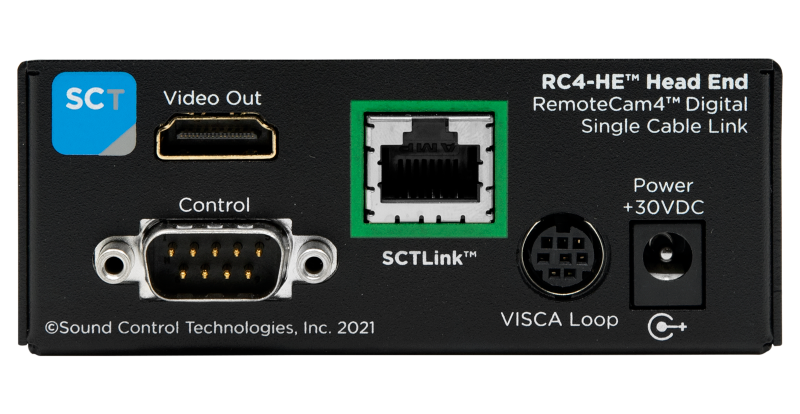

The RC4-HE interfaces via RS-232 DB9 and HDMI connectors at the head end. It is compatible with any codec or control system that drives Visca PTZ control over RS-232. The DB9F-to-DB9F serial cable is included for the head-end connection.

What warranty and support terms apply?

Contact Creation Networks for current Sound Control Technologies warranty terms and support options for this product.
