Product Overview
The Sound Control Technologies RC-SDA5+URM is a RemoteCam5 extension kit configured for PTZ cameras with rectangular bases from Aver, Lumens, Marshall, PTZ Optics, and Sony. It packages the RC-SDA5+ BYOD Camera Bridge with rectangular-base camera cabling to deliver HDMI-to-USB3 conversion and UVC-to-IP-Visca PTZ control translation over CAT cable. AV integrators can order a single SKU covering the complete head-end and cabling assembly for rectangular-base PTZ camera installations requiring IP Visca control.

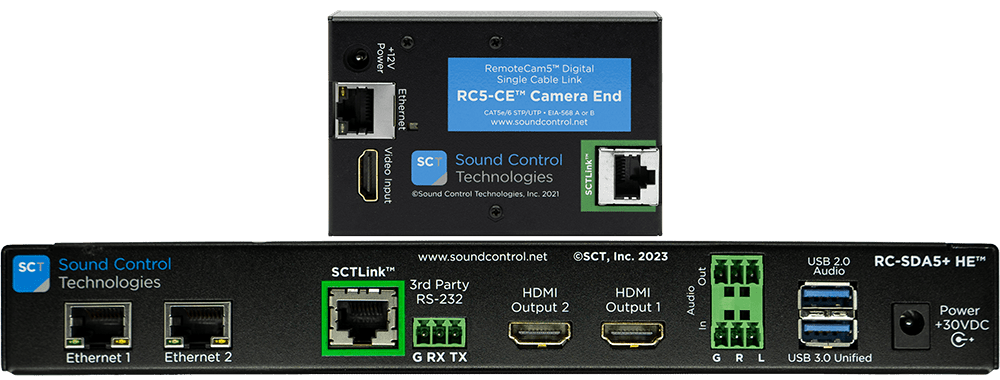

The kit replaces the RC5-HE head-end module and works with existing RC5-CE extension modules without new cabling.
Product Description

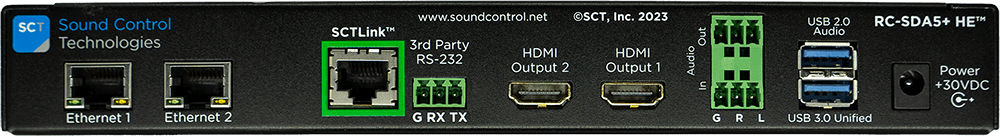

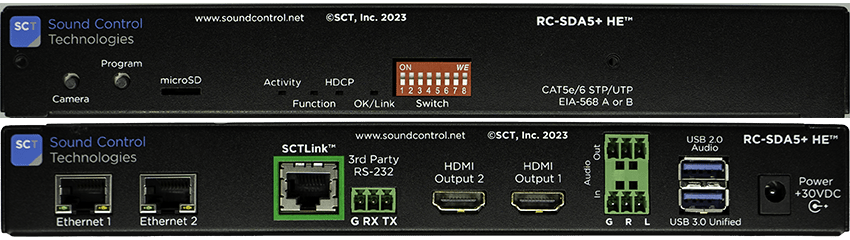

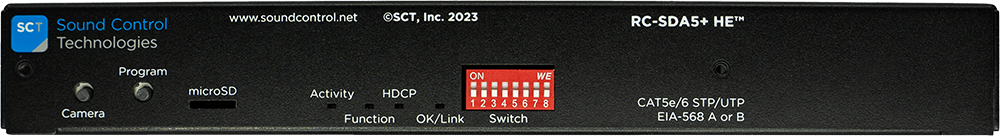

The RC-SDA5+URM targets deployments where PTZ cameras have a rectangular base form factor and use IP Visca for PTZ control. The RC-SDA5+ bridge accepts HDMI video and audio from the camera, outputs USB3 to the host, and converts UVC PTZ commands to IP Visca for camera control over CAT cable to the RC5-CE extension module.
AV designers benefit from a pre-matched kit that eliminates cabling compatibility research for rectangular-base cameras. Technicians can upgrade RC5-HE head-end modules to the RC-SDA5+ bridge without touching the camera-end RC5-CE module or existing CAT cable runs. The kit is compatible with BYOD and BYOM deployments, presenting the camera as a standard UVC USB3 device to any host.
Key Features
- Rectangular Base Camera Cabling — Configured for PTZ cameras with rectangular bases from Aver, Lumens, Marshall, PTZ Optics, and Sony.
- HDMI to USB3 Conversion — Converts camera HDMI video and audio to USB3 for UVC-compatible output to hosts.
- IP Visca PTZ Control — Translates UVC PTZ commands to IP Visca for full pan, tilt, and zoom control.
- RC5 Head-End Replacement — Pairs with installed RC5-CE extension modules as a direct replacement for the RC5-HE.
- BYOD/BYOM Compatible — Standard UVC USB3 output works with BYOD laptops and room codec environments.
Typical Applications
- Conference room
- Boardroom
- Training room
- Commercial meeting space
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | RC-SDA5+URM |
| Kit Contents | RC-SDA5+ BYOD Camera Bridge + rectangular-base PTZ camera cabling |
| Video Input | HDMI |
| Video/Data Output | USB3 |
| PTZ Control | UVC PTZ (in) → IP Visca (out) |
| Infrastructure | CAT cable (pairs with RC5-CE extension module) |
| Compatible Camera Form Factor | Rectangular base PTZ cameras (Aver, Lumens, Marshall, PTZ Optics, Sony) |
| Compatible Extension Module | RC5-CE |
| Unit of Measure | Each |
| Country of Origin | USA/Taiwan |
Frequently Asked Questions
What is the difference between the RC-SDA5+URM and RC-SDA5+USM?
The URM variant includes cabling for rectangular-base PTZ cameras. The USM variant is configured for square-base PTZ cameras. Contact Creation Networks to confirm the correct variant for your camera model.
Is the RC5-CE extension module included?
No. The RC5-CE module must already be installed at the camera end or sourced separately. The RC-SDA5+URM includes the RC-SDA5+ bridge and camera cabling only.
Where can I get warranty and support information?
Contact Creation Networks for current Sound Control Technologies warranty terms and support options for the RC-SDA5+URM.
