Sound Control Technologies RC-SDA5+UNI – RemoteCam5 Kit for Multi-Manufacturer PTZ Cameras
Sound Control Technologies RC-SDA5+UNI – RemoteCam5 Kit for Multi-Manufacturer PTZ Cameras is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sound Control Technologies RC-SDA5+UNI – RemoteCam5 Kit for Multi-M...
Product Overview
The Sound Control Technologies RC-SDA5+UNI is a RemoteCam5 extension kit configured for multiple PTZ camera manufacturers including Aver, Lumens, Marshall, PTZ Optics, and Sony. It packages the RC-SDA5+ BYOD Camera Bridge with multi-manufacturer compatible cabling to convert HDMI video and audio to USB3 and translate UVC PTZ commands to IP Visca for camera control over CAT cable infrastructure. Commercial AV integrators specifying systems with PTZ cameras from these manufacturers can order a single SKU covering the complete head-end assembly and camera cabling.

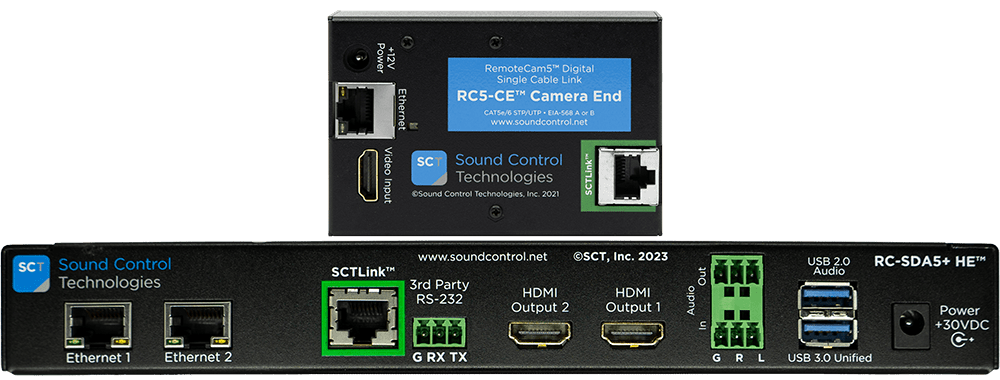

The kit replaces the RC5-HE head-end module and works with existing RC5-CE extension modules in the field, supporting upgrades without new cabling.
Product Description

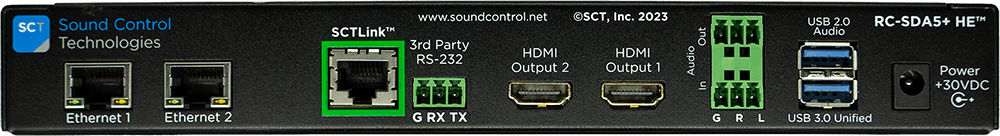

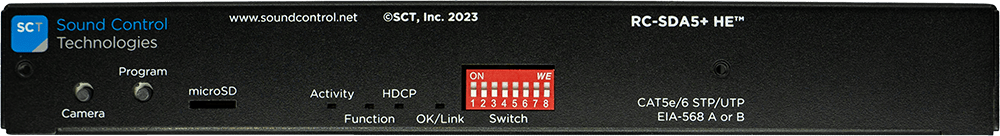

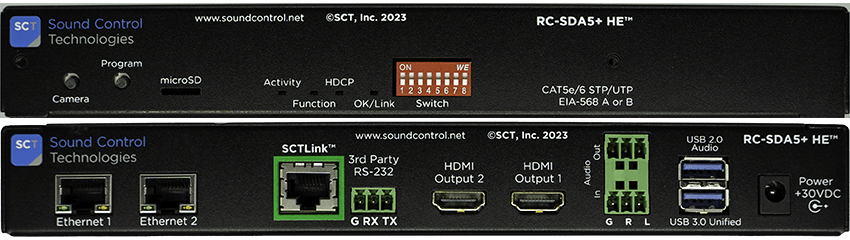

The RC-SDA5+UNI bundles the RC-SDA5+ bridge with universal-fit cabling compatible with Aver, Lumens, Marshall, PTZ Optics, and Sony PTZ cameras that use IP Visca for PTZ control. The bridge accepts HDMI video and audio from the camera, outputs USB3 to the host codec or BYOD device, and converts incoming UVC PTZ commands to IP Visca for full camera control. Signal and control travel over CAT cable to the RC5-CE extension module at the camera location.
For AV system designers working with a mixed vendor camera environment, the UNI variant reduces specification complexity by covering multiple PTZ camera brands in a single kit. The RC-SDA5+UNI is compatible with BYOD and BYOM workflows and works with Cisco, Poly, and software-based codec environments. Technicians can replace RC5-HE head-end modules without touching the existing RC5-CE modules or CAT cable infrastructure.
Key Features
- Multi-Manufacturer Compatibility — Configured for Aver, Lumens, Marshall, PTZ Optics, and Sony PTZ cameras in a single kit.
- HDMI to USB3 Conversion — Converts camera HDMI video and audio to USB3 output, presenting the camera as a UVC device.
- IP Visca PTZ Control — Translates UVC PTZ commands to IP Visca for full pan, tilt, and zoom control of supported cameras.
- RC5 Head-End Replacement — Replaces the RC5-HE module and pairs with existing RC5-CE extension modules without new cabling.
- BYOD/BYOM Ready — Standard UVC USB3 output is compatible with BYOD laptops and room codecs from major vendors.
Typical Applications
- Conference room
- Boardroom
- Training room
- Commercial meeting space
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | RC-SDA5+UNI |
| Kit Contents | RC-SDA5+ BYOD Camera Bridge + multi-manufacturer PTZ camera cabling |
| Video Input | HDMI |
| Video/Data Output | USB3 |
| PTZ Control | UVC PTZ (in) → IP Visca (out) |
| Infrastructure | CAT cable (pairs with RC5-CE extension module) |
| Compatible Camera Brands | Aver, Lumens, Marshall, PTZ Optics, Sony |
| Compatible Extension Module | RC5-CE |
| Unit of Measure | Each |
| Country of Origin | USA/Taiwan |
Frequently Asked Questions
What is the difference between the RC-SDA5+UNI and the RC-SDA4+UNI?
The RC-SDA5+UNI outputs IP Visca for PTZ control and pairs with RC5-CE extension modules. The RC-SDA4+UNI outputs RS-232 Visca and pairs with RC4-CE modules. Select based on which extension module is installed at the camera end and your camera's PTZ control protocol.
Does the kit include the RC5-CE extension module?
No. The RC-SDA5+UNI includes the RC-SDA5+ bridge and camera cabling. The RC5-CE module must already be installed or sourced separately.
Where can I get warranty and support information?
Contact Creation Networks for current Sound Control Technologies warranty terms and support options for the RC-SDA5+UNI.
