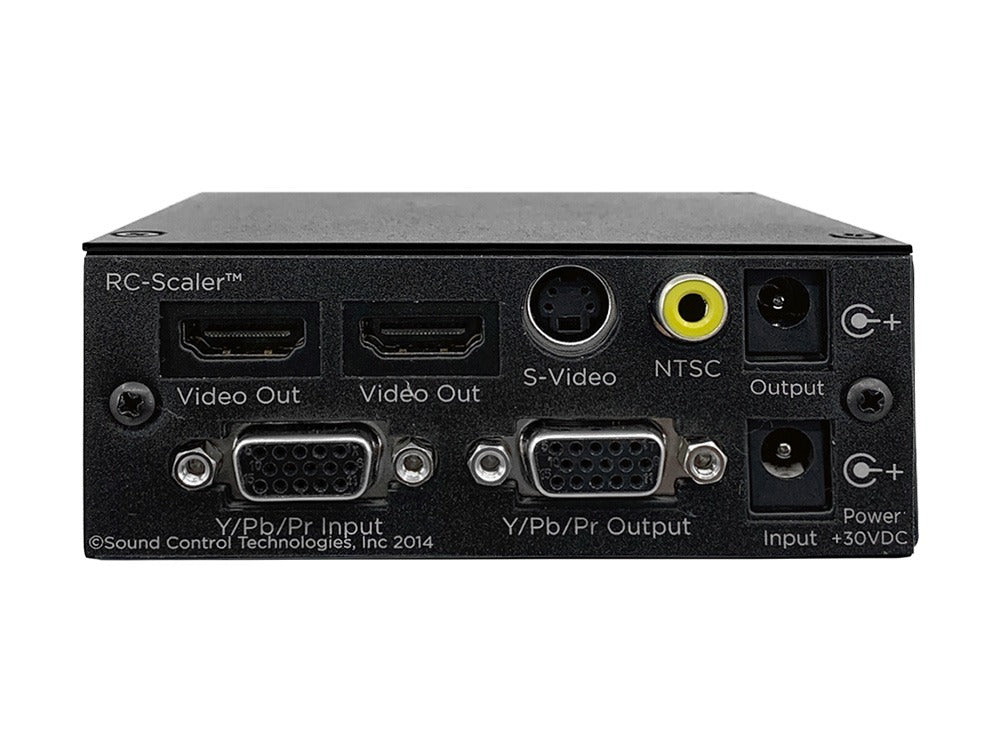

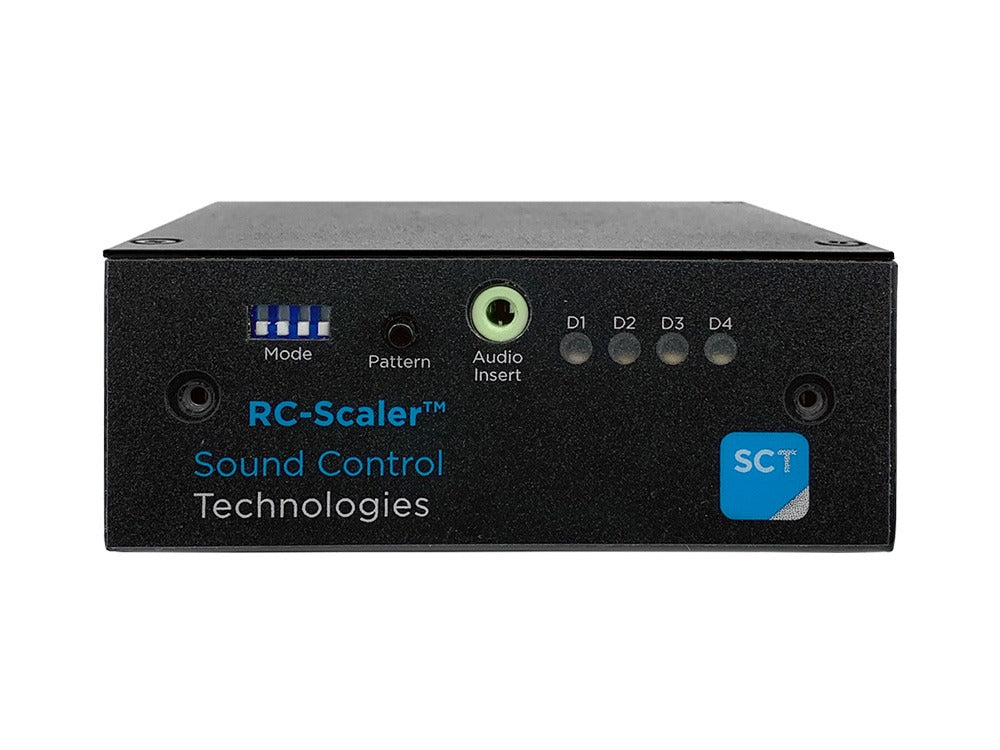

Sound Control Technologies RC-Scaler – HDMI to HDCI Interface for Poly HDX
Sound Control Technologies RC-Scaler – HDMI to HDCI Interface for Poly HDX is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sound Control Technologies RC-Scaler – HDMI to HDCI Interface for P...
Product Overview
The Sound Control Technologies RC-Scaler is an HDMI interface and scaler that connects HDMI video sources to the proprietary HDCI camera inputs on Poly (Polycom) HDX series codecs. It gives AV integrators and facilities teams a supported path to bring laptop content, HDMI converters, and auxiliary video devices into legacy HDX video conferencing systems such as the HDX 8000. For organizations maintaining installed Poly HDX rooms, the RC-Scaler extends the useful life of existing codec investments without a full room rebuild.
Product Description
Poly HDX codecs use the HDCI connector for camera and high-resolution video input, which prevents standard HDMI devices from connecting directly. The RC-Scaler bridges that gap: an HDMI source such as a laptop, media player, or USB-to-HDMI converter feeds the RC-Scaler, and the RC-Scaler outputs a properly formatted signal to the HDX codec over the HDCI interface. In a typical deployment documented in the vendor application guide, the RC-Scaler sits alongside a Poly HDX 8000 codec and an EagleEye III camera, using RC2-101 HDCI Y-cables and a DB9 coupler for the serial path, with power from the included WPS-12 30VDC supply. The module is compact at 1.5 inches high by 3.75 inches wide by 3.625 inches deep, so it installs cleanly behind a credenza, in a rack drawer, or at the codec location in a conference room. This makes the RC-Scaler a practical tool for integrators supporting installed Poly RealPresence HDX estates in corporate, government, and education environments where the codecs remain in service.
Key Features
- HDMI to HDCI Conversion — Connects standard HDMI sources to the proprietary HDCI video inputs on Poly HDX series codecs.
- Legacy System Extension — Keeps installed Poly HDX rooms productive by adding modern HDMI content sources without replacing the codec.
- Laptop and Converter Support — Accepts laptop HDMI output or USB-to-HDMI converter feeds for content sharing into the HDX system.
- Compact Form Factor — Measures 1.5" H x 3.75" W x 3.625" D (38 x 95 x 92 mm) for discreet placement at the codec or credenza.
- Vendor-Documented Cabling — Integrates with RC2-101 HDCI Y-cables and DB9 coupler per the SCT application guide for reliable serial and video paths.
- External Power Supply — Powered by the WPS-12 100-240V universal power supply for worldwide deployment.
Typical Applications
- Boardroom
- Conference room
- Government space
- Training room
- Commercial meeting space
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | RC-Scaler |
| Function | HDMI source interface/scaler to Poly HDCI codec input |
| Compatible Codecs | Poly (Polycom) HDX series, including HDX 8000 |
| Compatible Cameras | Works alongside Poly EagleEye III in documented configurations |
| Connection Cabling | RC2-101-0.6M HDCI Y-cable (DB9-F coupler / 15-pin male to RC-Scaler) |
| Power | WPS-12 30VDC power supply, 100–240V 47–63Hz input |
| Dimensions | H 1.5" x W 3.75" x D 3.625" (38 x 95 x 92 mm) |
Frequently Asked Questions
Which Poly codecs does the RC-Scaler work with?
The RC-Scaler is designed for Poly (Polycom) HDX series codecs that use HDCI camera inputs, including the HDX 8000. It is not required for newer Poly Studio X or G7500 platforms, which accept HDMI natively.
Can I connect a laptop directly to the RC-Scaler?
Yes. A laptop HDMI output, or a USB-to-HDMI converter, can feed the RC-Scaler, which then presents the signal to the HDX codec over the HDCI interface.
What cables are needed for installation?
The documented configuration uses RC2-101-0.6M HDCI Y-cables and a DB9-to-DB9 coupler for the serial path. Contact Creation Networks to confirm the cable set for your specific HDX configuration.
Does the RC-Scaler replace my EagleEye camera?
No. The RC-Scaler operates alongside the existing EagleEye III camera, adding an HDMI source path to the codec rather than replacing the camera input.
Is integration support available?
Yes. Creation Networks supports commercial AV deployments and can assist with system design, cabling, and configuration for legacy Poly HDX rooms.
