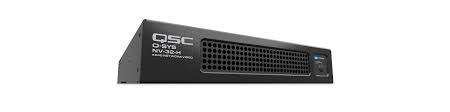

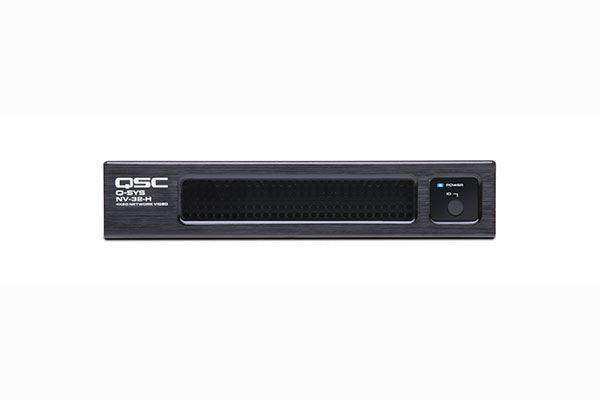

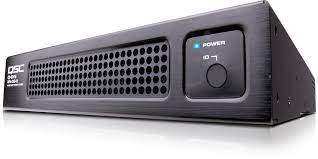

QSC 4K60 4:4:4 Network Video Endpoint for the Q-SYS Ecosystem - NV-32-H

No reviews


4K60 4:4:4 Network Video Endpoint for the Q-SYS Ecosystem, software configurable as Encoder or Decoder. 3 HDMI 2.0 Inputs, 2 HDMI 2.0 Outputs, on-board AV Bridging. Supports optional stand-alone “Q-SYS Core Mode" operation for audio DSP with local video switching (no encoding or decoding) and AV Bridging.


The NV-32-H (Core Capable) is a multipurpose, software-configurable video endpoint native to the Q-SYS Platform, offering two distinct operating modes to choose between, based on the needs of the application. ‘Core Mode’ transforms the device into a fully integrated Q-SYS processor with local HDMI switching capabilities. ‘Peripheral Mode’ allows multi-stream video encoding or decoding for network-based HDMI video distribution. Like all Q-SYS devices, the NV-32-H (Core Capable) offers native integration and control driven by the Q-SYS OS, simplifying setup and configuration while eliminating the need for advanced programming knowledge. With its Q-SYS Platform integration, you’re able to receive cryptographically-signed firmware updates, ensuring secure updates in functionality and security to your entire system.

True Q-SYS processing and I/O capabilities
Full-featured audio processing engine for the Q-SYS Platform featuring 32 x 32 network audio channels, eight channels of software-based AEC, along with onboard audio I/O via HDMI, USB and 3.5 mm. Optional software feature licenses allow for even greater, customizable functionality (full-featured control engine, UCI engine, Dante audio channels, remote monitoring and more).

Integrated video switching
Core Mode enables an on-board 3 x 2 HDMI video switcher, allowing in-room users to easily share presentation or video content from their laptops or other in-room HDMI sources.

Streamlined video streaming integration for the Q-SYS Ecosystem:
Enables native HDMI and audio distribution without additional control processors, bridges or complicated programming.

Optimized for the connected meeting space:
Q-SYS Shift™ video compression codec dynamically adjusts network bandwidth consumption based on video content, delivers the right balance of quality, latency, network efficiency and scalability for meeting room video applications.

BYOD-capable web conferencing & VoIP:
Integrate Q-SYS video cameras and audio via USB into all major UC&C conferencing applications, such as Microsoft Teams or Zoom.



BYOD-capable web conferencing & VoIP
Integrate Q-SYS video cameras and audio via USB into all major UC&C conferencing applications, such as Microsoft Teams or Zoom. Also offers integration support for VoIP telephony systems.

Dramatic reduction in footprint and component integration costs
Consolidates disparate AV functionality in a 1RU, half-rack unit to free up physical space and reduce hardware & integration costs.

Channel Capacity (Core Mode only)
Q-LAN / AES67 32 x 32
Dante Channels licensable up to 32 x 32 (none included)
AEC processors 8
VoIP instances 1
Audio recording / playback 4 ch recording / 16 ch playback
Q-SYS NM-T1 capacity 3
Encoding/Decoding (Peripheral Mode only)
Video compression Q-SYS Shift™ compression codec
Bitrates 10 Mbps - 800 Mbps
Content protection HDCP 2.2 compliant, AES-128 encryption for all audio and video signals between encoders and decoders
Audio I/O
HDMI inputs 8-channel PCM audio, Q-SYS routable
HDMI outputs 8-channel PCM audio, Q-SYS routable
Analog input 3.5 mm unbalanced stereo mic/line input
Q-SYS routable
Analog output 3.5 mm unbalanced stereo line output
Q-SYS routable

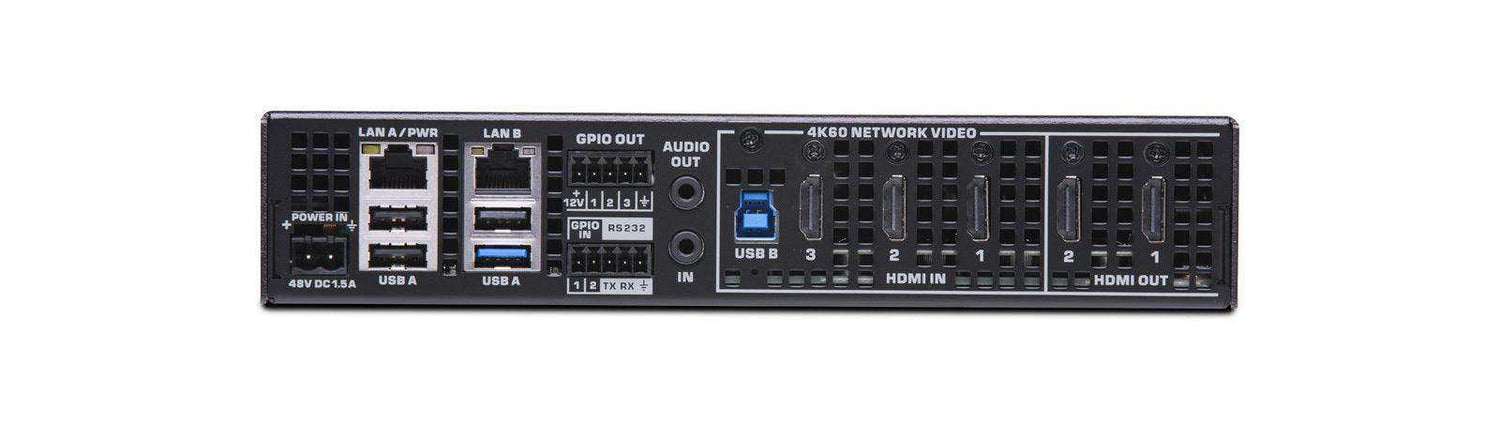

Video I/O
HDMI 2.0 inputs 3x HDMI capable of receiving source input video formats up to 4K60 4:4:4
HDMI 2.0 outputs 2x HDMI capable of scaling and outputting video formats up to 4K60 4:4:4
Scaler Each HDMI output features a robust 4K60 4:4:4 scaler that can accommodate the most challenging resolution and frame rate conversions
RS-232 Three-pin Euroblock terminal connector for extension of Q-SYS control to third-party devices, user configurable
GPIO Euroblock terminal connector for extension of Q-SYS control to third-party devices, user configurable
LAN A Gigabit LAN connection for interfacing with Q-LAN. PoE 802.3bt Type 4 for power.
LAN B Redundant connection for audio & control traffic (Core Mode only)
Audio input Signal to Noise: 90 dBFS
THD+N: 0.009% @ 0 dB
Audio output Signal to Noise: 90 dBFS
THD+N: 0.0167% @ 0 dB
Power over Ethernet specification/wattage Conforms to IEEE 802.3bt Type 4
Physical power supply info 48 V DC Nominal, 1.5 A on 2-pin Euro connector
Ambient operating temperature range 0-50° C
Humidity 5 to 85% non-condensing
Storage temperature -20 to 70° C
Dimensions 8.66 in x 11.28 in x 1.72 in
220 mm x 286.6 mm x 43.6 mm
Weight Weight: 4.0 lb (1.81 kg)
Regulatory compliance CE, FCC Part 15 Class B, RoHS
Mounting options Rack-mountable, 1RU half-rack width
Surface-mountable, table or wall-mount
All mounting hardware is included
