Planar Venue Pro 1.5mm Virtual Production LED Cabinet

Product Overview

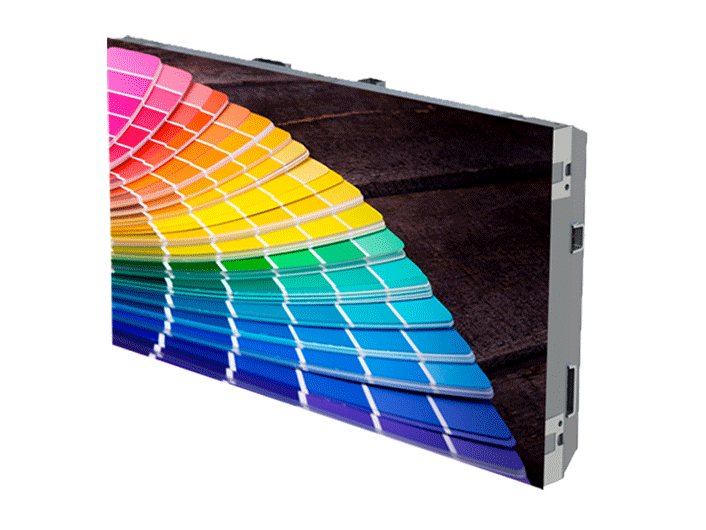

The Planar Venue Pro Series is an indoor LED video wall family engineered for in-camera virtual production and extended reality. This configuration features a 1.5mm pixel pitch in a 500x500mm full front-access cabinet with magnetic attach assistance, 600 nits of brightness, a single power supply, and an R2+ Brompton receiver card. The magnetic cabinet-to-cabinet system and front-accessible electronics support fast, single-person handling. The Venue Pro 1.5mm virtual production LED cabinet suits broadcast stages, XR volumes, and creative video wall shapes.

Product Description

The Planar Venue Pro Series 1.5mm cabinet is designed for integrators building virtual production stages, broadcast sets, and extended reality volumes where on-camera image quality and rapid reconfiguration both matter. The 500x500mm cabinets use cabinet-to-cabinet magnetic assistance to temporarily hold panels in place while a single installer engages the quick-lock system, allowing fast setup and teardown without a second technician. All electronics are accessible from the front, which makes wall mounting practical and simplifies service when the rear of the wall is against a structure. The fine 1.5mm pixel pitch and 600-nit brightness are tuned for in-frame viewing on camera, supporting close shooting distances common to XR and in-camera VFX. This configuration is supplied with an R2+ Brompton receiver card, a common choice for virtual production pipelines that rely on Brompton processing for frame synchronization and color management. The series supports high-performing scan and fast refresh rates across a wide variety of frame rates, and the 500x500mm cabinets can be hung, wall-mounted, floor-mounted, and faceted to form curves for creative stage geometry. Integrators evaluating virtual production options can review the broader range on the Planar collection at Creation Networks. Because per-SKU brightness, frame-rate support, and power figures vary by configuration, contact Creation Networks to confirm exact specifications for your stage.

Key Features

• 1.5mm pixel pitch — Fine pitch tuned for in-camera virtual production and extended reality.

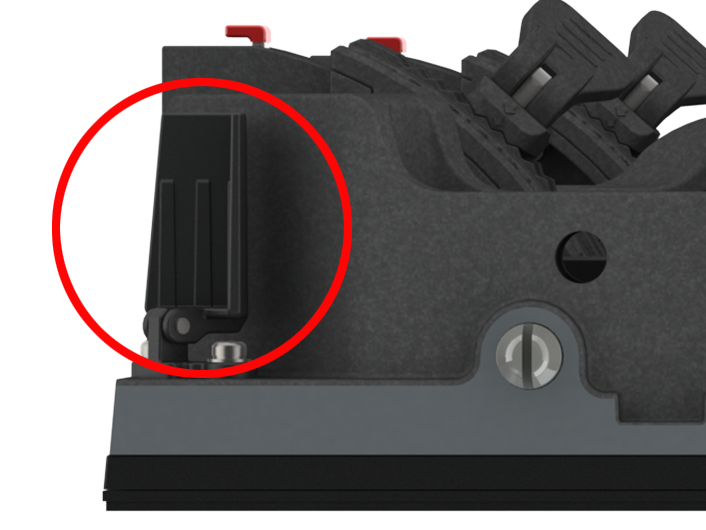

• Magnetic attach assistance — Cabinet-to-cabinet magnets hold panels temporarily while a single installer engages the quick-lock system.

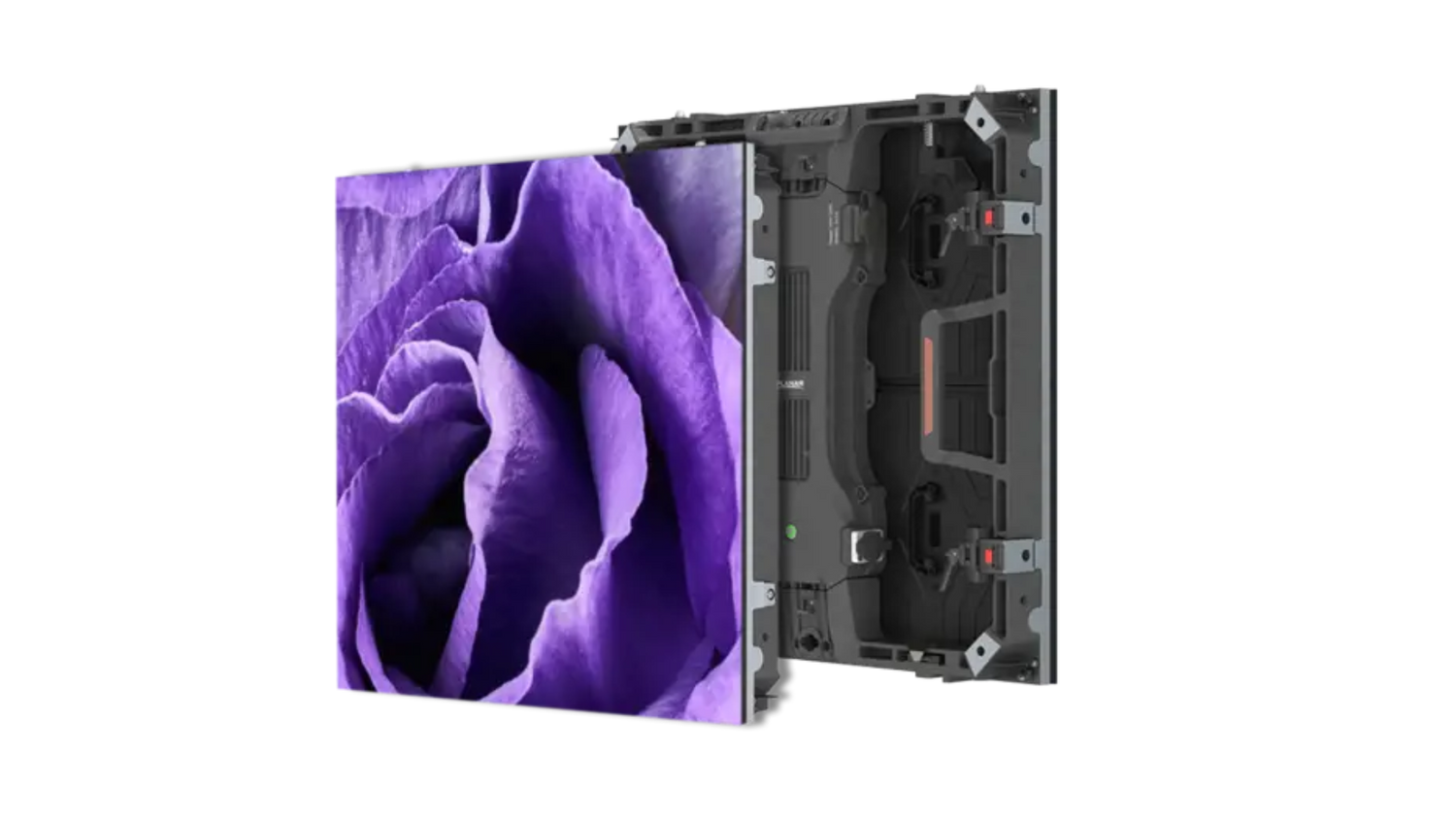

• Full front access — All electronics are reachable from the front, making wall mounting and in-place service practical.
• 600 nits brightness — Tuned for in-frame on-camera viewing at close shooting distances.
• R2+ Brompton receiver card — Cabinet is supplied with a Brompton R2+ Rx card for virtual production pipelines.
• 500x500mm cabinet — Can be hung, wall-mounted, floor-mounted, and faceted to form curves.
• Single power supply — Simplifies power distribution across the array.

Typical Applications

• In-camera virtual production and in-camera VFX stages
• Extended reality (XR) volumes and broadcast sets
• Curved and faceted creative video wall shapes
• Floor, wall, and hanging studio installations

Technical Specifications

Frequently Asked Questions

What is the Planar Venue Pro Series designed for?
It is engineered for in-camera virtual production and extended reality, with image properties tuned for on-camera viewing.

How does the magnetic attach system work?
Cabinet-to-cabinet magnets temporarily hold panels in place while a single installer engages the quick-lock system, enabling fast single-person handling.

Can this cabinet be serviced from the front?
Yes. All electronics are accessible from the front, which also makes wall mounting practical.

Which receiver card is included?
This configuration ships with a Brompton R2+ receiver card. Contact Creation Networks to confirm processor compatibility.

Can cabinets be arranged in curves?

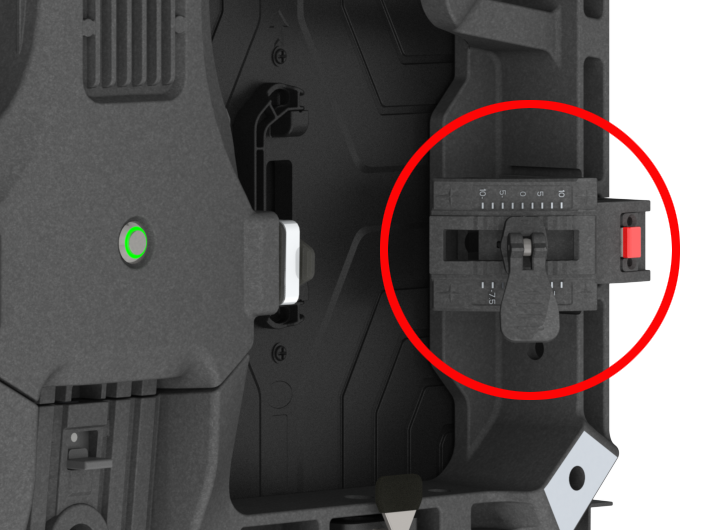

Yes. The 500x500mm cabinets can be hung, wall-mounted, floor-mounted, and faceted to form curves for creative stage geometry.

What brightness does this cabinet deliver?
It delivers 600 nits tuned for in-frame on-camera viewing. Contact Creation Networks to confirm specifications for your stage.
